Description

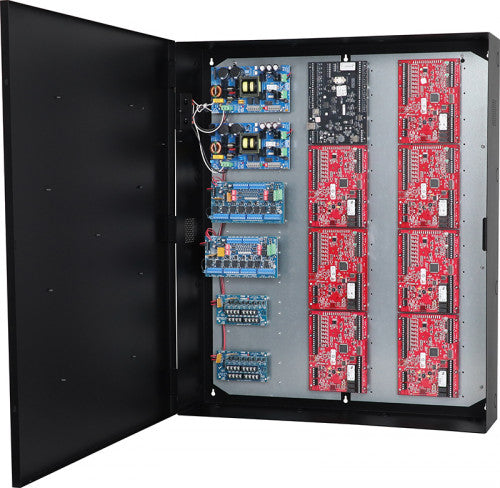

The Altronix MC-T3MK77F16SMC is a comprehensive access and power integration solution designed for Mercury-based access control systems. This kit includes the Trove3 enclosure and TM3 backplane, integrating two high-performance 24VDC @ 10A power supply/chargers, dual eight-fuse protected output access control modules, and dual eight-fuse power distribution modules.
Built for scalability, the T3MK77F16SMC accommodates a wide range of Mercury controllers—supporting up to 16 doors within a single enclosure—making it ideal for enterprise security installations. Its 16-gauge galvanized steel backplane simplifies board layout and wire management, reducing installation time and labor. The system ensures robust power supervision, UL294 compliance, and lifetime reliability, providing a unified and efficient platform for advanced access control.
| Category | Specification |
|---|---|
| Kit Components | Trove3 enclosure with TM3 backplane, (2) eFlow104NB power supply/chargers, (2) ACM8 access power controllers, (2) PD8UL power distribution modules |
| Power Supply/Chargers | 24VDC @ 10A output, 120VAC 60Hz 9A input, 6.3A fuse protection, auxiliary 1A (unswitched) |
| Battery Support | Supports up to (4) 12VDC/12AH batteries within enclosure; 40AH/65AH with external enclosure |
| Access Power Controllers (ACM8) | Eight (8) independently controlled fused outputs (24VDC), Fail-Safe/Fail-Secure options, Form “C” relays rated 28VAC/VDC @ 2.5A |
| Power Distribution Modules (PD8UL) | Eight (8) fused outputs, 24VDC, 3.5A/250V fuses with green LED indicators |
| Supervision Features | AC fail, low battery, battery presence, low power shutdown, fire alarm disconnect supervision |
| Compatible Mercury Boards | LP1501, LP1502, LP2500, LP4502, MR16IN, MR16OUT, MR50, MR52, MR62e, MUX8 |
| Enclosure Dimensions (H x W x D) | 36.12” x 30.125” x 7.06” (917.5mm x 768.1mm x 179.3mm) |
| Shipping Dimensions | 40.75” x 35.25” x 12” (1035.1mm x 895.4mm x 304.8mm) |
| Weight | Product: 85.6 lb (38.83 kg); Shipping: 98.8 lb (44.82 kg) |
| Environmental | Operating: 0°C–49°C; Storage: –20°C–70°C; Humidity: 85% ±5%; BTU/hr: 289 |
| Material | 16 AWG galvanized steel backplane |
| Agency Listings | UL294, cUL CAN/ULC-S319-05, CE (European Conformity) |
| Warranty | Lifetime warranty on Altronix power supplies and sub-assemblies |
| Note | Mercury boards not included |
