Description

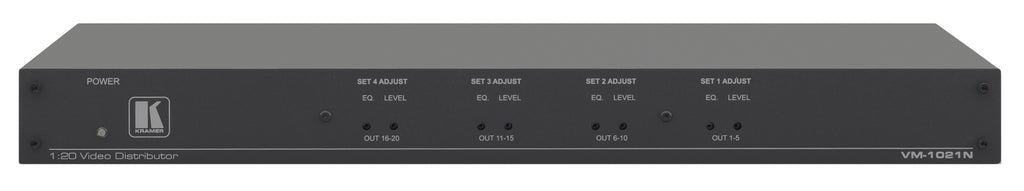

The Kramer VM-1021N/110V is a high-performance 1:20 composite or SD-SDI video distribution amplifier engineered for professional broadcast, production, and AV environments. Designed to maintain optimal signal integrity over long cable runs, it features grouped gain and EQ controls to compensate for losses, ensuring clean, stable, and consistent output quality across all 20 video outputs.
With its wide 350MHz bandwidth, looping input, selectable input termination, and DC-coupled architecture, the VM-1021N/110V delivers exceptional accuracy, low distortion, and high signal-to-noise performance. Built in a durable 1U rack-mountable enclosure and powered for 110V operation, this amplifier is ideal for studios, control rooms, post-production facilities, and large-scale video distribution systems.
| Specification | Details |
|---|---|

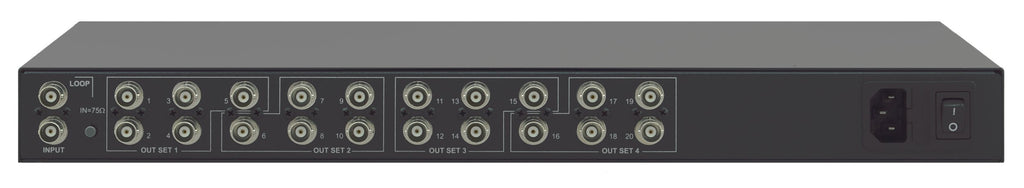

| Input | 1 composite video/single component with loop; 1Vpp/75Ξ© on BNC; termination switch |
| Outputs | 20 composite/component video; 1Vpp/75Ξ© on BNC |
| Video Bandwidth (-3dB) | 350MHz |
| Differential Gain | 0.1% |
| Differential Phase | 0.07Β° |
| K-Factor | <0.05% |
| Video S/N Ratio | 74dB |
| Controls | Level: β1.1dB to +2.7dB; EQ: 0 to 2.9dB @ 4.4MHz |
| Non-Linearity | 0.1% |
| Coupling | DC |
| Power Consumption | 230V AC 50/60Hz (115V USA), 6.7VA |
| Operating Temperature | 0Β° to +40Β°C (32Β° to 104Β°F) |
| Storage Temperature | β40Β° to +70Β°C (β40Β° to 158Β°F) |
| Humidity | 10% to 90% RHL, non-condensing |
| Included Accessories | Power cord |
| Product Dimensions | 19" x 7.20" x 1U (43.6cm x 18.30cm x 4.36cm) |
| Product Weight | 1.6kg (3.6lbs) approx. |
| Shipping Dimensions | 55.00cm x 27.60cm x 10.70cm |
| Shipping Weight | 2.5kg (5.4lbs) approx. |
