Description
The Kramer VM-4DT is a professional-grade long-reach HDBaseT distribution amplifier designed to extend and distribute a single 4K@60Hz (4:2:0) video signal to up to four remote displays. Ideal for enterprise AV, education, corporate conferencing, and digital signage deployments, this unit ensures high-performance signal integrity with equalization, reclocking, and full HDBaseT compliance.
Supporting HDMI 2.0, HDCP 1.4, deep color formats, Dolby and DTS audio standards, and extended reach via CAT cables, the VM-4DT maintains exceptional AV quality over long distances. With LED status indicators, Plug-and-Play EDID handling via Kramer’s I-EDIDPro™, and a compact fan-cooled desktop enclosure, it is built for reliable 24/7 operation in demanding installations.
| Category | Details |
|---|---|

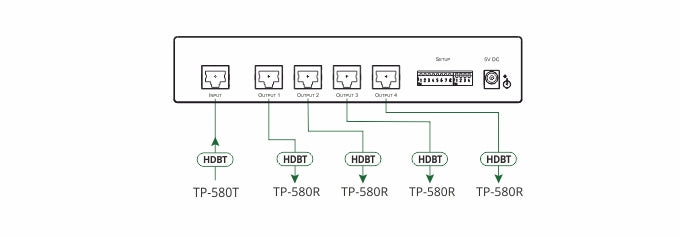

| Input | 1 HDBaseT on RJ-45 (female) |
| Outputs | 4 HDBaseT on RJ-45 (female) |
| Max Data Rate | 10.2Gbps (3.4Gbps per graphic channel) |
| Range Extension | Up to 40m (130ft) at 4K@60Hz (4:2:0); Up to 70m (230ft) at 1080p@60Hz (36bpp) |
| Max Video Resolution | 4K@60Hz (4:2:0), 24bpp |
| Compliance | HDMI 2.0, HDCP 1.4, HDBaseT 1.0 |

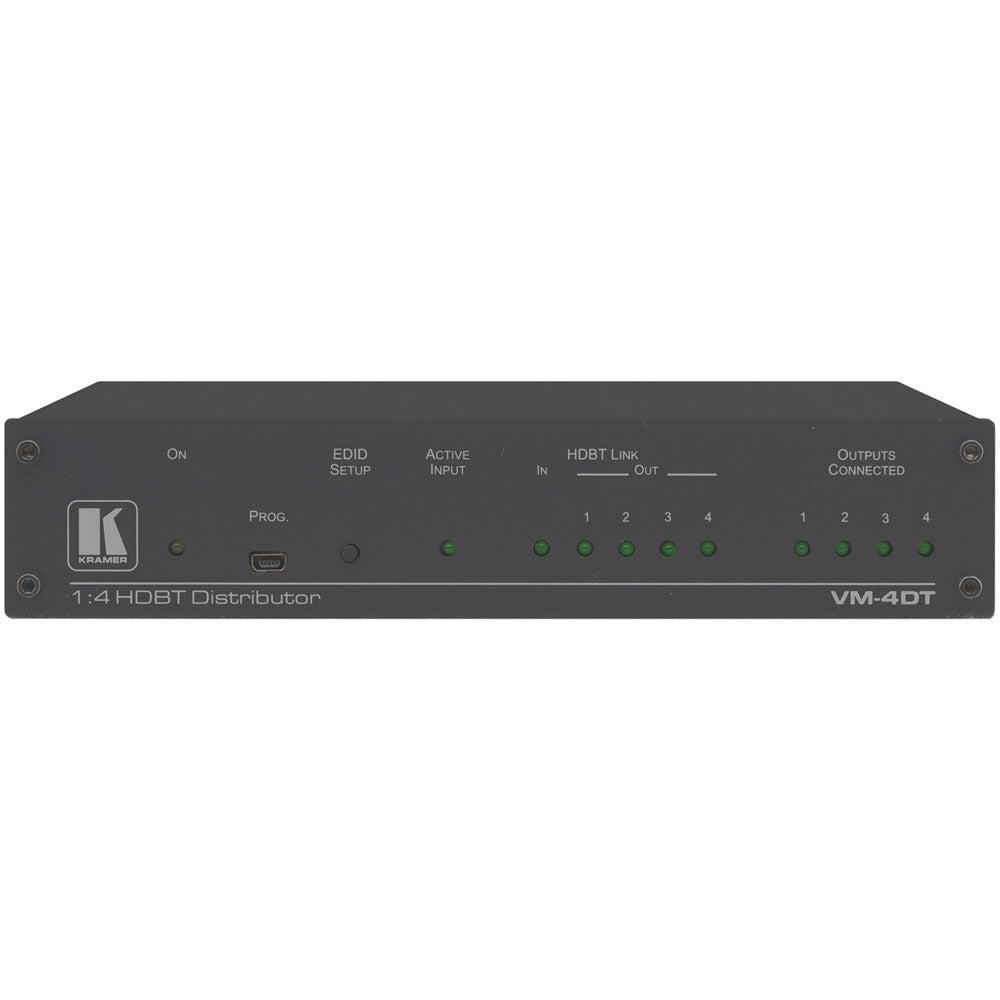

| Controls | EDID setup button; LED indicators for Outputs 1–4, Link 1–4, active input, power |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Humidity | 10% to 90%, non-condensing |
| Power | 5.2V DC, 4A (consumption: 5V DC, 3.5A) |
| Enclosure | Aluminum desktop-type |
| Cooling | Fan-ventilated |
| Product Dimensions | 18.75 × 11.50 × 2.54 cm (7.38" × 4.53" × 1.00") W × D × H |
| Product Weight | 0.5 kg (1.2 lb) approx. |
| Shipping Dimensions | 34.50 × 16.50 × 5.20 cm (13.58" × 6.50" × 2.05") |
| Shipping Weight | 1.3 kg (2.8 lb) approx. |
| Included Accessories | Power supply |
| Optional Accessories | RK-1 19” rack adapter |
