Description

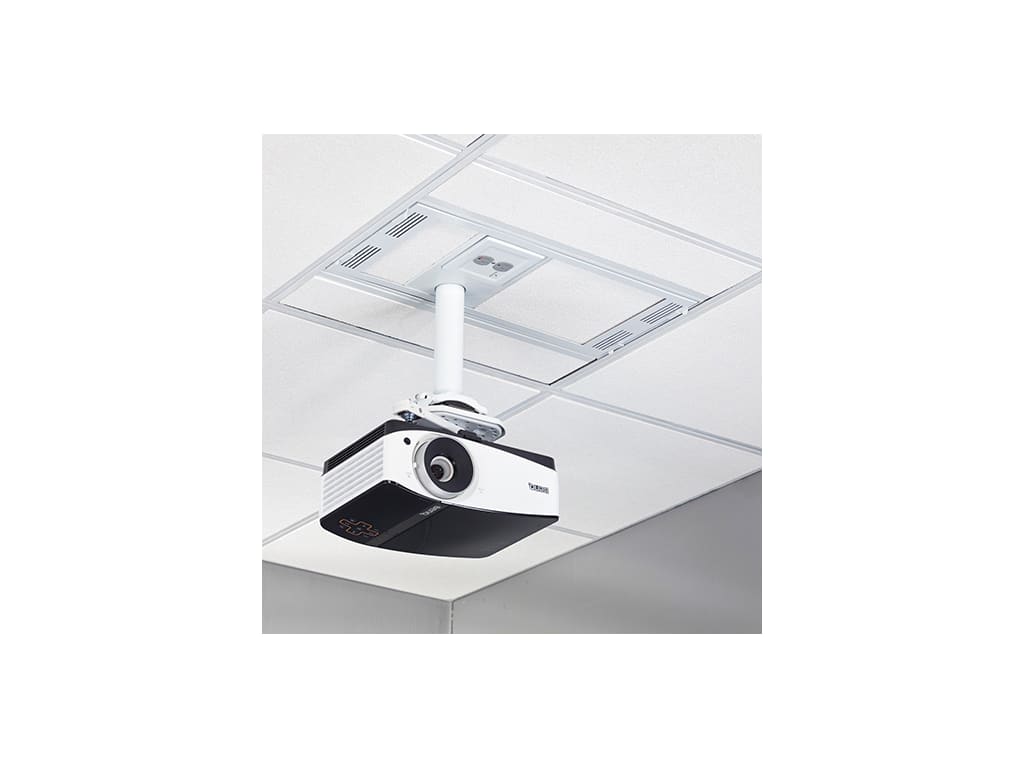

The Chief CMS491CP2 is a plenum-rated 1' × 2' above-ceiling storage box with integrated column drop support, designed to conceal AV equipment while maintaining a clean, professional ceiling appearance. It installs directly into a standard suspended ceiling grid and supports a 1.5" NPT column drop for projector mounting within the same tile space.
This solution includes a high-performance dual-gang power module with integrated surge protection and line filtering to protect sensitive AV equipment from power disturbances, high-frequency noise, and electronic interference. Built-in ventilation and accessible drop-down door design simplify serviceability while supporting reliable long-term operation.
Ideal for classrooms, conference rooms, and commercial AV installations, the CMS491CP2 combines secure equipment storage, power protection, and plenum-rated compliance in a lightweight, installer-friendly design.
| Specification | Details |
|---|---|
| Manufacturer | Chief |
| Model | CMS491CP2 |
| Product Type | Above-Ceiling AV Storage Box with Column Drop |
| Ceiling Tile Size | 1' × 2' (30.48 × 60.33 cm) |
| Color | White |
| Mounting Location | Suspended Ceiling |
| Column Drop Support | Supports 1.5" NPT column drop (column not included) |
| Power Outlet | Dual-gang surge-protected and filtered receptacle |
| Surge Protection | Non-sacrificial multi-stage surge protection |
| Noise Filtering | Reduces common and differential mode noise up to 40 dB |
| Electrical Rating | 125V~, 60Hz, 15A |
| Maximum Power Output | 1875 W continuous |
| Weight Capacity | 100 lbs (45.4 kg) total |
| Projector Plate Capacity | 50 lbs (22.7 kg) |
| Shelf Capacity | 25 lbs (11.3 kg) per shelf location |
| Ventilation | Integrated ventilation |
| Knockouts | Four nested knockouts for 1-1/4", 1", and 1/2" conduit |
| Installation | Lightweight construction for single-person install |
| Compliance | UL Listed, plenum-rated for air-handling spaces |
| Application | Commercial AV, Education, Corporate |
| Included Hardware | Speed-connect installation hardware |
