Description

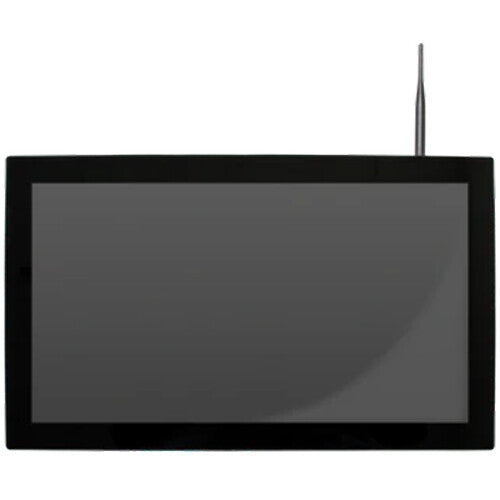

The Mimo Monitors MOT-10180CH-EDL is a rugged 10.1-inch outdoor commercial display engineered for reliable performance in demanding environments. Designed with an IP65-rated enclosure, this high-brightness display is protected against water, dust, and debris, making it ideal for outdoor digital signage, kiosks, and interactive installations.
With a vivid 1000-nit LCD panel, the display delivers excellent visibility in both direct sunlight and ambient lighting conditions. The integrated ambient light sensor automatically adjusts brightness levels to optimize visibility while reducing power consumption. Powered by Android 8.1 and the RK3288 processor, this all-in-one solution supports seamless media playback and interactive applications without requiring an external player.
The durable aluminum housing and vandal-resistant glass ensure long-term reliability in high-traffic environments. Whether deployed in outdoor dining, transportation hubs, amusement parks, or service stations, this display provides a dependable and professional-grade solution for 24/7 operation.
| Specification | Details |
|---|---|
| Display Size | 10.1 inches |
| Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 |
| Brightness | 1000 nits |
| Contrast Ratio | 800:1 |
| Viewing Angle | 85°/85°/85°/85° |
| Touch Technology | 10-point capacitive touch (Windows & Linux HID compatible) |

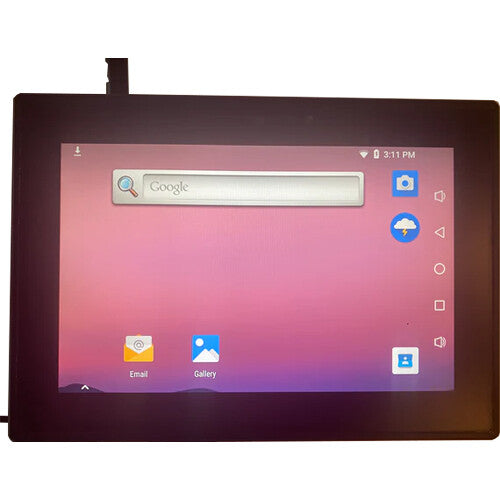

| Operating System | Android 8.1 |
| Processor | RK3288 |
| Protection Rating | IP65 (dust-tight and water-resistant) |
| Cover Glass | Anti-glare (AG), 3H hard coating, IK10 vandal-resistant |
| Connectivity | HDMI input, HDMI output, USB (touch), 3.5mm audio |
| Mounting | VESA 100 x 100 mm |
| Brightness Control | Ambient light sensor (auto-adjust) |

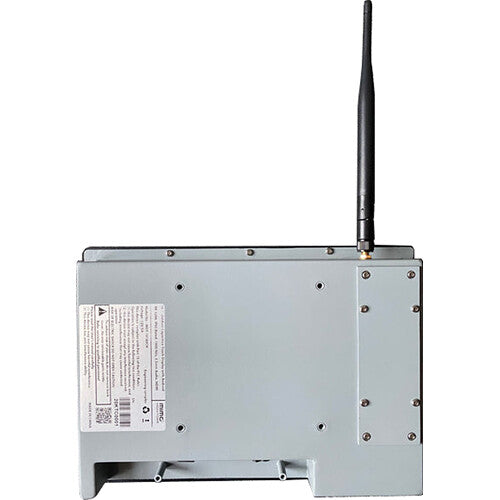

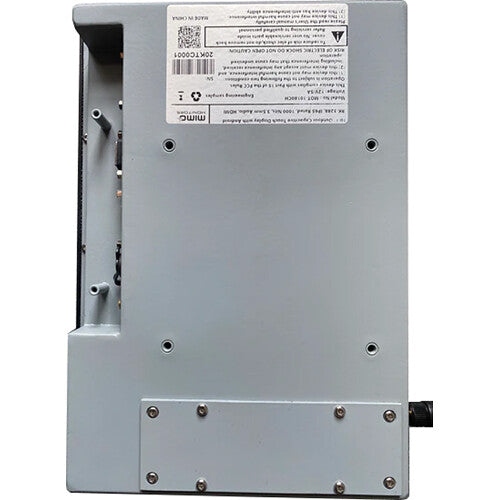

| Housing | All-aluminum enclosure for outdoor durability |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Power Consumption | 20W maximum |
| Installation Note | Recommended for shaded installations to prevent overheating and ensure safe touch interaction |
| Use Case | Outdoor kiosks, menu boards, transportation hubs, gas stations, stadiums, wayfinding |
| Warranty | 1 Year |
