Description

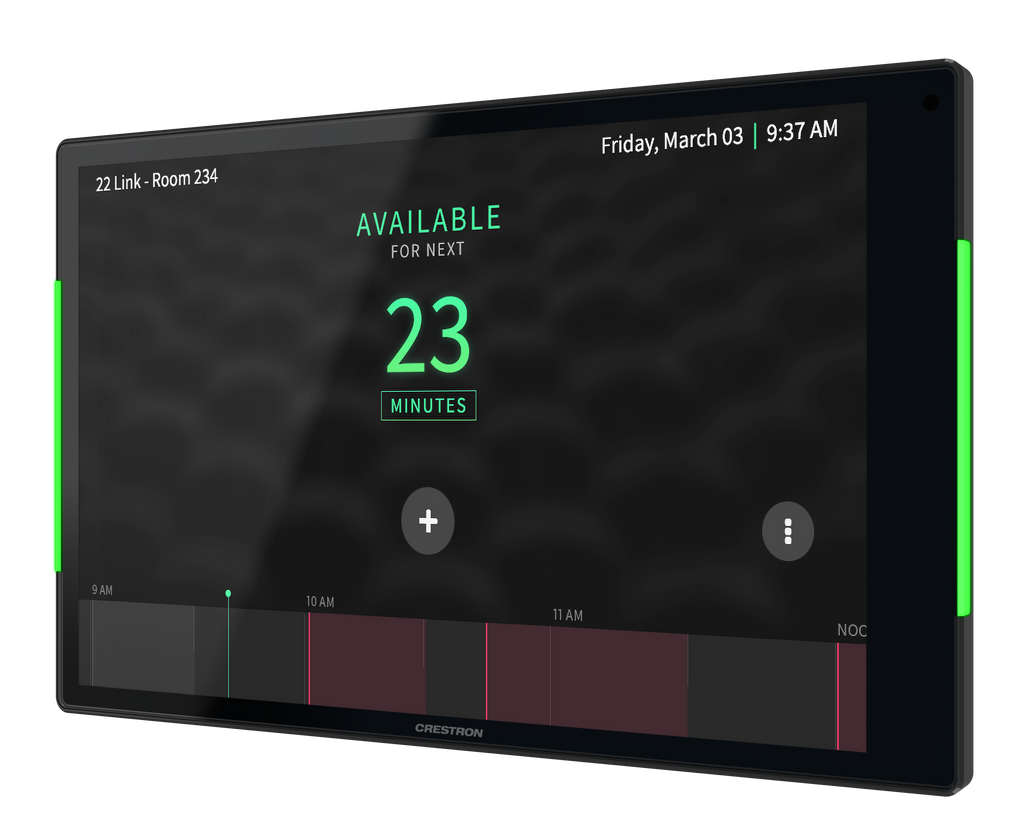

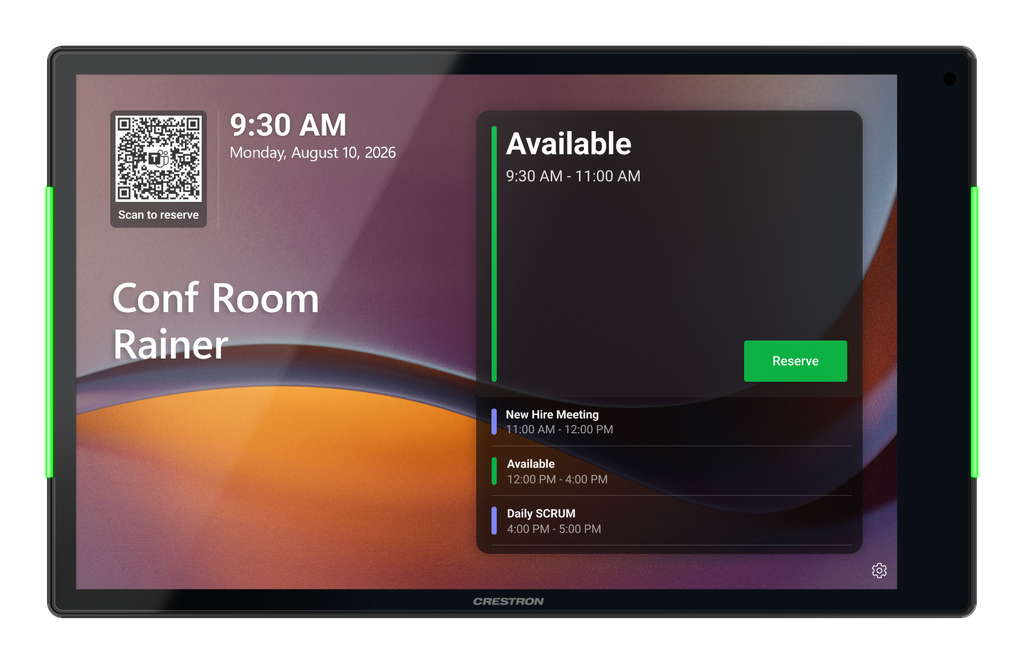

The Crestron TSS-1080-B is a high-performance 10.1-inch room scheduling touch screen designed to streamline meeting space management across enterprise environments. Installed outside conference rooms or huddle spaces, it provides clear, real-time room availability status and enables seamless booking through integrated scheduling platforms.
Built for reliability and continuous operation, the TSS-1080-B features a vibrant WUXGA display, responsive multi-touch interface, and integrated light bars for instant visual status indication. It supports direct integration with Microsoft 365, Exchange, Google Calendar, and other leading scheduling platforms, while also allowing deployment of third-party scheduling applications.
With enterprise-grade security, flexible mounting options, and both PoE and Wi-Fi connectivity, the TSS-1080-B delivers a scalable and secure solution for modern workplace scheduling. Its robust design, centralized cloud management compatibility, and advanced networking capabilities make it ideal for corporate, education, and government deployments.
| Category | Specification |
|---|---|
| Display Type | TFT active matrix color LCD |
| Screen Size | 10.1 in. (257 mm) diagonal |
| Aspect Ratio | 16:10 WXGA |
| Resolution | 1920 x 1200 pixels |
| Brightness | 350 to 400 nits |
| Contrast Ratio | 1000:1 |
| Color Depth | 24-bit, 16.7 million colors |
| Viewing Angle | ±80° horizontal, ±80° vertical |
| Touch Technology | Projected capacitive, 5-point multitouch |
| Illumination | Edge-lit LED with auto brightness control |
| Virtual Buttons | 6 configurable toolbar buttons |
| Reset | Pinhole reset button |
| Scheduling Platforms | Microsoft Exchange, Microsoft 365, Google Calendar, G Suite, CollegeNET 25Live, Ad Astra |
| Third-Party App Support | Supported via firmware updates |
| RAM | 8 GB LPDDR4 |
| Storage | 40 GB eMMC pSLC |
| Maximum Project Size | 1000 MB |
| Ethernet | Gigabit Ethernet, full protocol support (TCP/IP, DHCP, SSL, TLS, SSH, SNMP, IPv4/IPv6) |
| Wi-Fi | Wi-Fi 6E (802.11 a/b/g/n/ac/ax), 2x2 MIMO |
| Wireless Security | WEP, WPA, WPA2, WPA3, WPA Enterprise |
| Bluetooth | Integrated Bluetooth beacon |
| USB | USB Type-C, USB 2.0 host |
| Video Decoding | H.265, H.264, MJPEG |
| Audio Formats | AAC stereo |
| Streaming Resolution | Up to 3840 × 2160 @ 30 fps |
| Audio Features | Built-in speakers |
| LAN Port | RJ-45 with PoE+ support |
| Power | IEEE 802.3at PoE+ (30W) or 802.3af fallback |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 95% non-condensing |
| Heat Dissipation | 44 BTU/hr |
| Construction | Die-cast housing with glass front |
| Mounting Options | Wall, surface, lectern, electrical box compatible |
| Dimensions (H x W x D) | 5.96 x 9.68 x 1.18 in. |
| Weight | 1.27 lb |
| Compliance | FCC Class B, CE, UL Listed |
| Regulatory Model | M202404002 |
