Description

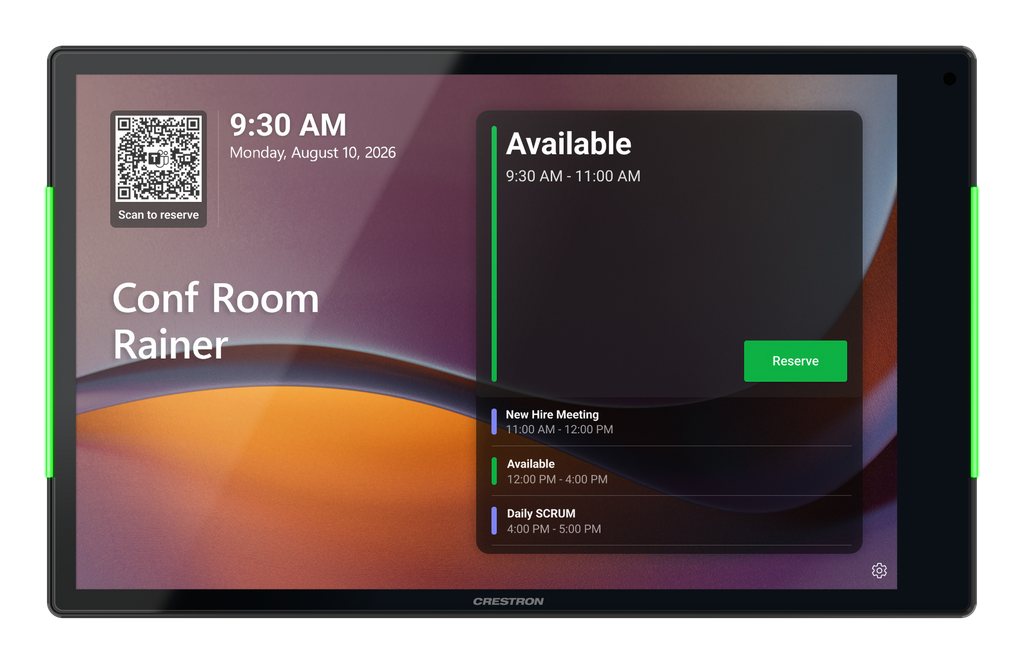

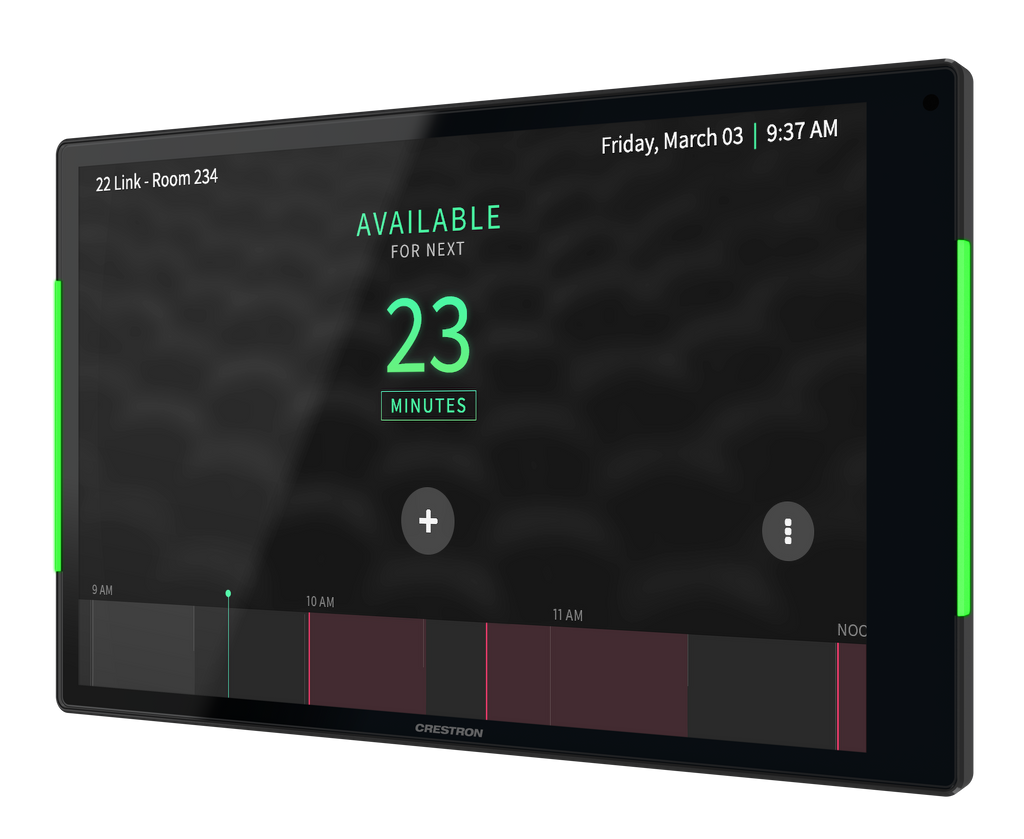

The Crestron TSS-1080-GV-B is a 10.1-inch enterprise-grade room scheduling touch screen engineered for secure and reliable deployment in government and high-security environments. Designed to streamline meeting room management, it provides clear, real-time availability status while seamlessly integrating with leading scheduling platforms such as Microsoft 365, Exchange, Google Calendar, and other enterprise solutions.
Built with privacy and compliance in mind, this government version removes wireless communication features and sensors, ensuring enhanced data security without compromising performance. Its high-resolution WUXGA display, responsive multi-touch interface, and integrated status light bars deliver an intuitive user experience for booking, monitoring, and managing meeting spaces.
With Power over Ethernet (PoE+) support, flexible mounting options, and robust enterprise-grade networking and security protocols, the TSS-1080-GV-B is ideal for corporate offices, government facilities, and educational institutions seeking a dependable, scalable room scheduling solution.
| Specification | Details |
|---|---|
| Display Type | TFT active matrix color LCD |
| Screen Size | 10.1 in. (257 mm) diagonal |
| Resolution | 1920 x 1200 (WUXGA) |
| Aspect Ratio | 16:10 |
| Brightness | 350 to 400 nits |
| Contrast Ratio | 1000:1 |
| Color Depth | 24-bit, 16.7 million colors |
| Viewing Angle | ±80° horizontal and vertical |
| Touch Technology | Projected capacitive, 5-point multitouch |
| Virtual Buttons | 5 configurable buttons with toolbar |
| Memory (RAM) | 8 GB LPDDR4 |
| Storage | 40 GB eMMC pSLC |
| Networking | Gigabit Ethernet with full TCP/IP support, IPv4/IPv6 |
| Security Protocols | 802.1X, TLS, SSL, SSH, HTTPS, Active Directory authentication |
| USB Ports | USB-C and USB 2.0 host |
| Video Decoding | H.265, H.264, MJPEG up to 4K@30fps |
| Audio Support | AAC stereo, built-in speakers |
| Power | PoE+ (IEEE 802.3at Type 2), 30W max |
| Mounting Options | Wall, surface, lectern, electrical box compatible |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Humidity | 10% to 95% RH non-condensing |
| Dimensions | 5.96" H x 9.68" W x 1.18" D |
| Weight | 1.27 lb |
| Construction | Die-cast housing with glass front |
| Compliance | FCC Class B, CE, UL listed |
