Description

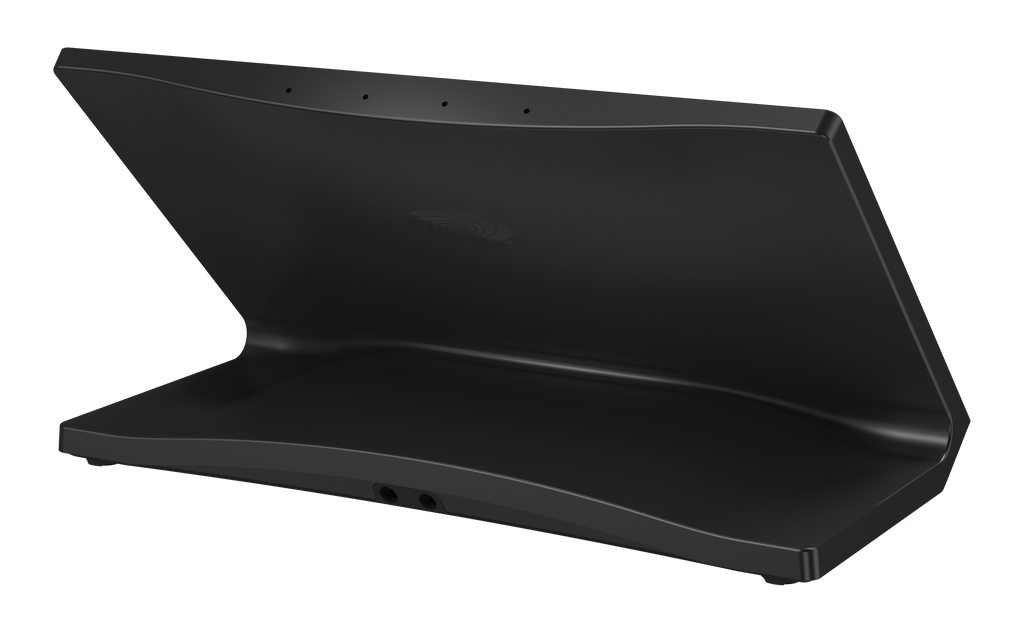

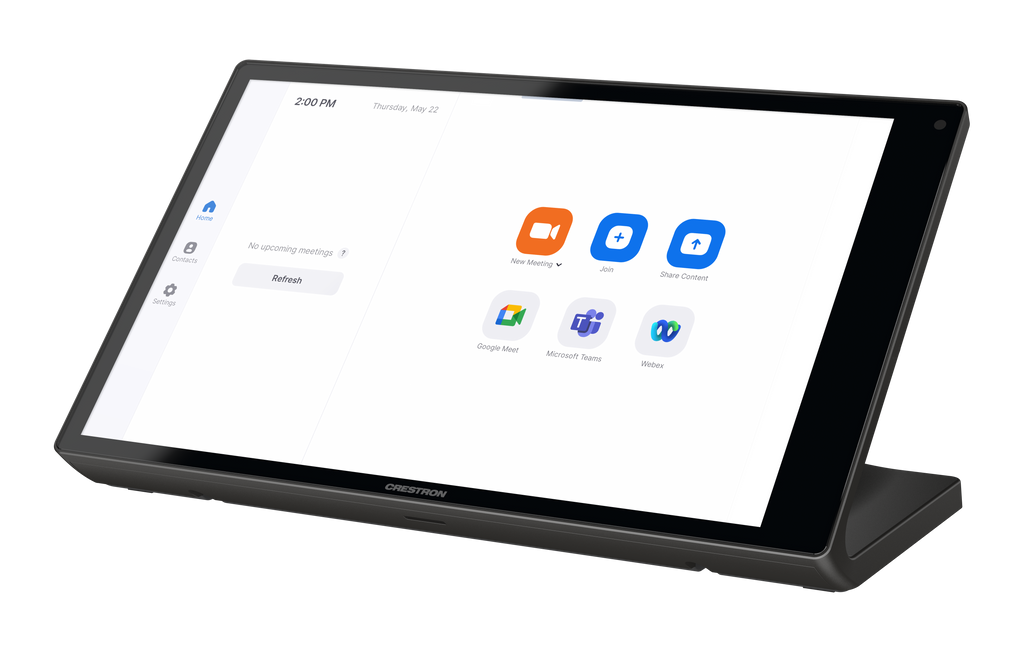

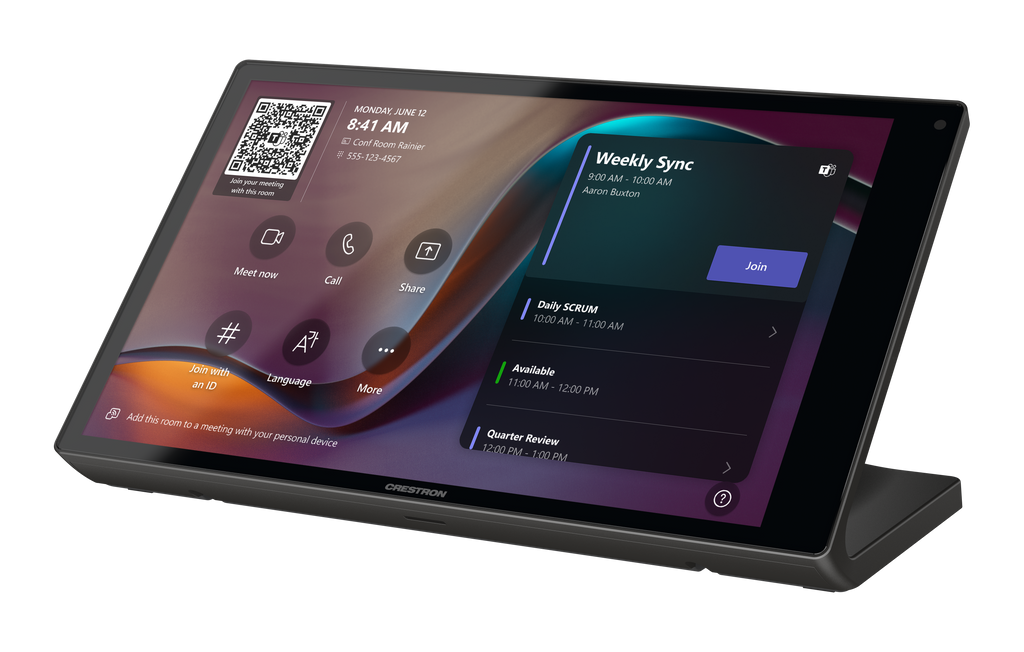

The Crestron TS-1080-UC-B is a 10.1-inch tabletop touch screen engineered for modern unified communications environments. Designed to seamlessly integrate with compatible UC engine systems, this enterprise-grade interface delivers intuitive control over conferencing, room scheduling, and AV environments from a single device.
With a high-resolution 1920 × 1200 capacitive display, users benefit from crisp visuals and responsive multi-touch interaction. Built for flexibility, the device supports PoE connectivity, enabling streamlined installation with a single cable for power, control, and data. Its compatibility with Crestron Collab Compute, Videobar systems, and AirMedia solutions ensures scalable deployment across meeting rooms of all sizes.
The TS-1080-UC-B also features robust enterprise-level security protocols, built-in speakers, and advanced HTML5-based UI capabilities, making it ideal for organizations requiring secure, reliable, and high-performance room control and conferencing interfaces.
| Category | Specification |
|---|---|
| Display Type | TFT active matrix color LCD |
| Screen Size | 10.1 in. (257 mm) diagonal |
| Resolution | 1920 x 1200 (WUXGA) |
| Aspect Ratio | 16:10 |
| Brightness | 350 to 400 nits |
| Contrast Ratio | 1000:1 |
| Color Depth | 24-bit, 16.7 million colors |
| Touch Technology | Projected capacitive, 5-point multitouch |
| Viewing Angle | ±80° horizontal and vertical |
| Graphics Engine | HTML5 web browser, streaming video, native UC apps, Zoom Rooms support |
| Memory | 8 GB LPDDR4 RAM |
| Storage | 40 GB eMMC |
| Maximum Project Size | 1000 MB |
| Ethernet | 10/100/1000 Mbps, full protocol support including IPv4/IPv6, SNMP, HTTPS, SSH |
| USB | USB Type-C and USB 2.0 host |
| Audio | Built-in speakers |
| Video Support | H.265, H.264, MJPEG up to 4K @ 30fps |
| Bitrate | Up to 25 Mbps (20 Mbps recommended) |
| Protocol | RTSP |
| LAN Port | RJ-45 with PoE+ support |
| Power | PoE+ (IEEE 802.3at Type 2), 30W max |
| Environmental Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 95% non-condensing |
| Construction | Die-cast housing with glass front |
| Dimensions (H x W x D) | 5.96 x 9.68 x 4.53 in. |
| Weight | 2.23 lb (1012 g) |
| Compliance | FCC Class B, CE, UL Listed |
| Security | 802.1X, TLS, SSL, Active Directory authentication |
| Compatibility | Crestron Collab Compute, Videobar 70, AirMedia Series 3 |
