Description

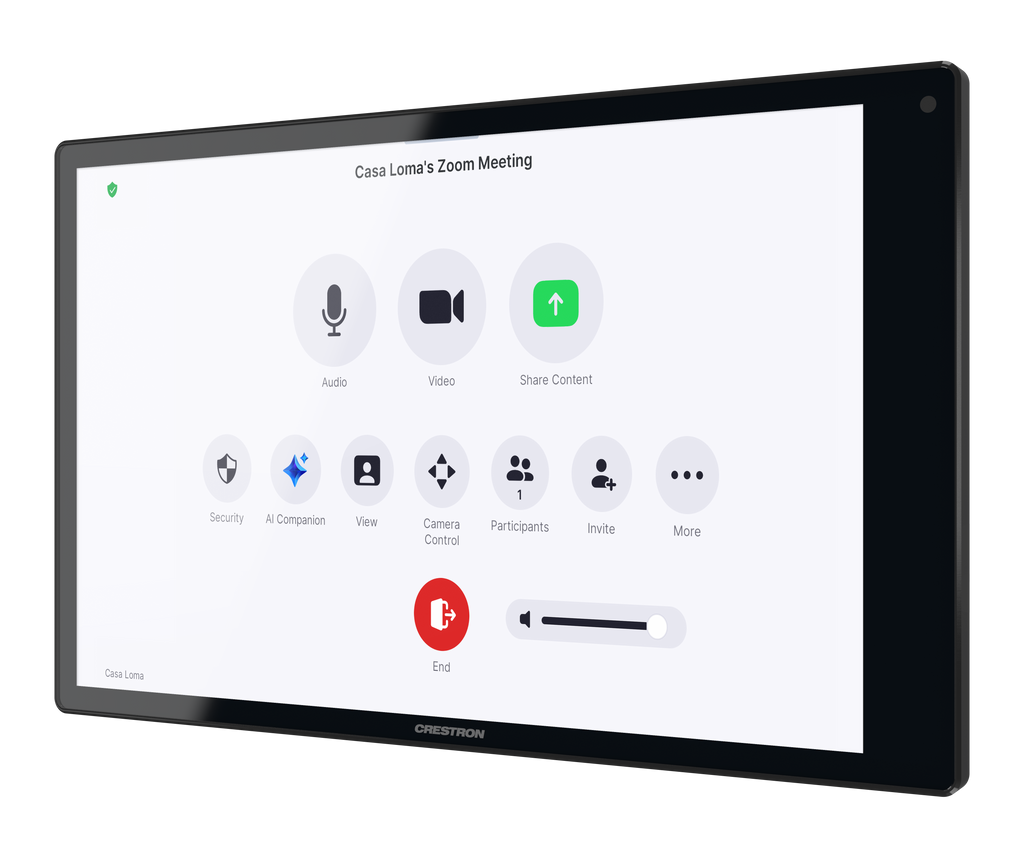

The Crestron TSW-1080-UC-B is a premium 10.1-inch wall mount touch screen engineered for modern unified communications environments. Designed to seamlessly integrate with compatible UC engine systems, this enterprise-grade interface delivers intuitive room control, streamlined collaboration, and a refined user experience across corporate meeting spaces.
With a high-resolution WUXGA display, responsive capacitive multitouch interface, and built-in speakers, the TSW-1080-UC-B enhances both control and visibility in any deployment. Power over Ethernet simplifies installation by delivering power, control, and connectivity over a single cable, making it ideal for both new builds and retrofit projects.
Built for flexibility, the device supports integration with Crestron collaboration platforms, AirMedia wireless presentation systems, and room scheduling accessories via USB-C. Enterprise-level security features, including secure authentication protocols and encrypted communications, ensure safe deployment across corporate networks.
| Category | Specification |
|---|---|
| Display Type | TFT active matrix color LCD |
| Screen Size | 10.1 in. (257 mm) diagonal |
| Resolution | 1920 x 1200 (WUXGA) |
| Aspect Ratio | 16:10 |
| Brightness | 350 to 400 nits |
| Contrast Ratio | 1000:1 |
| Color Depth | 24-bit, 16.7 million colors |
| Viewing Angle | ±80° horizontal, ±80° vertical |
| Touch Technology | Projected capacitive, 5-point multitouch |
| Virtual Buttons | 5 configurable buttons (Power, Home, Lights, Up, Down) |
| Memory (RAM) | 8GB LPDDR4 |
| Storage | 40GB eMMC pSLC |
| Ethernet | 10/100/1000 Mbps with PoE/PoE+ support |
| Network Protocols | TCP/IP, UDP/IP, DHCP, HTTPS, SSL/TLS, SSH, SNMP, IPv4/IPv6 |
| Security | 802.1X authentication, Active Directory integration |
| USB Ports | 1 x USB Type-C (USB 2.0 host, DisplayPort Alt Mode ready) |
| Audio | Built-in speakers |
| Video Streaming | H.265, H.264, MJPEG up to 4K@30fps |
| Audio Formats | AAC stereo |
| Power | PoE (IEEE 802.3af/at), up to 30W (PoE+) |
| Environmental | 32° to 104°F (0° to 40°C), 10% to 95% RH |
| Construction | Die-cast housing with glass front, black or white finish |
| Mounting | Wall mount (accessories sold separately) |
| Dimensions (H x W x D) | 5.96 x 9.68 x 1.18 in. |
| Weight | 1.21 lbs (550 g) |
| Compliance | FCC Class B, CE, UL Listed |
