Description

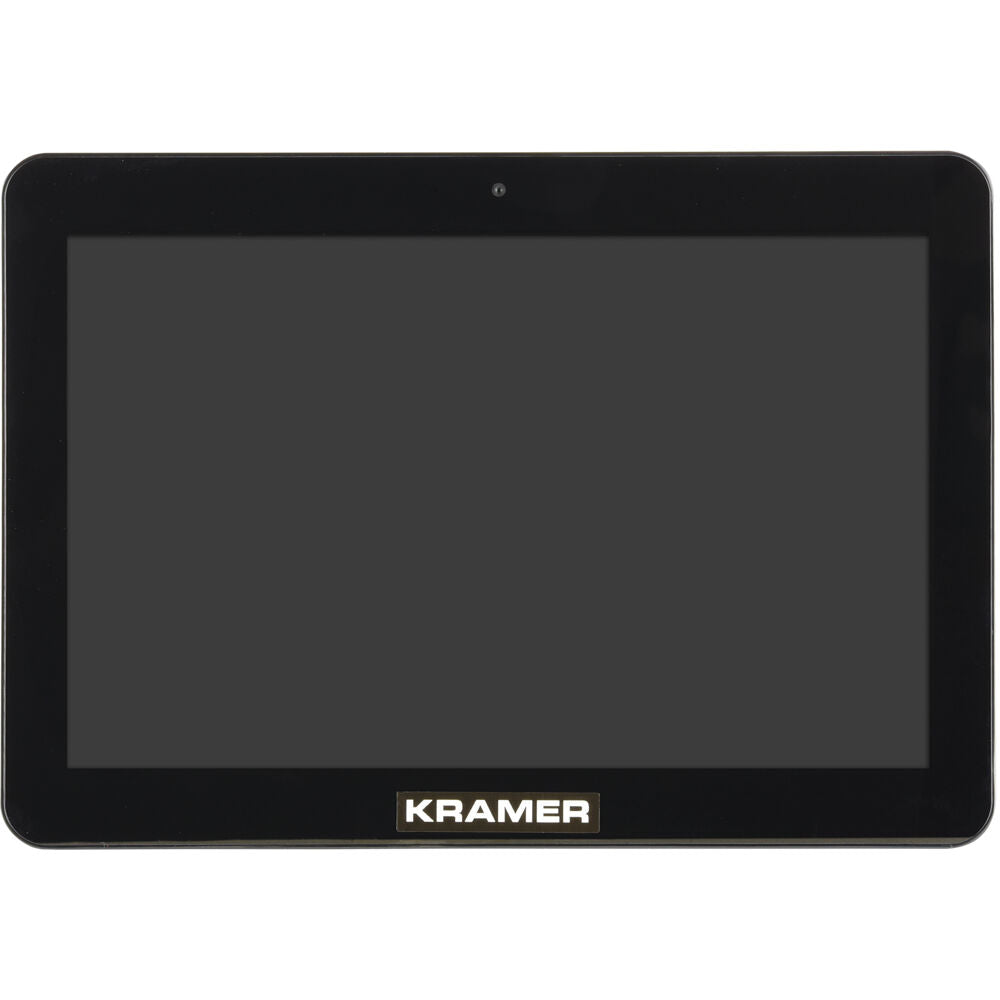

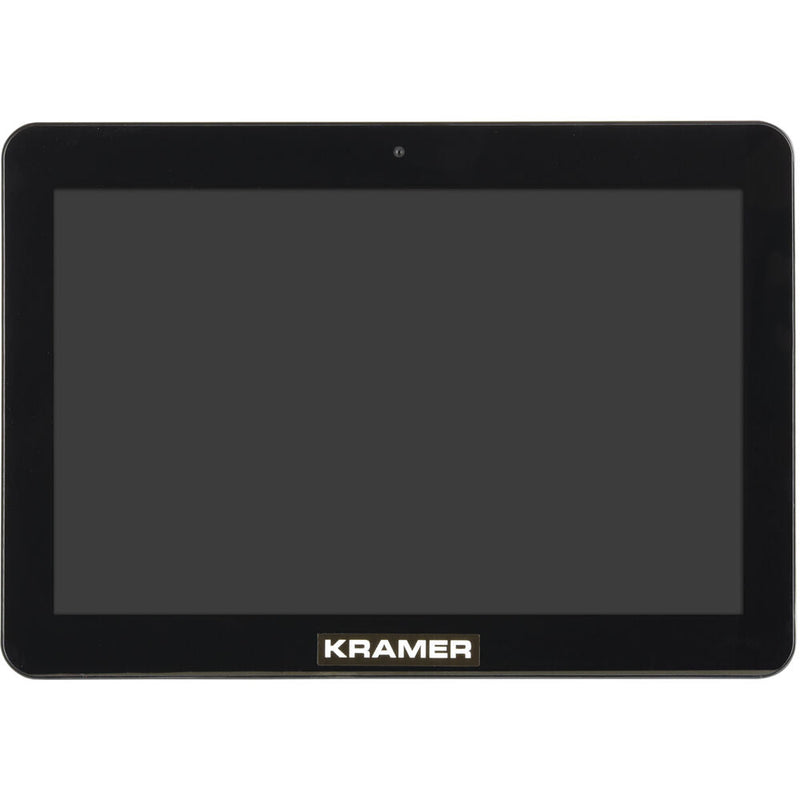

The Kramer KT-1010 is a sleek, 10-inch IPS multi-touch control panel designed for seamless room integration across commercial AV, meeting rooms, and 24/7 automation environments. With a crisp 1280×800 resolution, wide viewing angles, and responsive 10-point capacitive touch, it delivers an intuitive and highly customizable user experience.
Powered via PoE or included 12V adapter, the KT-1010 offers effortless installation on either walls or tabletops using the supplied mounting hardware. Its Android-based platform ensures smooth operation of Kramer control applications, graphics-rich interfaces, and video/audio handling thanks to a robust quad-core processor, 2GB RAM, and 8GB of storage.
Designed for reliability and flexibility, the KT-1010 supports wired Gigabit Ethernet and advanced 802.11ac Wi-Fi, along with Bluetooth, USB connectivity, and secure deployment features such as hidden controls and password-protected operation. This professional-grade panel elevates any Pro AV installation with elegant design, dependable performance, and simple integrator-friendly setup.
| Category | Specification |
|---|---|
| Display | 10.1" IPS TFT LCD, 1280×800 resolution, LED backlight |
| Touch Technology | 10-point capacitive multi-touch |
| Viewing Angle | 75°–85° horizontal/vertical |
| Brightness / Contrast | 350 cd/m², 800:1 |
| Processor | Cortex-A17 quad-core, up to 1.8 GHz |
| GPU | Mali-T764 with TE, ASTC, AFBC technology |
| Memory | 2GB DDR3 SDRAM |
| Internal Storage | 8GB eMMC |
| External Storage | SDHC Class 10 SD card slot |
| Operating System | Android 6.0 |
| Video Formats Supported | MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV |
| Audio Formats Supported | MP2, WMA, WAV, AAC, OGG, ASF |
| Camera | 2MP front camera (optional), red LED activity indicator |
| Speakers | 2W + 2W |
| Connectivity | 1× RJ-45 Ethernet (10/100/1000 Mbps), 1× USB 2.0 Type-A, 1× micro-USB 2.0, 1× 3.5mm headphone jack |
| Wireless | Wi-Fi 802.11a/b/g/n/ac, Bluetooth 4.2 |
| Power Options | 12V/2A DC adapter, PoE |
| User Controls | Volume, menu, power buttons |
| Indicators | LED sidebars for room status |
| Accessories Included | Power adapter, LED side bars, table mount, wall mount brackets, screws |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | −10°C to +55°C (14°F to 131°F) |
| Humidity | 10%–90% non-condensing |
| Product Dimensions (W×D×H) | 25.21 × 2.40 × 17.78 cm (9.93" × 0.94" × 7.00") |
| Product Weight | 0.6 kg (1.4 lbs) |
| Shipping Dimensions (W×D×H) | 33.50 × 25.80 × 19.00 cm (13.19" × 10.16" × 7.48") |
| Shipping Weight | 3.3 kg (7.3 lbs) |
