Description

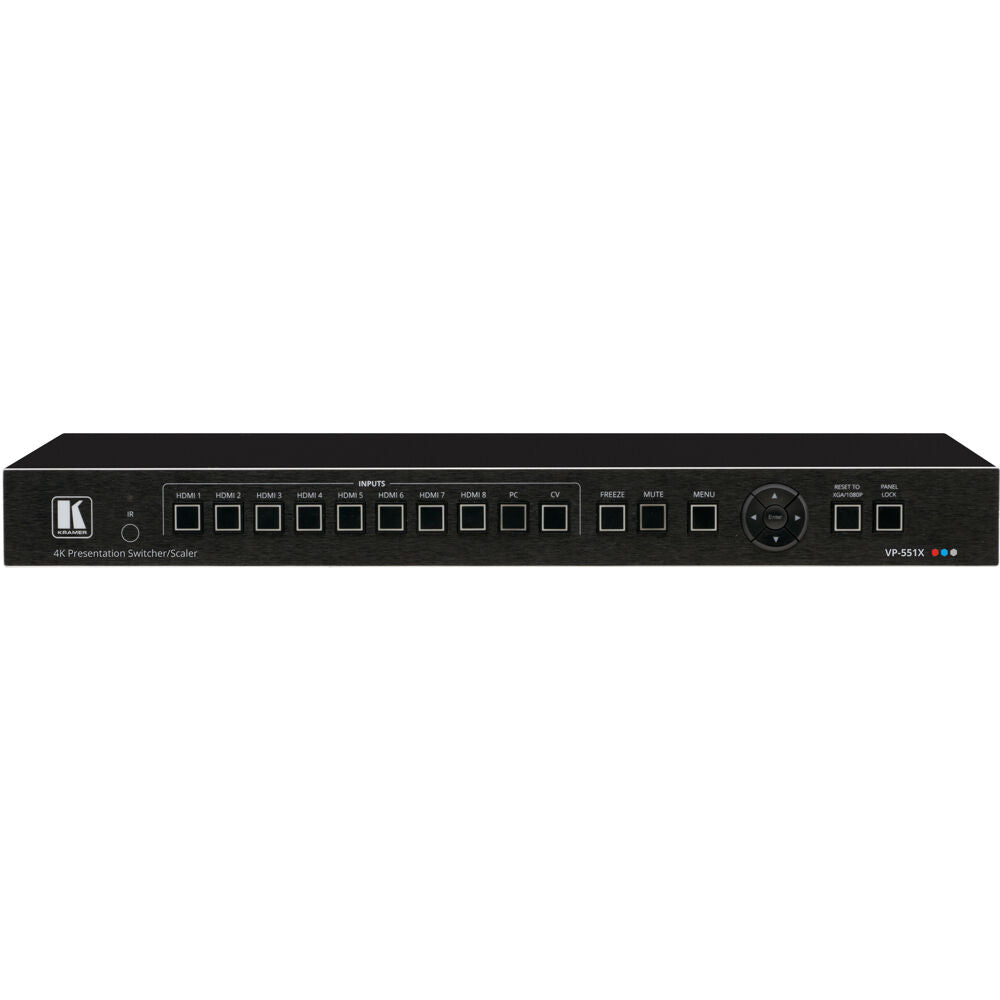

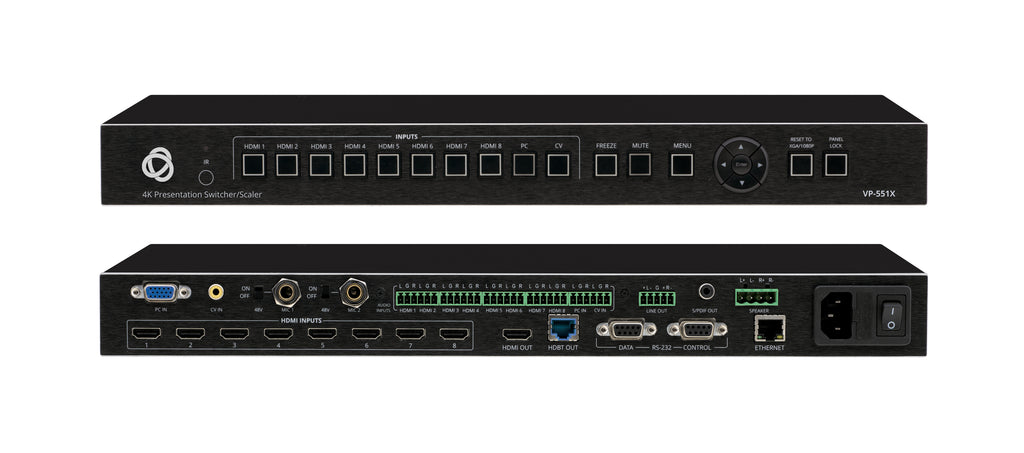

The Kramer VP-551X is a high-performance 10-input 4K presentation switcher/scaler designed for professional AV environments that demand flexible connectivity, advanced video processing, and powerful audio management. Supporting 4K@60Hz (4:4:4) HDMI inputs, VGA, and composite video sources, it ensures exceptional clarity and seamless switching without signal disruption.
Engineered for modern workflows, the VP-551X features dual mirrored outputs (HDMI and HDBaseT) and extensive audio routing options, including embedded audio, multiple analog audio inputs, microphone support with 48V phantom power, balanced stereo outputs, S/PDIF digital audio, and a built-in 20W per-channel loudspeaker amplifier.
With advanced scaling, HDR10 support, ProcAmp controls, long-distance HDBaseT transmission, PoE capability, and multiple control interfaces such as RS-232, Ethernet, IR, and on-screen display, the VP-551X delivers reliable, broadcast-quality performance ideal for classrooms, conference rooms, auditoriums, and corporate AV systems.
| Category | Details |
|---|---|
| Video Inputs | 8 HDMI; 1 VGA (15-pin HD); 1 Composite Video (RCA) |
| Audio Inputs | 8 unbalanced stereo (for HDMI inputs); 1 unbalanced stereo (VGA); 1 unbalanced stereo (CV); 2 microphone inputs (6.3mm, optional 48V phantom power) |
| Video Outputs | 1 HDMI; 1 HDBaseT |
| Audio Outputs | 1 balanced stereo (5-pin terminal); 1 digital S/PDIF; 1 speaker output (2Γ20W @ 4Ξ©) |
| Video Performance | Supports input resolutions up to 4K@60Hz (4:4:4); HDBaseT output up to 4K@60Hz (4:2:0) |
| Advanced Video Features | HDR10, CEC, xvYCC, Dolby TrueHD/DTS-HD pass-through, PixPerfectβ’ scaling, selectable aspect ratios |
| HDBaseT Range | 130m at 1080p; 100m at 4K60 (4:2:0) |
| Control Interfaces | RS-232 (data & control), Ethernet (100 Mbps), IR, OSD, front-panel controls |
| Latency | 1β2 frames |
| Power | 100β240V AC; provides PoE over HDBaseT |
| Power Consumption | 130 VA |
| Enclosure | 19" aluminum, 1U rack-mount with included rack ears |
| Cooling | Convection |
| Operating Temperature | 0Β° to +40Β°C (32Β° to 104Β°F) |
| Storage Temperature | β40Β° to +70Β°C (β40Β° to 158Β°F) |
| Humidity | 10β90% non-condensing |
| Compliance | CE, FCC |
| Included Accessories | Power cord, rubber feet, rack ears, IR remote |
| Product Dimensions (WΓDΓH) | 43.64 Γ 23.72 Γ 4.36 cm (17.18" Γ 9.34" Γ 1.72") |
| Product Weight | 2.3 kg (5.1 lbs) |
| Shipping Dimensions | 55.00 Γ 27.60 Γ 10.70 cm (21.65" Γ 10.87" Γ 4.21") |
| Shipping Weight | 3.4 kg (7.5 lbs) |
