Description

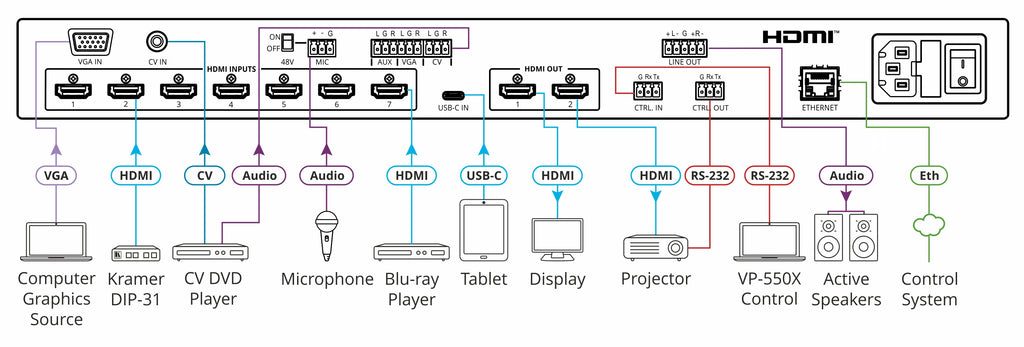

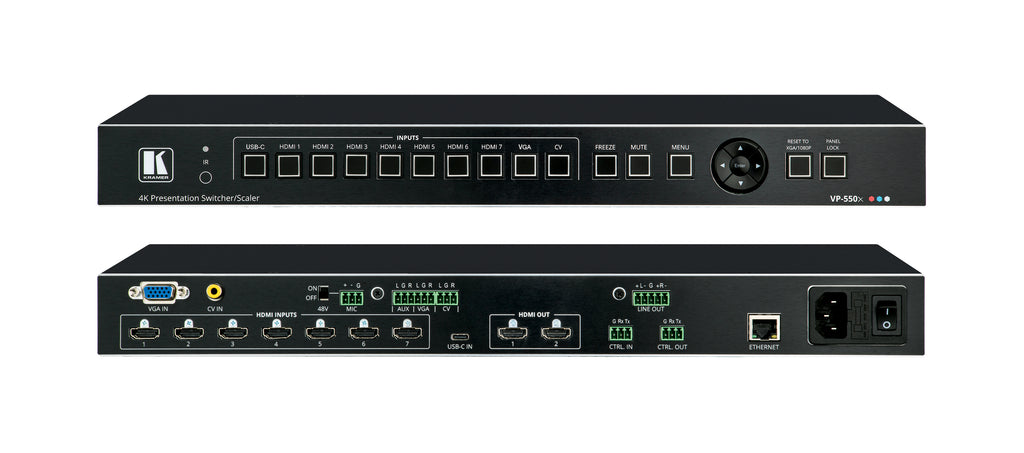

The Kramer VP-550X is a high-performance 10-input 4K HDR presentation switcher/scaler engineered for professional AV environments that demand seamless switching, premium image quality, and flexible connectivity. Designed to handle modern 4K/60 (4:4:4) HDMI and USB-C sources alongside legacy VGA and composite inputs, the VP-550X scales any incoming signal to your desired output resolution while maintaining constant output sync to ensure smooth transitions with zero disruptions.
This versatile device embeds or de-embeds audio as needed, offering analog stereo inputs, a dedicated microphone input with optional 48V phantom power, and advanced DSP features such as EQ, mixing, and audio delay. The dual mirrored HDMI outputs allow simultaneous distribution to multiple displays, supported by professional controls including front-panel operation, RS-232, IR, Ethernet, and OSD.
Perfect for conference rooms, lecture halls, command centers, and multi-display installations, the VP-550X delivers exceptional image clarity, HDR10 support, intuitive control workflows, and robust reliability in a 1U rack-mountable chassis.
| Category | Details |
|---|---|
| Inputs | 7 HDMI; 1 USB-C (video + 18W power); 1 VGA; 1 Composite (CV) |
| Analog Audio Inputs | 3 unbalanced stereo (AUX, VGA, CV); 1 microphone input (3-pin terminal block, optional 48V phantom power) |
| Outputs | 2 mirrored HDMI; 1 balanced stereo analog audio (5-pin terminal block) |
| Control Ports | RS-232 (data + control), IR, Ethernet 100Mbps |
| Supported Input Resolutions | Up to 4K@60Hz (4:4:4) on HDMI/USB-C; VGA up to 1080p/UXGA; CV 480i/576i |
| Supported Output Resolutions | Up to 4K@60Hz (4:4:4); full up/down scaling |
| Video Features | HDR10, HDCP 2.2, CEC, xvYCC, Dolby TrueHD/DTS-HD bypass |
| Latency | 1–2 frames |
| Audio Features | DSP with EQ, mixing, delay; audio embedding/de-embedding |
| User Controls | Front panel buttons, IR remote, OSD, RS-232, Ethernet web control |
| Power | 100–240V AC, 50/60Hz; provides up to 18W power to USB-C input |
| Enclosure | 19" 1U rack-mountable aluminum chassis |
| Cooling | Convection |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Product Dimensions | 43.64 × 23.72 × 4.36 cm (17.18" × 9.34" × 1.72") |
| Product Weight | 2.0 kg (4.5 lbs) approx. |
| Included Accessories | Power cord, rubber feet, rack ears, IR remote with batteries |
| Compliance | CE, FCC |
