Description

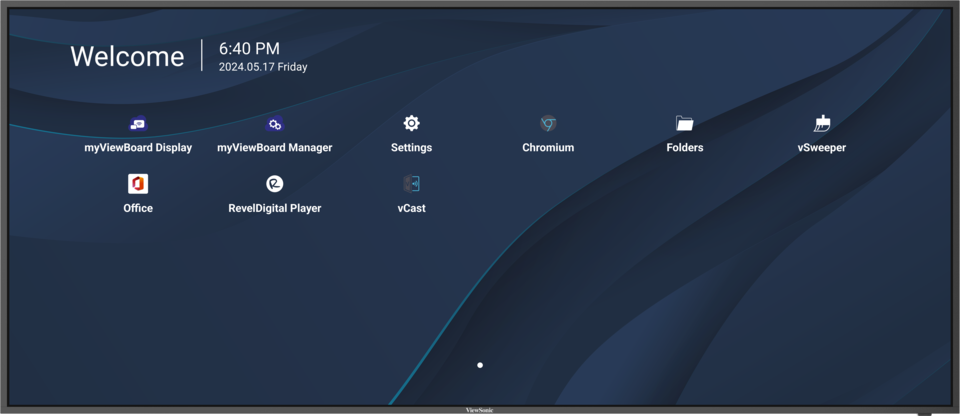

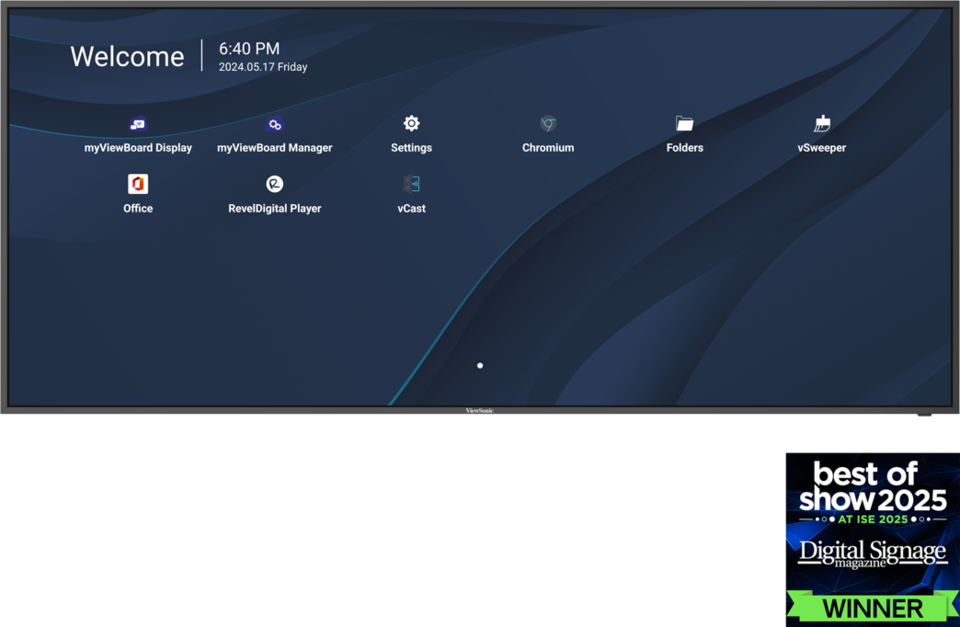

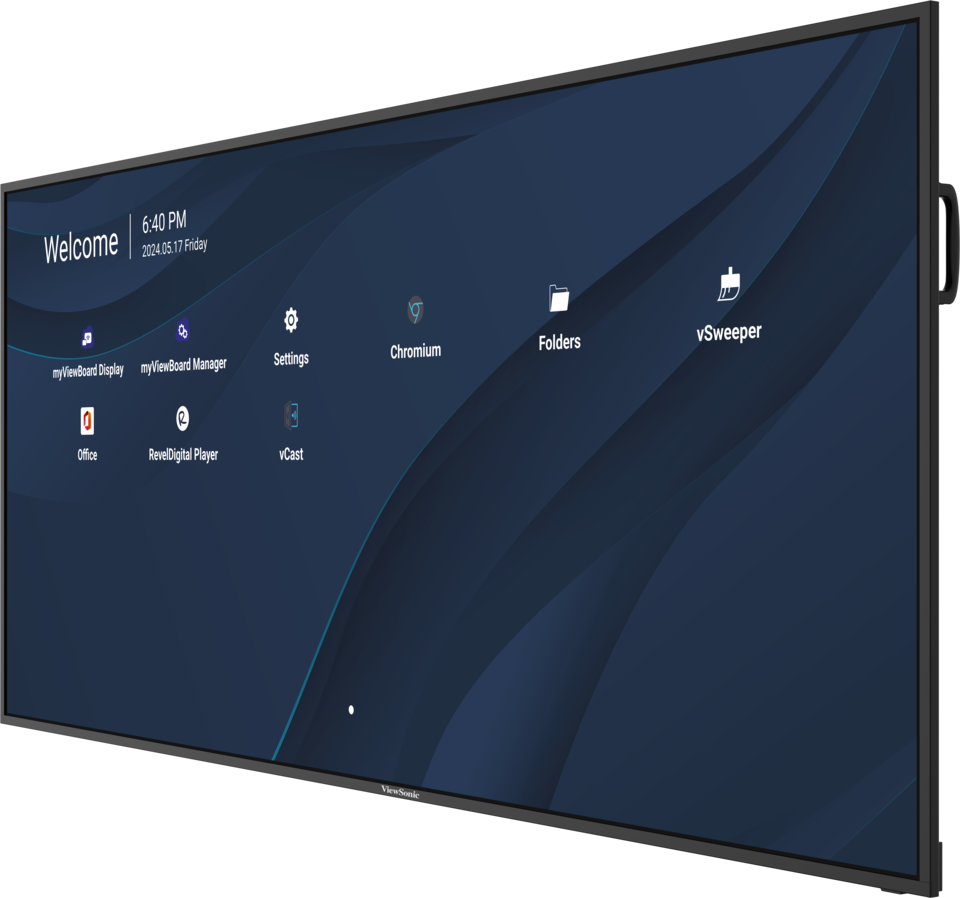

The ViewSonic® CDE105UW is a premium 105-inch 5K commercial display designed for immersive corporate presentations, digital signage, and Microsoft Teams Rooms environments. Featuring an ultrawide 21:9 aspect ratio, it delivers 33% more screen space than conventional 16:9 displays—perfect for Teams Front Row layouts and collaborative spaces. With its stunning 5K resolution, HDR10 support, and ultra-slim bezel, this display produces brilliant visuals and a sophisticated, contemporary aesthetic.
Powered by an octa-core processor running Android 13, the CDE105UW enables smooth multitasking, while USB-C connectivity (100W PD), HDMI 2.1, DisplayPort, and AirSync wireless casting support provide seamless device integration. Built for 24/7 commercial operation, it supports both landscape and portrait orientations, offering ultimate flexibility for meeting rooms, control centers, and signage applications.
With built-in ViewSonic® Manager software, IT administrators can remotely manage multiple displays, schedule tasks, and broadcast messages—all from one platform. The CDE105UW stands as a reliable, energy-efficient solution that elevates visual communication, productivity, and collaboration in professional environments.
| Category | Specification |
|---|---|
| Display | 105" TFT LCD with DLED Backlight, VA Panel |
| Native Resolution | 5120 x 2160 (5K UHD) |
| Aspect Ratio | 21:9 |
| Brightness | 500 nits (typical) |
| Contrast Ratio | 5000:1 (typical) |
| Viewing Angle | 178° (H) / 178° (V) |
| Response Time | <14 ms |
| Colors | 1.07 billion (8-bit + 2-bit FRC) |
| Surface Treatment | 3H Hard Coating |

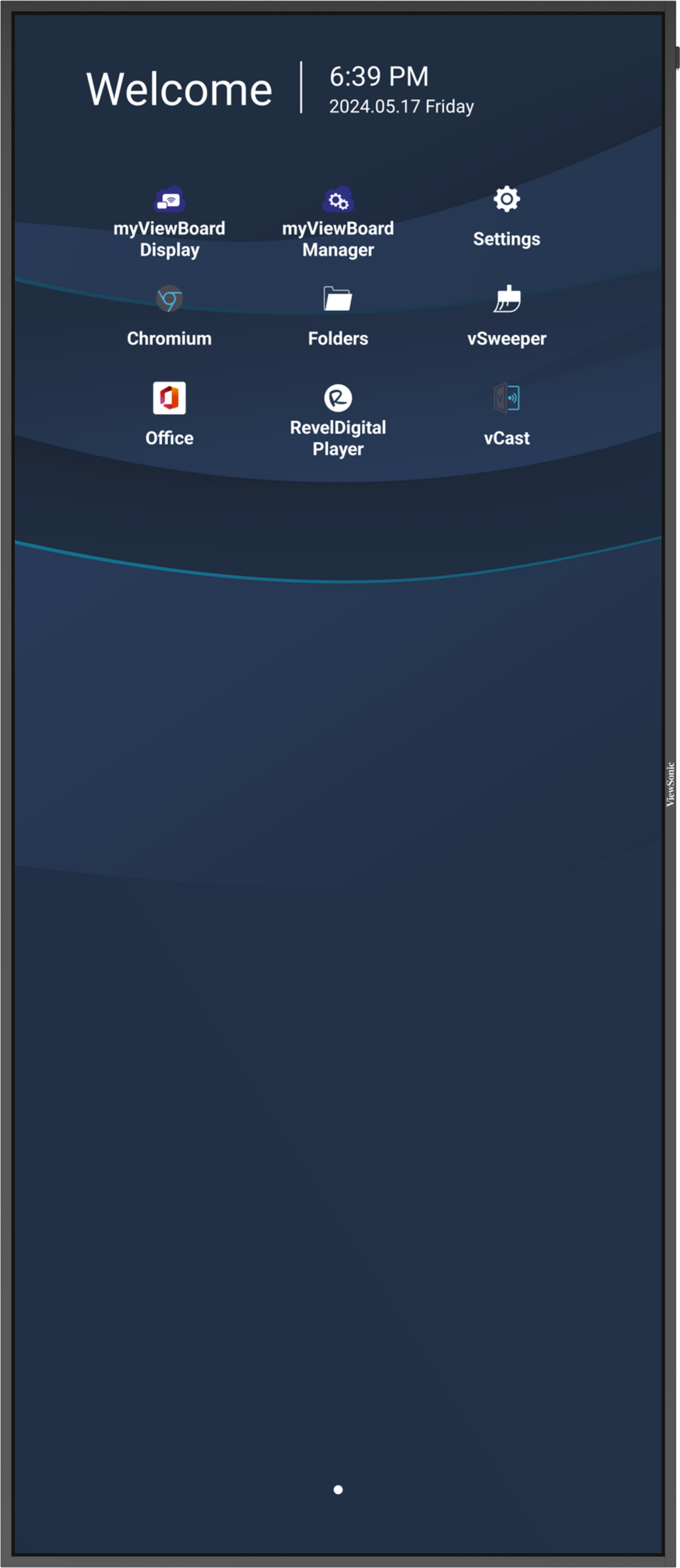

| Orientation | Landscape & Portrait |
| Operating Hours | 24/7 Continuous Operation |
| Processor | Octa-Core CPU (A76×4 + A55×4) |
| RAM / Storage | 8GB DDR4 / 128GB eMMC |
| Embedded OS | Android 13 |

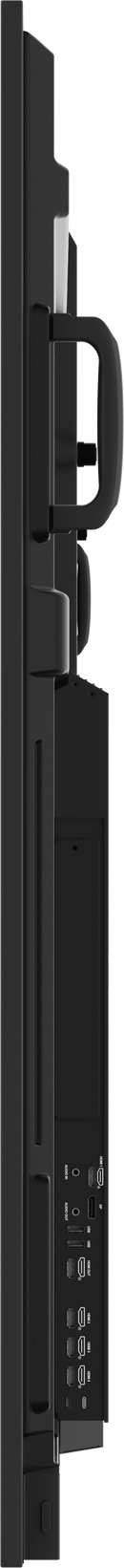

| Input Ports | HDMI x4 (1x HDMI 2.1, 3x HDMI 2.0), DisplayPort x1, Audio In, RS-232, OPS Slot, Wi-Fi Slot |
| Output Ports | HDMI x1, Audio Out, SPDIF, LAN (RJ45 x2: 1 In / 1 Out, 10/100/1000 Mbps) |
| USB Ports | USB-A 2.0 x1, USB-A 3.2 Gen 1 x4, USB-C x1 (PD 100W + DP 1.2 + Ethernet) |
| Speakers | 2 x 20W + 1 x 20W Subwoofer |
| Connectivity Features | AirSync Wireless Casting (up to 6 devices), USB-C One-Cable Solution, Optional Wi-Fi Module |
| Power Consumption | 405W (Energy Star Certified) |

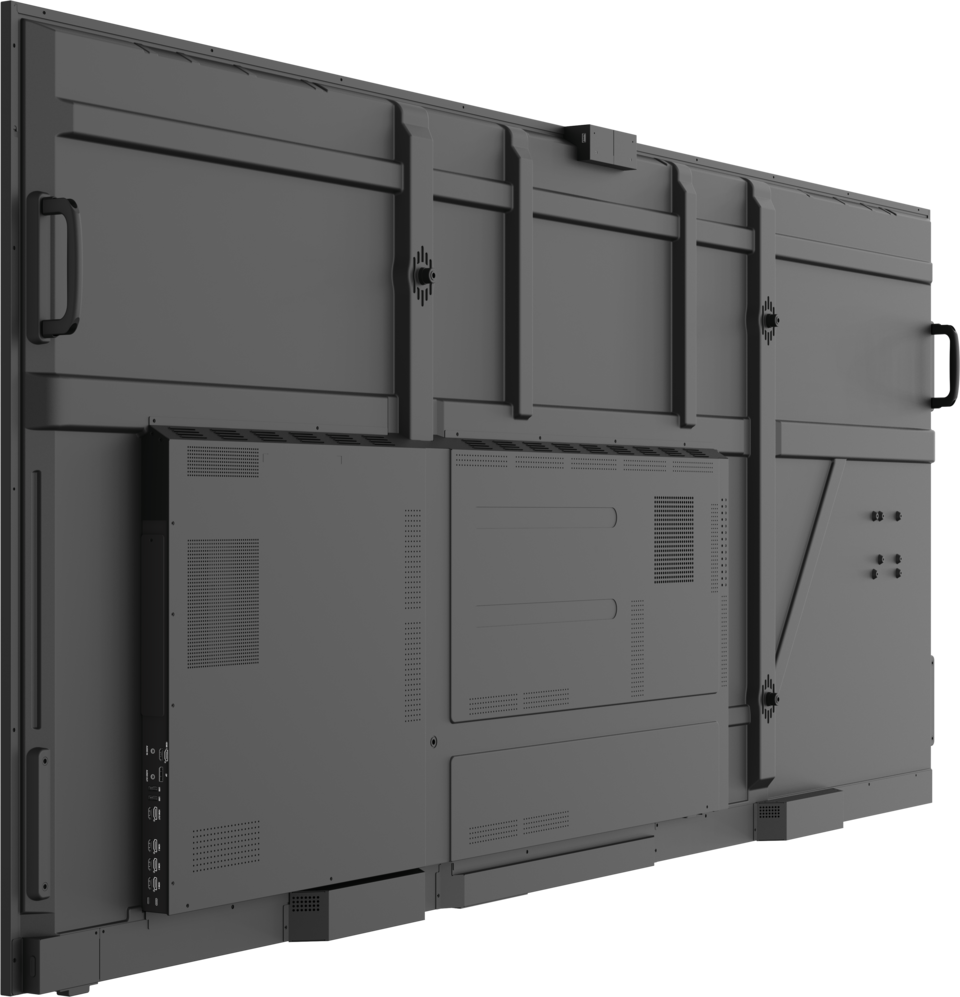

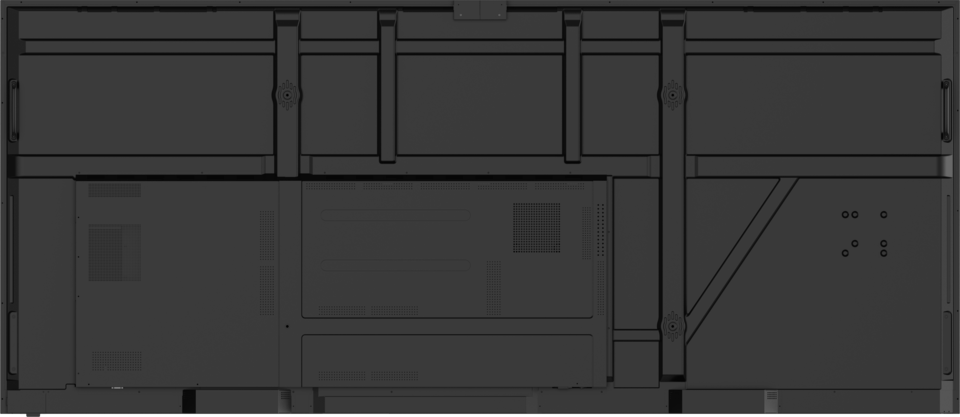

| Mounting (VESA®) | 1000 x 600 mm |
| Dimensions (W x H x D) | 2489.9 x 1081.4 x 77 mm (Physical) |
| Weight | 53.05 kg (Net) / 74 kg (Gross) |

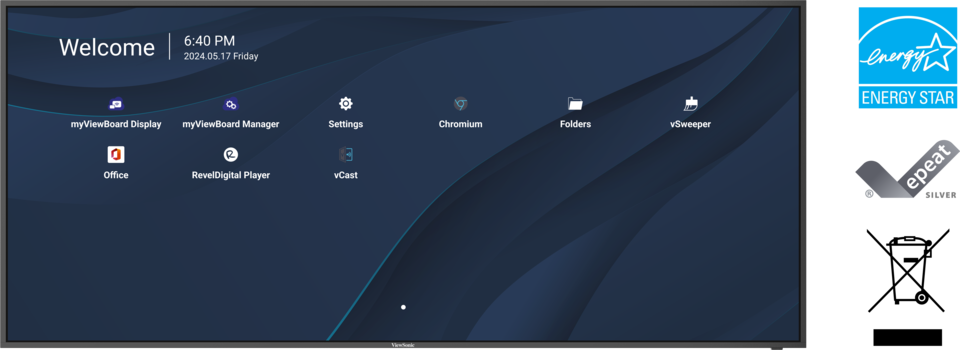

| Certifications | EPEAT Silver, Energy Star 8.0, RoHS, CE, FCC, CB, UKCA |
| Included Accessories | Power Cable, HDMI Cable, USB-C Cable, Remote Control, RS232 Adapter, Mount Screws, Camera Plate, Quick Start Guide |
