Description

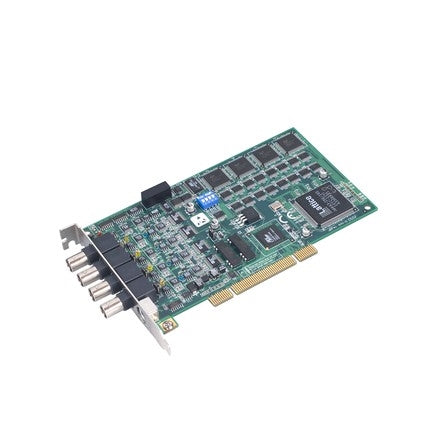

The Advantech PCI-1714UL-BE is a high-performance data acquisition (DAQ) card designed for fast, continuous analog signal capture in industrial and laboratory environments. Featuring four simultaneous-sampling analog input channels and a 12-bit A/D converter, it delivers up to 30 MS/s per channel for high-speed measurement applications.
With onboard FIFO buffering, programmable gain, multiple trigger modes, and universal PCI bus compatibility, the PCI-1714UL-BE is ideal for vibration analysis, high-speed data logging, test automation, and precision instrumentation systems requiring reliable streaming performance.
| Specification | Details |
|---|---|
| Brand | Advantech |
| SKU | PCI-1714UL-BE |
| Product Type | Analog Input Data Acquisition PCI Card |
| Analog Input Channels | 4 single-ended |
| Resolution | 12-bit |
| Maximum Sampling Rate | Up to 30 MS/s per channel |
| A/D Conversion | 4 converters simultaneously sampling |
| FIFO Buffer Size | 32,768 samples per channel |
| Input Range (Software Programmable) | Bipolar ±5 V, ±2.5 V, ±1 V, ±0.5 V |
| Absolute Accuracy | Up to 0.1% of FSR (depending on range) |
| Overvoltage Protection | 30 Vp-p |
| Input Impedance | 50 Ω / 1 MΩ / Hi-Z selectable |
| Sampling Modes | Software polling, pacer |
| Trigger Modes | Post-trigger, pre-trigger, delay-trigger, about-trigger |
| Bus Interface | Universal PCI V2.2 (3.3 V or 5 V) |
| Connectors | 4 × BNC (AI), 1 × PS/2 (ext. clock/trigger) |
| Dimensions (L × H) | 175 × 100 mm (6.9″ × 3.9″) |
| Power Consumption | Typical: 5 V @ 850 mA; 12 V @ 600 mA |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 85°C |
| Humidity | 5 to 95% RH (non-condensing) |
| Compliance | RoHS Compliant |
