Description
The Advantech FPM-212-R9AE is a rugged 12.1-inch industrial monitor designed for reliable visualization in factory automation, machine control, and IIoT environments. Featuring an XGA TFT LCD with a true-flat resistive touchscreen, this monitor supports precise input even when operated with gloves or in harsh industrial conditions.

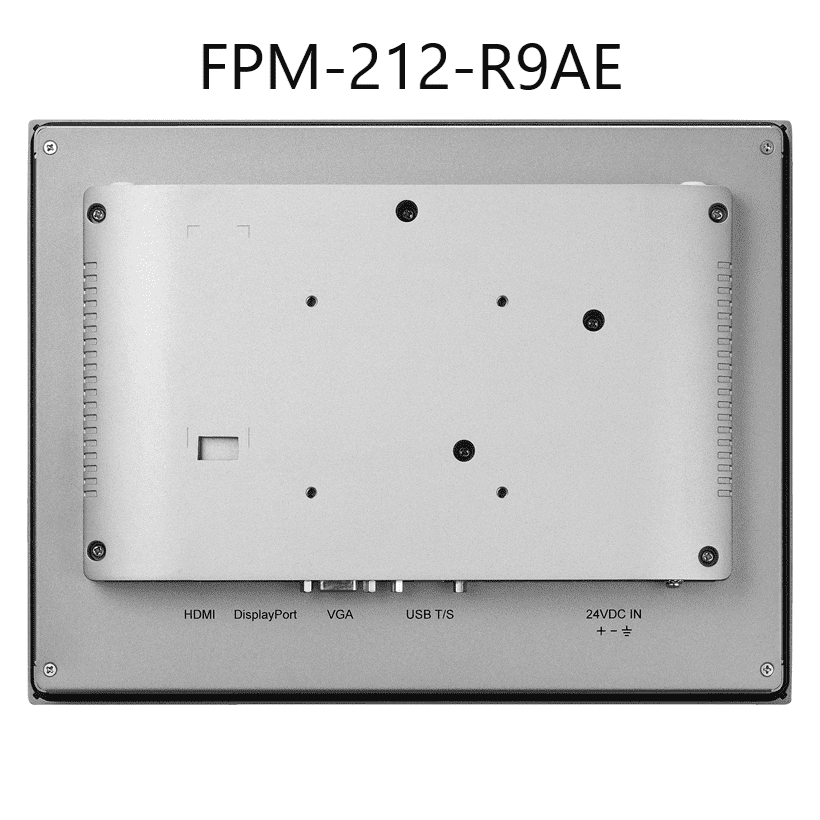

Built with a die-cast aluminum chassis and an IP66-rated front bezel, the FPM-212-R9AE delivers strong protection against dust and water exposure. Multiple video interfaces—including HDMI, DisplayPort, and VGA—ensure broad compatibility with industrial PCs and controllers. Powered via a 24VDC terminal block, this model is ideal for industrial power infrastructures and supports flexible installation through panel, wall, desktop, or VESA mounting options.
| Specification | Details |
|---|---|
| Display Size | 12.1-inch |
| Resolution | 1024 × 768 (XGA) |
| Display Type | TFT LCD with LED backlight |
| Touch Technology | 5-wire analog resistive touchscreen |
| Touch Interface | USB |
| Brightness | 600 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle (H/V) | 178° / 178° |
| Video Inputs | HDMI, DisplayPort, VGA |
| Power Input | 24 VDC (terminal block) |
| Power Consumption | 16.65 W (idle), 17.51 W (max) |
| Enclosure | Die-cast aluminum chassis |
| Front Bezel Rating | IP66 |
| Mounting Options | Panel, wall, desktop, VESA (75 × 75 mm) |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -20 to 60 °C |
| Operating Humidity | 10–90% non-condensing |
| Dimensions (W × H × D) | 311.8 × 238.0 × 53 mm |
| Weight (Net) | Approx. 3.2 kg |
| Supported OS | Windows XP/7/8/10/11, Linux |
