Description

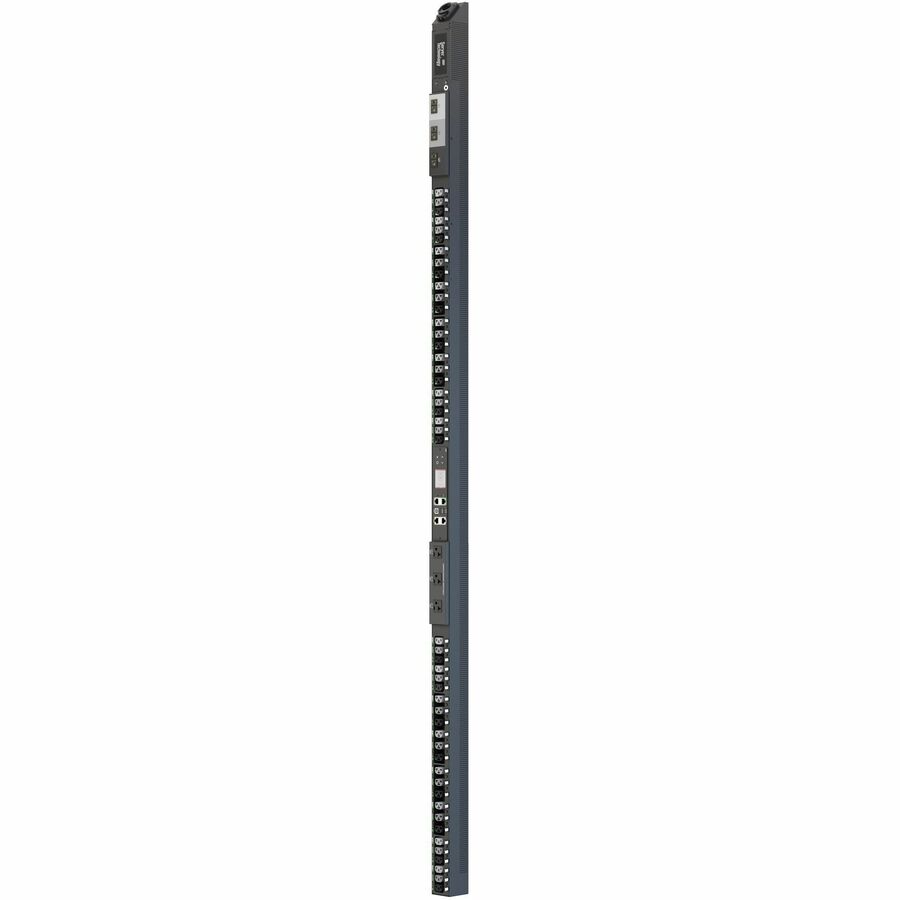

The Server Technology PRO4X C4G48RA-YCBE2FD8 is a next-generation switched POPS PDU designed for mission-critical data centers. Powered by the Xerus™ platform, it delivers precise per-outlet power monitoring, remote outlet control, and advanced security features. Equipped with HDOT Cx outlets (supporting both C13 and C19 plugs), RamLock self-locking connectors, and per-outlet RGB LED indicators, this PDU ensures maximum flexibility, security, and efficiency.
Key capabilities include multi-unit linking for up to 16 PDUs, per-inlet and per-outlet power sensing (PIPS® and POPS®), waveform capture, and hot-swappable controllers. With support for environmental sensors, SNMP alerts, and a multi-color LCD display, this unit is engineered for reliability in high-density data centers. Built to perform in demanding conditions, it is rated for 60 °C environments and complies with UL and IEC 62368-1 safety standards.
Ideal for enterprises seeking advanced visibility, security, and control over rack-level power distribution.
| Category | Details |
|---|---|
| Brand | Server Technology (Legrand) |
| Product Line | PRO4X Switched POPS PDU |
| Model / SKU | C4G48RA-YCBE2FD8 |
| Outlets | 48 total: (24) IEC C13, (24) Cx (C13/C19 hybrid), (3) NEMA 5-20R utility |
| Input Voltage | 208V |
| Input Current | 30A (24A rated) |
| Input Plug | NEMA L21-30P |
| Input Power Capacity | 8.6 kW |
| Infeed Design | 45° angled infeed with strain relief |
| Outlet Control | Remote on/off switching per outlet or group |
| Power Monitoring | PIPS® per-inlet & POPS® per-outlet sensing (A, V, W, VA, crest factor, PF, energy) |
| Indicators | RGB LED per outlet; multi-color LCD display |
| Security | AES 256-bit encryption, LDAP(S), RADIUS, TACACS+, HTTPS/SSH |
| Environmental Support | Compatible with Legrand DX2 SmartSensors (temperature, humidity, water, airflow, etc.) |
| Networking | Dual Ethernet (10/100/1000 Mbps), USB, Serial, SNMPv2/v3 |
| Physical Dimensions | 80.0 in H x 2.2 in W x 2.5 in D (2032 x 56 x 64 mm) |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Certifications | UL 62368-1, CSA C22.2, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | Standard 2-year limited parts & labor (extendable) |
| Color-Coded Options | Black, Red, Blue, Green, Orange, Yellow, White (label overlays) |
