Description

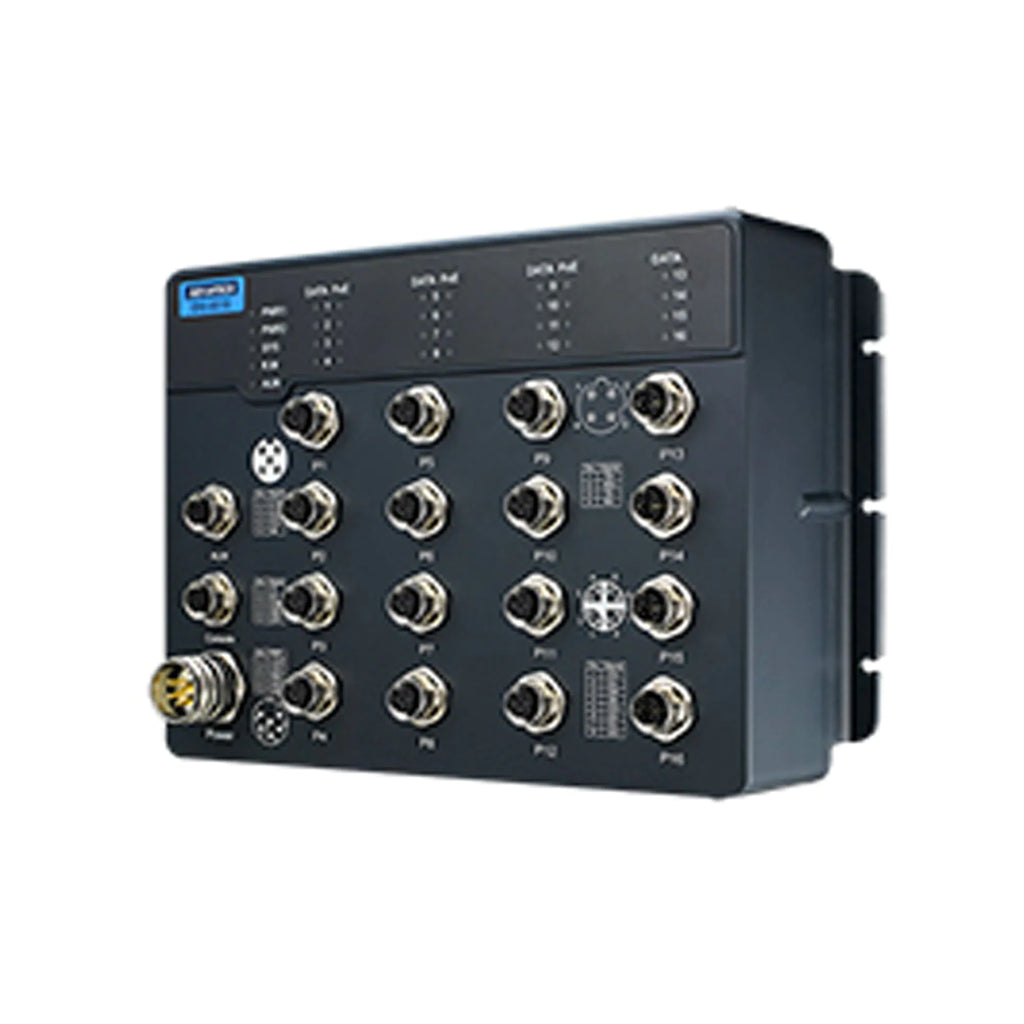

The Advantech EKI-9516E-4GMPX-AE is a rugged, EN50155-compliant managed Ethernet switch engineered for railway and harsh industrial environments. Designed with an IP67 aluminum die-cast enclosure and secure M12 connectors, it delivers reliable Gigabit and Fast Ethernet connectivity even under extreme vibration, shock, and temperature conditions.
This 16-port managed switch supports advanced Layer 2 networking features and Power over Ethernet for edge devices such as IP cameras, wireless access points, and onboard communication systems. With wide-range DC power input, high EMC protection, and support for rapid ring recovery protocols, the EKI-9516E-4GMPX-AE is ideal for rolling stock, wayside infrastructure, and mission-critical transportation networks.
| Specification | Details |
|---|---|
| Product Type | Managed Industrial Ethernet Switch |
| Total Ethernet Ports | 16 Ports |
| Ethernet Speed | Fast Ethernet & Gigabit Ethernet |
| PoE Support | Yes (IEEE 802.3af/at) |
| PoE Power Budget | Up to 150 W (dependent on input voltage) |
| Ethernet Connectors | M12 4-pin D-coded (10/100), M12 8-pin X-coded (10/100/1000) |
| Console Port | M12 5-pin A-coded |
| Relay Output | 2 × Relay Outputs, 1A @ 24VDC |
| Network Layer | Layer 2 |
| MAC Address Table | 8K |
| VLAN Support | 802.1Q, GVRP, GMRP, VLAN Stacking |
| Ring Technology | X-Ring Pro |
| Power Input | 24–110 VDC nominal (16.8–137.5 VDC operating range) |
| Power Consumption | 17 W (system) |
| Enclosure Material | Aluminum Die-Casting |
| Protection Rating | IP67 |
| Mounting Type | Wall Mount |
| Operating Temperature | -40°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (W × H × D) | 254 × 174 × 64.5 mm |
| Certifications | EN50155, EN50121-3-2, EN61373, EN45545-2 |
