Description

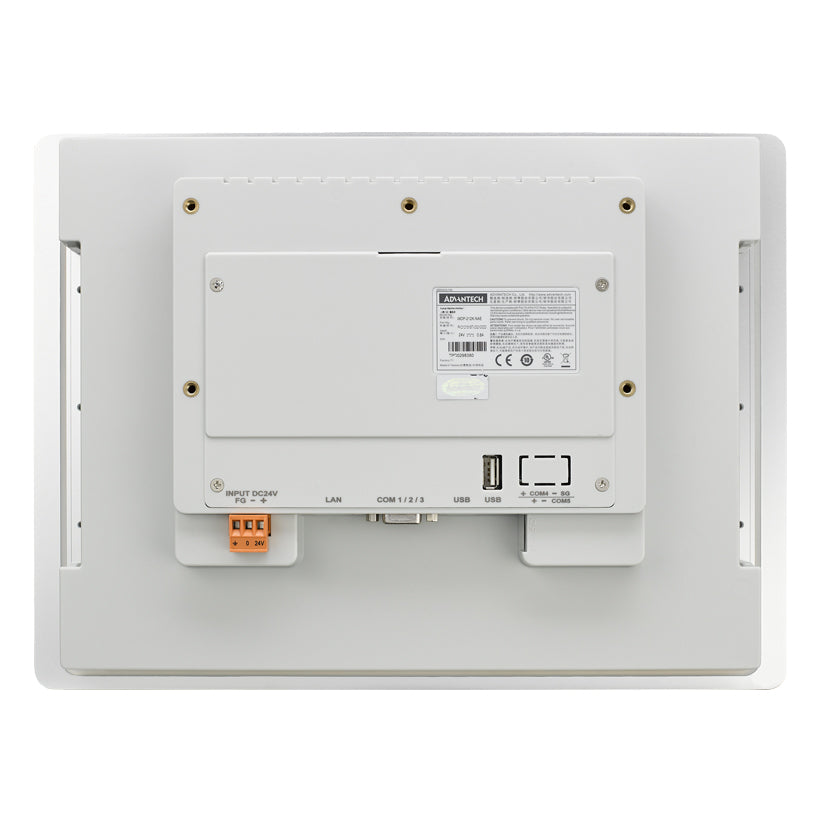

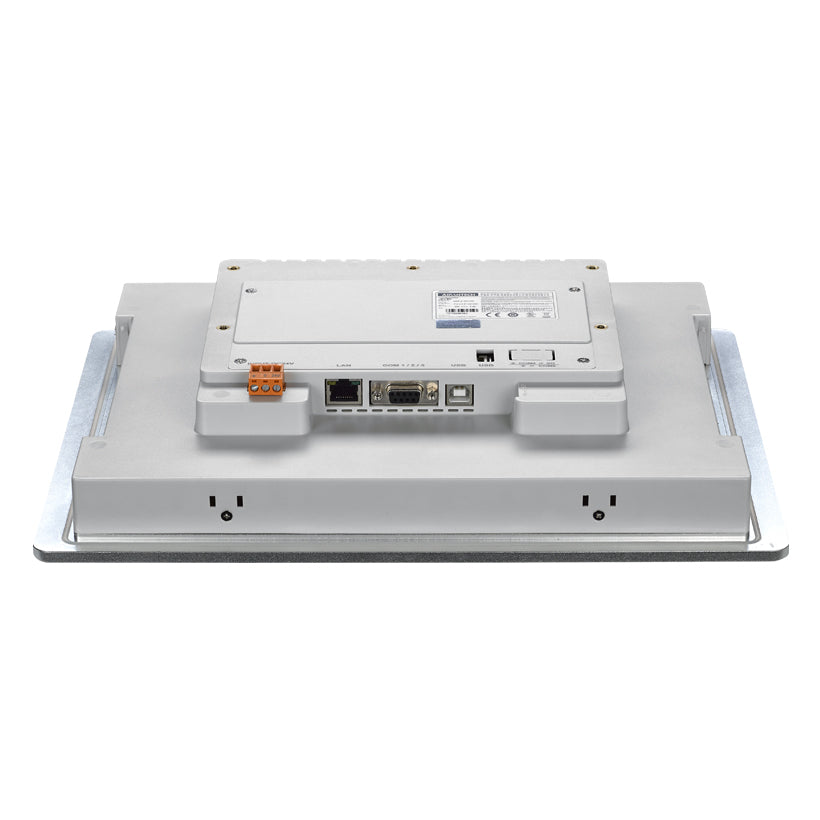

The Advantech WOP-212K-NAE is a 12-inch industrial operator panel engineered for reliable HMI operation in demanding automation environments. Powered by an ARM9 32-bit RISC processor and optimized with HMI RTOS, this panel delivers stable performance for continuous 24/7 use across manufacturing, packaging, food & beverage, and process control applications.
Designed for seamless integration, the WOP-212K-NAE supports over 500 PLC communication protocols and offers flexible connectivity through serial ports, Ethernet, and USB. The high-brightness XGA TFT display with resistive touchscreen ensures clear visualization and accurate control, even in harsh industrial settings. Its panel-mount design with an IP66-rated front panel provides durability, easy installation, and long-term operational reliability.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model | WOP-212K-NAE |
| Product Type | Industrial Operator Panel (HMI) |
| Display Size | 12-inch |
| Display Type | XGA TFT LCD |
| Resolution | 1024 × 768 |
| Colors | 65,536 |
| Brightness | 500 cd/m² |
| Touchscreen | 4-wire analog resistive |
| Processor | ARM9 32-bit RISC |
| System Memory | 64 MB SDRAM |
| Storage | 128 MB NAND Flash |
| Backup Memory | 128 KB |
| Operating System | HMI RTOS |
| Communication Interfaces | RS-232, RS-422, RS-485, Ethernet |
| USB Ports | 1 × USB Host, 1 × USB Client |
| Power Input | 24 VDC ±10% |
| Power Consumption | 20 W |
| Mounting Type | Panel mount |
| Front Panel Protection | IP66 |
| Operating Temperature | -15 to 65 °C |
| Storage Temperature | -20 to 70 °C |
| Certifications | CE, FCC, UL61010 |
| Dimensions (W × H × D) | 335.4 × 245.8 × 60.3 mm |
| Weight | 2 kg |
