Description

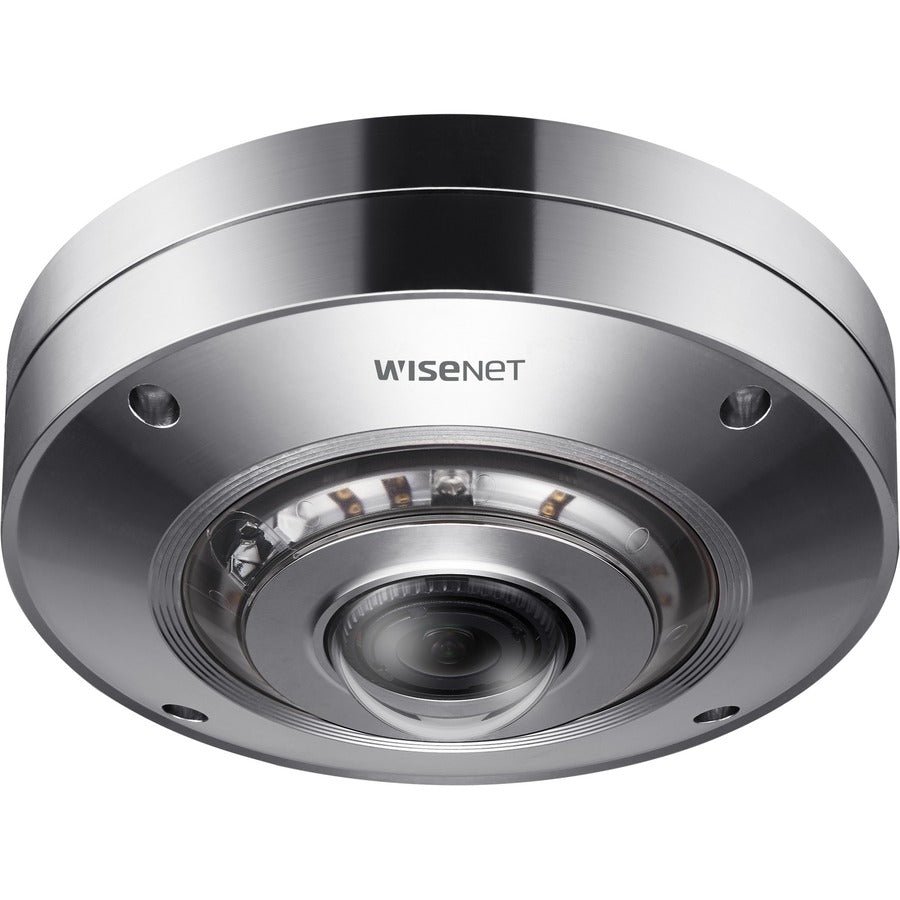

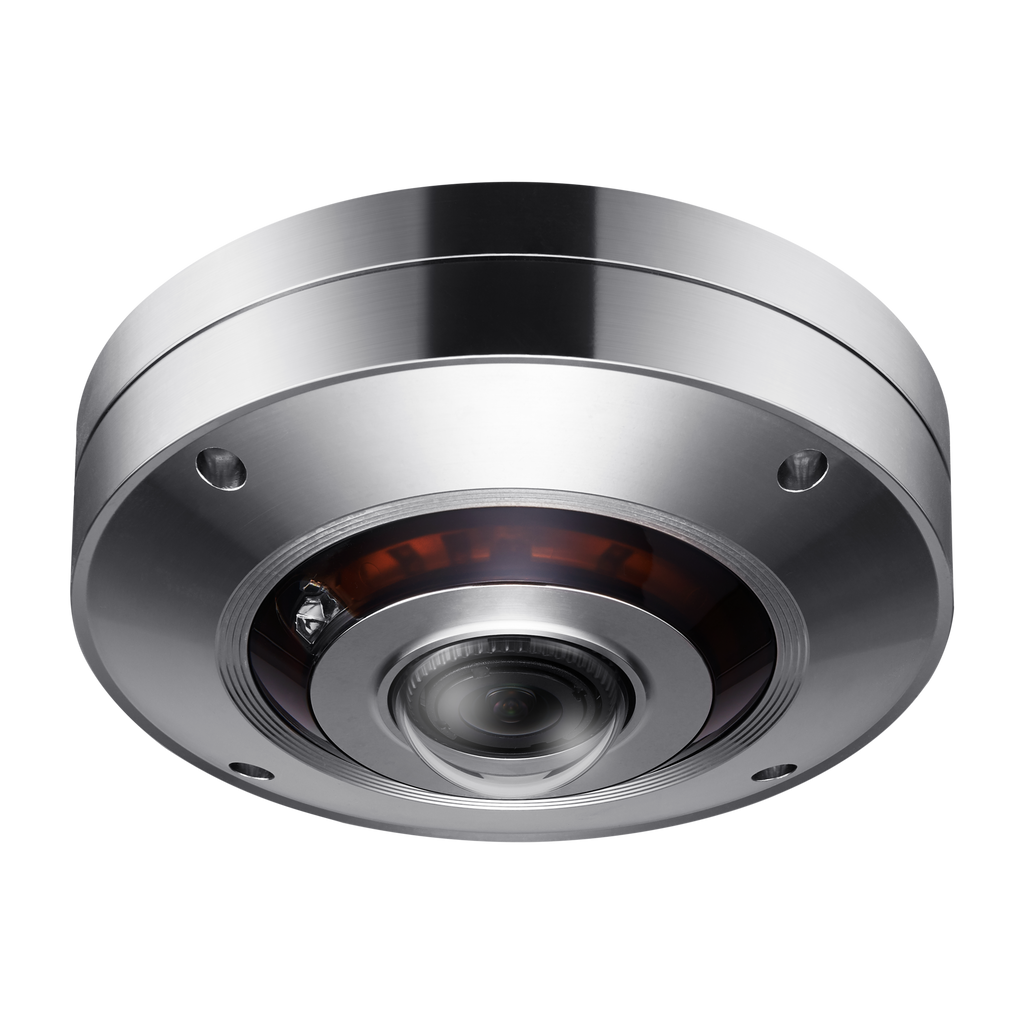

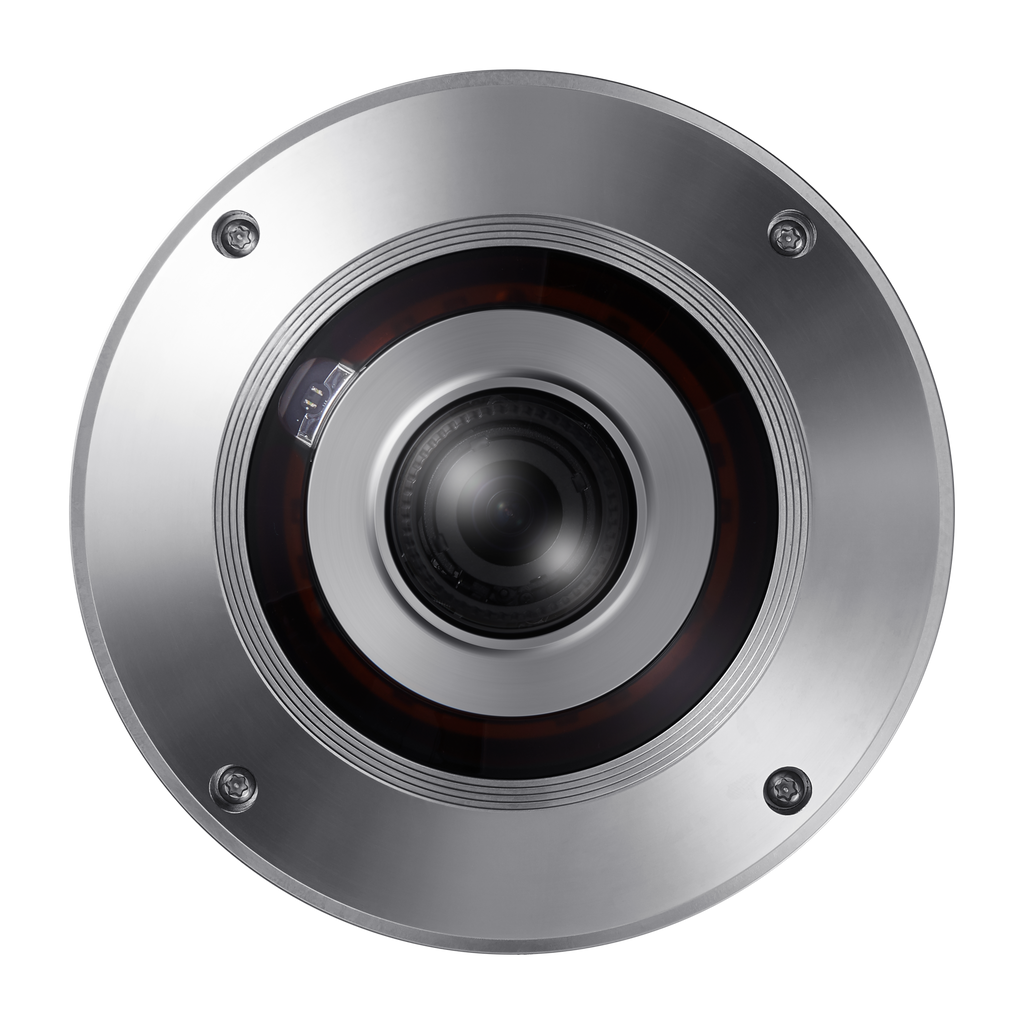

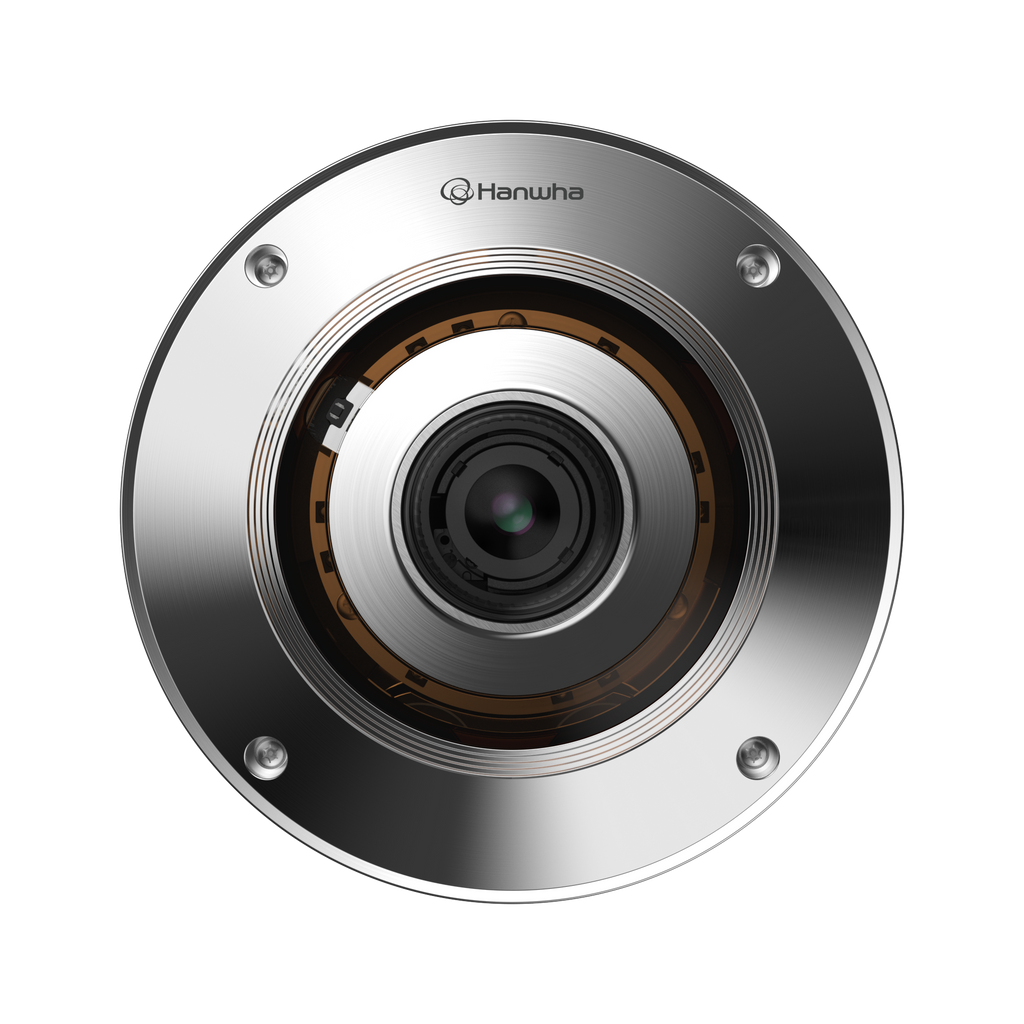

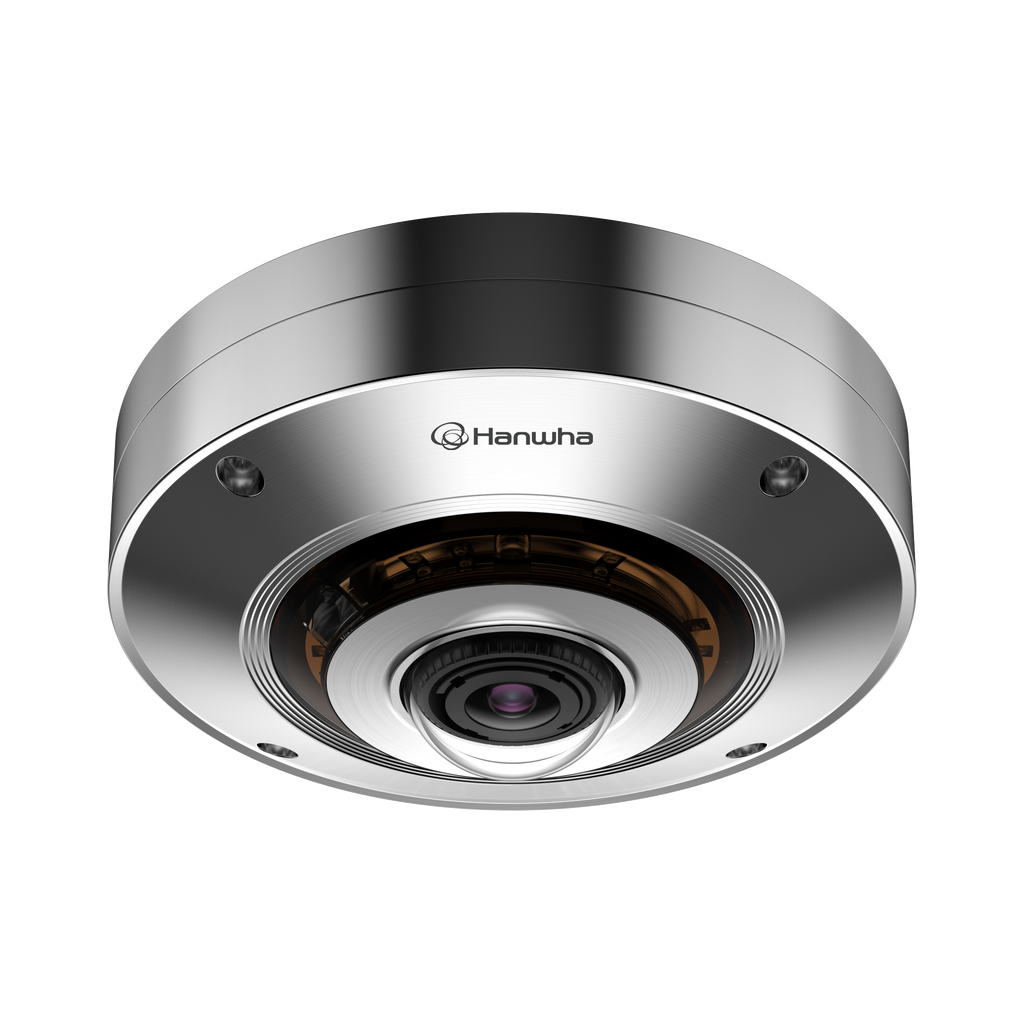

The Wisenet XNF-9010RS is a high-performance 12MP stainless steel fisheye network camera designed for demanding environments that require wide-area coverage, durability, and advanced analytics. With its stereographic 1.08mm lens, the camera delivers enhanced edge resolution and supports multiple dewarping views including fisheye, panoramic, and quad display modes.
Built for extreme conditions, the XNF-9010RS features IP66/IP67/IP6K9K weather protection, IK10+ impact resistance, and NEMA 4X compliance—making it ideal for food processing, transportation, industrial sites, and commercial security. NSF/ANSI Standard 169 certification also allows the camera to be used in food-handling applications.
Equipped with Wise IR for up to 8m illumination, advanced analytics such as heatmap, people counting, and queue management, plus PTZ handover and virtual channels, the camera supports intelligent monitoring in both indoor and outdoor installations. Multiple codecs (H.265/H.264/MJPEG), WiseStream II compression, and dual SD card slots up to 1TB ensure efficient storage and flexible recording.
| Category | Details |
|---|---|
| SKU | XNF-9010RS/KUS |
| Image Sensor | 1/2.3" 12MP CMOS |
| Max Resolution | Up to 3008×3008 (12MP) |
| Frame Rate | 30fps (H.265/H.264), MJPEG up to 30fps (9MP max. 5fps) |
| Lens | 1.08mm fixed, F2.2 stereographic lens |
| Field of View | 187° (H) / 187° (V) / 187° (D) |
| Min. Illumination | Color: 0.39 Lux, B/W: 0.039 Lux |
| IR Illumination | Wise IR up to 8m (26.25 ft) |
| Dewarping Views | Fisheye, Single Panorama, Double Panorama, Quad View |
| Dynamic Range | Extreme WDR 120dB |
| Video Compression | H.265, H.264 (Main/Baseline/High), MJPEG |
| Smart Codec | WiseStream II |
| Video Features | Digital PTZ, Flip/Mirror, LDC (lens distortion correction) |
| Analytics | Motion, Tampering, Audio Detection, Heatmap, People Counting, Queue Management, Virtual Area/Line, PTZ Handover |
| Audio | Built-in mic, selectable mic-in/line-in, line-out |
| Network | IPv4/IPv6, HTTPS, SRTP, ONVIF S/G/T, MQTT, SUNAPI |
| Edge Storage | Dual microSD/SDHC/SDXC (up to 1TB total) |
| I/O Ports | 2 configurable I/O ports |
| Power | PoE (IEEE 802.3af Class 3) or 12VDC |
| Power Consumption | PoE max 12.95W; 12VDC max 11W |
| Operating Temperature | −40°C to +50°C (−40°F to +122°F) |
| Ingress/Impact Rating | IP66, IP67, IP6K9K, IK10+ |
| Certifications | NEMA 4X; NSF/ANSI 169 Food Equipment; UL 62368-1 |
| Material / Color | Stainless Steel (STS316L), Silver finish |
| Dimensions | Ø167.9 × 72.1 mm (6.61 × 2.84 in) |
| Weight | 2,980 g (6.57 lb) |
