Description

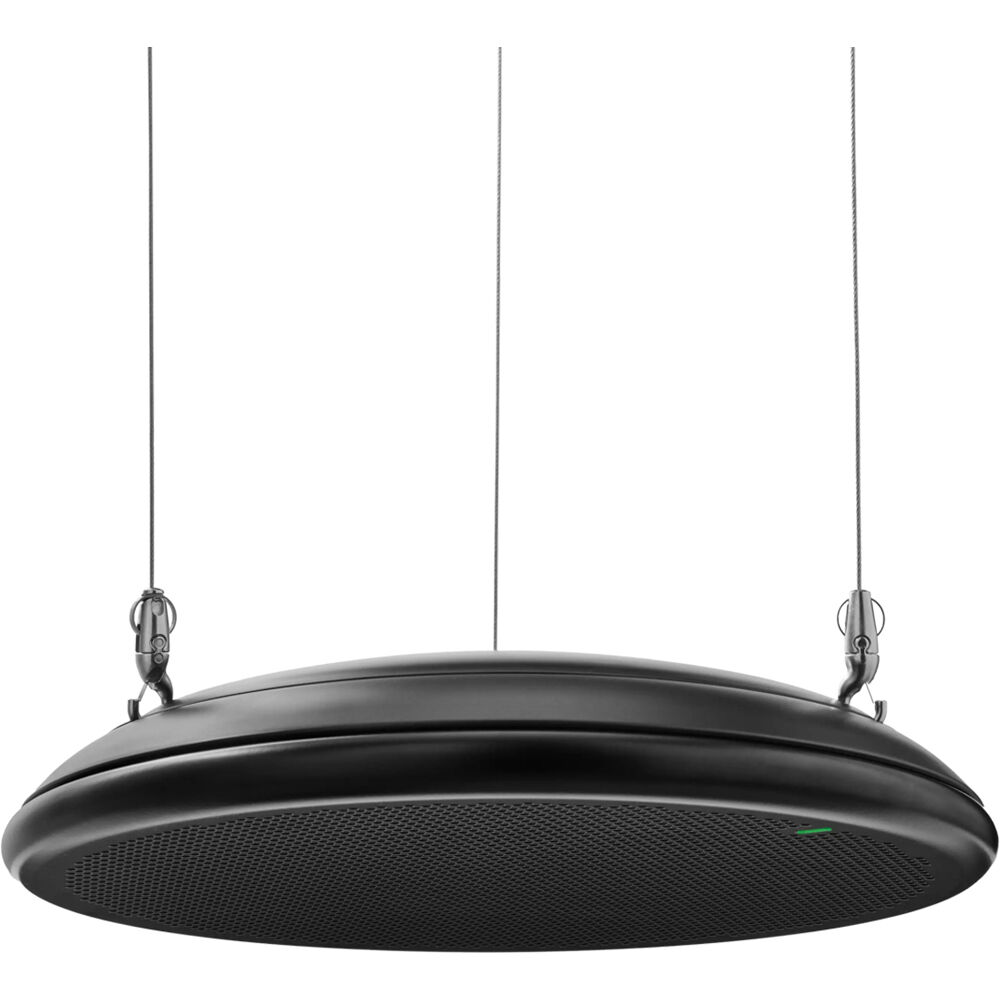

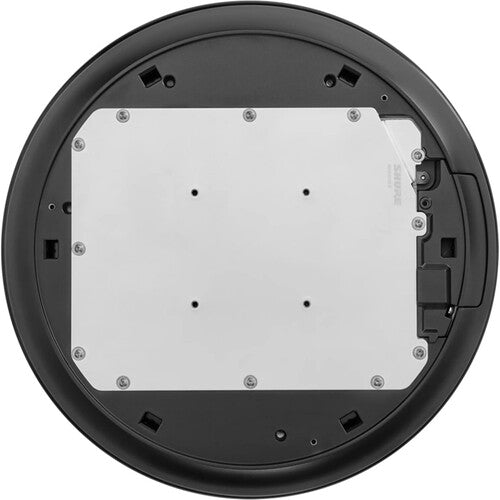

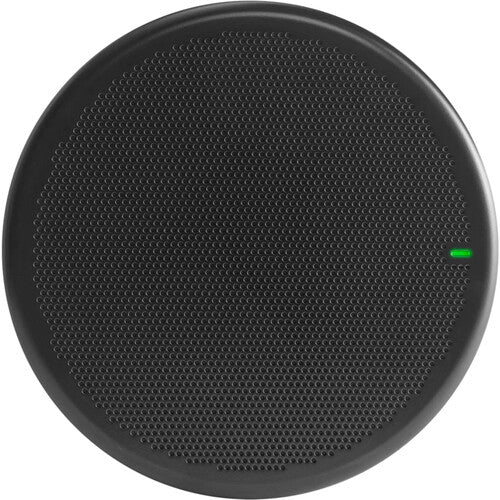

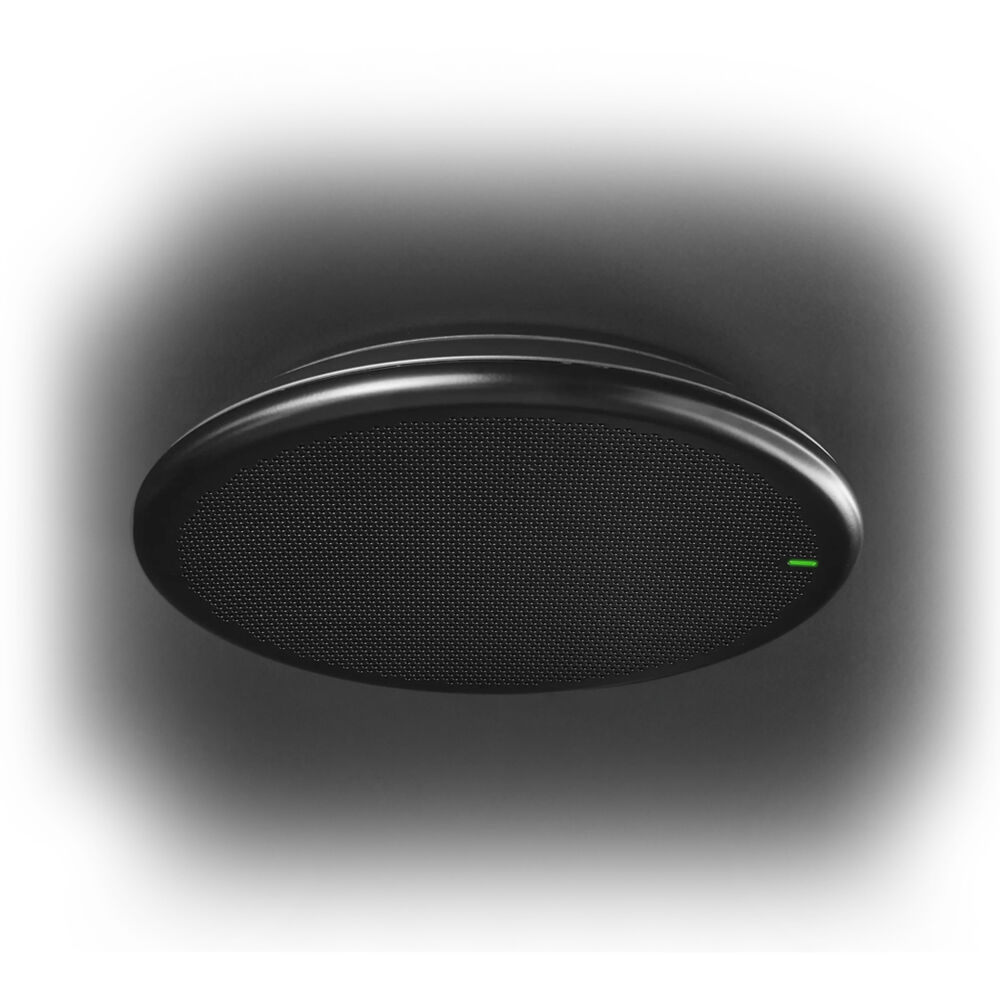

The Shure MXA901-R Microflex Advance Ceiling Array Microphone delivers premium, discreet audio capture for modern conferencing environments. Designed in a sleek 13.5-inch round form factor, this ceiling-mounted microphone blends seamlessly into meeting rooms while providing powerful, intelligent audio performance.
Equipped with 85 MEMS microphone elements, the MXA901-R offers automatic 20 x 20 ft coverage right out of the box, capturing voices clearly across the entire room without manual configuration. Shure’s IntelliMix DSP technology enhances audio clarity by automatically steering pickup toward active speakers while applying echo cancellation, noise reduction, and automatic gain control.
Ideal for conference rooms, boardrooms, and presentation spaces, this microphone integrates effortlessly with the Shure Microflex Ecosystem and leading collaboration platforms. With PoE+ support, Dante and AES67 networking, and flexible mounting options, the MXA901-R simplifies installation while delivering enterprise-grade audio performance and reliability.
| Specification | Details |
|---|---|
| Microphone Type | Ceiling Array with 85 MEMS microphone elements |
| Coverage Area | 20 x 20 ft (6.1 x 6.1 m) automatic coverage |
| Pickup Technology | Single-Zone Automatic Coverage |
| Frequency Response | 100 Hz to 20 kHz |
| Dynamic Range | 71.5 dB |
| Signal-to-Noise Ratio | 67.1 dB (A-weighted) |
| Sensitivity | -4.4 dBFS/Pa at 1 kHz |
| Maximum SPL | 98.4 dB SPL |
| Self Noise | 26.9 dB SPL (A-weighted) |
| DSP Features | Automatic mixing, AEC, noise reduction, AGC, compressor, delay, EQ, mute, gain |
| Echo Cancellation Tail Length | Up to 250 ms |
| Audio Output | Dante / AES67 via RJ45 |
| Channel Configuration | 2 channels (1 automix output, 1 AEC reference) |
| Sampling Rate | 48 kHz |
| Bit Depth | 24-bit |
| Latency | 33.5 ms |
| Power Requirements | Power over Ethernet (PoE+) |
| Power Consumption | 10.1 W maximum |
| Mounting Options | Ceiling mount (flush, surface, or suspended) |
| Color | Black |
| Environmental Protection | Dust-resistant (IP5X) |
| Certifications | CE, FCC, REACH, UKCA, UL2043, WEEE |
| Operating Temperature | -6°C to 40°C (20°F to 104°F) |
| Storage Temperature | -28°C to 73°C (-20°F to 165°F) |
| Dimensions | 13.5 inches (342.9 mm) diameter |
| Weight | 5 lb (2.3 kg) |
| Compatibility | Shure Microflex Advance Ecosystem |
