Description

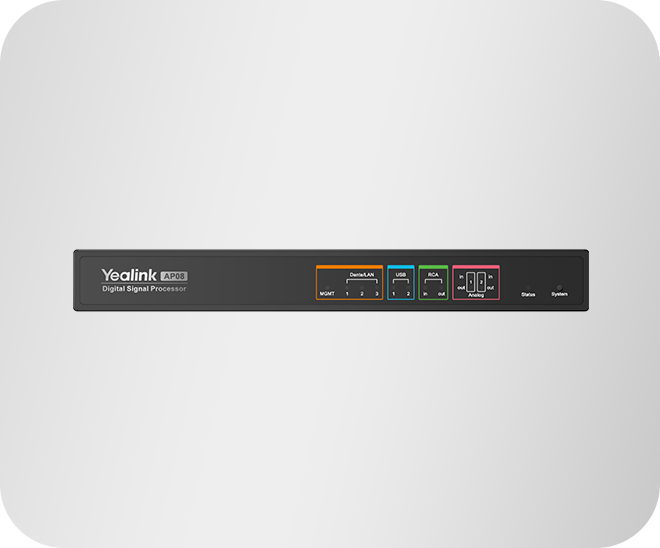

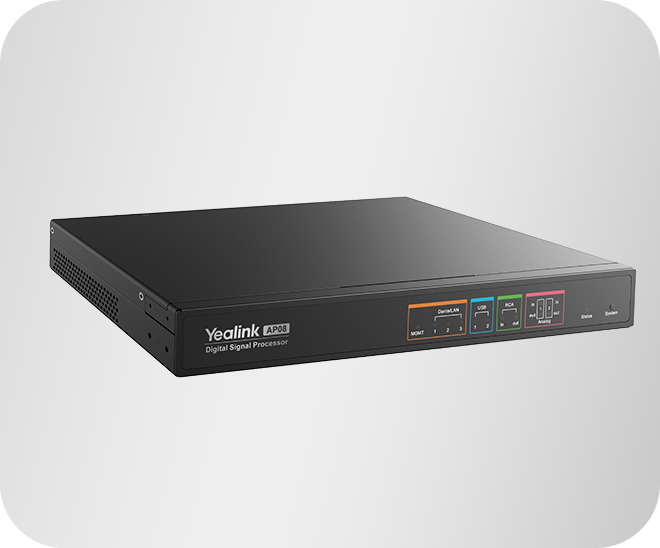

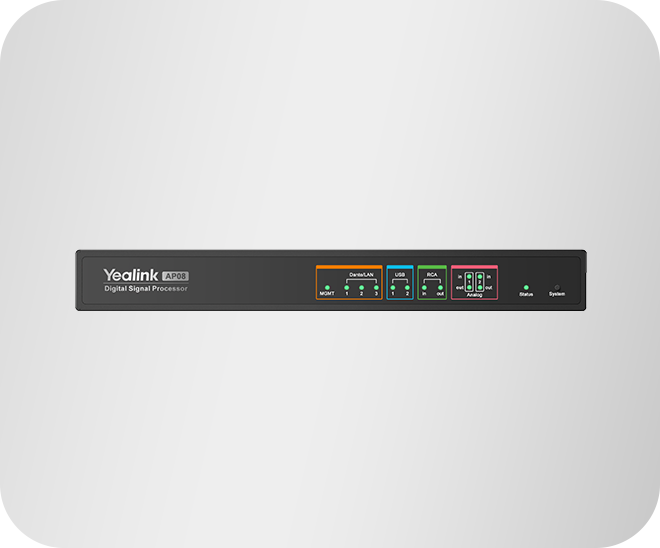

The Yealink AP08 Dante Digital Signal Processor (DSP) delivers intelligent audio management for modern meeting spaces, ensuring crystal-clear communication and streamlined deployment. Supporting up to 16x16 Dante audio channels, including 8 dynamic AEC (Acoustic Echo Cancellation) channels, the AP08 enhances clarity with intelligent noise cancellation and reverberation suppression.
Equipped with 4x4 analog channels and dual USB 3.0 Type-B device interfaces, it integrates seamlessly into hybrid conferencing environments. With Yealink Room Designer software, the AP08 automates deployment design, adapts to room acoustics, and optimizes audio routing with one-button setup.
Its compatibility with Yealink’s SkySound audio devices and Microsoft Teams Room solutions makes it a reliable choice for professional collaboration spaces. Featuring advanced customization, effortless installation, and AI-based sound optimization, the Yealink AP08 sets a new benchmark for meeting room audio.
| Category | Details |
|---|---|
| Brand | Yealink |
| Product Line | Yealink AP Series |
| Model | AP08 |
| Product Type | Dante Digital Signal Processor |
| Audio Channels (Dante) | 16 input / 16 output (8 AEC channels) |
| Analog Channels | 2 RCA in, 2 RCA out, 2 balanced 3-pin in, 2 balanced 3-pin out |
| USB Channels | 2 USB 3.0 Type-B input / output |
| Frequency Response | Dante: 50–20 kHz; Analog: 20–20 kHz |
| Bit Depth | 24-bit (Dante), 16/24-bit (USB) |
| Sampling Rate | 48 kHz |
| Dynamic Range | Dante: 86 dB; Analog input: 96 dB; Analog output: 98 dB |
| Noise & THD | THD+N <1%; RCA noise: -94 dBu; Balanced noise: -86 dBu |
| Phantom Power | +48V DC, 10 mA max |

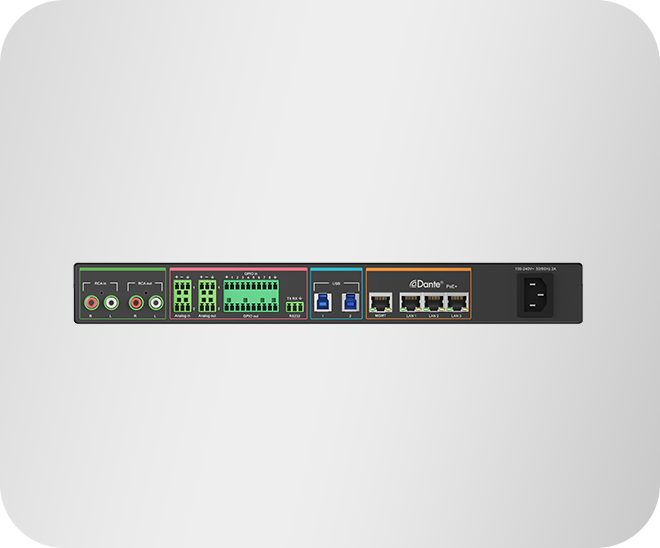

| Control Ports | RJ-45 API, RS232 (3-pin), GPIO in/out (8 each), +12VDC, GND |
| Network Ports | 3 × RJ-45 Dante PoE+ (IEEE802.3at, max PSE 90W) |
| Power Input | 100–240V AC, 50/60Hz, 2A |
| Dimensions | 360 × 189 × 44 mm |
| Weight | 2.2 kg |
| Material | SGCC, Advanced Black |
| Operating Conditions | Temp: 0–40°C; Humidity: 0–93% RH |
| Package Dimensions | 410 × 325 × 70 mm (2.8 kg N.W / 3.2 kg G.W) |
| Special Features | AI-based Room Designer, One-button deployment, Acoustic adaptation, Teams integration, Noise cancellation, Echo cancellation |
