Description

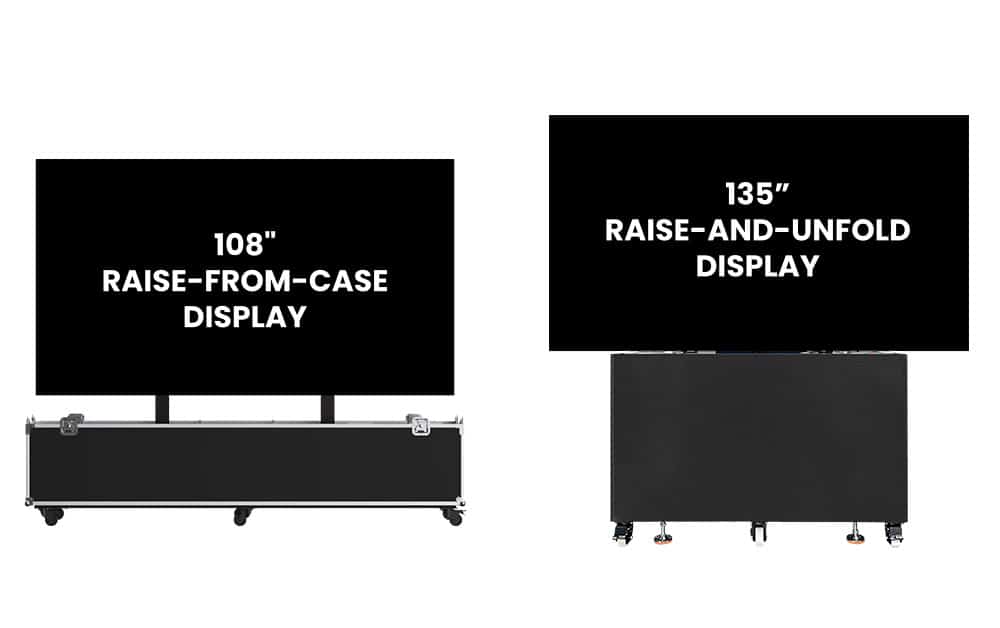

The Newline DV Go 135" (DV-135GO) is a transportable direct-view LED display engineered for large-scale visual impact without permanent installation. Designed with a raise-and-unfold mechanism, this all-in-one mobile display deploys smoothly from its integrated case-mounted stand, delivering a striking 135-inch viewing experience wherever it’s needed.
With ultra-high brightness up to 1000 nits, fine pixel pitch, and Full HD resolution, the DV-135GO ensures clear, vivid visuals even in bright environments. An all-in-one HDMI control solution simplifies setup, while the durable integrated rolling case protects the display during transport and storage. Ideal for trade shows, corporate events, training sessions, and large venues, the DV Go 135" combines portability, performance, and professional-grade presentation in one mobile solution.
| Specification | Details |
|---|---|
| Display Size | 135 inches |
| Native Resolution | 1920 × 1080 (Full HD) |
| Pixel Pitch | 1.56 mm |
| Pixel Configuration | COB (SMD / MIP Optional) |
| Brightness | 800–1000 nits |
| Screen Dimensions (W × H) | 118.1 × 66.4 in (3000 × 1687.5 mm) |
| Overall Dimensions (W × H × D) | 80.7 × 84.5 × 20.5 in (2050 × 2150 × 520 mm) |
| Deployment Type | Raise-and-Unfold from Integrated Stand |
| Interfaces | 2 × HDMI, 1 × 3.5mm Audio, 2 × USB 3.0, 1 × USB 2.0, 1 × RJ45 |
| Wireless Connectivity | Wi-Fi 5G, Wi-Fi 2.4G, Wi-Fi AP |
| Refresh Rate | 3840–7680 Hz |
| Frame Rate | 50 / 60 Hz |
| Color Temperature | 2000–12000 K |
| Control Method | Remote Control / Touch Panel |
| Power Consumption (Max / Avg) | ≤2280 W / ≤900 W |
| Operating Voltage | AC 110–240V, 50–60Hz |
| Operating Temperature | 14°F to 104°F (-10°C to 40°C) |
| Lifetime | 100,000 hours |
| Weight | 1,102.31 lbs (500 kg) |
| Mobility | Integrated Rolling Travel Case |
