Description

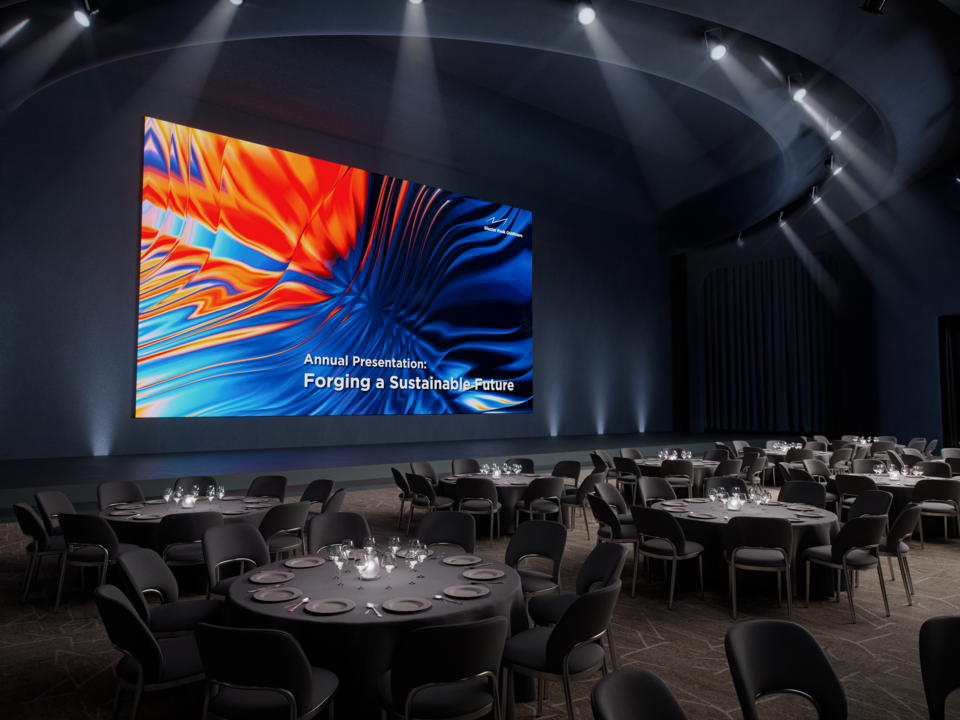

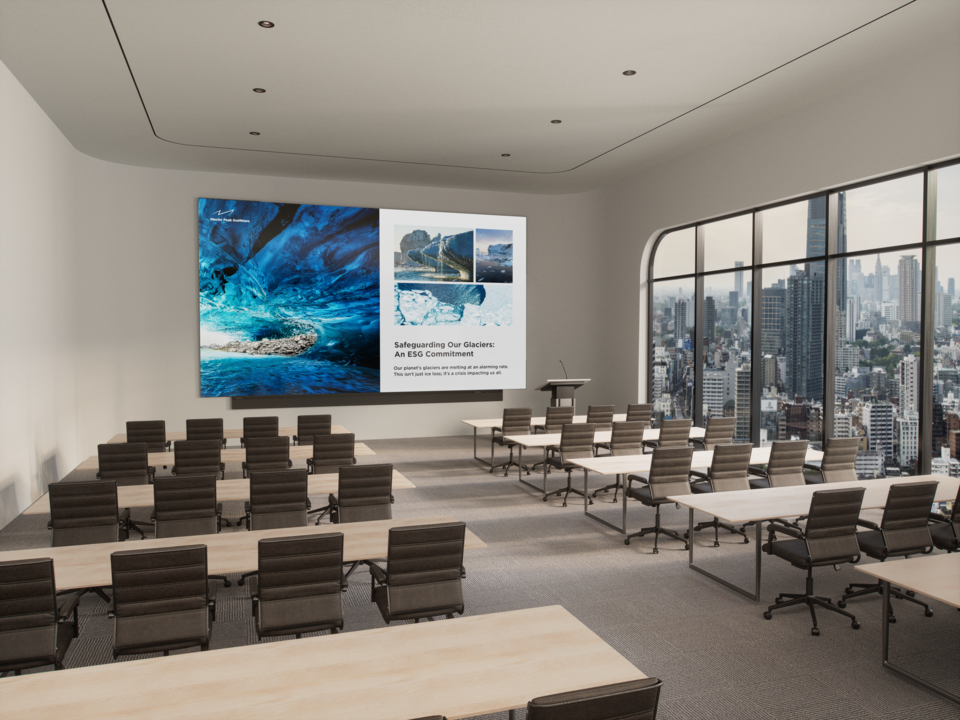

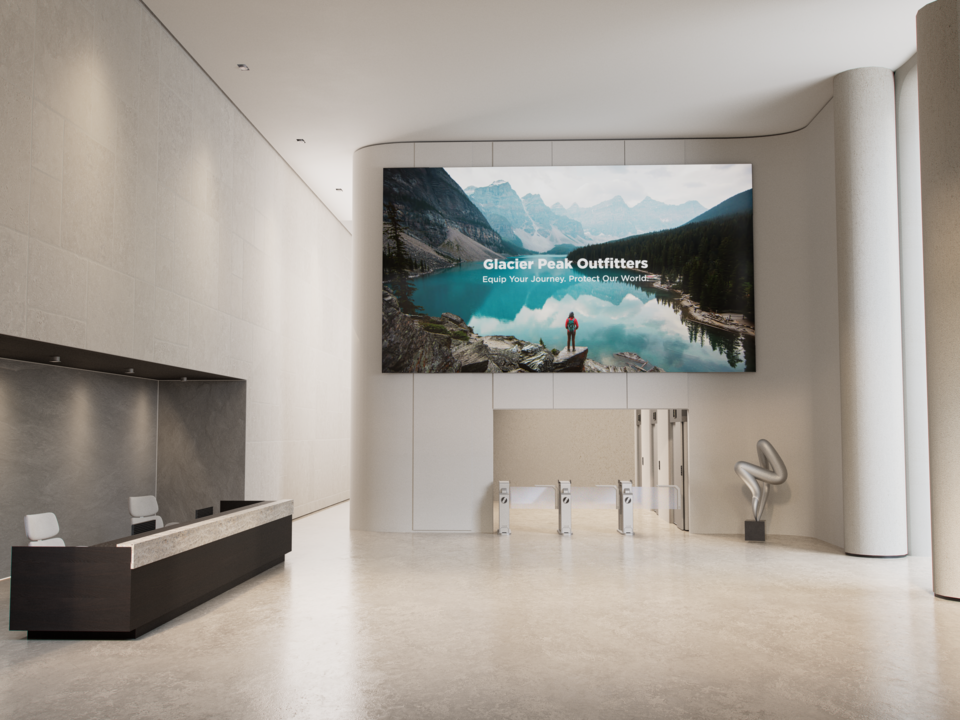

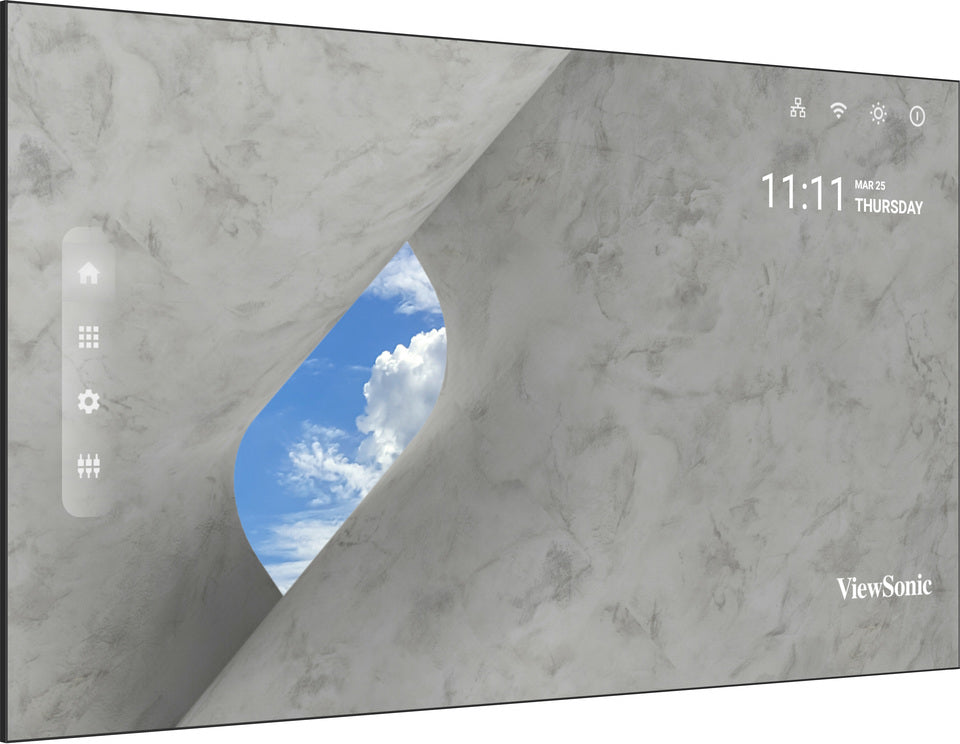

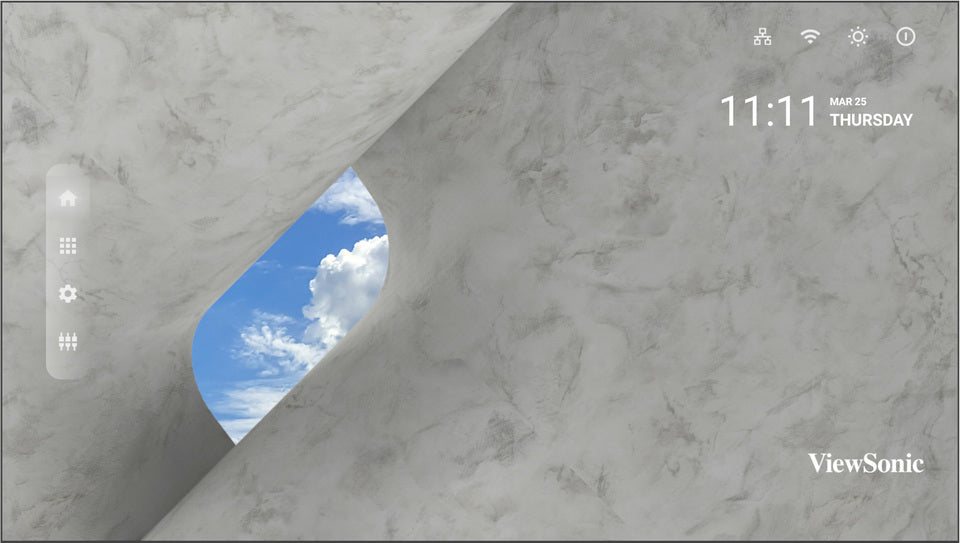

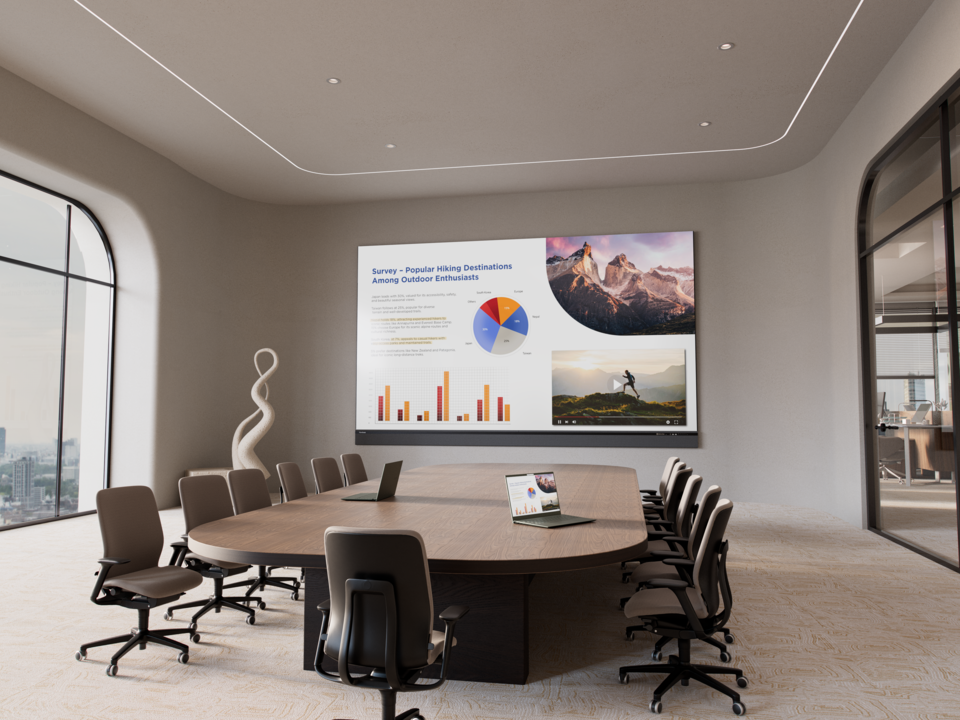

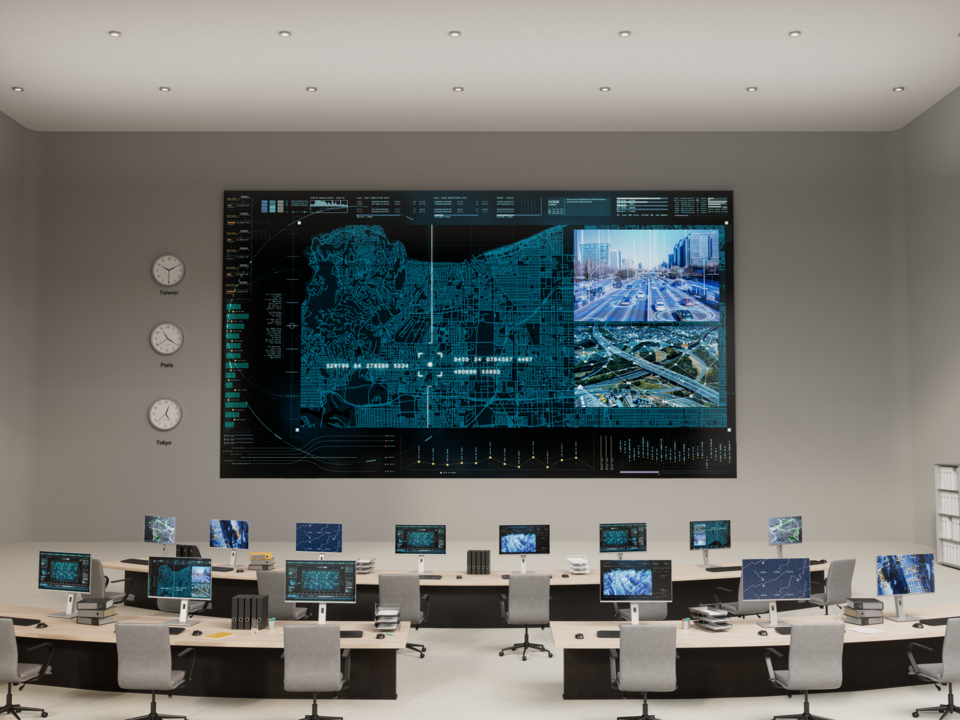

The ViewSonic® LDP136-071C is a premium 136-inch All-in-One Direct View LED Display engineered for enterprise collaboration and high-end visual applications. Delivering 4K UHD resolution with Mini LED and Flip Chip COB technology, it achieves ultra-fine detail, rich color, and superior contrast. Its robust IP54 and IK08 protection ensures durability against dust, water, and impact—making it ideal for corporate lobbies, executive boardrooms, and digital command centers.

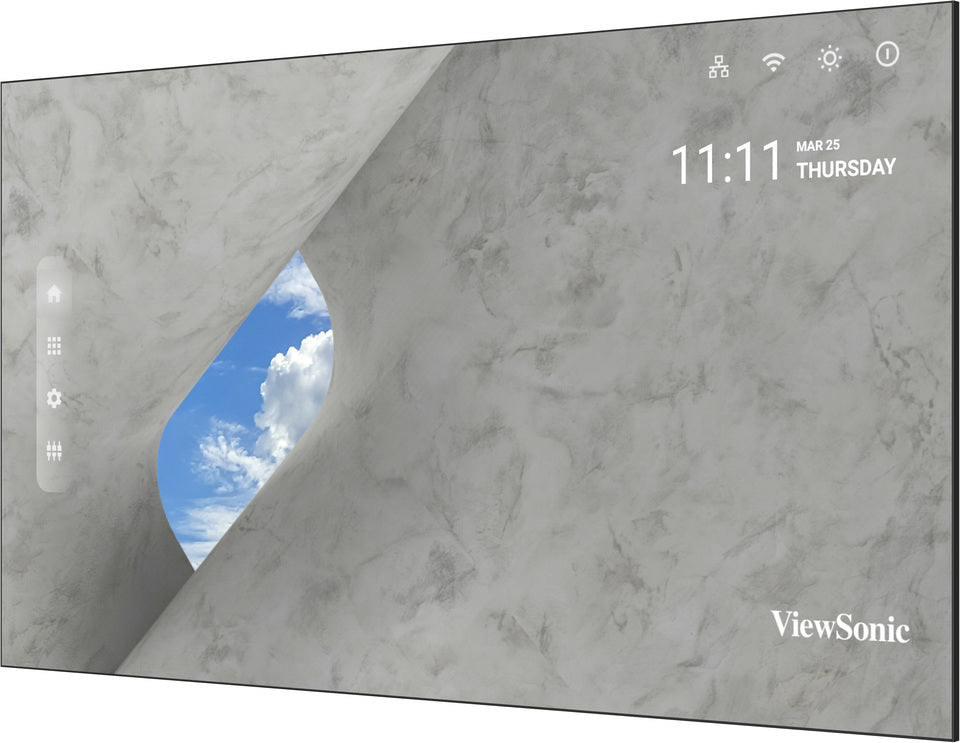

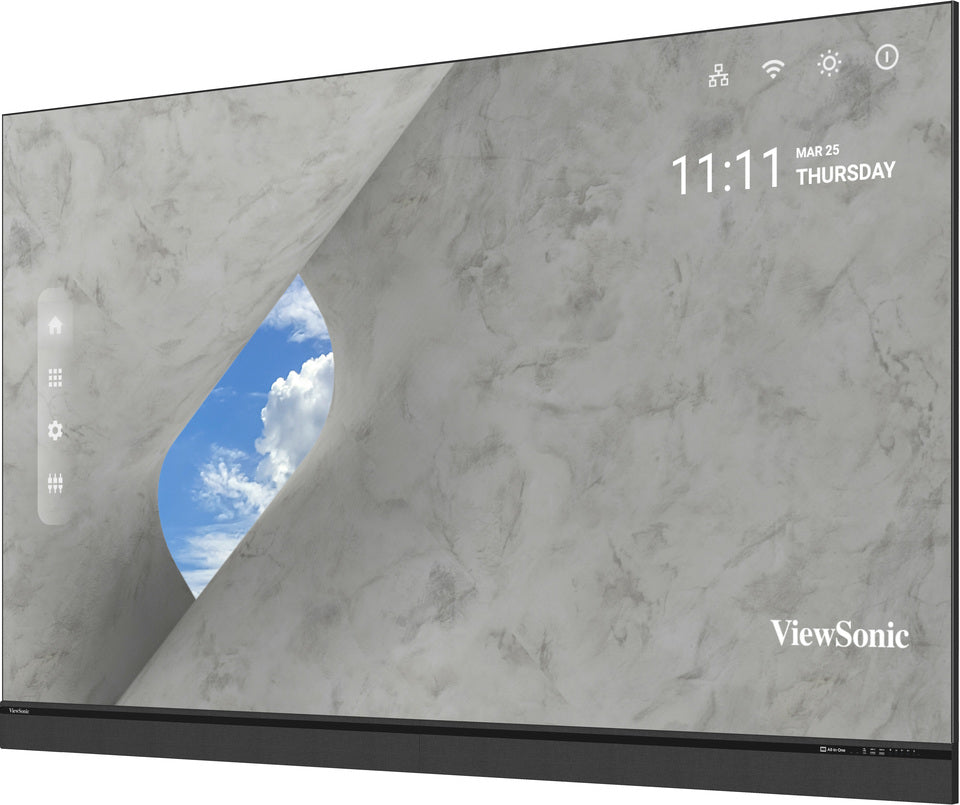

Installation is streamlined with a fully integrated power, control, image stitching, and display system, allowing setup by two people in under two hours. With a 31mm ultra-slim profile and seamless bezel-free design, the LDP136-071C offers an elegant, modern aesthetic that enhances any professional environment.
Energy-efficient operation is ensured by common cathode LED architecture and smart IC control, minimizing power consumption without compromising brightness. Designed for dynamic collaboration, it supports PIP/PBP screen-split modes, LAN control, and wireless content sharing via ViewShare and AirSync (optional). The result is a future-ready LED video wall solution built for uncompromising performance, efficiency, and reliability.
| Category | Specification |
|---|---|
| Display | |
| Screen Size | 136” |
| Display Area (mm) | 3000 (H) × 1687.5 (V) |
| Native Resolution | 3840 × 2160 (4K UHD) |
| Panel Technology | Direct View LED |
| LED Package Type | Flip Chip COB |
| Pixel Pitch | 0.78 mm |
| Brightness (Max) | 600 nits (100 levels adjustable) |
| Contrast Ratio (Typ.) | 10,000:1 |
| Orientation | Landscape |
| Viewing Angles (Typ.) | H = 170°, V = 170° |
| LED Lifetime (Typ.) | 100,000 hours |
| Embedded OS | Android 9.0 |
| Local Storage | 32 GB (26 GB available) |
| Video Compatibility | VGA (640×480) to 4K (3840×2160 @60Hz), 480p–2160p |
| Audio | Dual 30W Speakers |
| Input Ports | |
| HDMI | 4 (HDMI 2.0 / HDCP 2.2) |
| USB Type-A | 3 (USB 3.0 ×1, USB 2.0 ×2) |
| RJ45 Input | 3 (2 Internet, 1 Control) |
| IR In | 1 (3.5mm) |
| Wi-Fi | 2.4G / 5G Hz |
| USB Type-C | 1 (Data only) |
| Output Ports | |
| HDMI Out | 1 (HDMI 2.0 / HDCP 2.2) |
| Audio Out | 2 (3.5mm) |
| S/PDIF | 1 |
| Control | RJ45 (LAN control), USB-A (Service), RS232 (DB 9-pin), IR Receiver |
| Power | |
| Voltage | 100–120V / 20A 50–60Hz or 220–240V / 10A 50Hz (varies by country) |
| Power Consumption | 680W (typical), 2031W (max), <0.5W (hibernate) |
| Physical | |
| Dimensions (W×H×D) | 118.58 × 72.22 × 1.61 in (3012 × 1834.5 × 41 mm) |
| With Wall Mount | 118.58 × 72.22 × 2.35 in (3012 × 1834.5 × 59.8 mm) |
| Net Weight | 372.58 lbs (169 kg) |
| Gross Weight | 599.66 lbs (272 kg) |
| Ingress Protection | IP54 (Front) |
| Impact Protection | IK08 (Front) |
| Operating Temperature | 0°C to 40°C |
| Standard Accessories | Power Cord, LAN Cable (Cat 5E), IR Extender Cable, Remote Control, Wall Mount, Installation Guide, Spare LED Modules ×14, Maintenance Tools (LD-MK-004 ×1, LD-MK-006 ×1) |

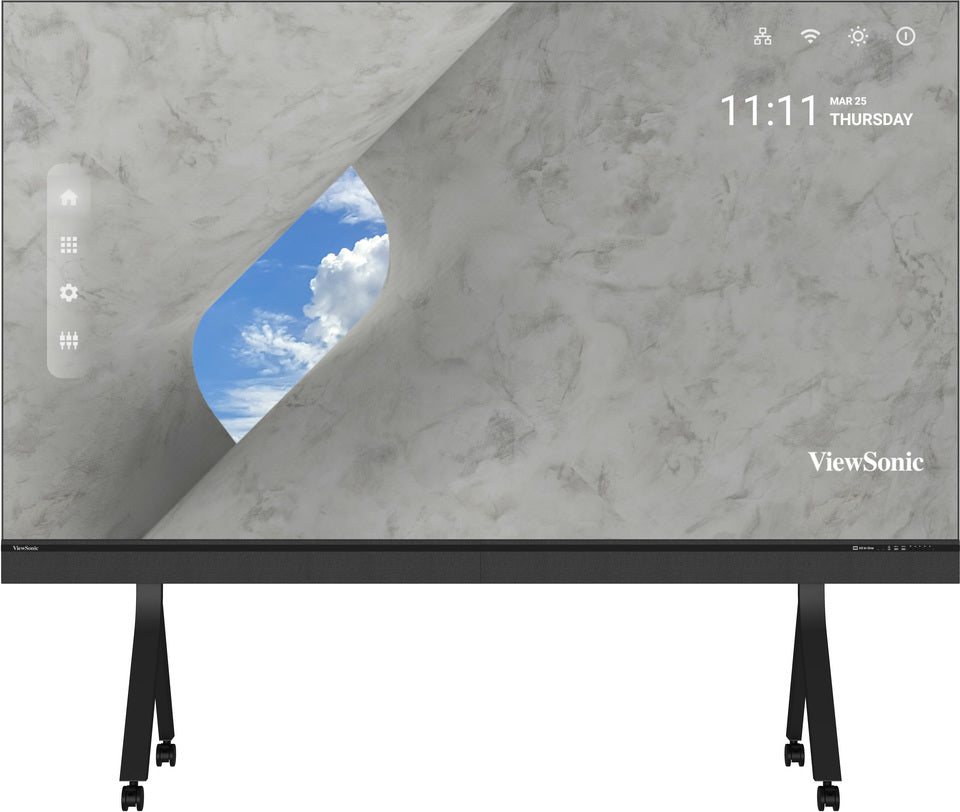

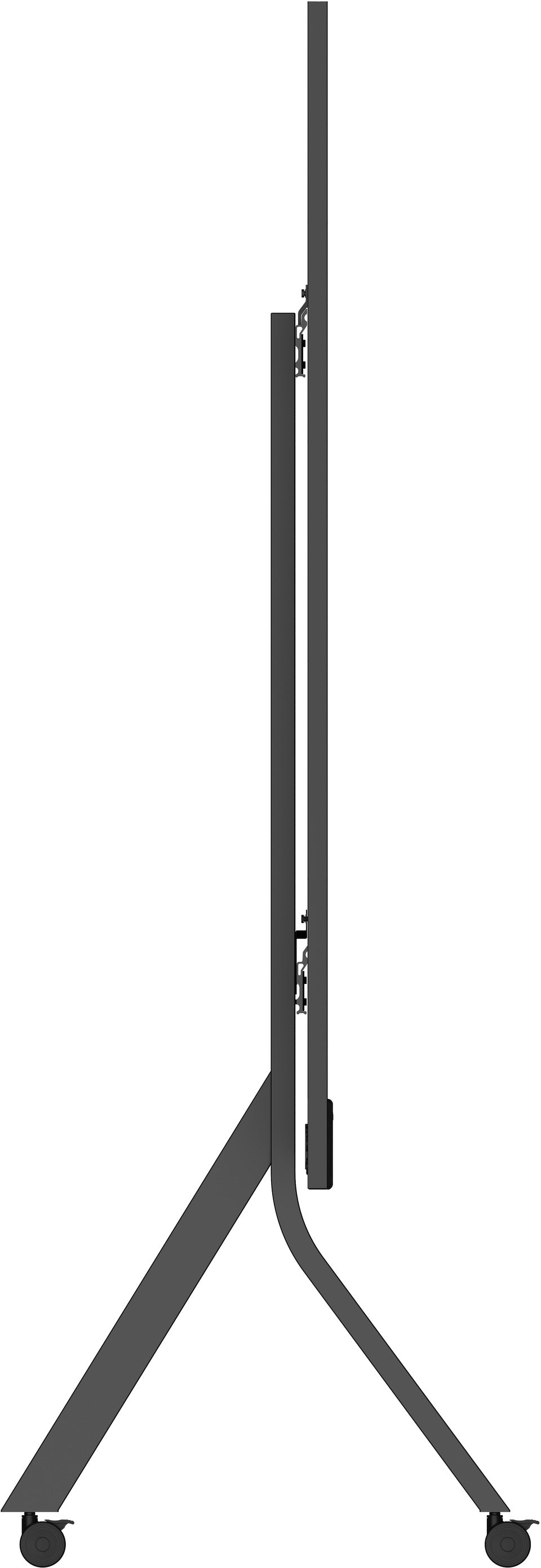

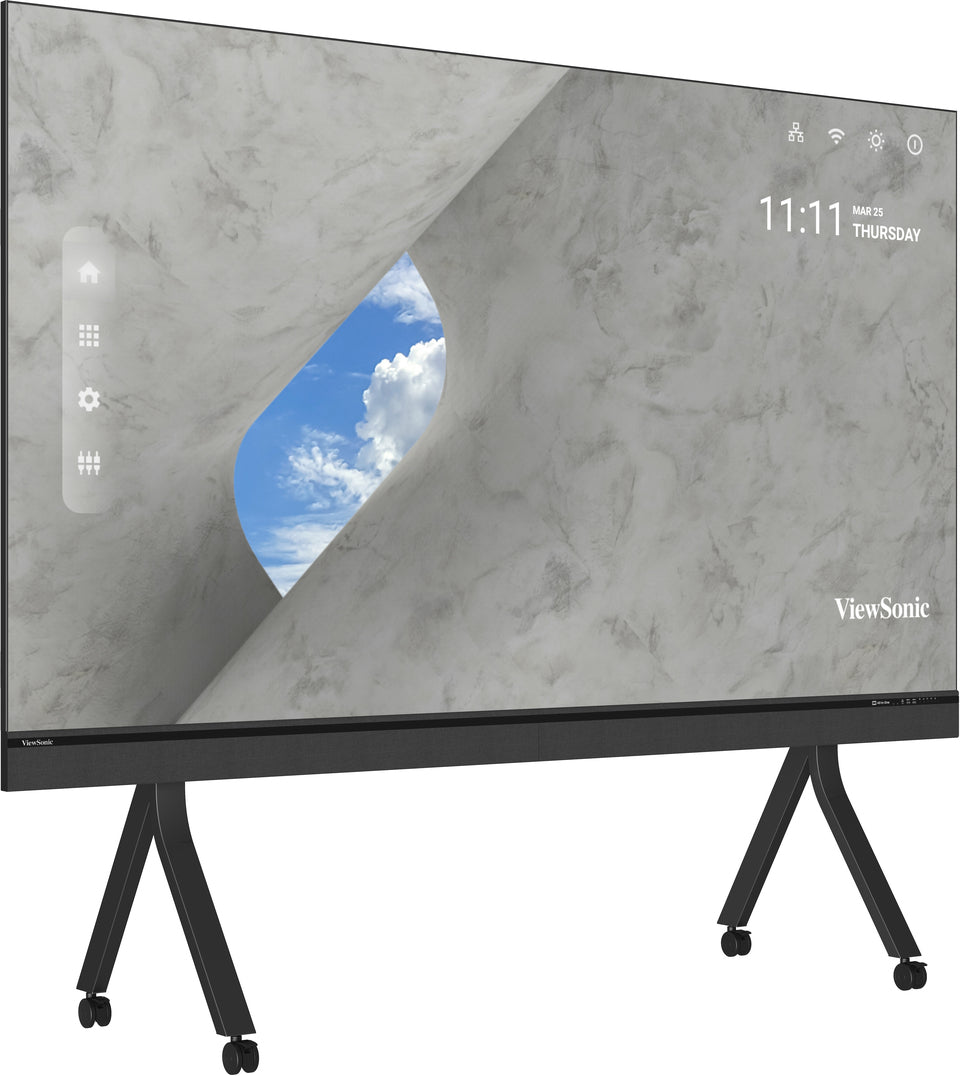

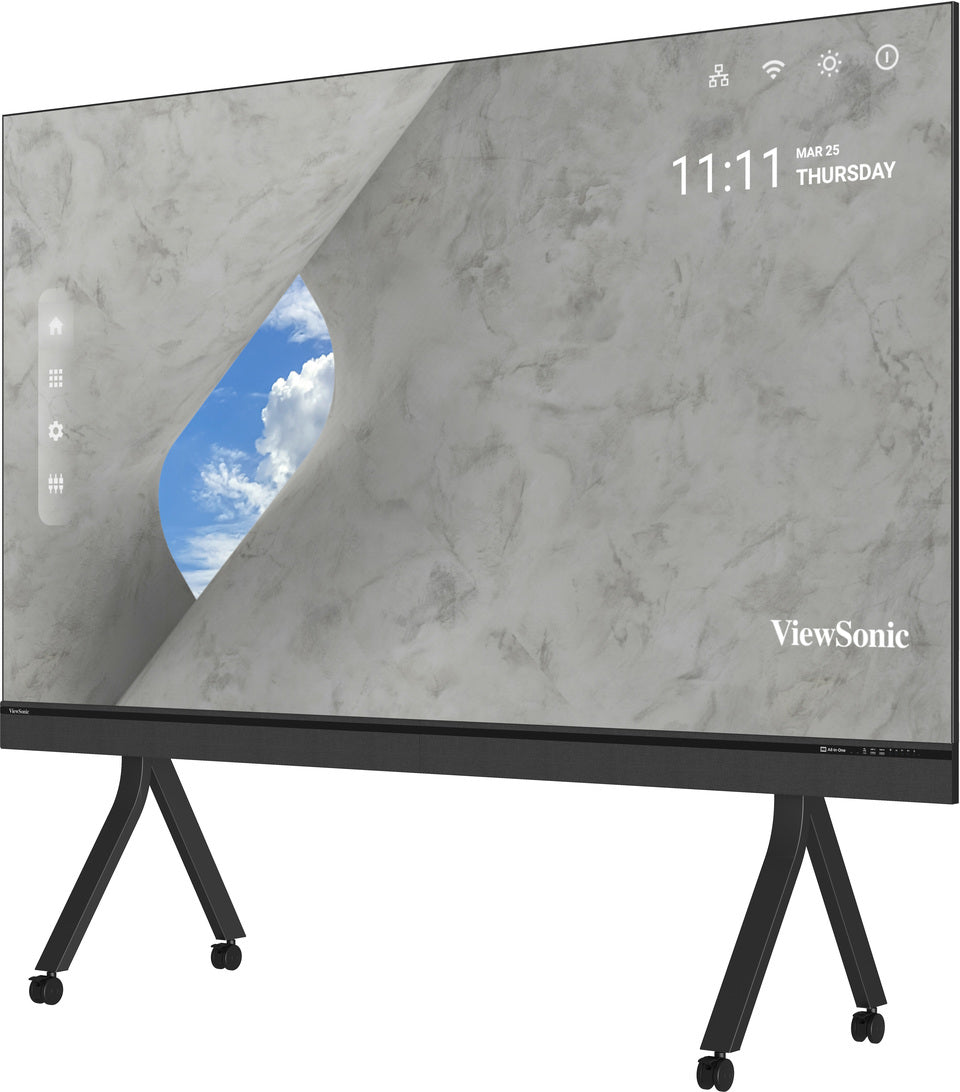

| Optional Accessories | Maintenance Tools (LD-MK-004, LD-MK-006), Floor Stand (LD-STND-009) |
