Description
The Eaton 93PX13KHWIND is a high-performance three-phase online double-conversion UPS engineered to deliver continuous, clean, and reliable power for mission-critical infrastructure. Designed for modern data centers, industrial environments, and enterprise IT systems, this 13kVA/13kW UPS combines unity power factor output with exceptional energy efficiency to maximize usable capacity while minimizing operating costs.
With up to 97% efficiency in ECO mode, the 93PX significantly reduces energy consumption without compromising protection. Its scalable extended runtime capability supports up to five external battery modules, ensuring long-duration backup for critical loads. The included cybersecure industrial gateway card enables secure remote monitoring and management, providing full visibility and control of your power environment at all times.

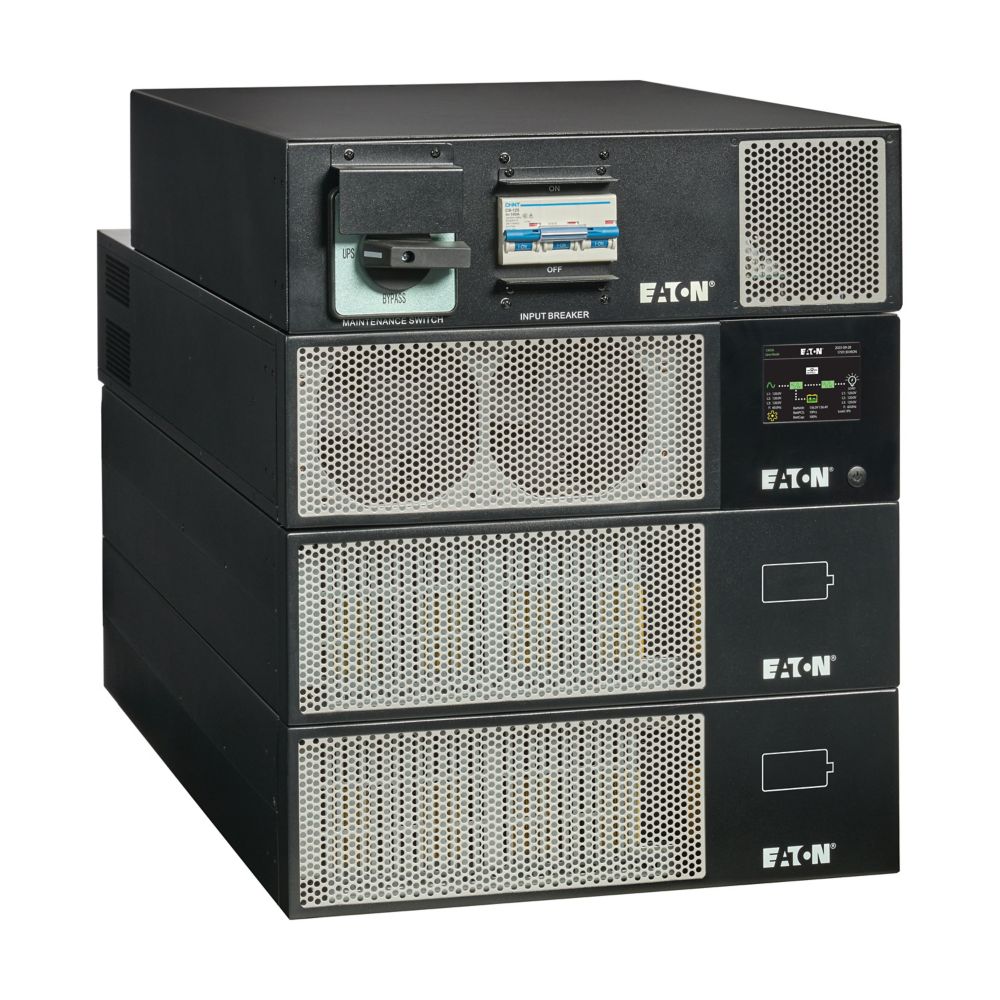

The system features a maintenance bypass panel for seamless serviceability, allowing maintenance or replacement without downtime. Its compact 12U rackmount design and high power density make it ideal for space-constrained deployments while maintaining enterprise-grade performance and reliability.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Product Series | 93PX |
| UPS Type | Three-Phase Online Double-Conversion |
| Power Capacity | 13,000 VA / 13,000 W |
| Input Voltage | 120/208V AC, 3-Phase Wye |
| Output Voltage | 120/208V AC, 3-Phase Wye |
| Input Connection | Hardwired |
| Output Connection | Hardwired |
| Input Power Factor | 1.0 |
| Output Power Factor | 1.0 |
| Efficiency | Up to 97% (ECO Mode) |
| Topology | Online Double-Conversion |
| Output Waveform | Pure Sine Wave |
| Frequency | 50/60 Hz ±4 Hz |
| Voltage Regulation | ±1% (Line Mode) |
| Transfer Time (ECO Mode) | <10 ms |
| Current Crest Ratio | 3:1 |
| THDi | <4% at full load |
| DC Voltage | ±120 VDC |
| Battery Type | External Battery Modules (EBM) |
| Expandable Runtime | Supports up to 5 EBMs |
| Typical Battery Life | 3.5 to 6 years |
| Included Battery Modules | (2) 93PXEBM240 |

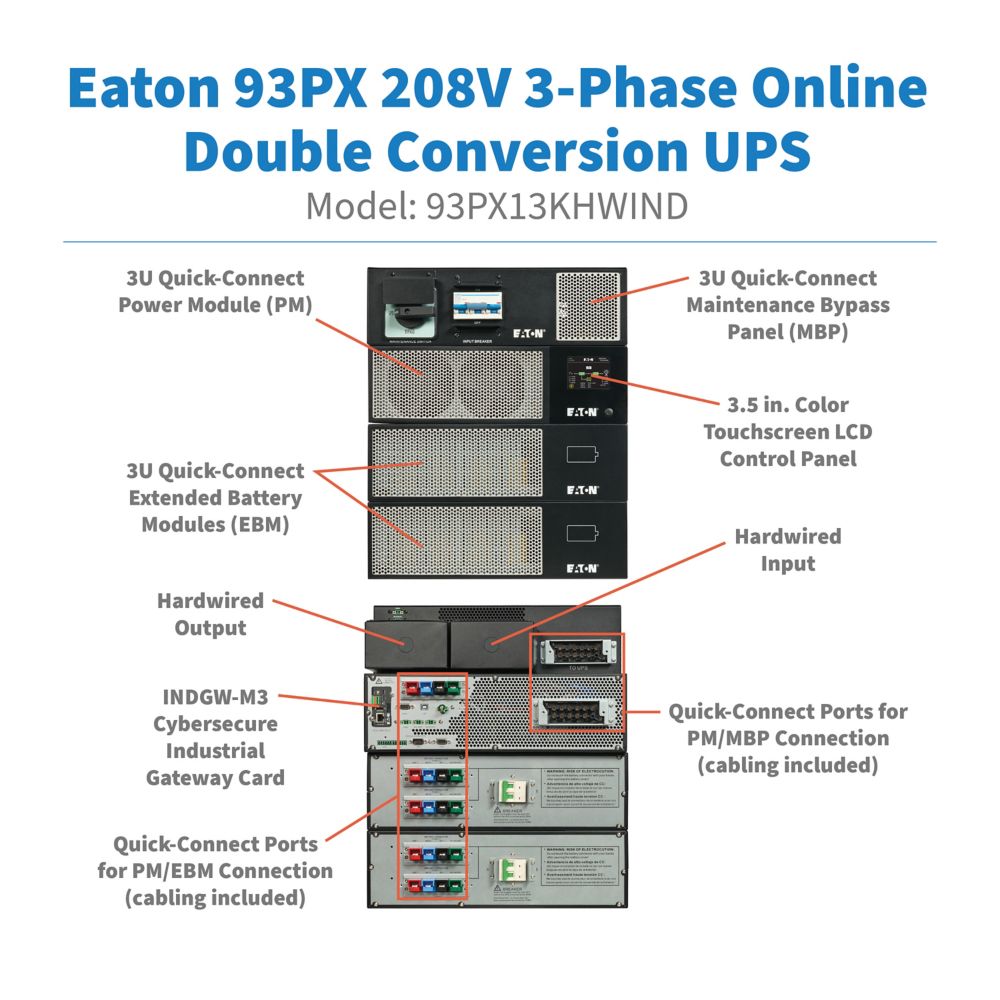

| Included Components | Power module, industrial gateway card, maintenance bypass panel, mounting hardware, cables, documentation |
| Network Management | Industrial Gateway Card (Cybersecure Remote Access) |
| Form Factor | Rackmount (4-post, 19-inch) |
| Rack Height | 12U |
| Dimensions (H x W x D) | 20.57 x 17.244 x 32.25 inches |
| Weight | 465.18 lbs |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 5°F to 140°F (-15°C to 60°C) |
| Humidity | 0–95% non-condensing |
| Elevation | Up to 3000m (derating above 1000m) |
| Input Breaker | 80A via maintenance bypass panel |
| Installation Type | Rack-mounted |
