Description

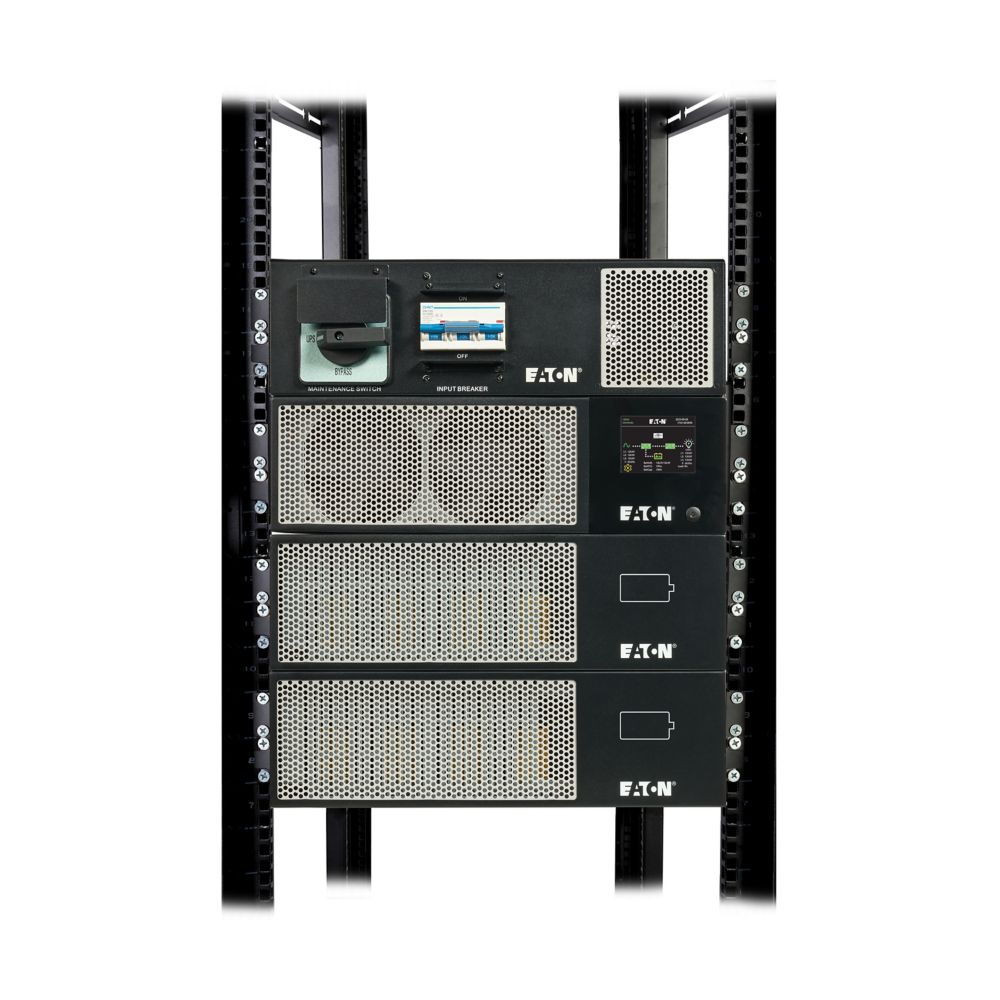

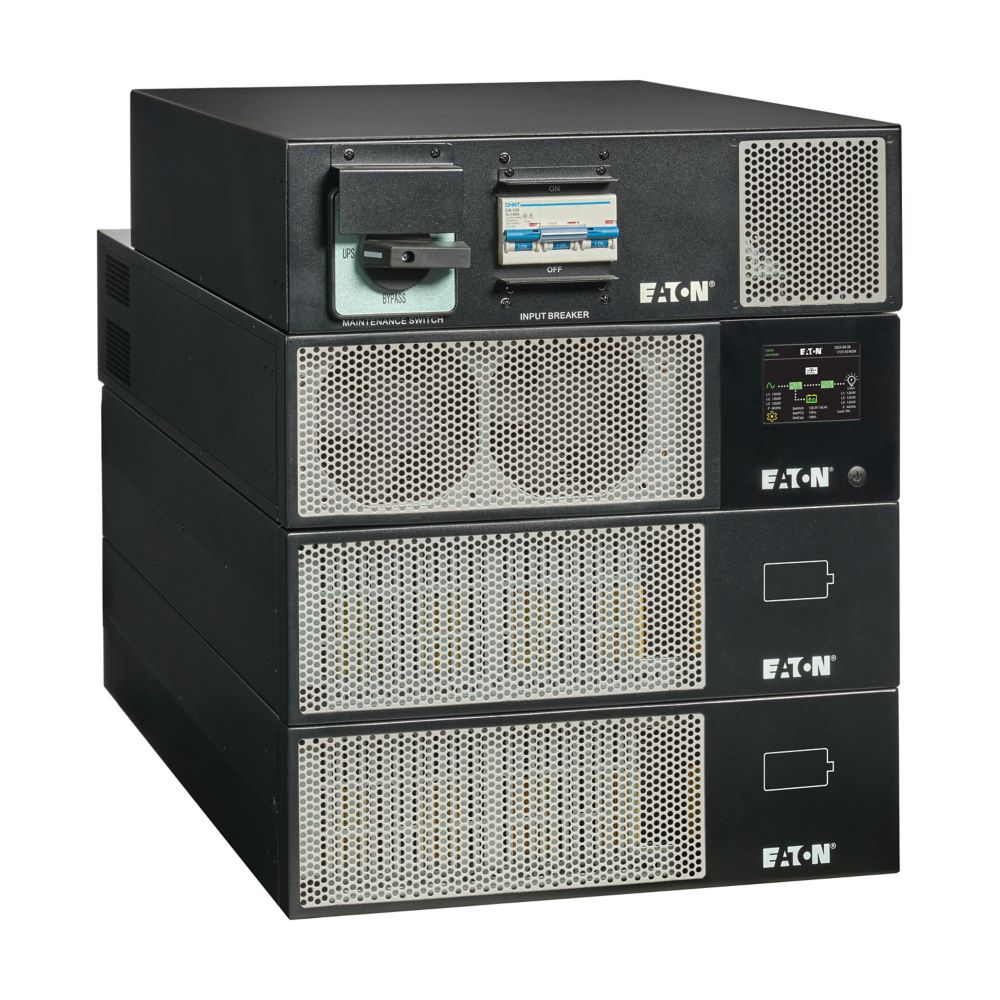

The Eaton Corporation 93PX13KHW is a high-efficiency, three-phase online double-conversion UPS engineered to deliver continuous, clean power for mission-critical IT and data center environments. With a unity power factor (1.0), this 13kVA/13kW system maximizes usable capacity while minimizing footprint, making it ideal for high-density rack deployments.

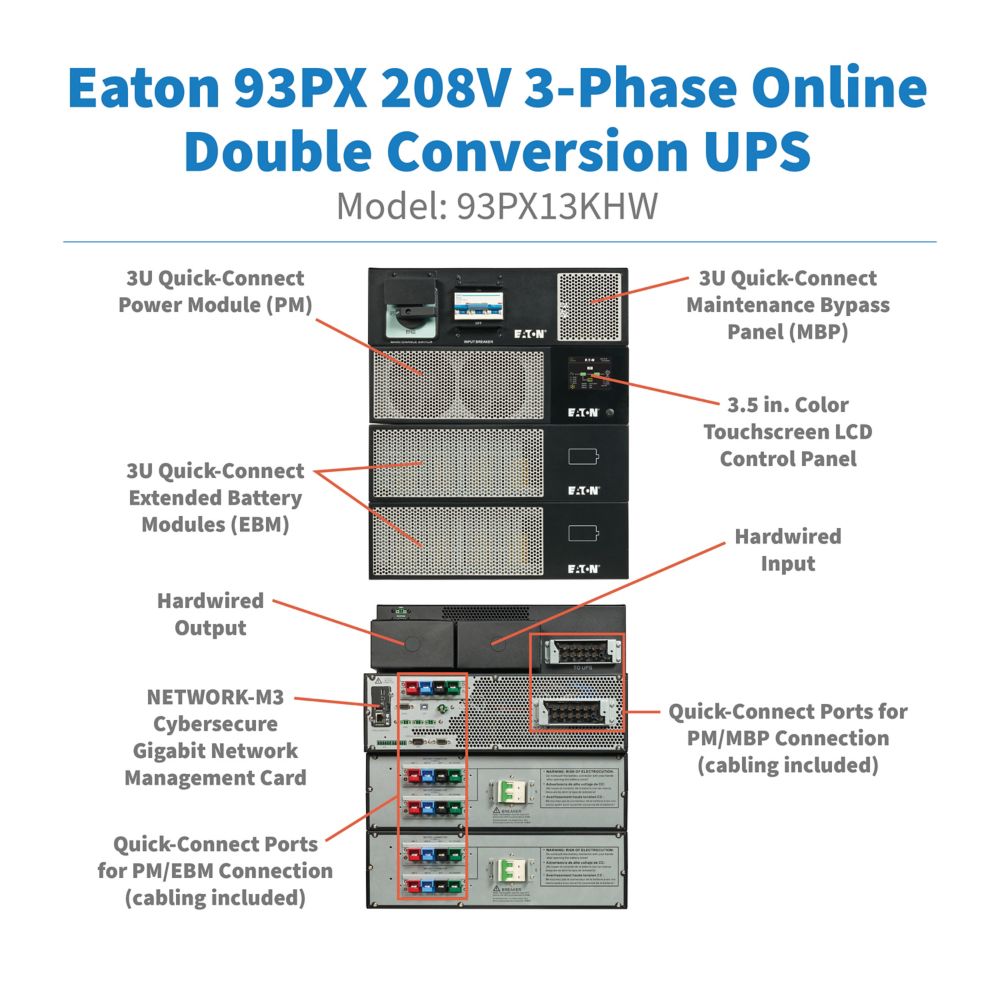

Designed for flexibility and uptime, the 93PX features hardwired input and output connections, an integrated maintenance bypass panel, and expandable runtime with extended battery modules. The included cybersecure network card enables 24/7 remote monitoring and management, ensuring full visibility and control of your power infrastructure.
With up to 97% efficiency in ECO mode, low total harmonic distortion, and pure sine wave output in both AC and battery modes, the Eaton 93PX delivers reliable, energy-efficient protection for critical loads. Its modular, rackmount design and quick-connect architecture simplify installation, servicing, and scalability for evolving power requirements.
| Specification | Details |
|---|---|
| Product Type | Three-Phase Online Double-Conversion UPS |
| Topology | Online Double Conversion |
| Output Capacity | 13,000 VA / 13,000 W |
| Input Voltage | 120/208V AC, 3-Phase Wye |
| Output Voltage | 120/208V AC, 3-Phase Wye |

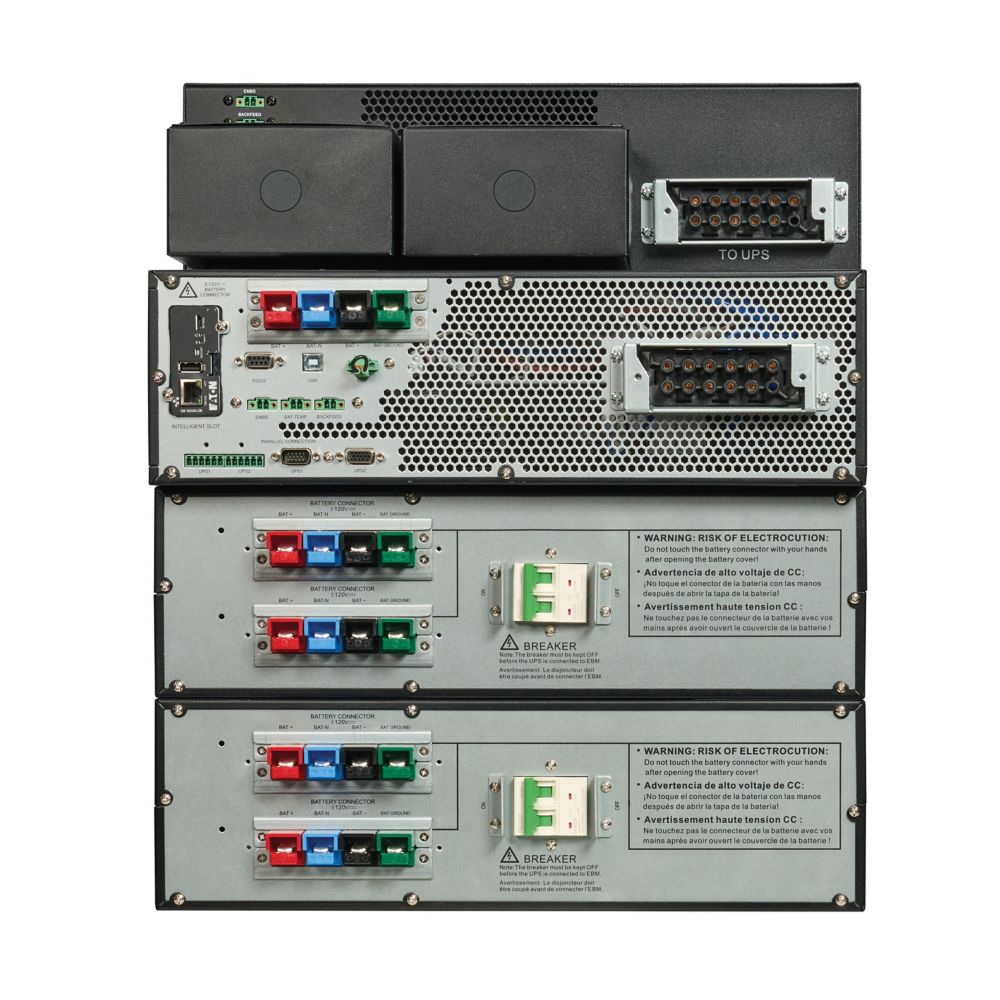

| Input Connection | Hardwired |
| Output Connection | Hardwired |
| Power Factor | Unity (1.0) |
| Efficiency | Up to 97% in ECO mode |
| Frequency | 50/60 Hz ±4 Hz |
| Output Waveform | Pure Sine Wave (AC & Battery Mode) |
| Voltage Regulation | ±1% |
| THDi | Less than 4% at full load |
| Transfer Time (ECO Mode) | Less than 10 ms |

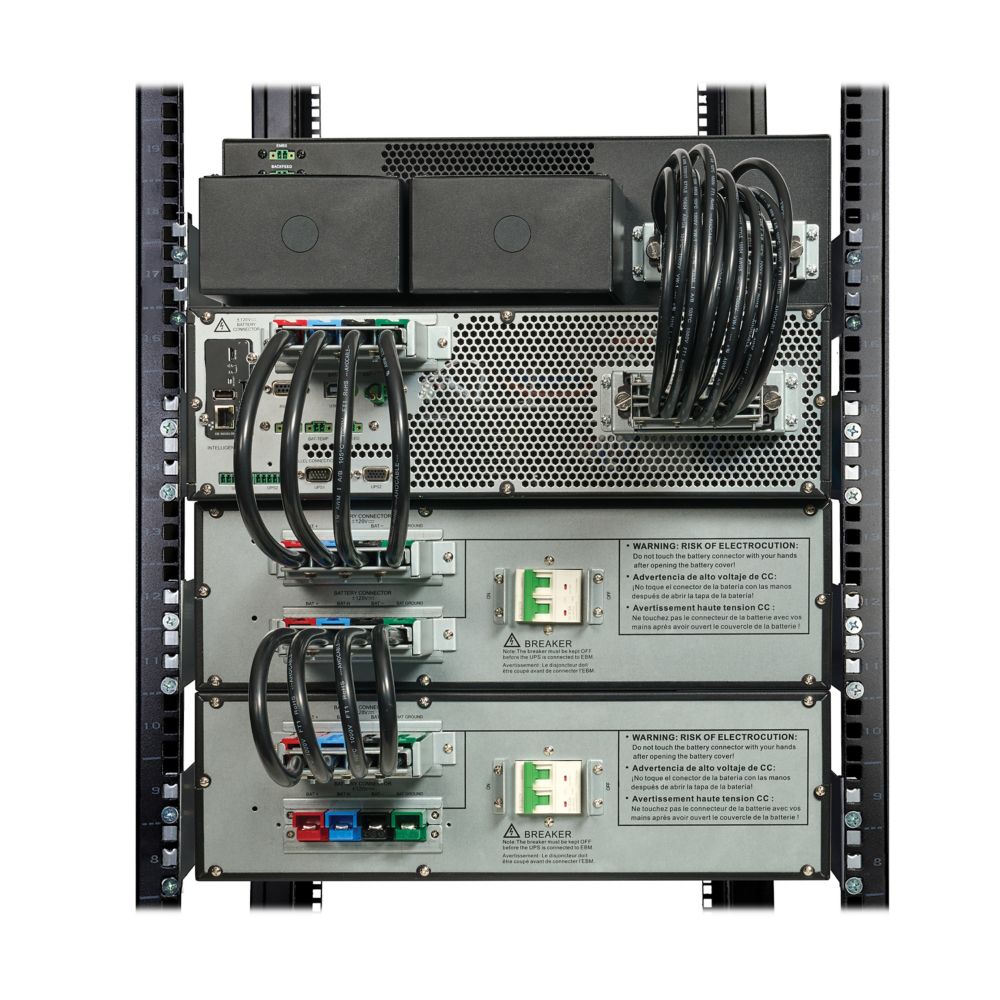

| Battery Type | Internal with Extended Battery Modules (EBM) |
| Expandable Runtime | Supports up to 5 EBMs |
| DC Voltage | ±120 VDC |
| Typical Battery Life | 3.5 to 6 years depending on conditions |
| Maintenance Bypass | Included (93PXMBP20KHW) |
| Network Management | Gigabit Cybersecure Network Card (NETWORK-M3) |
| Input Breaker | 80A via Maintenance Bypass Panel |
| Form Factor | Rackmount (4-post 19-inch) |
| Rack Height | 12U total system |
| Dimensions (H x W x D) | 20.57 x 17.24 x 32.25 inches |
| Weight | 465.18 lbs |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 5°F to 140°F (-15°C to 60°C) |
| Humidity | 0–95% non-condensing |
| Operating Elevation | Up to 3000 m (derating above 1000 m) |
| Included Components | Power module, 2 EBMs, maintenance bypass panel, network card, rack hardware, cables, documentation |
