Description

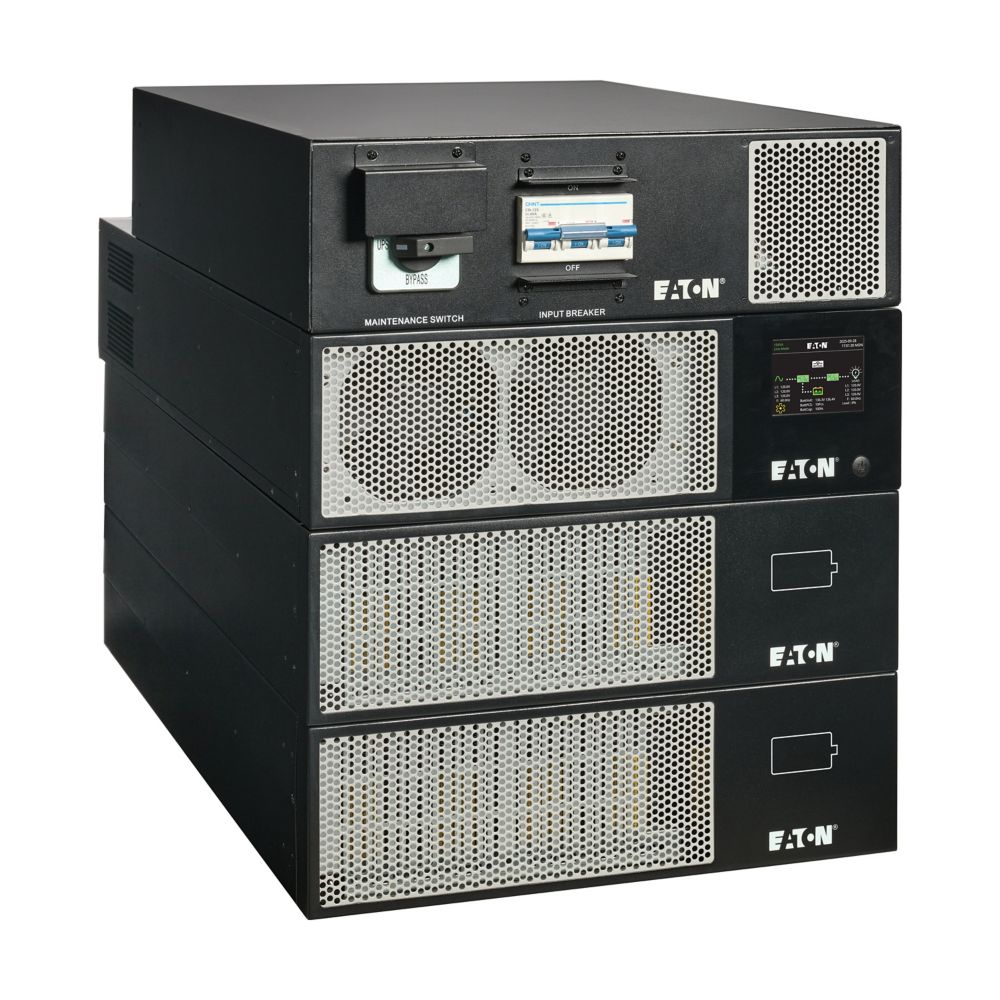

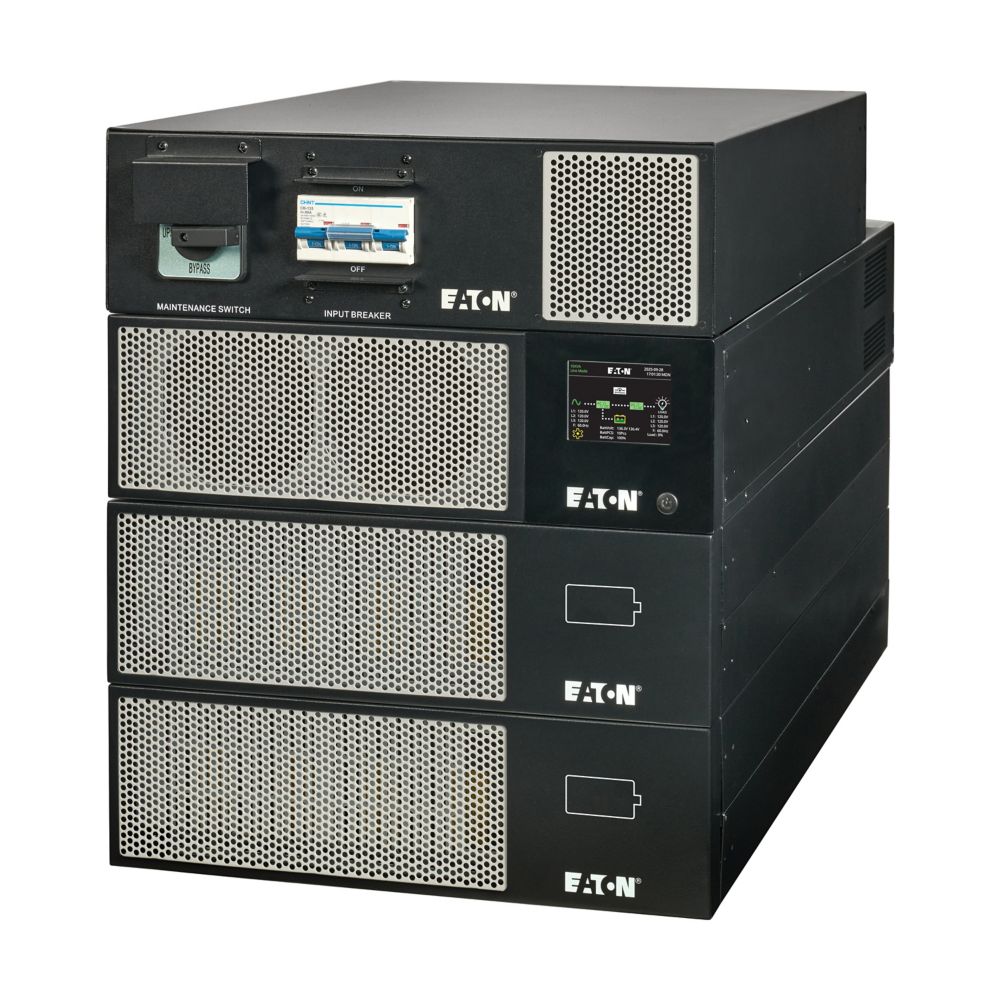

The Eaton 93PX15K is a high-performance three-phase online double-conversion UPS designed to deliver reliable, continuous power protection for mission-critical IT environments, edge data centers, and industrial applications. With a unity power factor (1.0), this UPS provides maximum usable power in a compact 12U rackmount form factor, helping organizations optimize valuable rack space while maintaining high availability.
Engineered for flexibility and scalability, the 93PX15K supports extended runtime with up to five external battery modules, ensuring continued operation during prolonged outages. Its innovative plug-and-play design simplifies deployment and maintenance, while the integrated maintenance bypass allows seamless servicing without interrupting connected loads.
The included cybersecure network card enables secure remote monitoring and management, giving IT teams full visibility and control of power infrastructure 24/7. With high efficiency, low harmonic distortion, and precise voltage regulation, the Eaton 93PX ensures clean, stable power for sensitive equipment in demanding environments.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Product Series | 93PX |
| Model | 93PX15K |
| UPS Type | Three-Phase Online Double-Conversion |

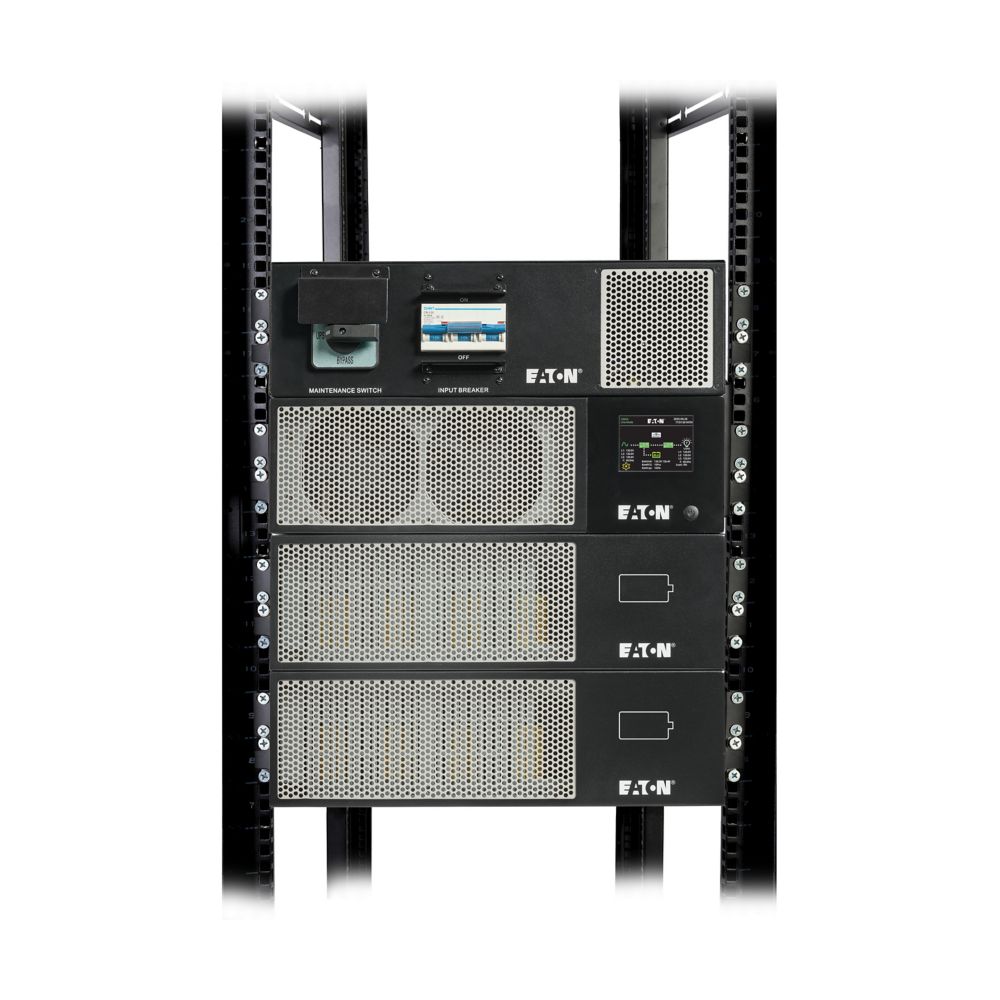

| Form Factor | Rackmount (4-post, 19-inch) |
| Rack Height | 12U |
| Output Capacity | 15000 VA / 15000 W |
| Input Voltage | 120/208V AC, 3-Phase Wye |
| Output Voltage | 120/208V AC, 3-Phase Delta |

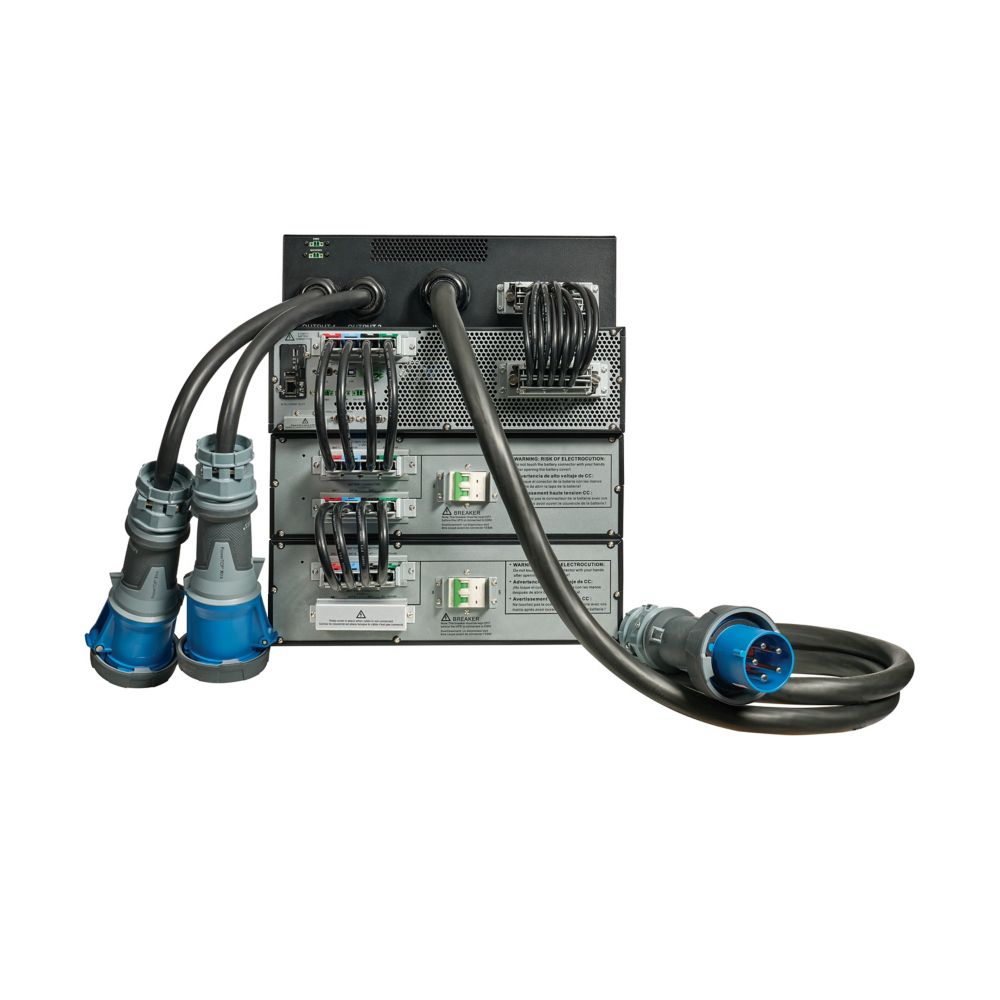

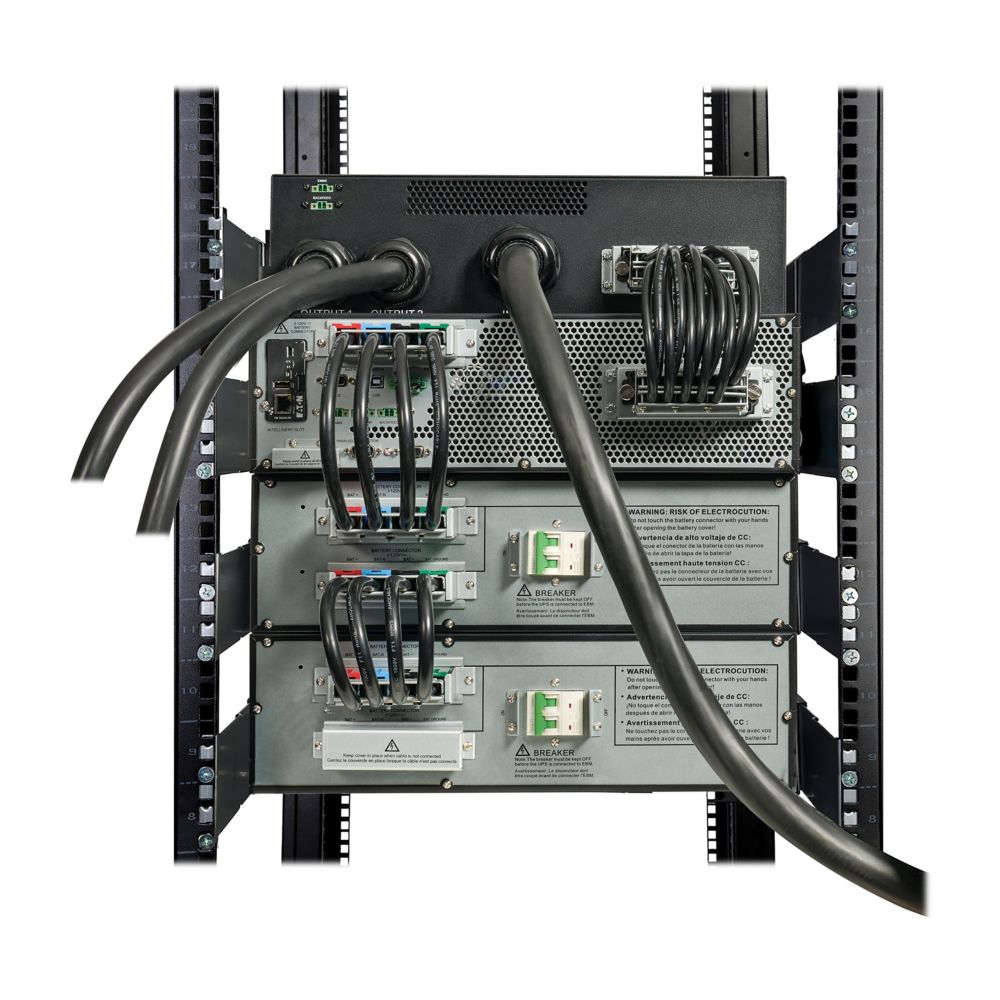

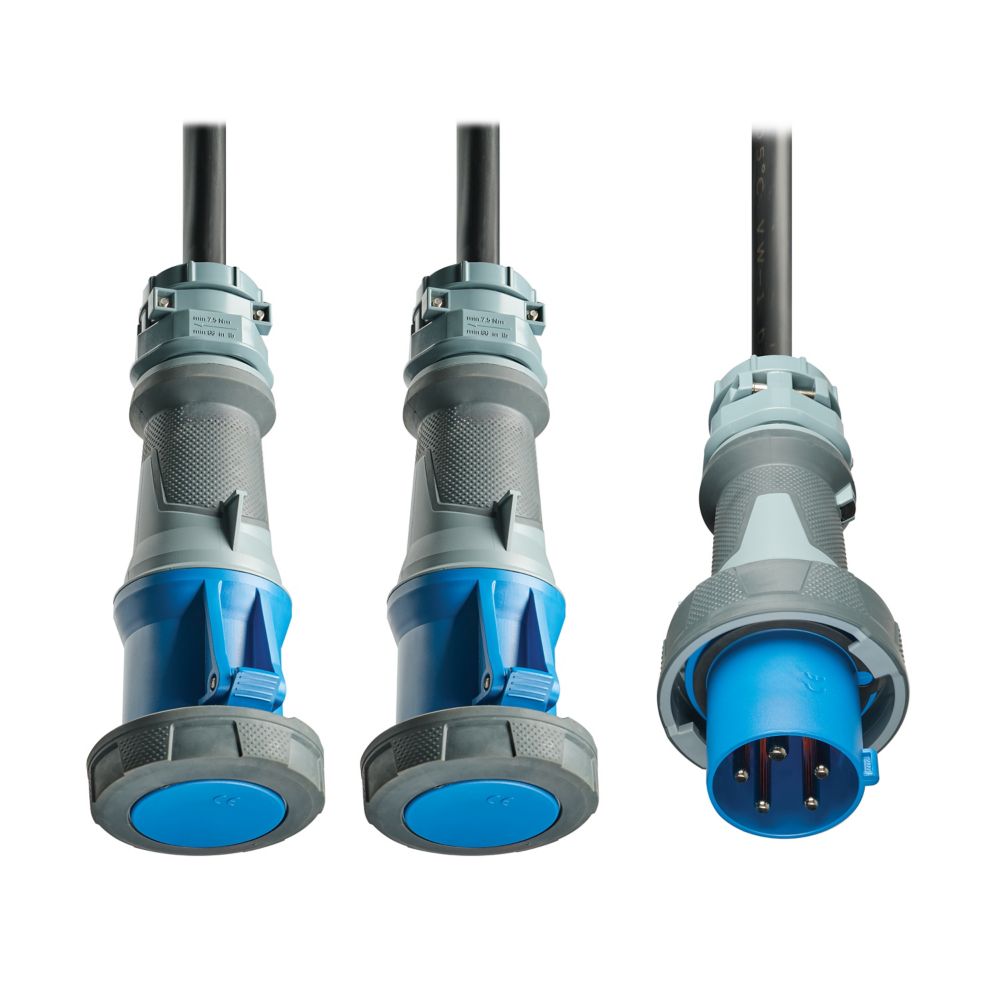

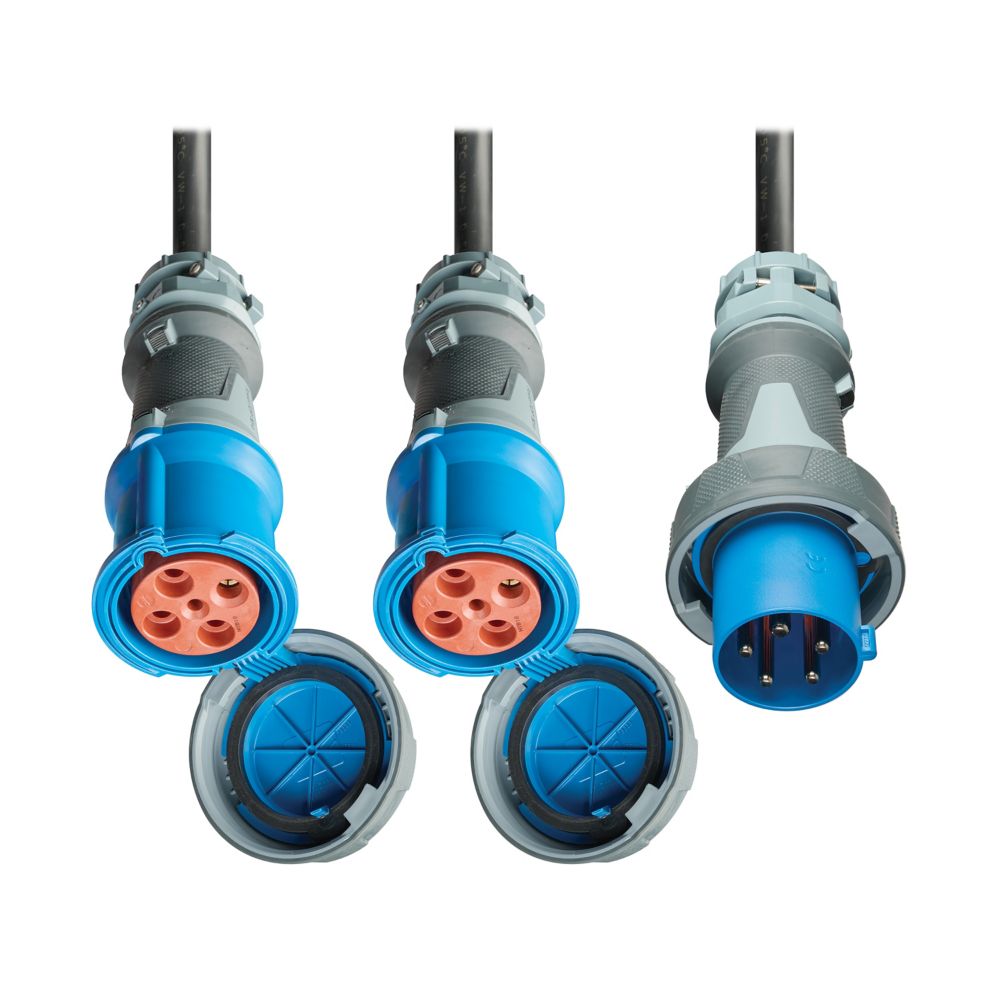

| Input Connection | IEC 309 60A |
| Output Connection | IEC 309 60A (3PH+E) |
| Input Frequency | 50/60 Hz ±4 Hz |
| Output Frequency | 50/60 Hz |
| Output Waveform | Pure Sine Wave (AC & Battery Mode) |
| Output Voltage Regulation | ±1% |
| Output Power Factor | 1.0 |
| Input Power Factor | 1.0 |
| Current Crest Ratio | 3:1 |
| THDi | < 4% at full load |
| Transfer Time (Economy Mode) | <10 ms |
| DC Voltage | ±120 Vdc |
| Battery Type Compatibility | External Battery Modules (EBM) |
| Expandable Runtime | Supports up to 5 EBM units |
| Typical Battery Life | 3.5 to 6 years (environment dependent) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -15°C to 60°C (5°F to 140°F) |
| Operating Humidity | 0–95% non-condensing |
| Operating Elevation | Up to 3000m (derating above 1000m) |
| Dimensions (H x W x D) | 20.57 x 17.24 x 32.25 in |
| Weight | 484.58 lb |
| Network Management | Cybersecure NETWORK-M3 Gigabit Card |
| Maintenance Bypass | Included (93PXMBP15K) |

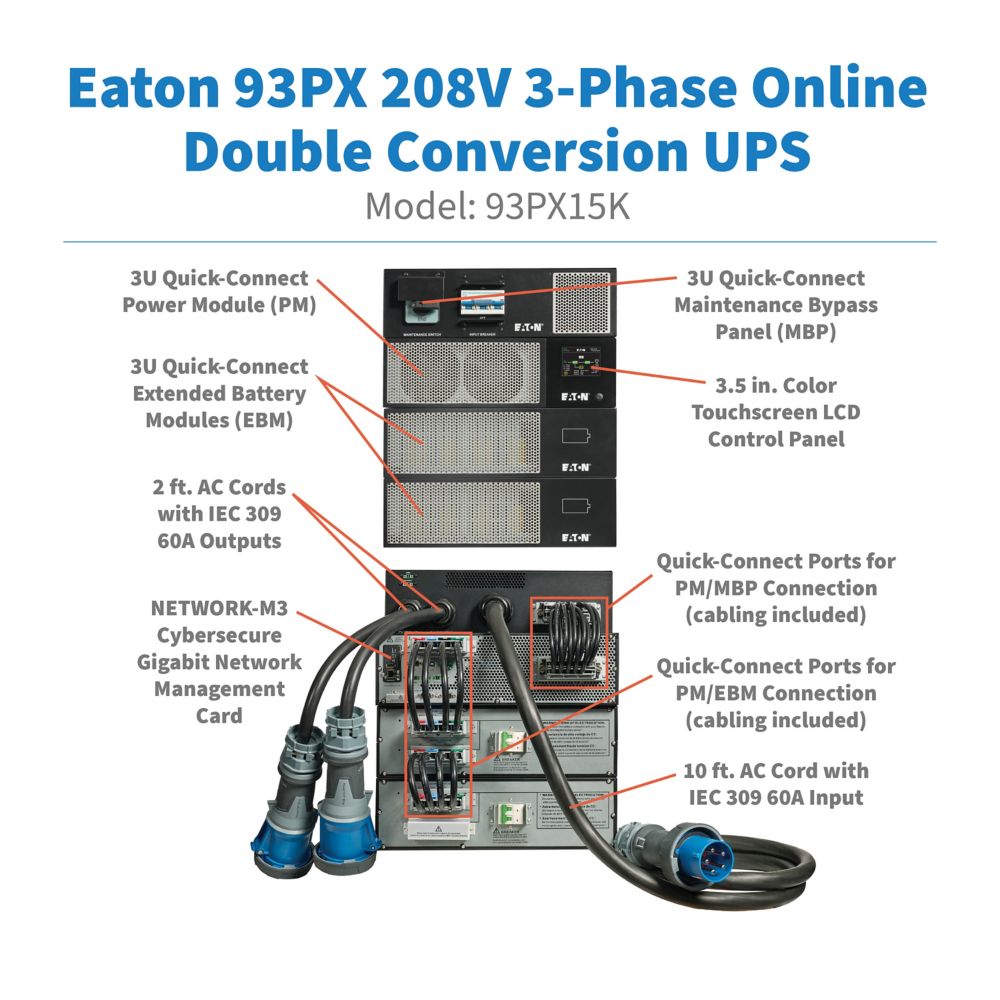

| Included Components | Power module, network card, 2 EBMs, maintenance bypass, rack hardware, cables, documentation |
