Description

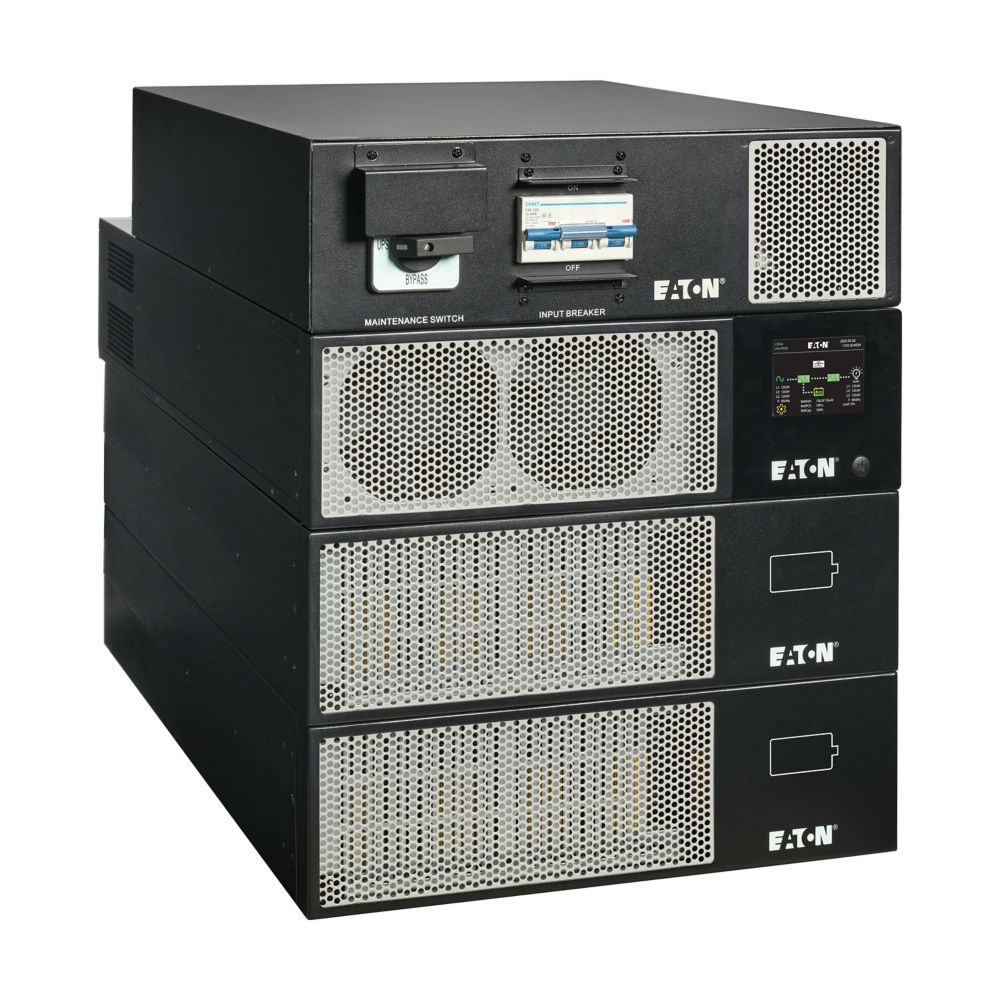

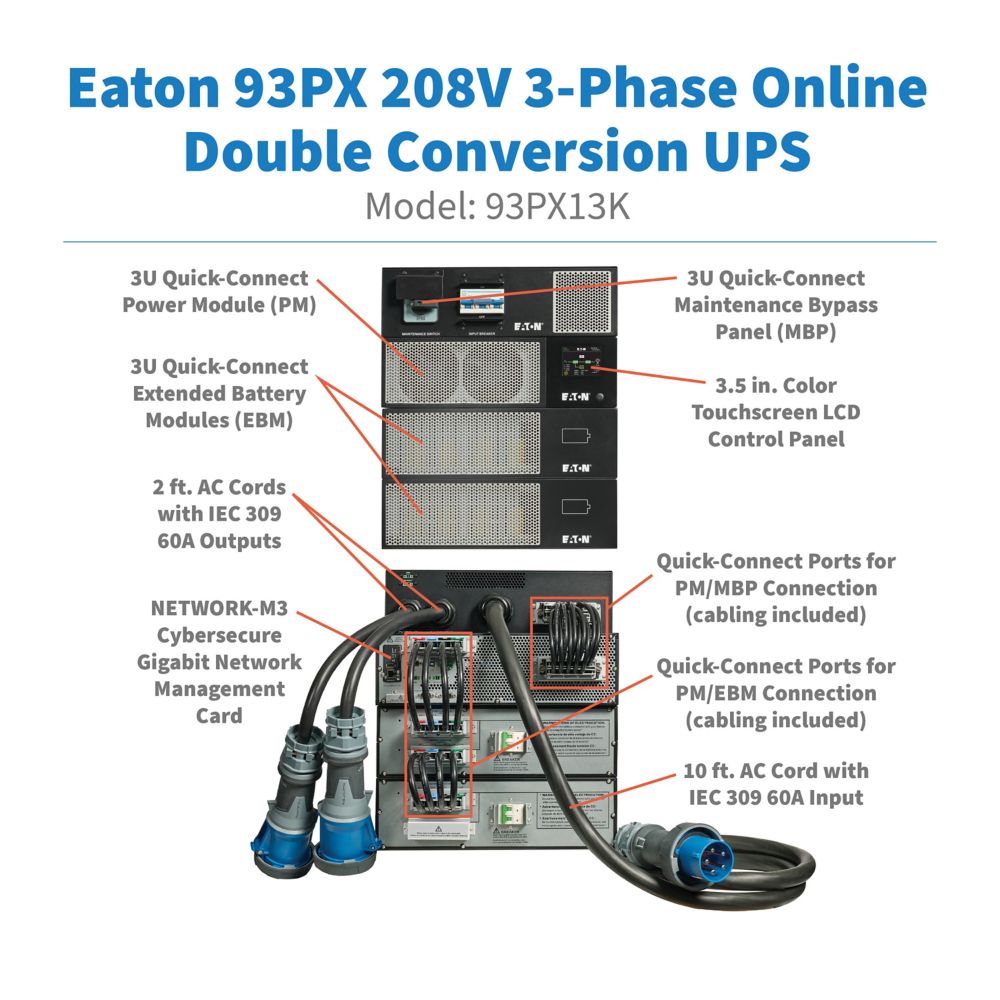

The Eaton 93PX13K is a high-performance three-phase online double-conversion UPS designed to deliver continuous, clean power for mission-critical IT environments, including data centers, network closets, and enterprise infrastructure. With a unity power factor (1.0), this UPS provides 13kW of usable power in a compact 12U rackmount form factor, maximizing efficiency while minimizing rack space consumption.
Engineered for reliability and scalability, the 93PX13K features expandable runtime through extended battery modules, ensuring continued operation during prolonged outages. The included maintenance bypass panel allows seamless servicing without disrupting connected equipment, while the cybersecure network card enables 24/7 remote monitoring and control.
Its pure sine wave output, low total harmonic distortion, and high input power factor ensure optimal compatibility with sensitive equipment. Combined with Eaton’s advanced design and quick-connect installation, the 93PX13K is an ideal power protection solution for organizations that demand uptime, flexibility, and operational efficiency.
| Category | Specification |
|---|---|
| Brand | Eaton |
| Product Series | 93PX |
| Product Type | Three-Phase Online Double-Conversion UPS |

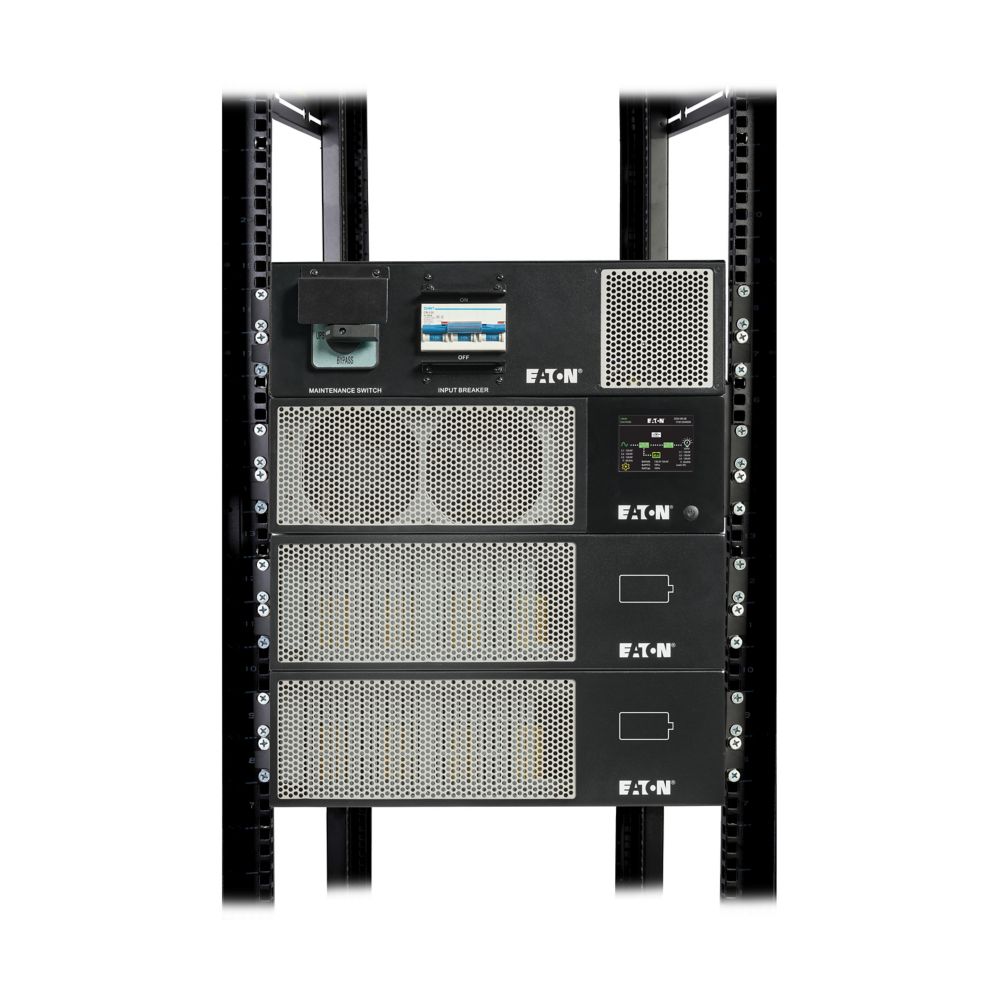

| Form Factor | Rackmount (12U), 4-post 19-inch rack |
| Power Capacity | 13,000 VA / 13,000 W |
| Topology | Online Double-Conversion |
| Input Voltage | 120/208V AC, 3-Phase Wye |
| Output Voltage | 120/208V AC, 3-Phase Delta |

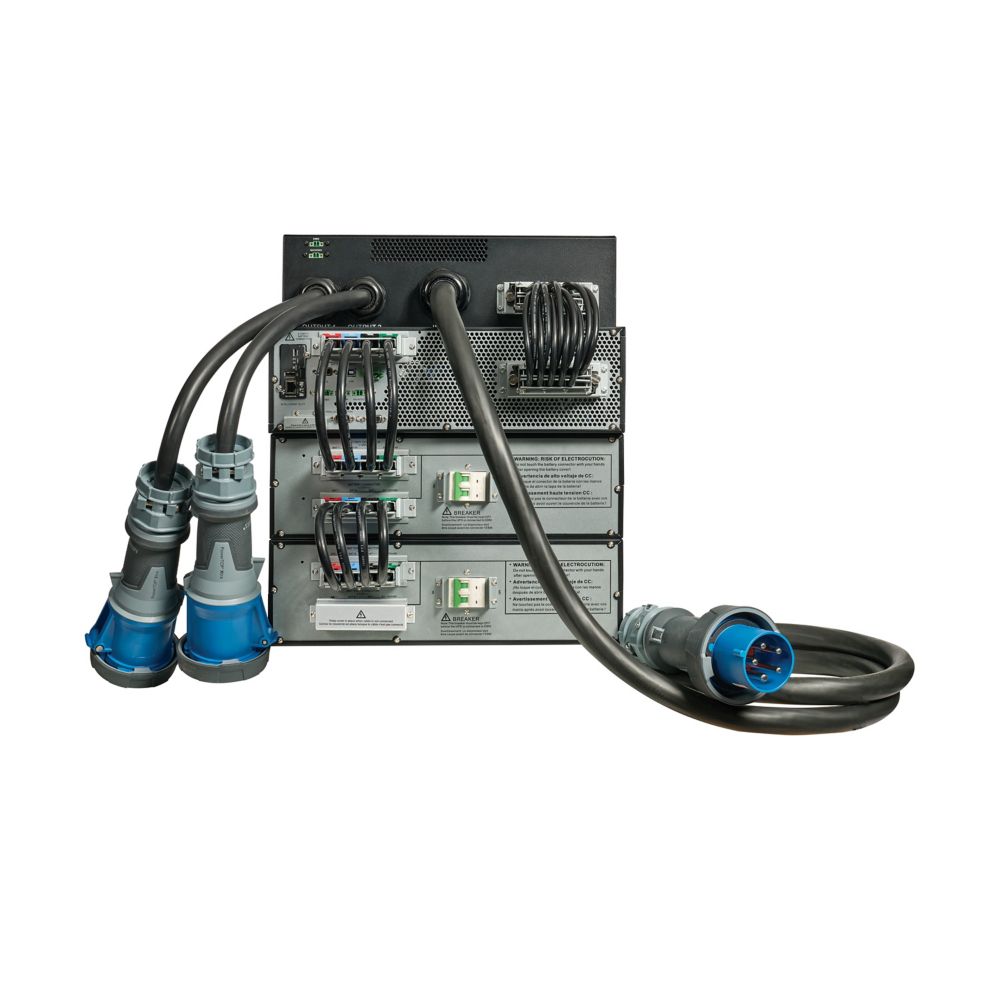

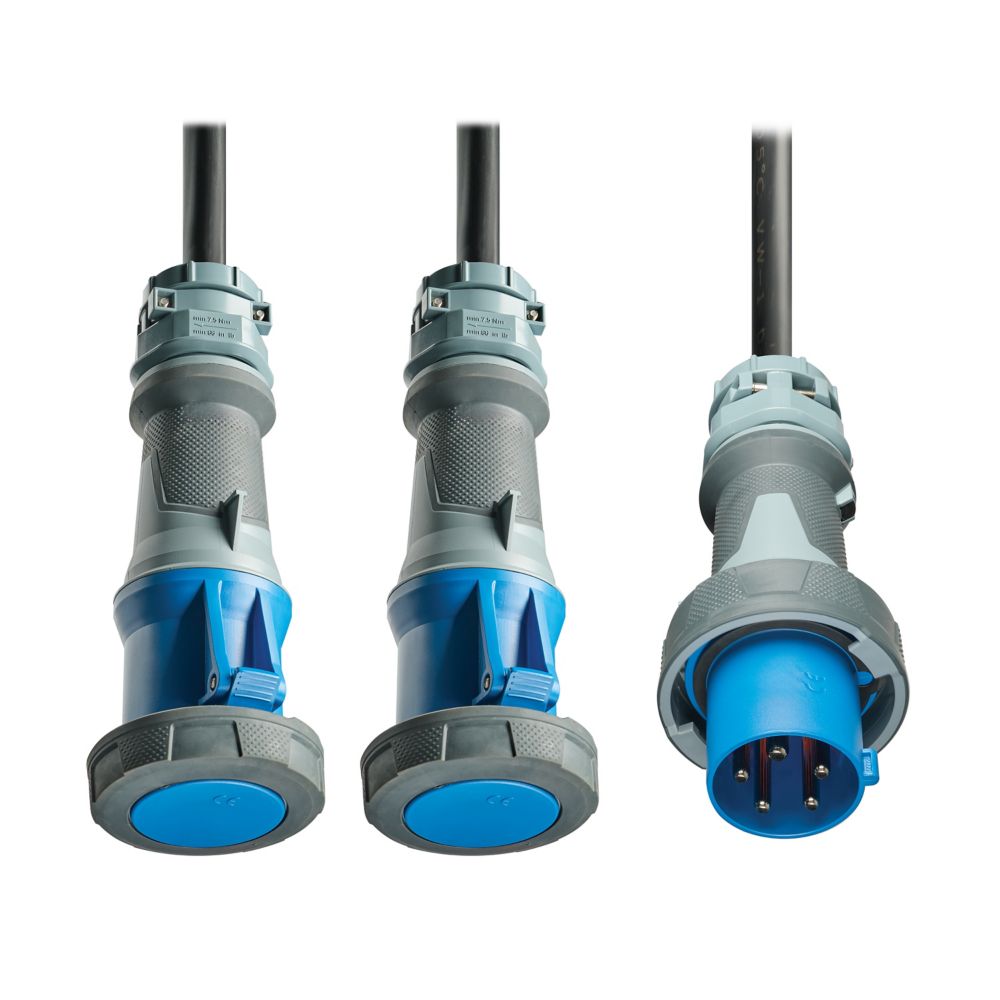

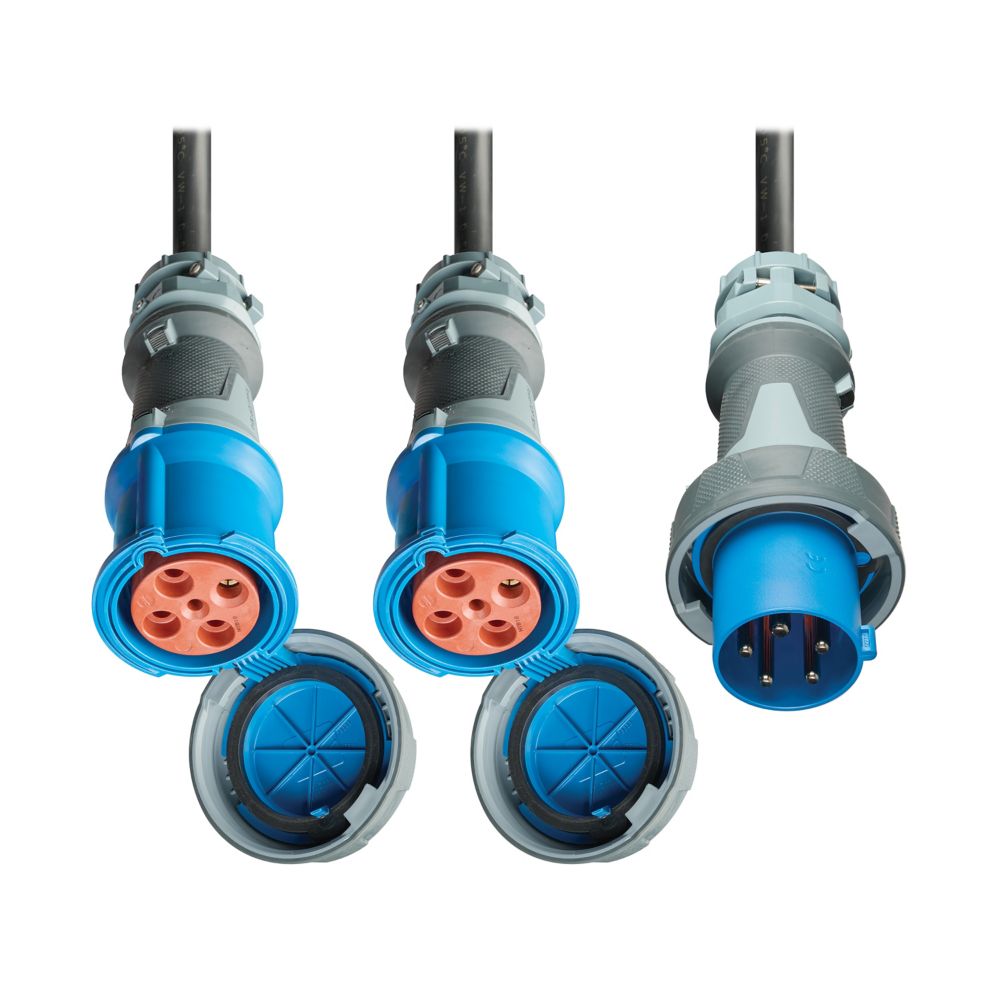

| Input Connection | IEC 309 60A |
| Output Receptacle | IEC 309 60A (3PH+E) |
| Input Frequency | 50/60 Hz ±4 Hz |
| Output Frequency | 50/60 Hz |
| Output Waveform | Pure Sine Wave (AC and Battery Mode) |
| Output Voltage Regulation | ±1% |
| Power Factor (Input/Output) | 1.0 |
| Current Crest Ratio | 3:1 |
| THDi | <4% at Full Load |
| Transfer Time (Economy Mode) | <10 ms |
| Battery Type | Extended Battery Modules (EBM supported) |
| Expandable Runtime | Supports up to 5 EBMs |
| Typical Battery Life | 3.5 to 6 years |
| DC Voltage | ±120 VDC |
| Included Battery Modules | (2) 93PXEBM240 3U Modules |

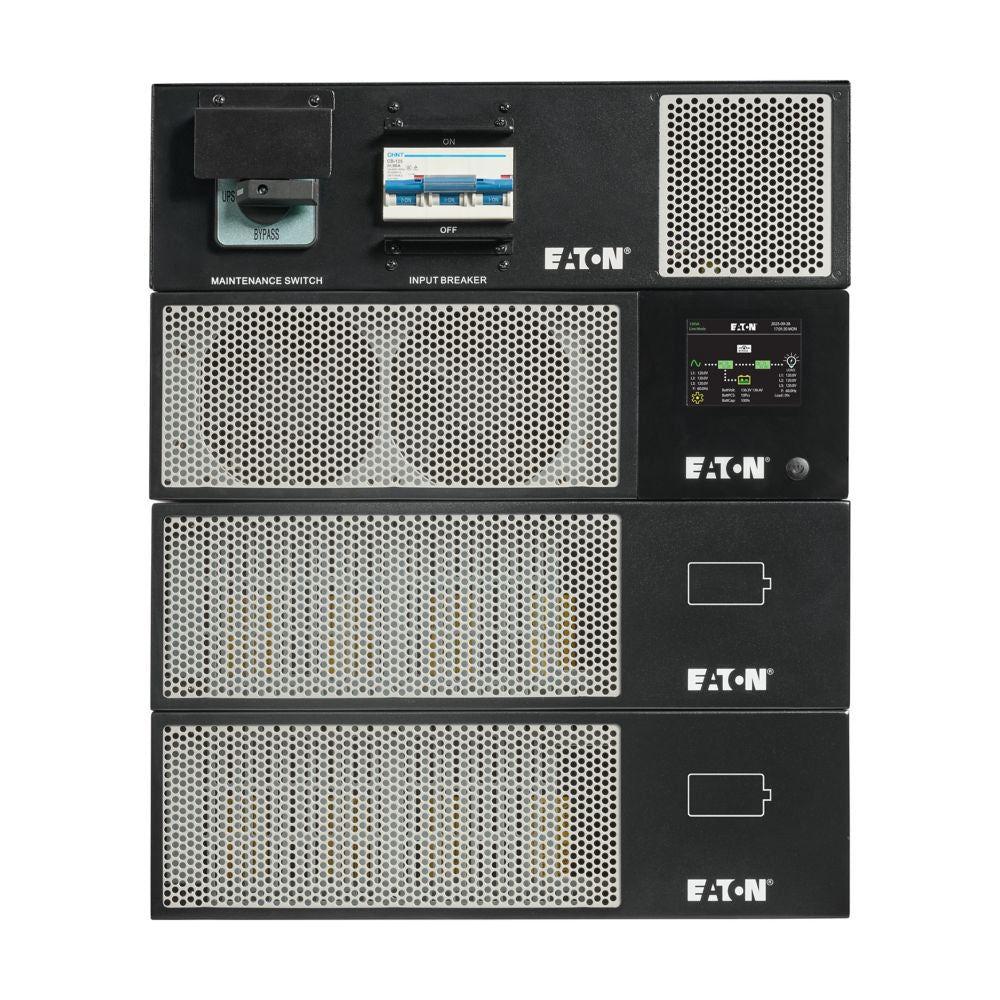

| Maintenance Bypass | Included (93PXMBP15K Panel) |
| Network Management | Gigabit Cybersecure Network Card (NETWORK-M3) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 5°F to 140°F (-15°C to 60°C) |
| Humidity | 0–95% non-condensing |
| Operating Elevation | Up to 3000m (no derating up to 1000m) |
| Dimensions (H x W x D) | 20.57 x 17.24 x 30.25 in |
| Weight | 484.58 lb |
| Installation Type | Rackmount |
| Application | Data centers, enterprise IT, critical infrastructure |
| Key Features | Expandable runtime, maintenance bypass, cybersecure remote access, high efficiency, plug-and-play deployment |
