Description

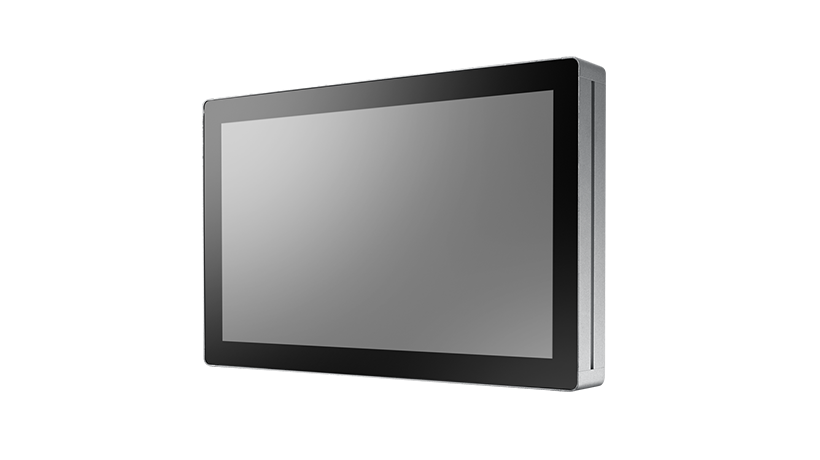

The Advantech UTC-515 is a compact 15.6-inch all-in-one touch panel PC designed for commercial, industrial, and intelligent retail environments. Powered by an Intel Celeron J6412 quad-core processor, it delivers reliable performance for point-of-sale systems, self-service kiosks, digital signage, and interactive terminals.
Featuring a Full HD 1920 × 1080 touchscreen with high brightness, the UTC-515 ensures clear visibility and responsive interaction in various lighting conditions. With DDR4 memory support, solid-state storage, dual Gigabit Ethernet, multiple high-speed USB ports, and serial connectivity, this system offers extensive I/O flexibility for peripheral integration.
Running Microsoft Windows 10 IoT, the UTC-515 provides long-term OS stability and enterprise-grade security, including TPM 2.0 support. Its slim profile, VESA mounting compatibility, and wide operating temperature range make it a dependable solution for continuous commercial operation.
| Specification | Details |
|---|---|
| System Type | All-in-One Touch Panel PC |
| Model | UTC-515 |
| Processor Manufacturer | Intel |
| Processor Type | Celeron |
| Processor Number | J6412 |
| Processor Cores | Quad-Core |
| Base Clock Speed | 2.0 GHz |
| Max Turbo Frequency | 2.6 GHz |
| Cache Memory | 1.5 MB L2 |
| Installed Processors | 1 |
| Memory Technology | DDR4 |
| Installed Memory | 4 GB |
| Memory Speed | 3200 MHz |
| Maximum Memory Supported | 32 GB |
| Storage Type | Solid State Drive (SSD) |
| SSD Capacity | 256 GB |
| Display Size | 15.6 Inch |
| Touch Screen | Yes |
| Resolution | 1920 × 1080 (Full HD) |
| Brightness | 400 nits |
| Aspect Ratio | 16:9 |
| Viewing Angle | 170° / 130° |
| Pixel Pitch | 252 × 252 |
| Audio | 2 × 2W Speakers |
| Networking | Wi-Fi |

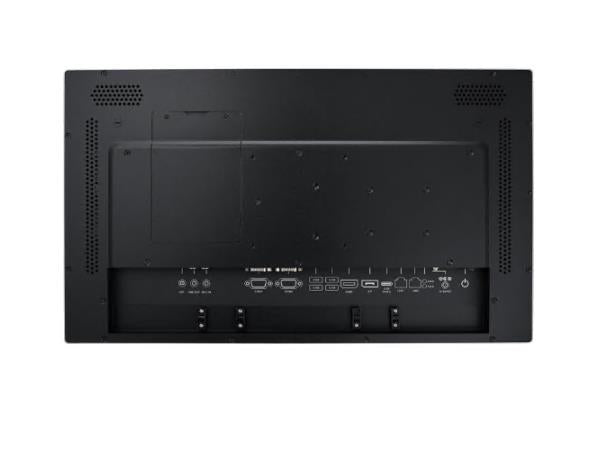

| Ethernet Ports | 2 × Gigabit LAN (Intel i219LM, Intel i210AT/IT) |
| USB Ports | 4 × USB 3.2 Gen2 (10 Gbps) |
| Video Outputs | 1 × HDMI, 1 × DisplayPort |
| Serial Ports | 2 × RS-232 (RS-422/485) |
| Audio I/O | 1 × Audio Line-out, 1 × Mic-in |
| Operating System | Microsoft Windows 10 IoT |
| Security | TPM 2.0 |
| VESA Mount | 100 × 100 mm |
| Power Supply | External Power Adapter |
| Power Output | 84 W |
| Input Voltage | 12V DC |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | Up to 95% @ 40°C (non-condensing) |
| Dimensions (W × H × D) | 389.81 × 240.12 × 45.2 mm |
| Weight | 4.85 kg |
| Country of Origin | Taiwan |
| UNSPSC | 43211508 |
