Description

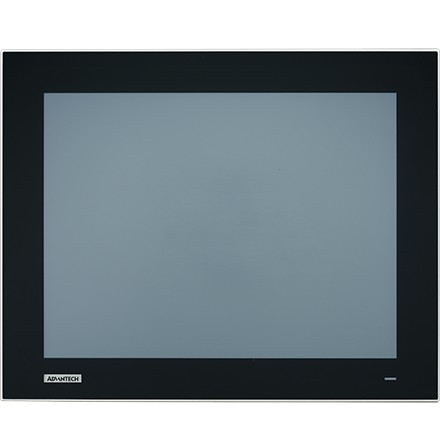

The Advantech FPM-215-R9AE is a rugged 15-inch industrial-grade monitor designed for reliable operation in demanding factory and automation environments. Featuring an XGA TFT LCD with durable 5-wire resistive touch technology, this monitor supports precise input even when used with gloves or styluses.
Built with a die-cast aluminum chassis and an IP66-rated front bezel, the FPM-215-R9AE delivers strong protection against dust and water splashes, making it ideal for smart factories, machine automation, and industrial HMI applications. Direct HDMI, DisplayPort, and VGA inputs provide flexible system integration, while the slim profile and multiple mounting options enable easy installation in control panels or workstations.
Powered via a 24VDC terminal block, this model is optimized for industrial power environments where stability and long-term reliability are critical.
| Specification | Details |
|---|---|
| Display Size | 15-inch TFT LCD |
| Resolution | 1024 × 768 (XGA) |
| Touch Technology | 5-wire analog resistive |
| Touch Interface | USB |
| Display Colors | 16.2 million |
| Brightness | 300 cd/m² |
| Contrast Ratio | 2000:1 |
| Viewing Angle (H/V) | 176° / 176° |
| Backlight Lifetime | 70,000 hours |

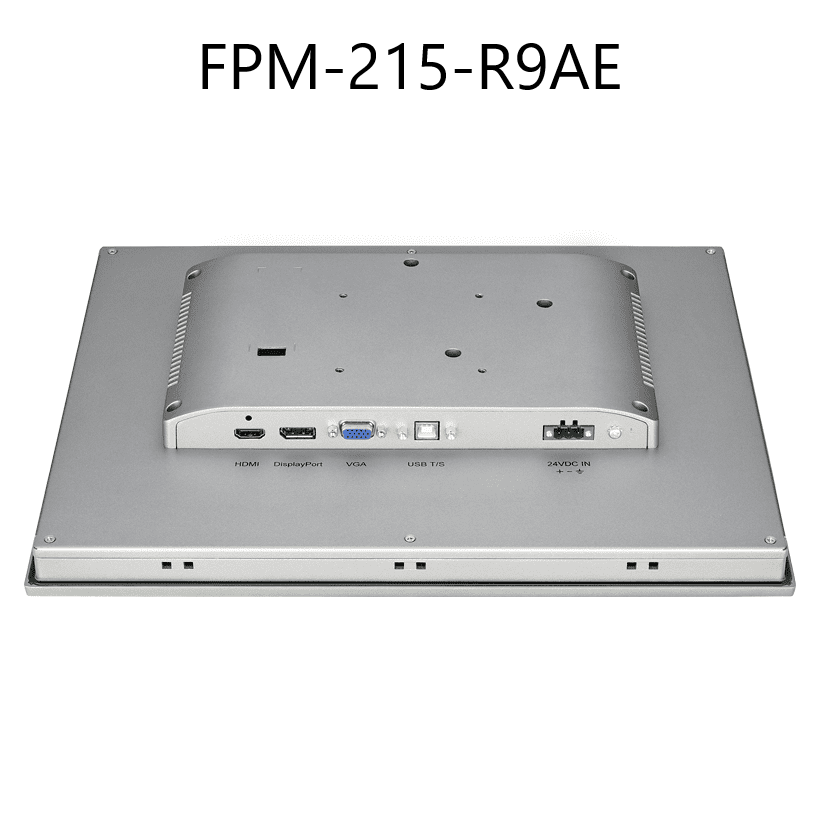

| Video Inputs | HDMI, DisplayPort, VGA |
| Power Input | 24 VDC via terminal block |
| Power Consumption | 14.19 W (Idle) / 14.75 W (Max) |
| Enclosure | Die-cast aluminum chassis |
| Front Bezel Protection | IP66-rated |

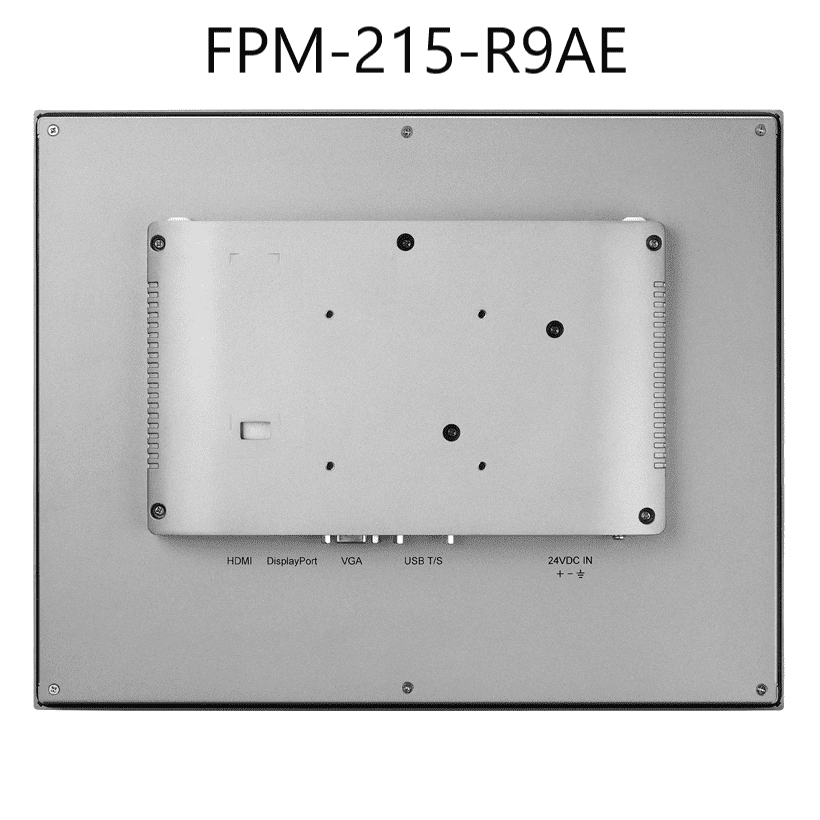

| Mounting Options | Panel, Wall, Desktop, VESA (75 × 75 mm) |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -20 to 60 °C |
| Operating Humidity | 10–90% non-condensing |
| Dimensions (W × H × D) | 383.2 × 307.3 × 53.2 mm |
| Net Weight | Approx. 4.6 kg |
| OS Support | Windows XP/7/8/10/11, Linux |
