Description

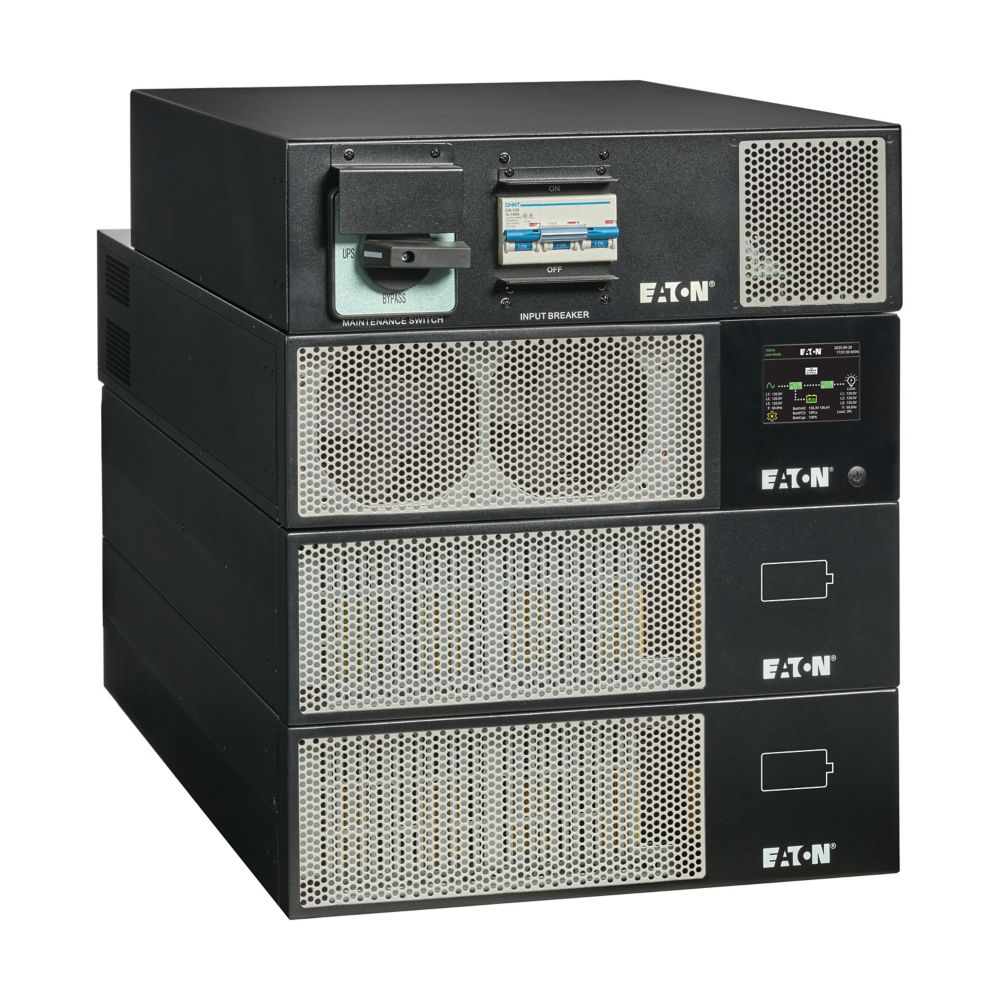

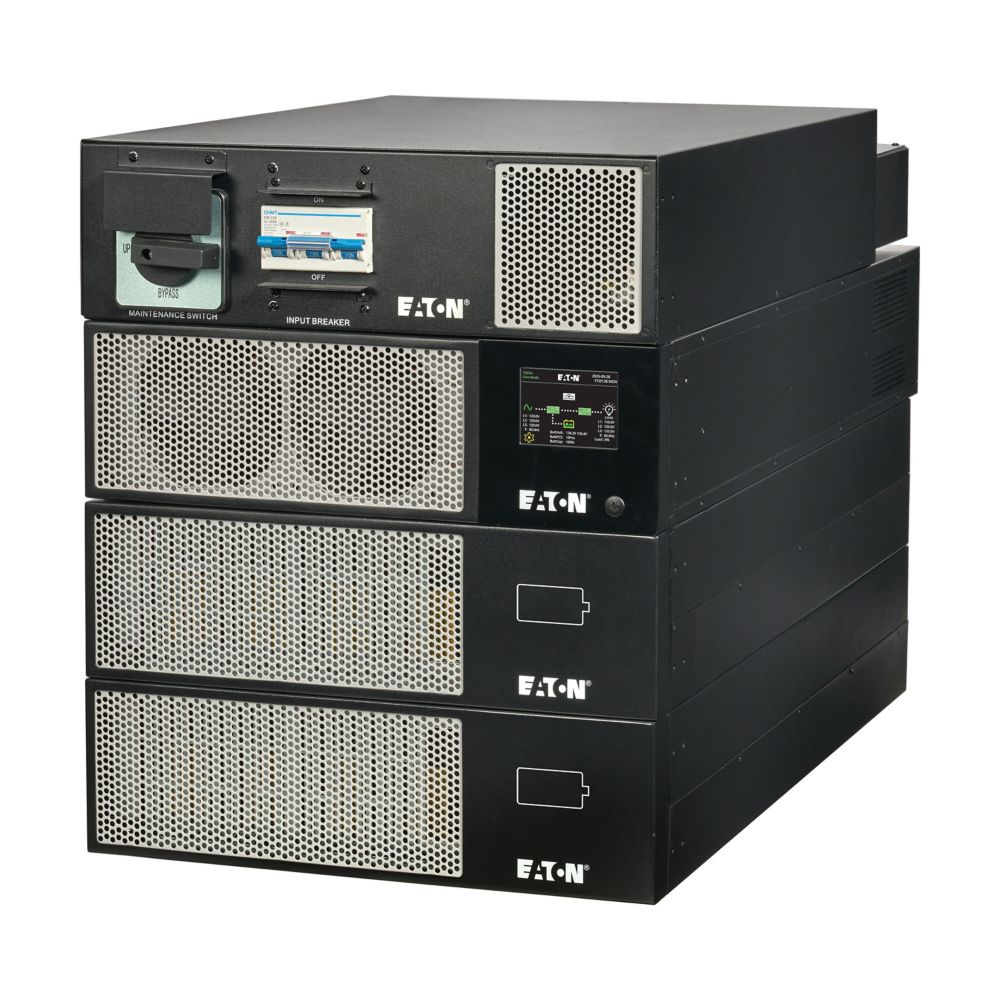

The Eaton 93PX15KHW is a high-efficiency, three-phase online double-conversion UPS engineered to deliver reliable, enterprise-grade power protection for mission-critical IT and data center environments. Designed with a unity power factor and advanced energy optimization, this 15kVA/15kW system maximizes usable capacity while minimizing operational costs.
With integrated extended runtime capability, the 93PX platform supports additional external battery modules, ensuring scalable backup duration for evolving infrastructure needs. Its cybersecure NETWORK-M3 Gigabit card enables full remote monitoring and control, allowing IT teams to maintain uptime and visibility across distributed environments.
The included maintenance bypass panel ensures continuous operation during servicing, eliminating downtime risks. Combined with a compact rackmount design and industry-leading efficiency of up to 97% in ECO mode, the Eaton 93PX15KHW delivers superior performance, flexibility, and resilience for modern power protection strategies.
| Specification | Details |
|---|---|
| Manufacturer | Eaton |
| Model | 93PX15KHW |
| UPS Type | Three-Phase Online Double-Conversion |
| Power Capacity | 15,000 VA / 15,000 W |
| Topology | Online Double-Conversion |
| Input Voltage | 120/208V 3-Phase Wye |
| Output Voltage | 120/208V 3-Phase Wye |
| Input Connection | Hardwired |
| Output Connection | Hardwired |
| Frequency | 50/60 Hz ± 4Hz |
| Output Waveform | Pure Sine Wave (AC & Battery Mode) |
| Output Voltage Regulation | ±1% |
| Input Power Factor | 1.0 |
| Output Power Factor | 1.0 |
| THDi | <4% at Full Load |
| Transfer Time (ECO Mode) | <10 ms |
| Battery Type | External Battery Modules (EBM) |
| Expandable Runtime | Supports up to 5 EBMs |
| Typical Battery Life | 3.5 to 6 years |
| DC Voltage | ±120 Vdc |
| Input Circuit Breaker | 80A via Maintenance Bypass Panel |
| Network Management | NETWORK-M3 Gigabit Card (Cybersecure) |
| Maintenance Bypass | Included (93PXMBP20KHW) |

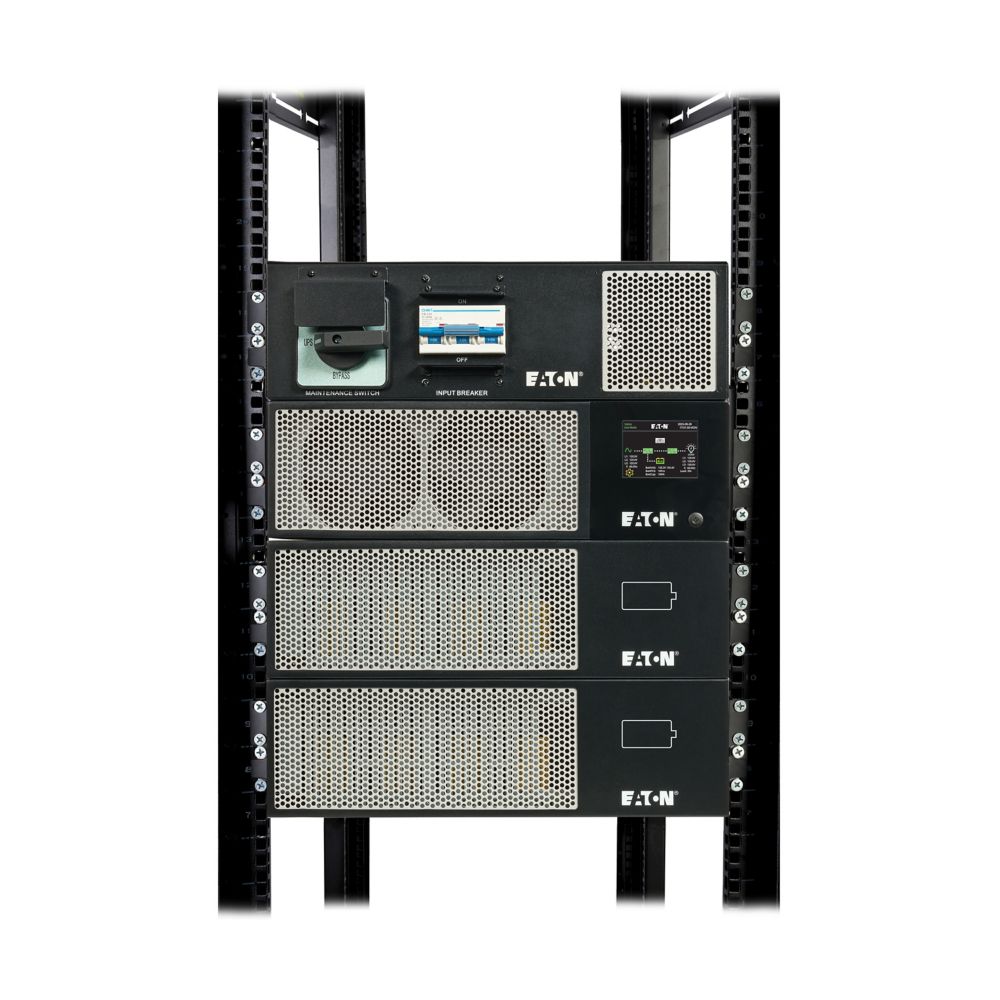

| Form Factor | Rackmount (4-Post 19-inch) |
| Rack Height | 12U Total (Power + Batteries + MBP) |
| Dimensions (H x W x D) | 20.57 x 17.24 x 32.25 inches |
| Weight | 465.18 lb |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 5°F to 140°F (-15°C to 60°C) |
| Humidity | 0–95% Non-Condensing |
| Operating Elevation | Up to 3000 m (no derating up to 1000 m) |
| Energy Efficiency | Up to 97% in ECO Mode |
| Included Components | Power Module, Network Card, (2) EBMs, Maintenance Bypass Panel, Rack Hardware, Cables |
