Description
The Eaton 93PX 15kVA UPS is a high-efficiency, three-phase power protection solution engineered for modern IT environments, edge deployments, and enterprise infrastructure. Delivering a unity power factor (1.0), this system ensures maximum usable power capacity while maintaining exceptional energy efficiency of up to 98.6% in ECO mode, reducing operational costs without compromising performance.

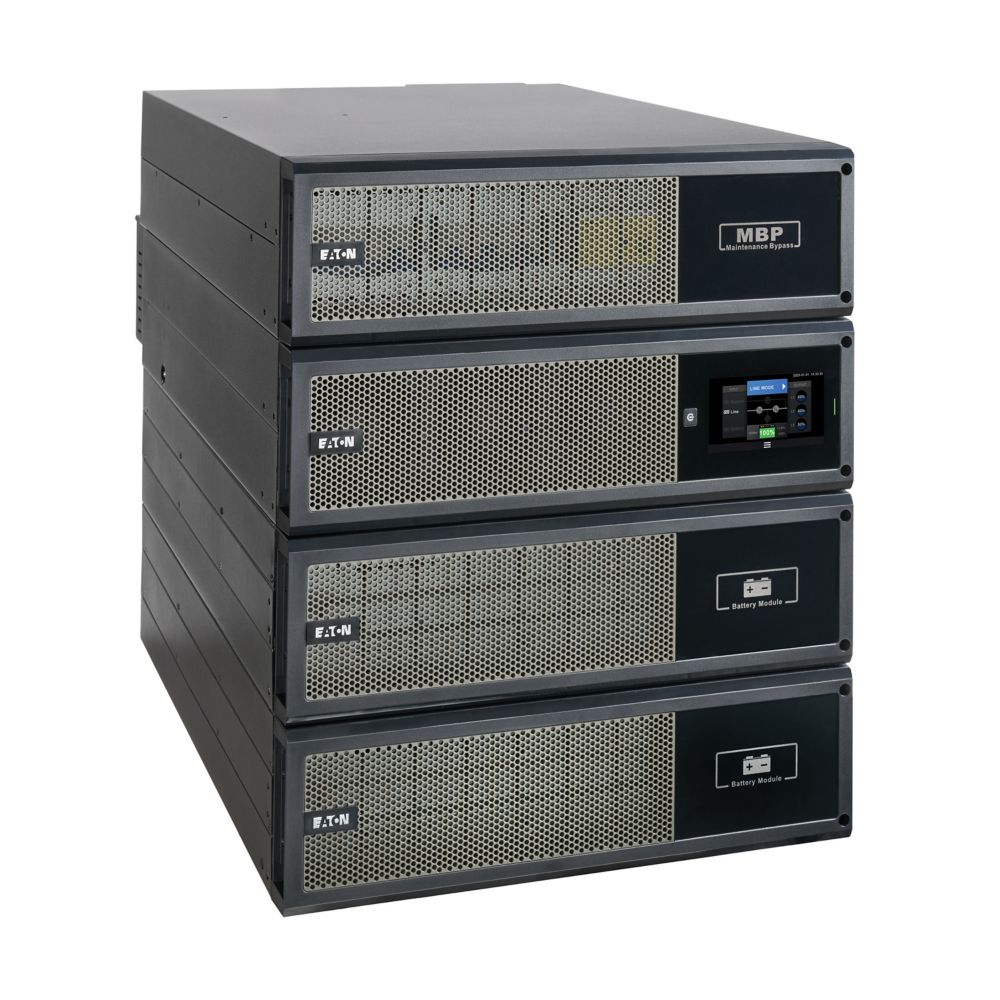

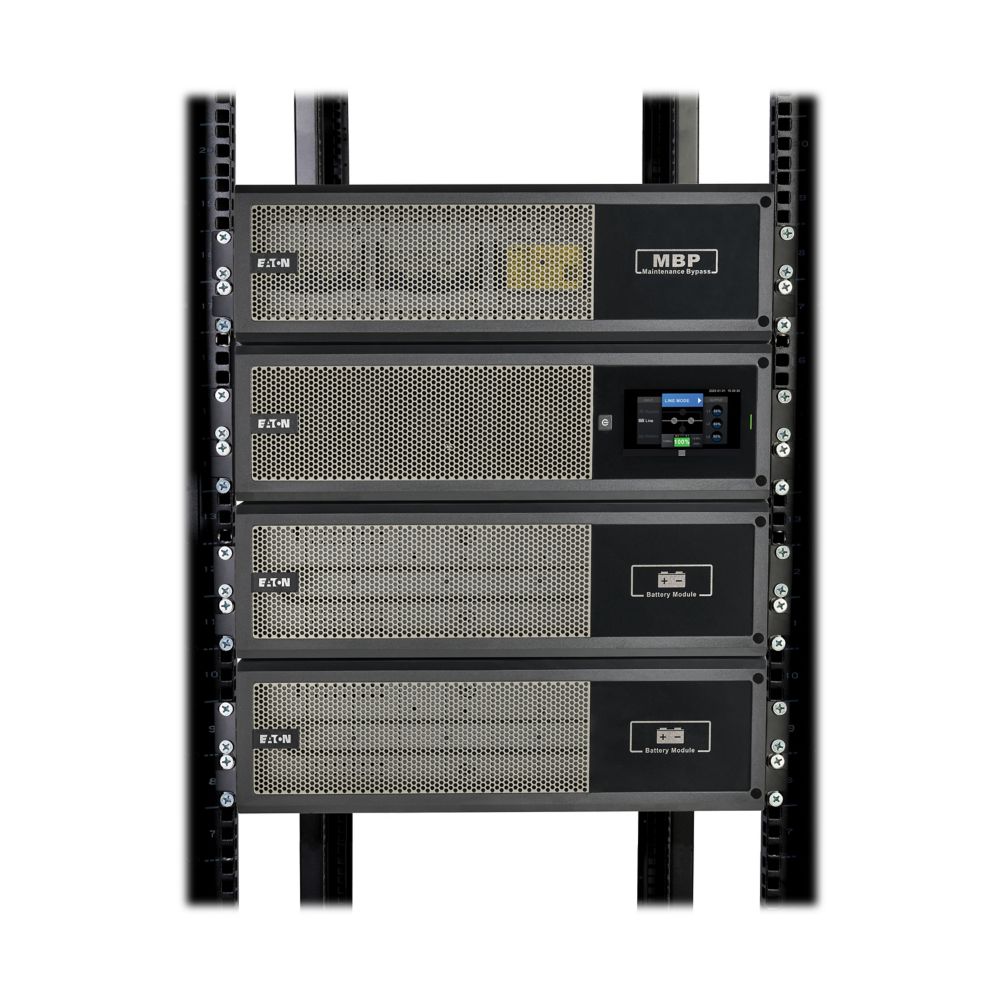

Designed with a compact 12U rackmount form factor, the 93PX optimizes valuable rack space while offering scalable runtime through integrated extended battery modules. Its online double-conversion topology provides continuous, clean, and reliable power, protecting sensitive equipment from outages, voltage fluctuations, and power disturbances.
Equipped with a cybersecure network card, the system enables secure remote monitoring and management 24/7. The included maintenance bypass panel ensures uninterrupted operation during servicing, making it ideal for mission-critical environments that demand maximum uptime. With plug-and-play deployment, advanced LCD touchscreen interface, and robust electrical performance, the Eaton 93PX is built for reliability, efficiency, and ease of use.
| Specification | Details |
|---|---|
| Form Factor | 4-post 19-inch rackmount (12U) |
| UPS Topology | Online double-conversion |
| Output Capacity | 15,000 VA / 15,000 W |
| Output Power Factor | 1.0 |
| Input Voltage | 230/400V AC, 3-phase Wye |
| Output Voltage | 230/400V AC, 3-phase Wye |
| Input Frequency | 50 Hz (auto-sensing 50/60 Hz) |
| Input Power Factor | 0.9 |
| Output Waveform | Pure sine wave (AC and battery mode) |
| Output Current | 22.8A |

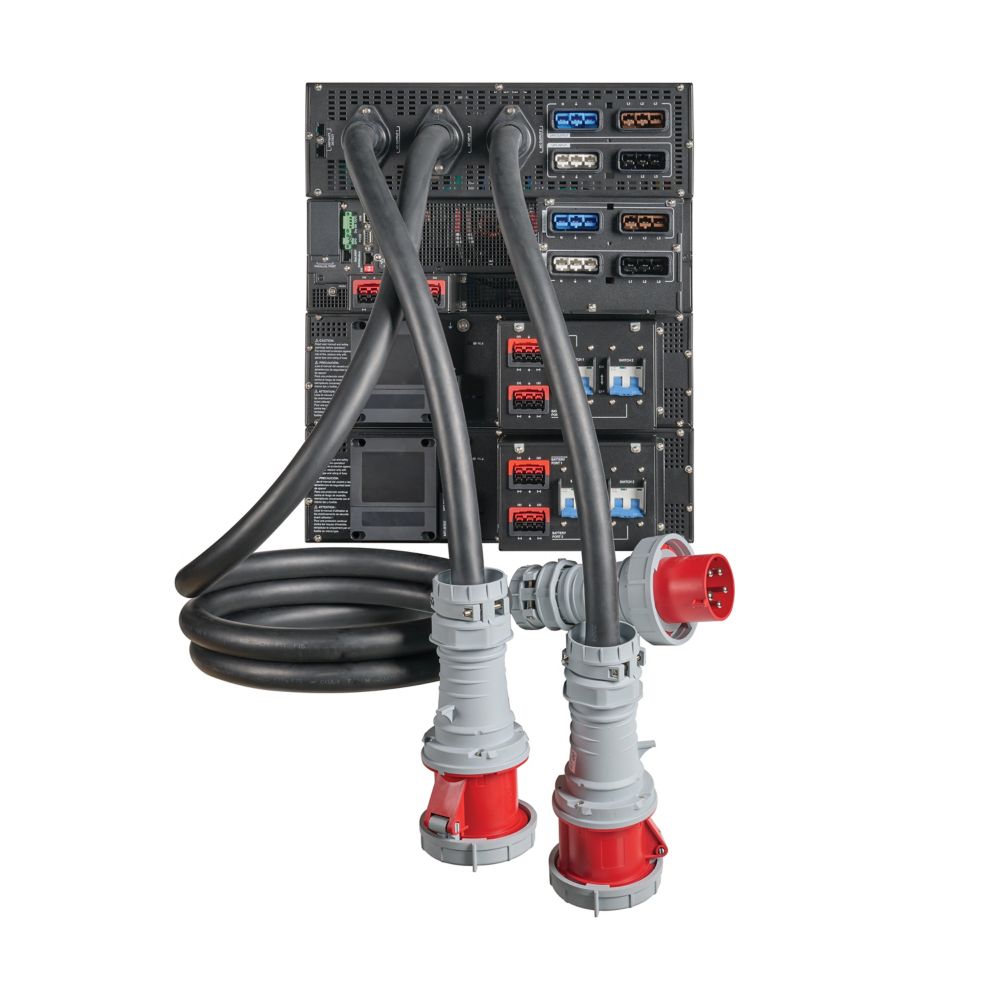

| Output Receptacles | IEC 309 60A (3PH + E) |
| DC Voltage | ±240 V |
| Efficiency | Up to 98.6% in ECO mode |
| Runtime at Half Load | 14.7 minutes |
| Transfer Time (ECO Mode) | <10 ms |
| THDi | <3% |
| Display | 4.3-inch color touchscreen LCD |
| Network Management | Cybersecure NETWORK-M3 Gigabit card |
| Maintenance Bypass | Included (MBP20KIU 3U) |
| Battery Module | 93PX2EBM480U extended battery module included |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -15°C to 40°C (5°F to 104°F) |
| Humidity | 0–95% non-condensing |
| Operating Elevation | Up to 2000 m (derating above 1000 m) |
| Dimensions (H x W x D) | 20.32 in x 17.24 in x 28.1 in |
| Weight | 392.22 lb |
| Certifications | IEC/EN 62040-1, UL 1778 |
| Input Connection | 3-phase WYE (L1, L2, L3, N, G) |
| Installation Features | Plug-and-play quick-connect design |

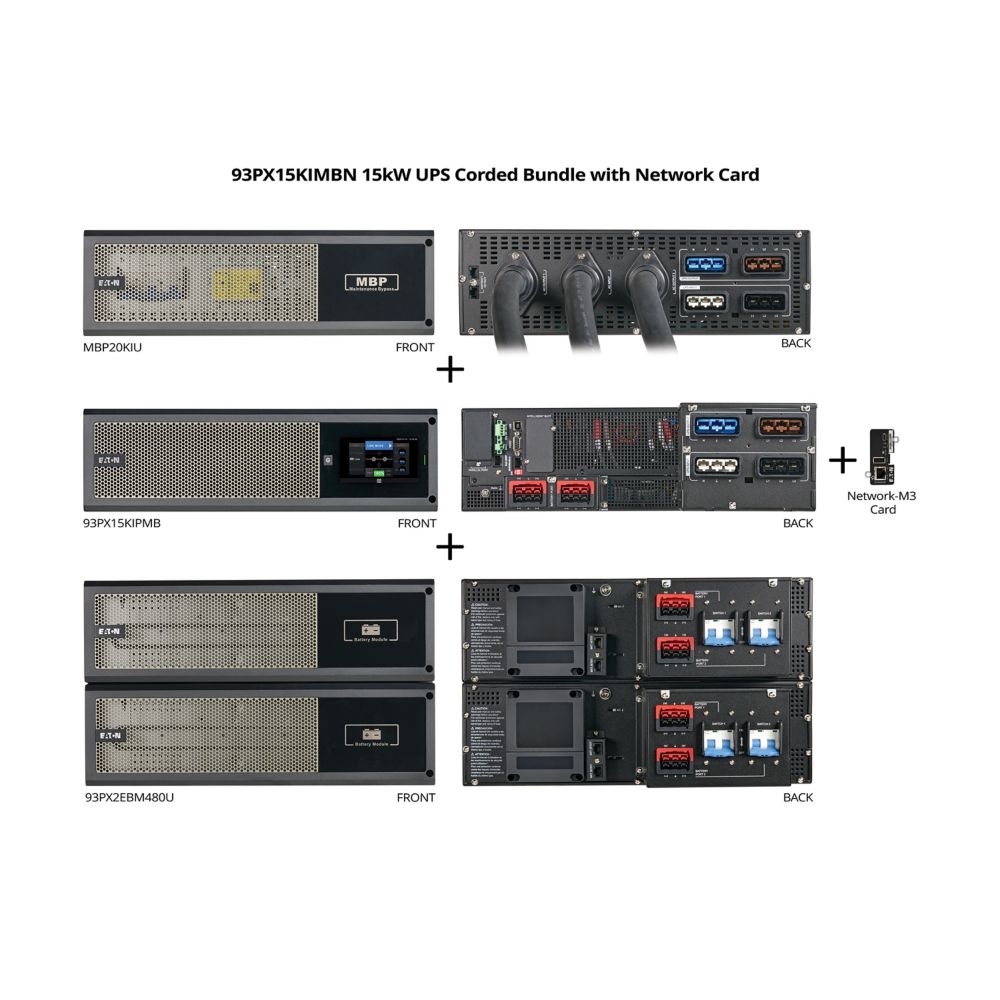

| Included Components | Power module, network card, extended battery module, maintenance bypass panel, rack hardware, cabling, documentation |
