Description

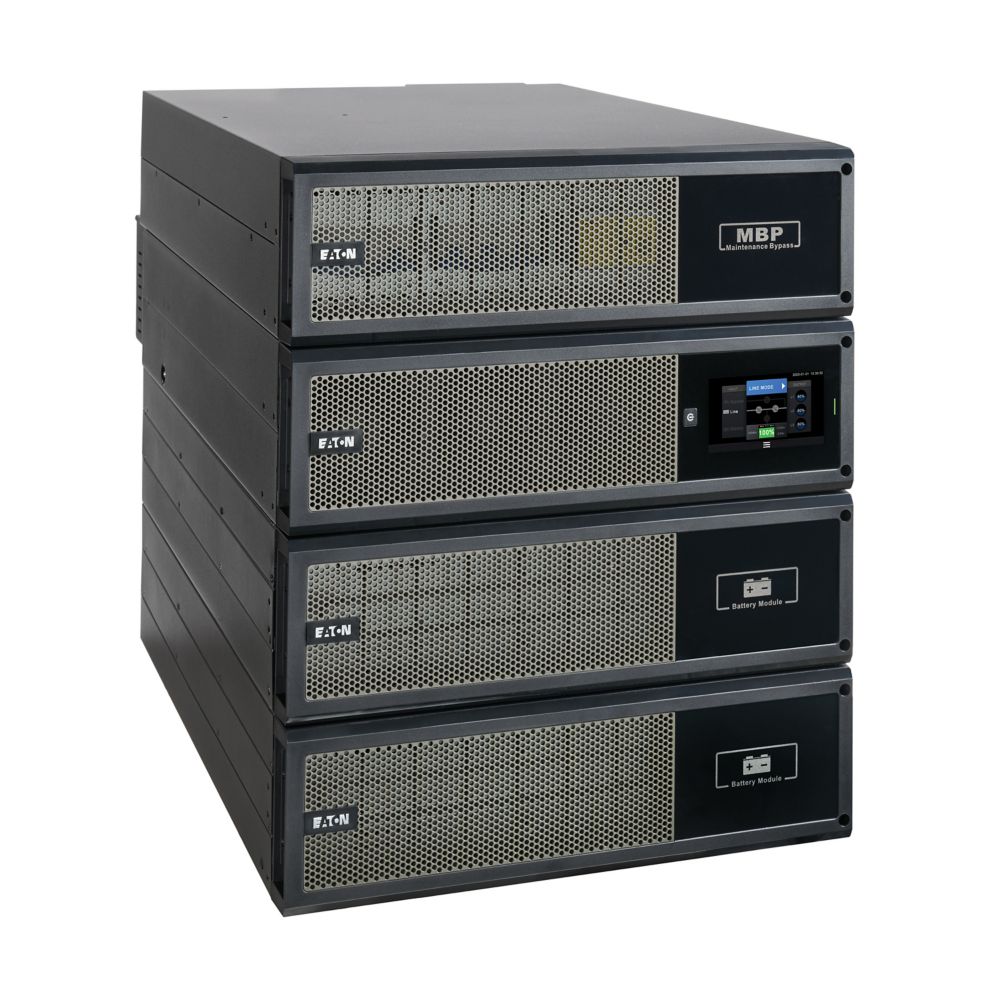

The Eaton 93PX15KIHWN is a high-efficiency three-phase online double-conversion UPS engineered to deliver reliable, continuous power protection for critical IT infrastructure, data centers, and industrial applications. With a 15kVA/15kW capacity and unity power factor, this system maximizes usable power while minimizing footprint, making it ideal for high-density environments.

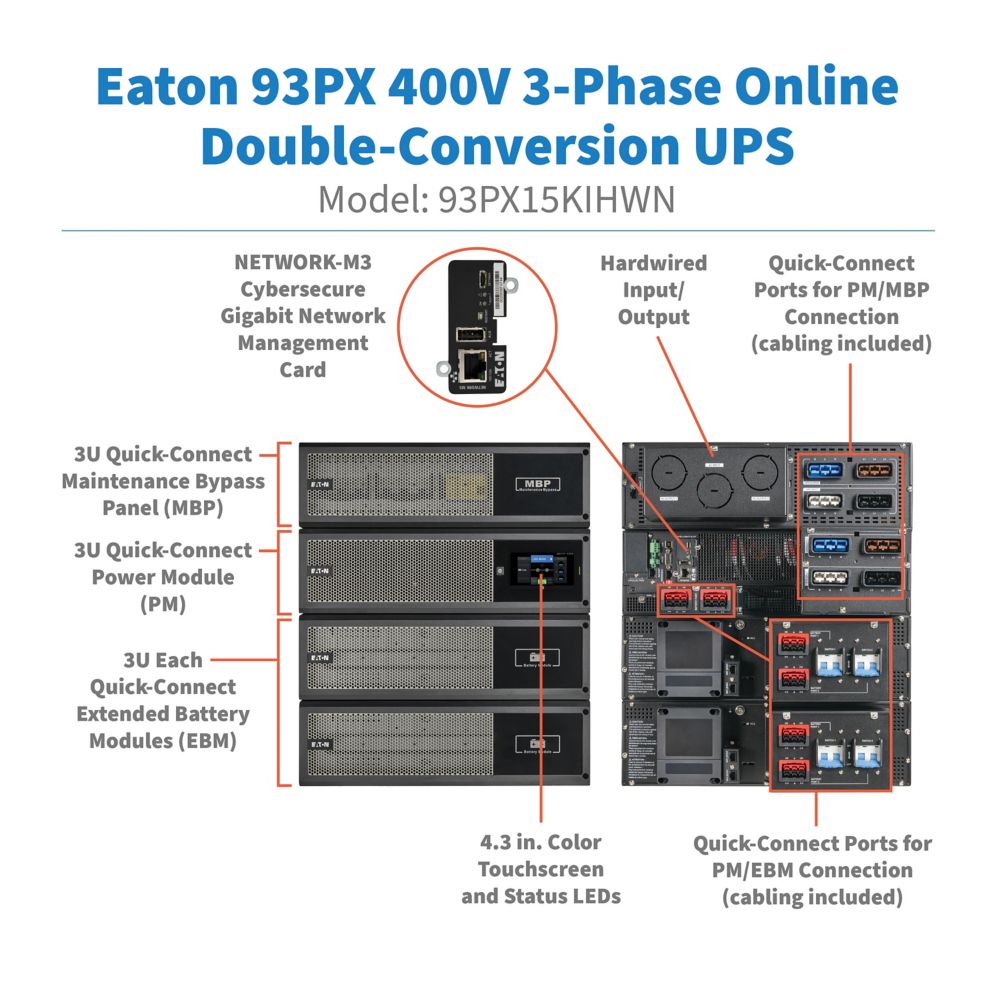

Designed for enterprise uptime, the system includes a maintenance bypass panel that ensures uninterrupted operation during servicing. The integrated cybersecure NETWORK-M3 card enables real-time remote monitoring and control, enhancing operational visibility and security. Its extended runtime capability, supported by the included battery module, ensures business continuity during outages.
With up to 98.6% efficiency in ECO mode, advanced power conditioning, and pure sine wave output, the 93PX series delivers optimal energy savings and superior protection for sensitive equipment. Its rackmount design, plug-and-play architecture, and intuitive 4.3-inch touchscreen simplify deployment and ongoing management.
| Specification | Details |
|---|---|
| Product Series | Eaton 93PX Three-Phase UPS |
| UPS Topology | Online Double-Conversion |
| Power Capacity | 15000 VA / 15000 W |
| Output Power Factor | 1.0 (Unity) |
| Input Voltage | 230/400V AC, 3-Phase Wye |
| Output Voltage | 230/400V AC, 3-Phase Wye |
| Input Frequency | 50/60 Hz |
| Input Power Factor | 0.9 |
| Input Connection Type | Hardwired |
| Output Waveform | Pure Sine Wave (AC & Battery Mode) |
| Output Current | 22.8 A |
| Voltage Regulation | ±1% (Line Mode) |
| Crest Ratio | 3:1 |
| THDi | <3% |
| Transfer Time (ECO Mode) | <10 ms |
| DC Voltage | ±240 V |
| Runtime at Half Load | 14.7 minutes |
| Battery Type | Extended Battery Module Included |
| Included Battery Module | 93PX2EBM480U (6U) |
| Maintenance Bypass | Included (MBP20KIUHW 3U) |
| Network Management | NETWORK-M3 Gigabit Card (Cybersecure) |
| Display | 4.3-inch Color Touchscreen LCD |
| Efficiency | Up to 98.6% (ECO Mode) |

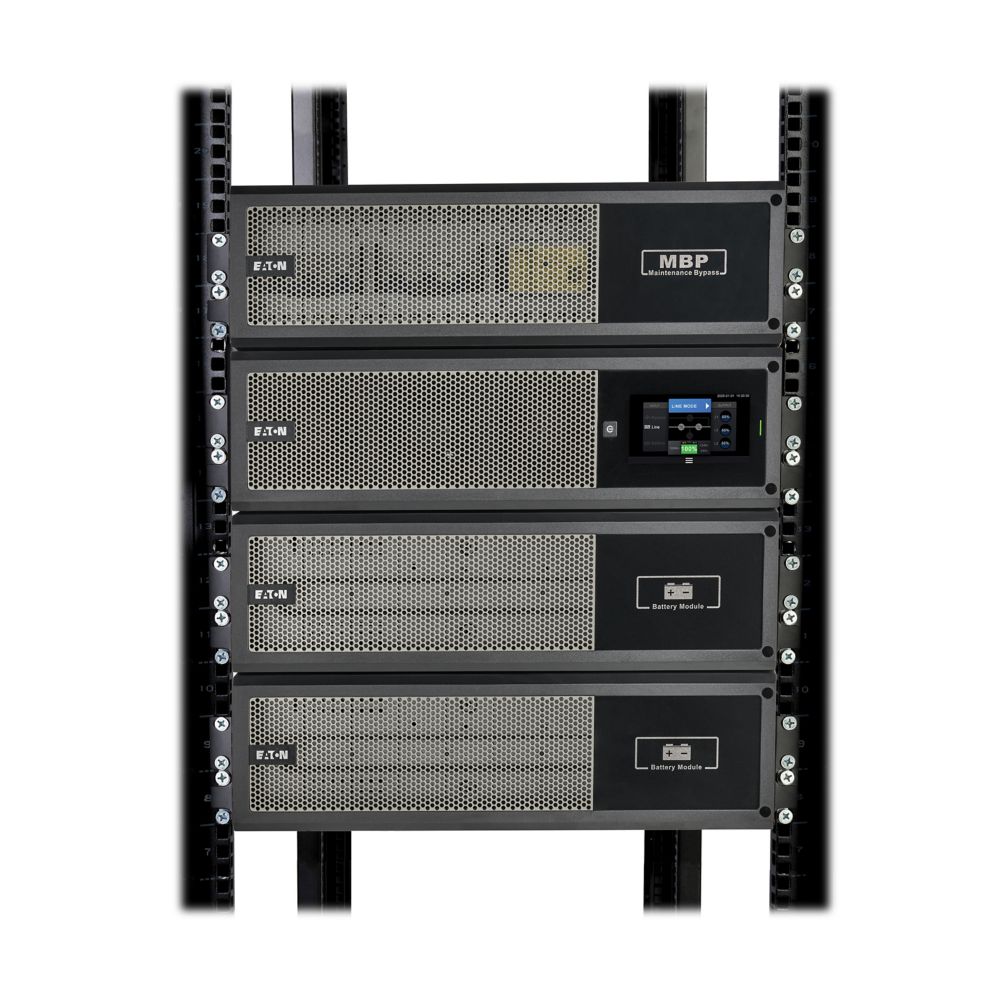

| Form Factor | 4-Post 19-inch Rackmount |
| Rack Height | 12U |
| Dimensions (H x W x D) | 20.32 in x 17.24 in x 28.31 in |
| Weight | 370.95 lb |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 5°F to 104°F (-15°C to 40°C) |
| Humidity | 0–95% Non-Condensing |
| Operating Elevation | Up to 2000 m (Derating above 1000 m) |
| Certifications | IEC/EN 62040-1, UL 1778 |
| Installation Type | Rackmount |

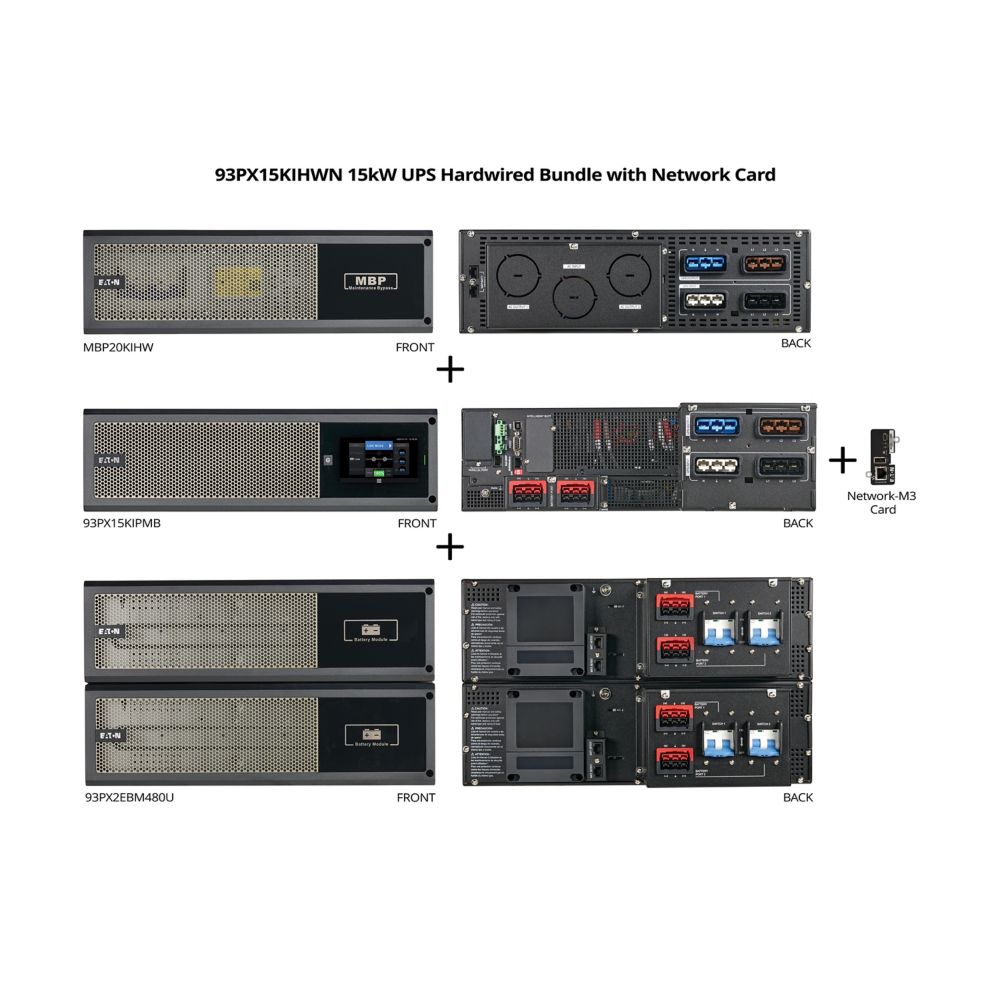

| Package Contents | Power module, battery module, network card, maintenance bypass, rack hardware, cables, documentation |
