Description

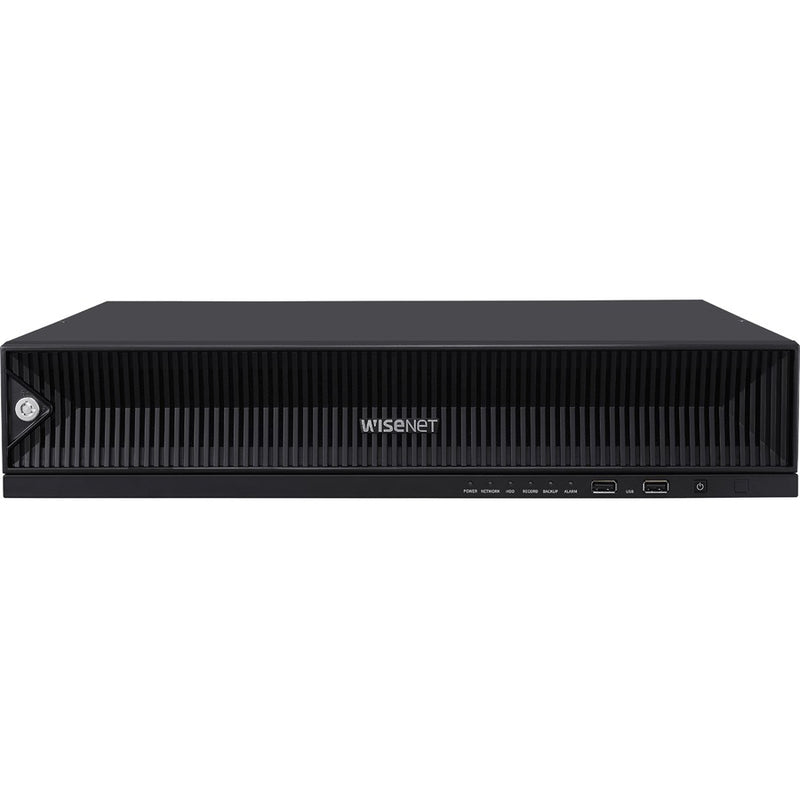

The Wisenet PRN-1600B2-16TB is a high-performance 16-channel 8K AI network video recorder designed for professional surveillance environments that demand exceptional clarity, efficiency, and intelligent analytics. With support for 32MP resolution, H.265/H.264/MJPEG codecs, and up to 250 Mbps recording bandwidth, this NVR delivers smooth, reliable, and license-free video recording.
Equipped with 8 internal SATA bays (preloaded with 16TB), RAID 5/6 capability, ARB (Automatic Recovery Backup), dual-stream recording, and WiseStream compression technology, it supports both scalability and cost-effective storage management.
The PRN-1600B2 also features advanced AI search capabilities—including Best Shot, attribute search, object detection and classification, and license plate recognition (with supported Wisenet AI cameras). The intuitive web UI 2.0, fisheye dewarping, dynamic layouts, failover support, and dual HDMI outputs ensure a versatile and future-ready surveillance platform for enterprise-level deployments.
| Category | Specification |
|---|---|
| SKU | PRN-1600B2-16TB |
| Channels | 16-channel input (max 8K/32MP) |
| Recording Bandwidth | Up to 250 Mbps (Distributed Mode), 150 Mbps (Normal), 250 Mbps (RAID Mode) |
| Playback Bandwidth | Up to 64 Mbps (RAID), 32 Mbps (Non-RAID) |
| Video Codecs | H.265, H.264, MJPEG, WiseStream |
| AI Features | Best Shot, attribute search, object detection/classification, LPR (with Wisenet AI cameras) |
| Supported Resolutions | 32MP to CIF |
| Display Outputs | HDMI1: 3840×2160 (30Hz), HDMI2: 1920×1080 (60Hz) |
| Multi-Screen Modes | Up to 16-division layouts; dynamic layout; clone/expand modes |
| Recording Modes | Normal, Dual Stream, Schedule, Event (Pre/Post), Bookmark |
| Search Modes | Calendar, Event list, Text search, Smart search |
| Simultaneous Playback | Up to 64CH (local 16CH + remote 16CH per user) |
| Audio | Network audio 16CH; G.711/G.726/AAC; 2-way audio |
| Storage | 8 × SATA HDD (max 80TB), includes 16TB installed |
| RAID Support | RAID 5/6, single array |
| External Storage | iSCSI supported |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP/RTSP, NTP, HTTP/HTTPS, DHCP, DDNS, SNMP, ONVIF Profile-S, SUNAPI |
| Remote Users | Search up to 3 users; live up to 10 unicast; 20 multicast |
| Smartphone Support | iOS / Android (Wisenet Mobile, SUNAPI) |
| Interface | 3 × RJ45 (1GbE), 4 × USB (2× USB2.0, 2× USB3.0), 8 alarm inputs, 4 alarm outputs |
| Indicators | HDD, Alarm, Power, Record, Backup, Network, RAID |
| Power Input | 100–240VAC ±10%, 50/60Hz, 2.1A |
| Power Consumption | Max 205W (with 8 × 10TB HDD) |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 20%–85% RH |
| Dimensions | 438 × 86 × 434.9 mm (17.47 × 3.39 × 17.12 in) |
| Weight | Approx. 9.1 kg (without HDD) |
| Material / Color | Metal / Black |
