Description

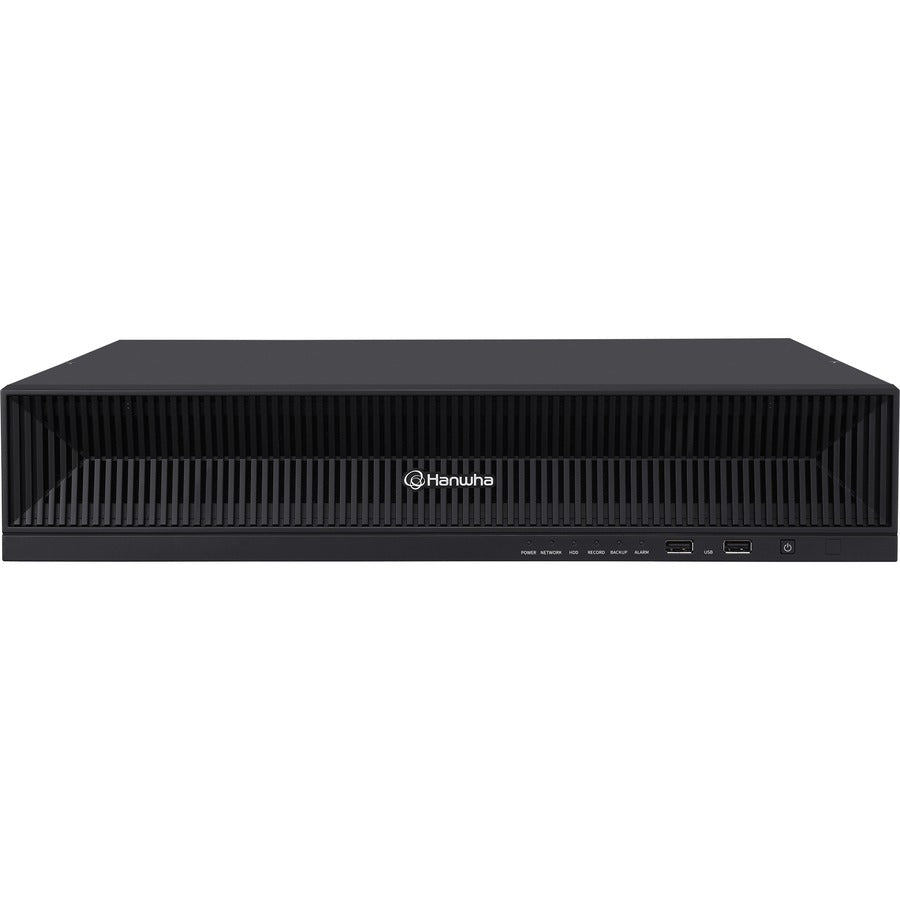

The Wisenet PRN-1600B2 16-Channel 8K AI NVR (24TB) delivers advanced recording performance, AI-powered search, and enterprise-grade reliability for modern surveillance environments. Supporting up to 32MP (8K) resolution, this NVR enables crystal-clear monitoring with license-free recording and seamless integration across Wisenet P, X, and Q series AI cameras.
Equipped with H.265/H.264/MJPEG codecs, WiseStream bandwidth optimization, and up to 250 Mbps recording throughput, the PRN-1600B2 ensures efficient, high-quality video capture. The system supports 8 SATA bays (up to 80TB total), with RAID 5/6 options to maximize data protection.
Designed for fast investigation, the unit includes AI Search with Best-Shot capture, attribute filtering, object classification, and license plate recognition (LPR) with compatible Wisenet AI cameras. Dual HDMI outputs support local 4K/1080p display, while the responsive Web UI 2.0 allows plug-in-free access, fisheye dewarping, dynamic layouts, and intuitive event review.
With mobile P2P setup (QR code), N+1 failover, comprehensive event triggers, and powerful network security features, the PRN-1600B2-24TB is built for scalable, professional-grade surveillance deployments.
| Category | Specification |
|---|---|
| SKU | PRN-1600B2-24TB |
| Channels | 16CH network camera inputs |
| Max Resolution | Up to 32MP (8K) |
| Video Codecs | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Up to 250 Mbps (Distributed / RAID) |
| Playback Bandwidth | Up to 64 Mbps (RAID), up to 32 Mbps (non-RAID) |
| Local Display Outputs | HDMI1: 3840×2160 (4K, 30Hz); HDMI2: 1920×1080 (60Hz) |
| Multi-Screen Display | Dynamic layout, virtual channels, clone & expand modes |
| Search Features | Calendar, Event, Text, Smart Search |
| AI Functions | Best Shot, Attribute Search, Object Detection & Classification, License Plate Recognition (with Wisenet AI cameras) |
| Dewarping | Fisheye dewarping (Local 1CH) |
| Storage Capacity | 24TB included; supports up to 8 SATA drives (max 80TB) |
| RAID Support | RAID 5/6 (Single Array) |
| Backup Options | BU/Exe/AVI/JPG/AVI |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTSP, RTP, NTP, HTTP, DHCP, HTTPS, SNMP, ONVIF Profile S, SUNAPI |
| Security Features | IP filtering, user access log, 802.1x, device certificate, signed firmware |
| Remote Access | Up to 10 live unicast users, 20 multicast users |
| Mobile Support | iOS/Android, P2P QR-code setup |
| Audio | 16CH network audio; G.711, G.726, AAC |
| Alarms | 8 inputs, 4 outputs |
| Interfaces | 3× RJ-45 (1Gbps), 4× USB (2×USB2.0 front, 2×USB3.0 rear) |
| Power Input | 100–240VAC, 50/60Hz |
| Power Consumption | Max. 205W (with 8× 10TB HDD) |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Dimensions | 438.0 × 86.0 × 434.9 mm |
| Weight | Approx. 9.1kg (without HDD) |
