Description

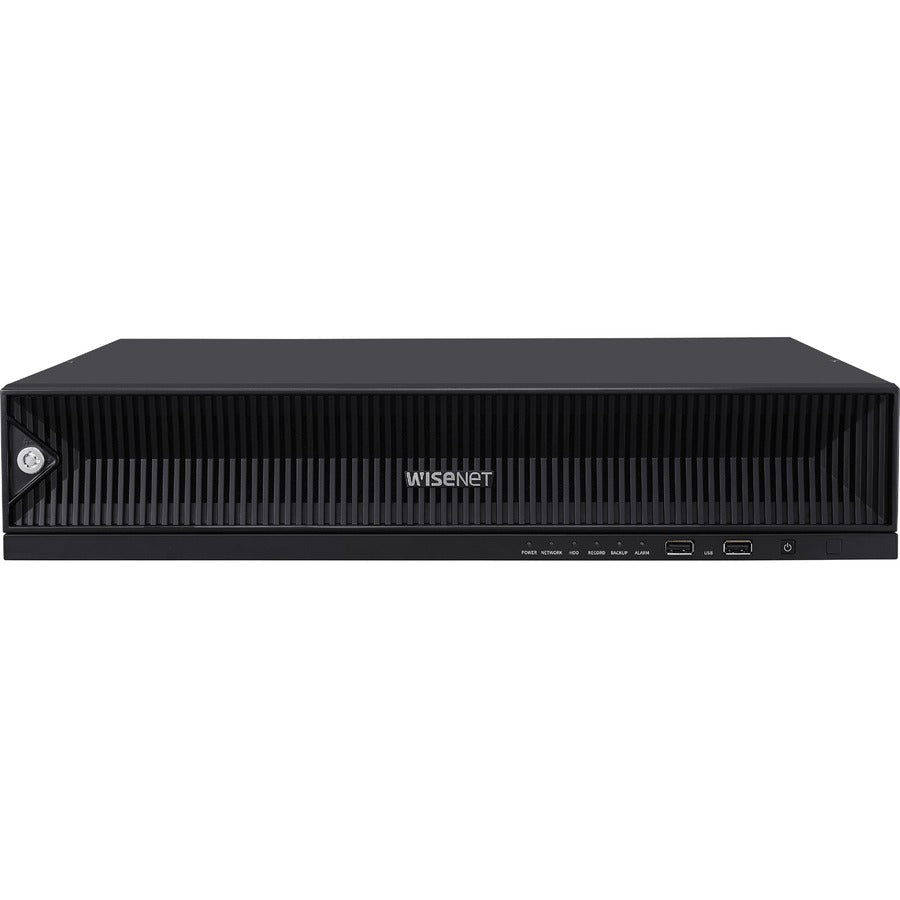

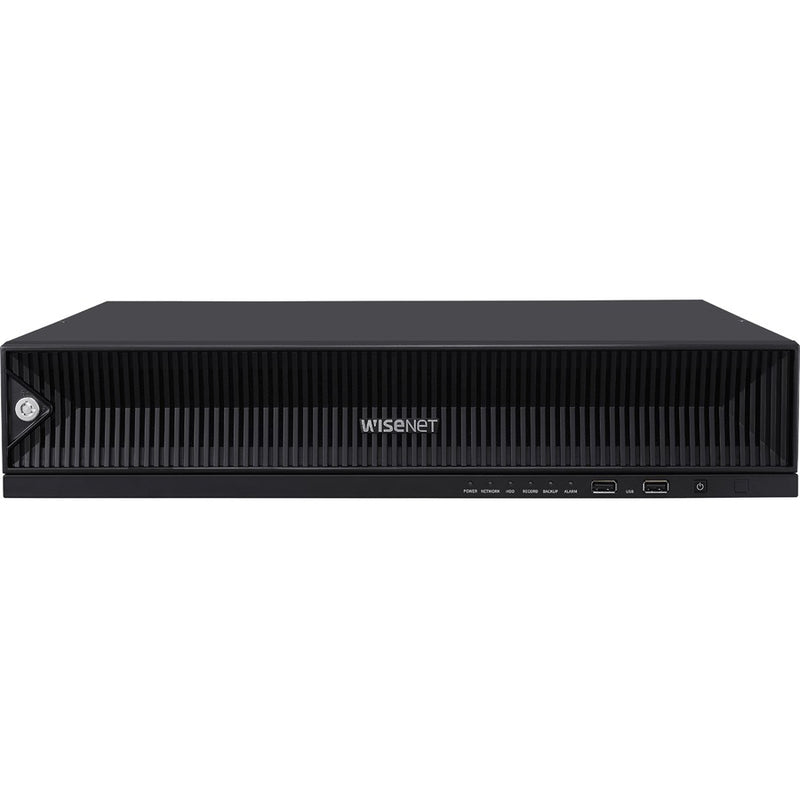

The Wisenet PRN-1600B2-32TB is a high-performance 16-channel 8K AI network video recorder designed for enterprise-grade surveillance environments. Equipped with 32TB of pre-installed HDD storage and support for up to eight SATA drives, it delivers scalable, reliable video retention with RAID 5/6 options and ARB (Automatic Recovery Backup) for data protection.
This NVR supports up to 8K (32MP) resolution recording, dual-display 4K local monitoring, and a maximum recording bandwidth of 250 Mbps. With advanced AI search features—including Best Shot, attribute-based filtering, object classification, and license plate recognition (with Wisenet AI cameras)—operators can quickly locate critical events with enhanced accuracy.
The PRN-1600B2 offers an intuitive web UI 2.0, dynamic layout options, fisheye dewarping, smartphone access, and seamless integration with WAVE, SSM, and third-party VMS platforms. Built for efficient operation, easy configuration, and large-scale deployments, it is an ideal central recording solution for professional security systems.
| Category | Specification |
|---|---|
| Model / SKU | PRN-1600B2-32TB |
| Channels | 16-channel AI NVR |
| Max Resolution | Up to 8K (32MP) |
| Video Compression | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Distributed: up to 250 Mbps; Normal: up to 150 Mbps; RAID: up to 250 Mbps |
| Playback Bandwidth | RAID: up to 64 Mbps; Non-RAID: up to 32 Mbps |
| Display Outputs | HDMI1: 3840×2160 (30Hz); HDMI2: 1920×1080 (60Hz) |
| Multi-Screen Display | Up to 16 divisions per HDMI output; dynamic layout support |
| Search Modes | Date/Time, Event List, Smart Search, Text Search |
| AI Features | Best Shot, Object/Attribute detection, Human/Face/Vehicle recognition, License plate search* |
| Recording Modes | Normal, Event (pre/post), Dual Stream, Schedule, Bookmark |
| Storage Capacity | 32TB pre-installed; 8× SATA bays (up to 10TB per drive, max 80TB) |
| RAID Support | RAID 5/6 (single array) |
| Backup Options | BU/Exe/AVI/JPG; network backup via JPG/AVI |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, NTP, DHCP, HTTPS, SNMP, ONVIF, SUNAPI |
| Remote Users | Search: 3 users; Live Unicast: 10 users; Multicast: 20 users |
| Audio | 16-channel network audio; G.711 / G.726 / AAC |
| Fisheye Dewarping | Supported (local 1CH) |
| Mobile Support | iOS/Android (live + playback) |
| Interfaces | 3× RJ-45 (1GbE), 4× USB (2× USB2.0 front, 2× USB3.0 rear), 8× Alarm In, 4× Alarm Out, Audio Out, AC Power Input |
| System Control | Mouse, Keyboard, Web, SPC-2000 controller |
| Operating System | Embedded Linux |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Dimensions | 438 × 86 × 434.9 mm (17.47 × 3.39 × 17.12 in) |
| Weight | Approx. 9.1 kg (HDD not included) |
| Power | 100–240VAC, Max 205W (with 8× 10TB HDDs) |
