Description

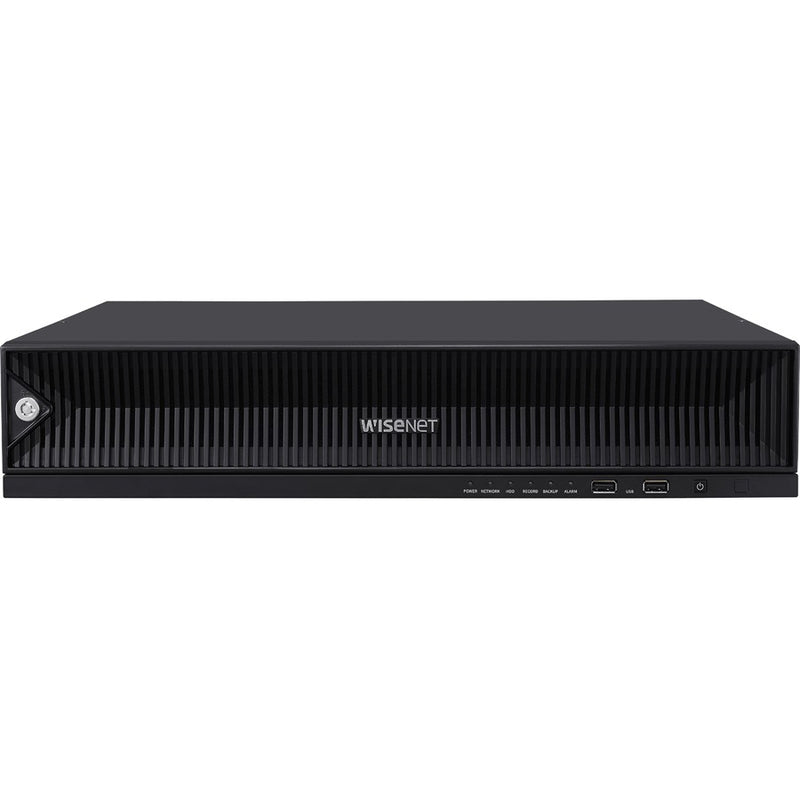

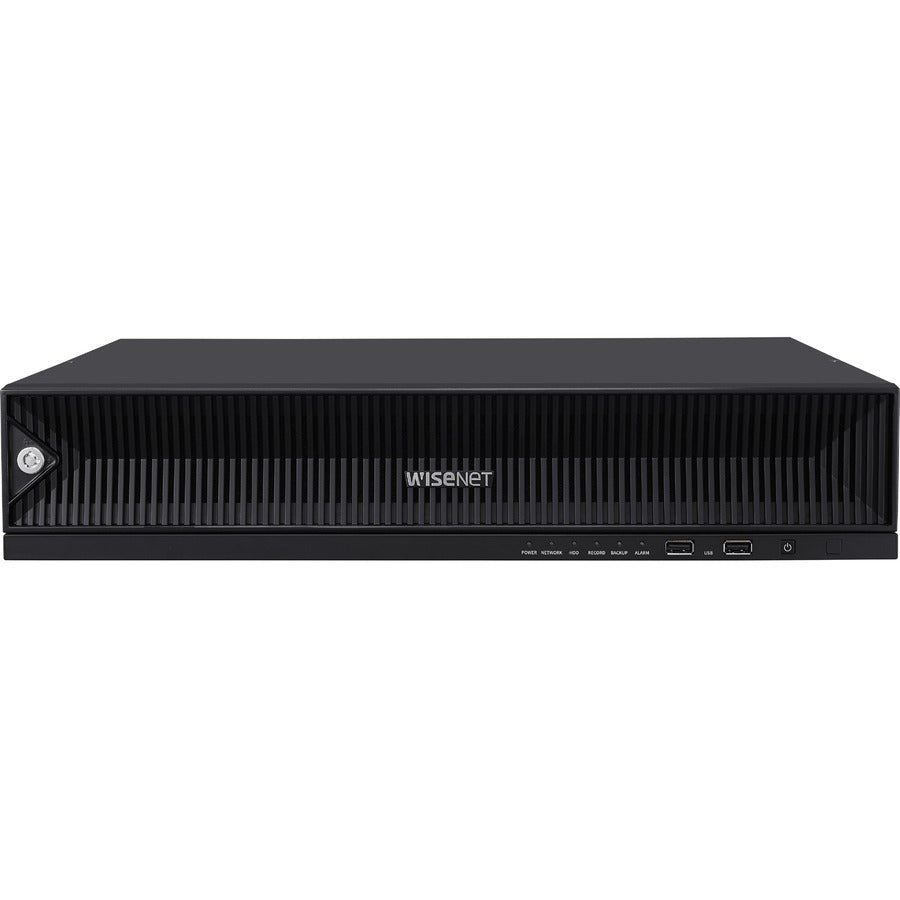

The Wisenet PRN-1600B2-48TB is a high-performance 16-channel 8K AI Network Video Recorder designed for enterprise-grade surveillance environments requiring advanced analytics, long-term retention, and smooth 8K video handling. Engineered with 48TB of pre-installed storage, this NVR supports up to eight SATA drives (up to 80TB max) and RAID 5/6 protection to enhance data resilience.
The system enables AI-powered search including BestShot, attribute-based filtering, object classification, and license plate recognition when paired with Wisenet AI cameras. With support for H.265/H.264/MJPEG, dual-stream recording, distributed streaming, and up to 250 Mbps recording bandwidth, it ensures efficient and reliable video compression and storage.
Dual HDMI outputs allow simultaneous 4K and Full HD monitoring, while the intuitive Web UI 2.0 interface provides dynamic layouts, fisheye dewarping, and streamlined event monitoring. Designed for scalability, security, and seamless integration, the PRN-1600B2-48TB is ideal for large facilities, campuses, logistics hubs, critical infrastructure, and multi-site applications.
| Category | Specification |
|---|---|
| SKU | PRN-1600B2-48TB |
| Channels | 16CH network camera inputs |
| Video Resolution Support | Up to 8K (32MP) |
| Compression Codecs | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Up to 250 Mbps (distributed mode) |
| Playback Bandwidth | Up to 64 Mbps (RAID) / 32 Mbps (non-RAID) |
| Display Outputs | HDMI1: 3840×2160 (30Hz), HDMI2: 1920×1080 (60Hz) |
| Multi-Display | Dynamic layout, clone mode, virtual channel view |
| AI Analytics | BestShot, attribute search, object detection/classification, LPR (with Wisenet AI cameras) |
| Storage Capacity | 48TB pre-installed (supports up to 8× SATA HDD, 10TB each; max 80TB) |
| RAID Support | RAID 5 / RAID 6 |
| Search Modes | Calendar, event list, text search, smart search |
| Fisheye Dewarping | Supported (local 1CH) |
| Event Triggers | Alarm input, video loss, camera analytics, audio, dynamic events |
| Event Actions | Email, push, PTZ preset, alarm out, buzzer, monitor out, FTP |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, NTP, HTTP, DHCP, SMTP, IGMP, HTTPS, SNMP, ONVIF, SUNAPI |
| Remote Users | 4 users (1 local, 3 remote) |
| Mobile Support | iOS, Android (Wisenet Mobile) |
| Audio | 16CH network audio, G.711/G.726/AAC, 2-way audio |
| Interfaces | 3× RJ-45 (LAN/WAN), 4× USB (2× USB2.0, 2× USB3.0), Audio Out (3.5mm), 8 Alarm In / 4 Alarm Out |
| Power Input | 100–240 VAC, 50/60Hz |
| Power Consumption | Max 205W (with 8× 10TB HDD) |
| Operating Temperature | 0°C to +40°C |
| Dimensions | 438 × 86 × 434.9 mm (17.47 × 3.39 × 17.12 in) |
| Weight | Approx. 9.1 kg (without HDD) |
| Additional Features | ARB recovery, QR-code P2P setup, dynamic event support, failover N+1, Wisenet DDNS |
