Description

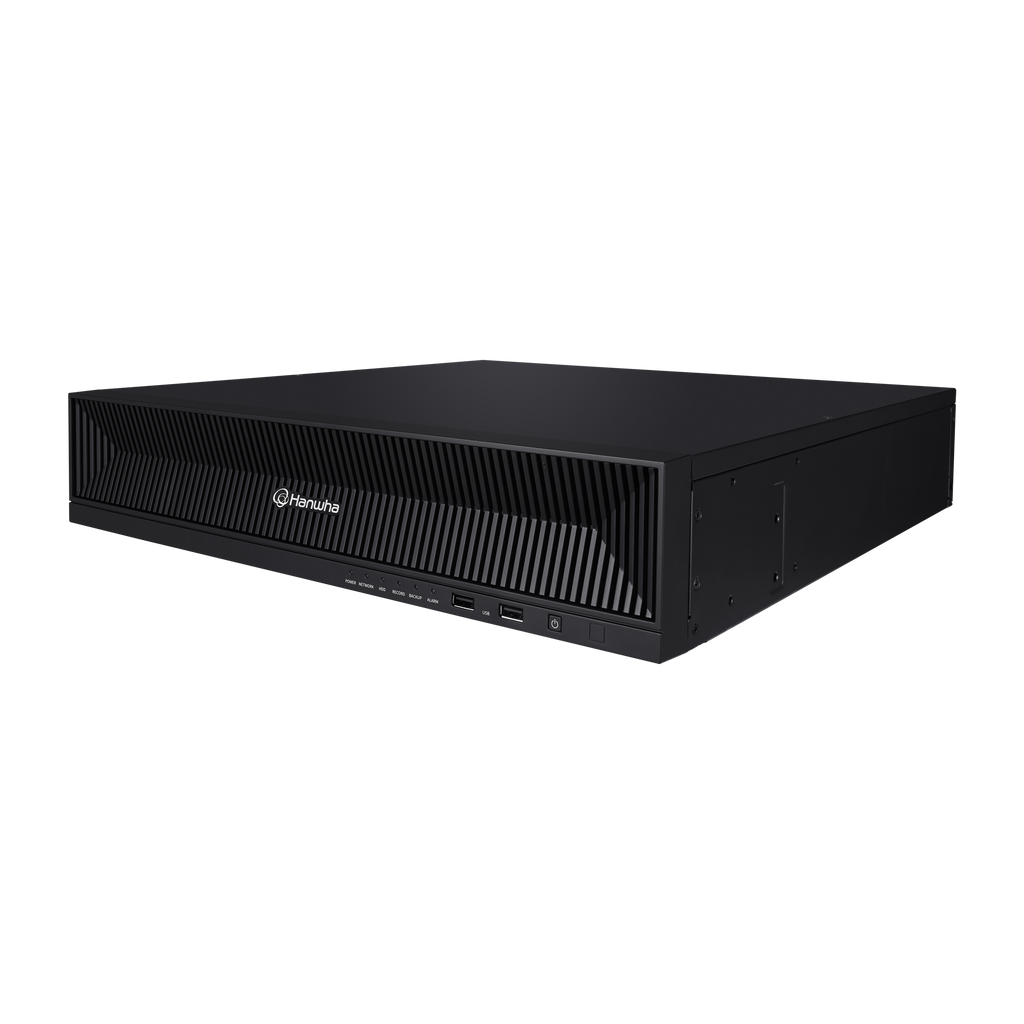

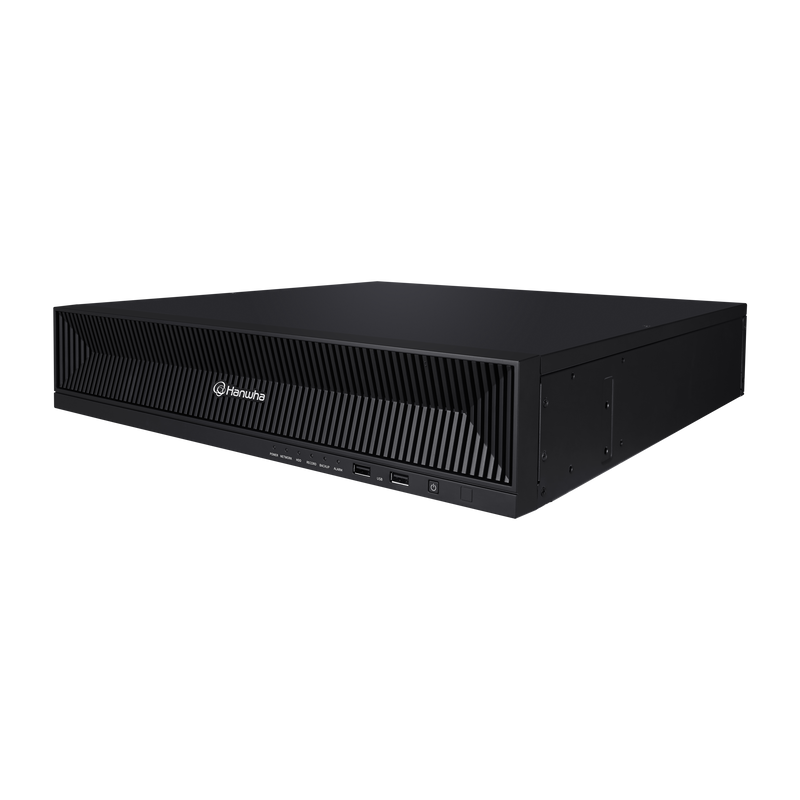

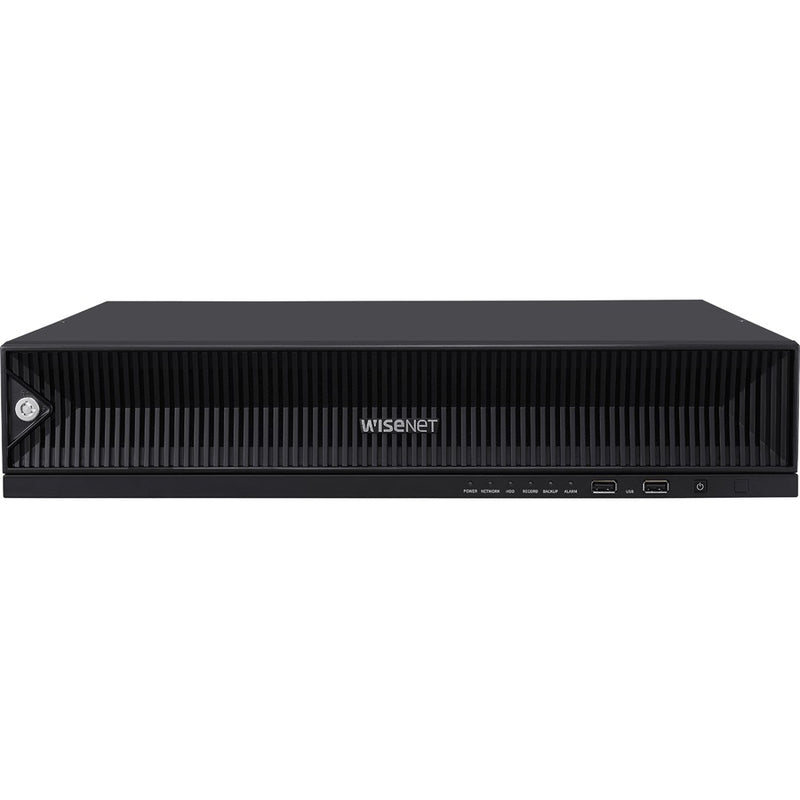

The Hanwha Vision Wisenet PRN-1600B2-64TB is a high-performance 16-channel 8K AI Network Video Recorder engineered for large surveillance deployments requiring advanced analytics, high bandwidth, and secure storage reliability. Equipped with 64TB of pre-installed storage and support for up to 8 SATA drives, this NVR delivers a scalable recording platform with RAID 5/6 protection, Automatic Recovery Backup (ARB), and robust event monitoring.
Designed for modern AI-driven surveillance, it supports AI search, BestShot, attribute-based analytics, object classification, and license plate recognition when paired with Wisenet AI cameras. The dual HDMI display outputs enable local 4K monitoring, while multi-stream recording and WiseStream compression optimize bandwidth efficiency.
Its intuitive Web UI 2.0 interface, QR-based mobile setup, and comprehensive network protocol support streamline configuration and system management. Ideal for enterprise, public sector, and mission-critical security environments.
| Category | Details |
|---|---|
| SKU | PRN-1600B2-64TB |
| Channels | 16CH Network Camera Inputs |
| Max Resolution | Up to 8K (32MP) |
| Video Codecs | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Up to 250 Mbps (Distributed/RAID Mode), 150 Mbps (Normal Mode) |
| Playback Bandwidth | Up to 64 Mbps (RAID), 32 Mbps (Non-RAID) |
| Display Outputs | HDMI1: 3840×2160 @ 30Hz; HDMI2: 1920×1080 @ 60Hz |
| Multi-Screen Display | Dynamic layout, clone mode, expand mode |
| AI Features | AI search, BestShot, attributes, object classification, license plate recognition (AI cameras only) |
| Recording Modes | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark |
| Search Modes | Date/Time, Event List, Text Search, Smart Search |
| Simultaneous Playback | Up to 64CH (Local 16CH, Remote 16CH/user) |
| Storage Capacity | 8 × SATA HDD (Up to 80TB max) |
| Included Storage | 64TB HDD pre-installed |
| RAID Support | RAID 5/6 (Single array) |
| Backup Options | BU/EXE/AVI (GUI), JPG/AVI (Network) |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP, RTSP, NTP, DHCP, HTTP, HTTPS, SMTP, DDNS, SNMP, uPnP, ONVIF, SUNAPI |
| Audio | 16CH (Network), G.711/G.726/AAC |
| Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Security | IP filtering, 802.1x, user access logs, signed firmware, device certificate |
| Interfaces | 3 × RJ-45 (1GbE), 2 × HDMI, 4 × USB, 8 × Alarm In, 4 × Alarm Out, Audio Out (3.5mm), AC Power |
| Failover / Backup | N+1 Redundancy, ARB |
| Mobile Support | iOS, Android (Live 16CH, Playback 4CH) |
| Operating System | Embedded Linux |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions | 438.0 × 86.0 × 434.9 mm (17.47 × 3.39 × 17.12 in) |
| Weight | Approx. 9.1 kg (HDD not included) |
| Power Requirements | 100–240 VAC, 50/60Hz, Max. 205W (with 8 × 10TB HDD) |
| Material / Color | Black metal chassis |
