Description

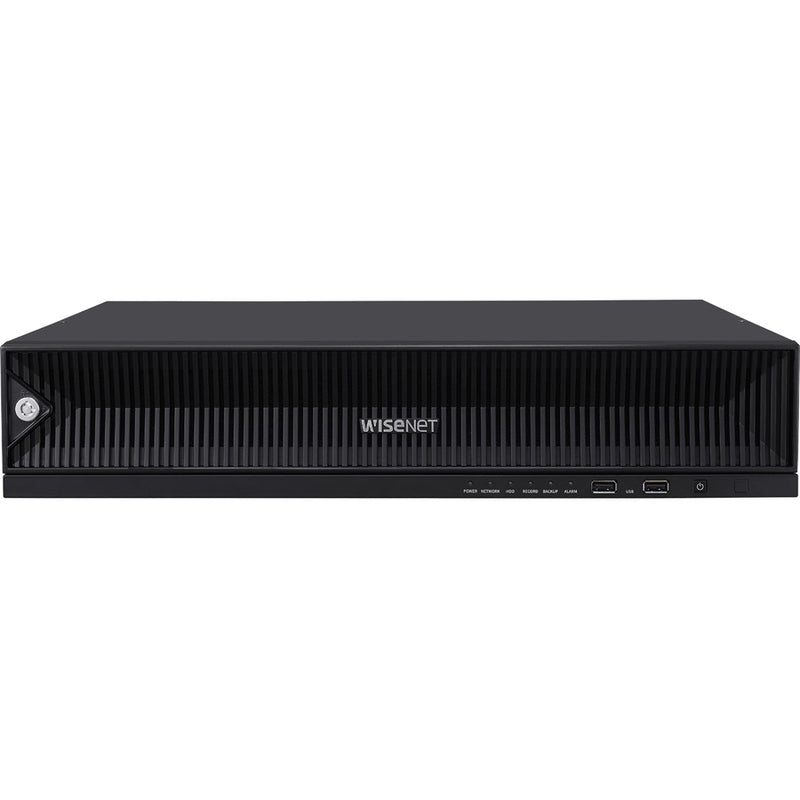

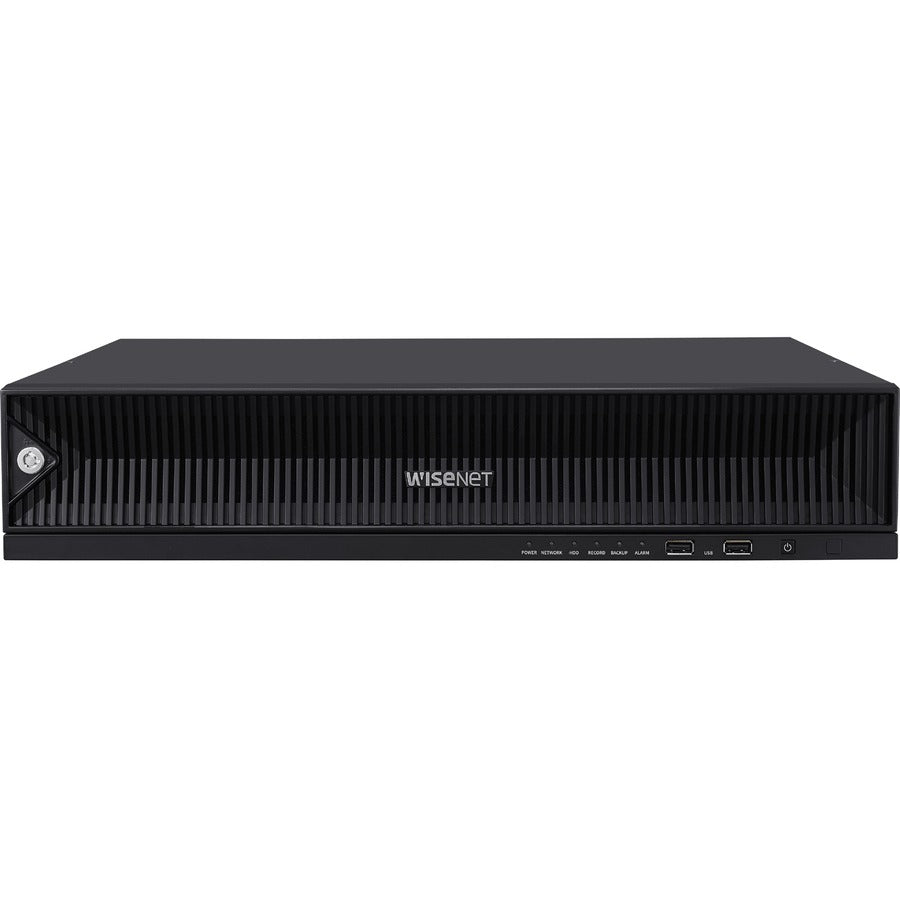

The Wisenet PRN-1600B2 16-Channel 8K AI NVR (80TB) delivers high-performance video recording, AI-powered search functions, and enterprise-grade storage capacity for demanding security environments. Supporting up to 8K (32MP) resolution, this NVR enables ultra-sharp monitoring and reliable long-term retention with 8 SATA bays populated to 80TB.
Designed for seamless integration with Hanwha Vision P, X, and Q series AI cameras, the PRN-1600B2 adds advanced search tools including BestShot, attribute filtering, object detection and classification, and license plate recognition. With 250 Mbps recording throughput, dual-display HDMI outputs, intuitive Web UI 2.0, fisheye dewarping, and Dynamic Event management, it provides both operational efficiency and powerful forensic review capabilities.
Engineered for reliability, the recorder supports RAID 5/6, ARB (Automatic Recovery Backup), failover redundancy, multi-user remote access, and mobile connectivity via QR code. This NVR is ideal for large facilities, campuses, financial institutions, government deployments, and any mission-critical video security application requiring high-capacity 24/7 recording.
| Category | Details |
|---|---|
| SKU | PRN-1600B2-80TB |
| Channels | Up to 16 network camera inputs |
| Max Resolution | Up to 32MP (8K) |
| Recording Bandwidth | Up to 250 Mbps (Distributed / RAID Mode), 150 Mbps (Normal Mode) |
| Playback Bandwidth | Up to 64 Mbps (RAID), 32 Mbps (Non-RAID) |
| Video Compression | H.265, H.264, MJPEG, WiseStream (H.265/H.264) |
| Recording Modes | Normal, Dual-Stream, Schedule, Event, Pre/Post, Bookmark |
| Display Outputs | HDMI1: 3840×2160 @30Hz; HDMI2: 1920×1080 @60Hz |
| Multi-View Layouts | Dynamic layout, virtual channel, clone mode, expand mode |
| Storage Capacity | 8 × SATA (80TB populated), supports up to 10TB per drive |
| RAID Support | RAID 5/6 (Single, 1 Array) |
| External Storage | iSCSI supported |
| AI Search Features | BestShot, attribute search, object detection/classification, license plate recognition (Wisenet AI cameras only) |
| Event Triggers | Alarm input, video loss, camera analytics, defocus, audio detection, motion detection, Dynamic Event, user events |
| Event Actions | Email, push notification, PTZ preset, alarm out, buzzer, monitor out, FTP, SUNAPI command, shutdown |
| Fisheye Dewarping | 1CH local dewarping, CMS support |
| Network Protocols | IPv4/IPv6, TCP/IP, RTSP, RTP, HTTP/HTTPS, DHCP, SNMP, ONVIF Profile-S, SUNAPI |
| Audio | 16-channel network audio, G.711 / G.726 / AAC support, 2-way audio |
| Remote Access | Max 3 users for search, 10 live unicast, 20 multicast |
| Mobile Support | iOS/Android, QR-code P2P setup |
| Failover/Redundancy | N+1 failover, ARB (Automatic Recovery Backup) |
| Interfaces | 3× RJ-45 LAN/WAN (1Gbps), 2× HDMI, 4× USB (2× USB 2.0, 2× USB 3.0), 8× Alarm In, 4× Alarm Out, 1× Audio Out |
| Power | 100–240VAC ±10%, Max 205W (with 8×10TB HDDs) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions | 438 × 86 × 434.9 mm (17.47 × 3.39 × 17.12 in) |
| Weight | Approx. 9.1 kg (HDD not included) |
| Color/Material | Black, metal enclosure |
