Description

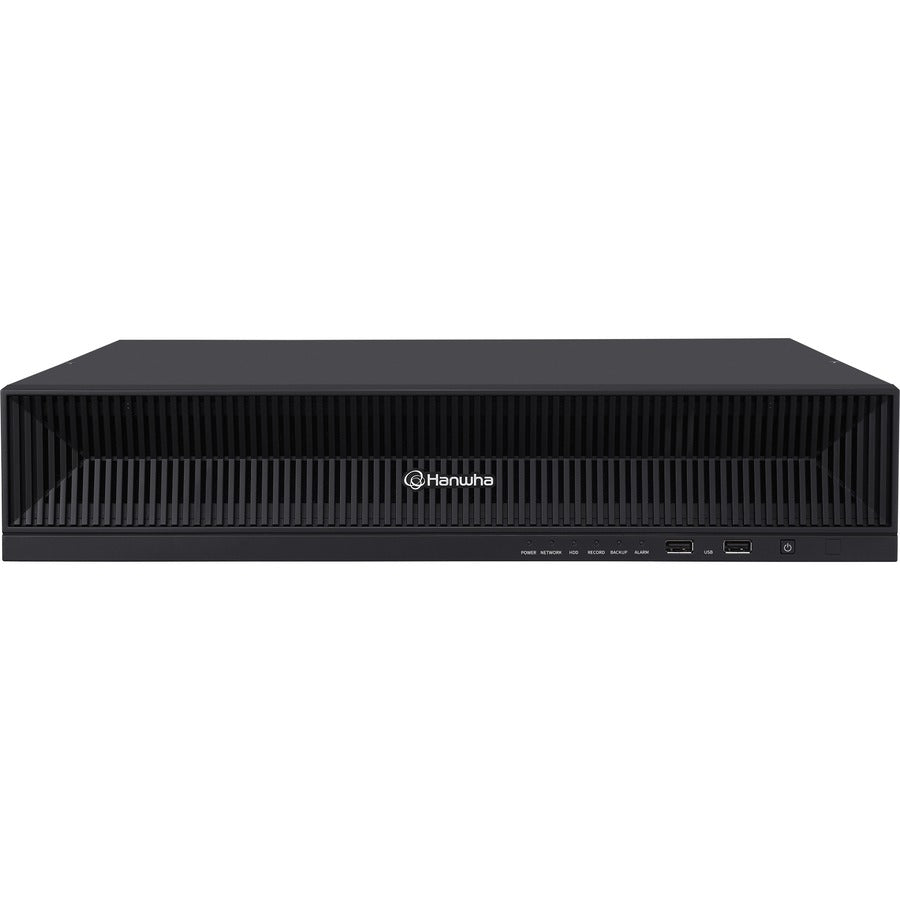

The Wisenet PRN-1600B2-8TB is a powerful 16-channel 8K AI Network Video Recorder designed for professional surveillance environments requiring high-resolution recording, intelligent search functions, and reliable storage performance. Equipped with 8TB of pre-installed storage (expandable up to 80TB), it supports up to eight internal SATA HDDs with RAID 5/6 options for enhanced data protection.
This NVR delivers up to 250 Mbps recording bandwidth and supports advanced video compression formats including H.265, H.264, MJPEG, and WiseStream for efficient storage optimization. It provides dual HDMI outputs with 4K local display capability and dynamic multi-screen layouts for streamlined monitoring.
Built with integrated AI search features, it enables rapid retrieval of critical events through Best Shot, attribute search, object detection and classification, and license plate recognition when paired with compatible Wisenet AI cameras. Additional features include fisheye dewarping, dynamic events, dual-stream recording, ARB (Automatic Recovery Backup), and a modern web UI with no plugins required.
Engineered for enterprise reliability, the PRN-1600B2-8TB is ideal for medium to large-scale installations requiring robust performance, intelligent analytics, and seamless integration with Wisenet ecosystem devices.
| Category | Details |
|---|---|
| SKU | PRN-1600B2-8TB |
| Channels | 16CH network camera inputs |
| Maximum Resolution | Up to 8K (32MP) |
| Video Codecs | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Up to 250 Mbps |
| Playback Bandwidth | Up to 64 Mbps (RAID), 32 Mbps (non-RAID) |
| Local Display Output | HDMI1: 3840×2160 (30Hz); HDMI2: 1920×1080 (60Hz) |
| Display Features | Dynamic layout, virtual channel view, expand/clone mode |
| Recording Modes | Normal, Dual Stream, Schedule, Event (Pre/Post), Bookmark |
| Supported Resolutions | CIF to 32MP |
| AI Features | Best Shot, attribute search, human/face/vehicle recognition, license plate detection (with Wisenet AI cameras) |
| Event Triggers | Alarm input, video loss, camera analytics events, dynamic events, user events |
| Event Actions | Email, push, PTZ preset, alarm out, buzzer, monitor out, FTP, SUNAPI command, shutdown |
| Storage Included | 8TB HDD pre-installed |
| Storage Capacity | Up to 8 × SATA HDD (max 10TB per drive, up to 80TB total) |
| RAID Support | RAID 5/6 (single array) |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, HTTP/HTTPS, DHCP, NTP, DDNS, SNMP, ONVIF Profile S, SUNAPI |
| Audio | 16CH network audio; G.711, G.726, AAC; 2-way audio |
| Remote Users | Search: 3 users; Live: 10 unicast users; Multicast: 20 |
| Browser Support | Chrome, Edge, Safari |
| Viewer Software | WAVE, SSM, Web Viewer, Smart Viewer, Wisenet Mobile |
| Mobile Support | iOS, Android; QR-code P2P setup |
| Interfaces | 2 × HDMI, 1 × audio out, 3 × RJ-45 LAN/WAN, 8 × alarm in, 4 × alarm out, 4 × USB ports |
| Power Input | 100–240VAC, 50/60Hz |
| Power Consumption | Max 205W (with 8 × 10TB HDDs) |
| Operating Temperature | 0°C to +40°C |
| Dimensions | 438 × 86 × 434.9 mm (17.47 × 3.39 × 17.12 in) |
| Weight | Approx. 9.1 kg (HDD not included) |
