Description

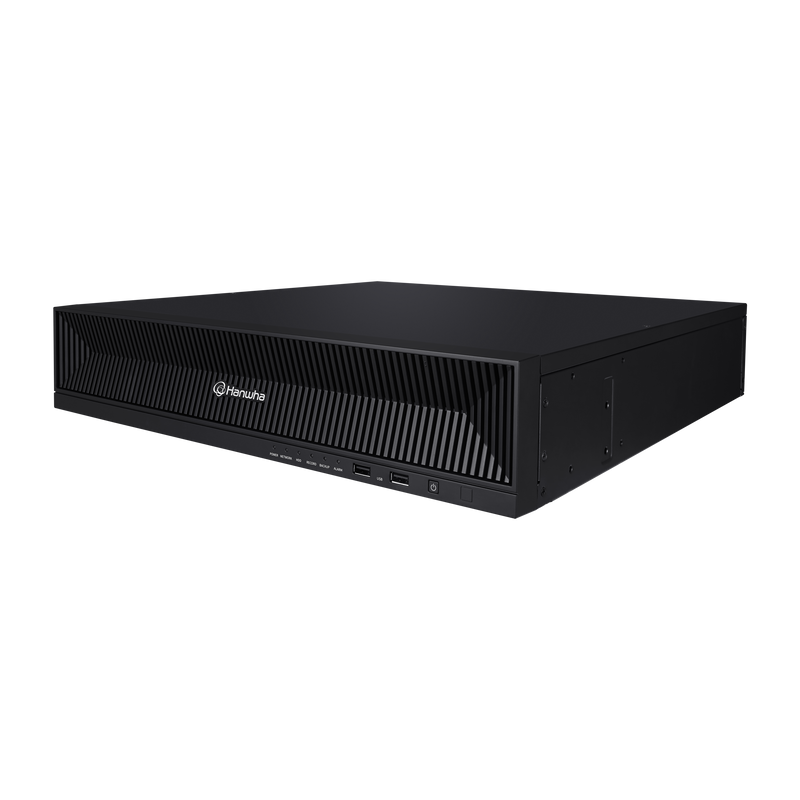

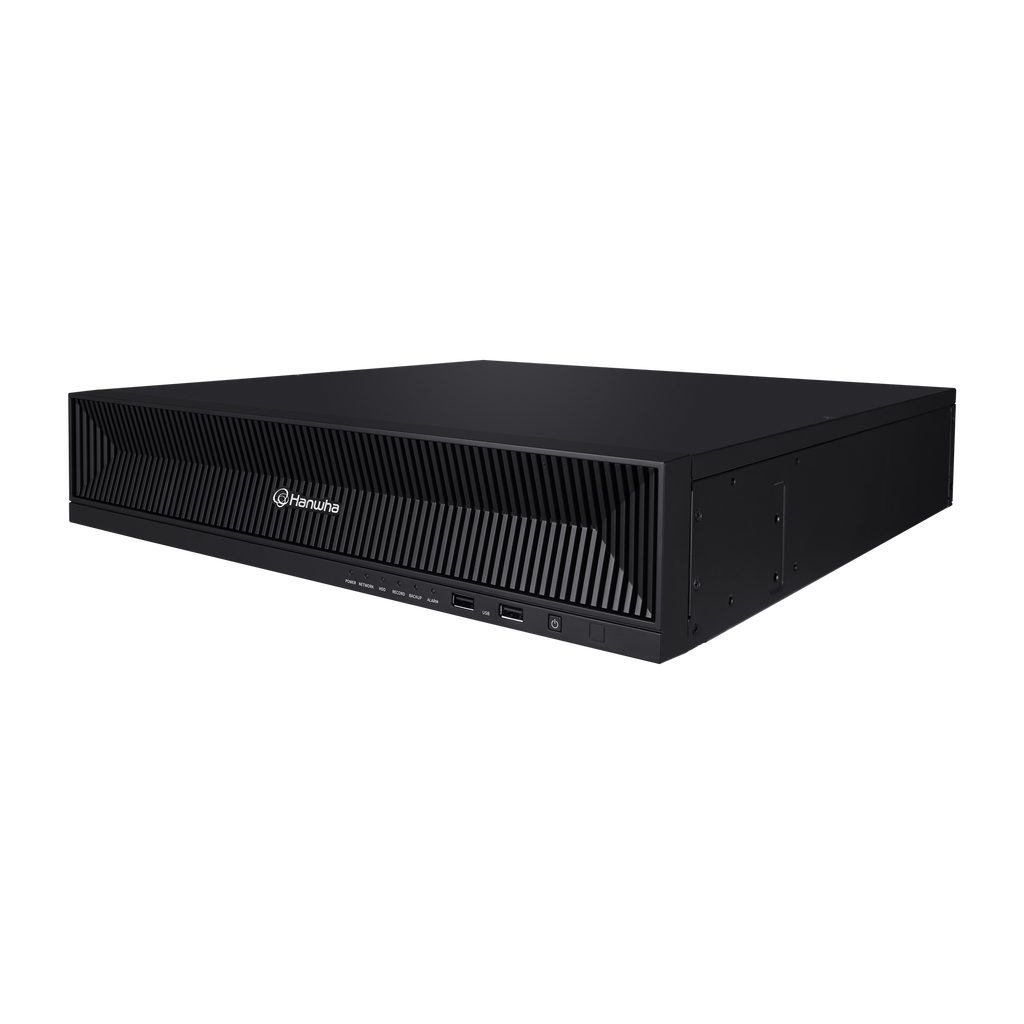

The Wisenet PRN-1600B2 is a high-performance 16-channel 8K AI Network Video Recorder engineered for professional surveillance environments that require exceptional video quality, advanced analytics, and reliable long-term storage. With support for up to 32MP resolution, AI-powered object detection and classification, and compatibility with Wisenet AI cameras for BestShot, Attribute Search, and License Plate Recognition (LPR), this NVR delivers powerful monitoring and investigation capabilities.
Designed for system scalability and resilience, the PRN-1600B2 supports up to eight SATA HDDs (80TB total), RAID 5/6, Automatic Recovery Backup (ARB), and flexible recording modes. Dual HDMI outputs allow simultaneous 4K and Full HD local monitoring, while intuitive configuration, mobile QR-code setup, and Wisenet WAVE/SSM integration simplify management. This NVR is ideal for enterprises, campuses, and critical security installations requiring dependable, AI-enhanced video recording performance.
| Category | Specification |
|---|---|
| Channels & Video | 16CH network camera inputs |
| Max Resolution | Up to 32MP (8K) |
| Codec Support | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Up to 250 Mbps (Distributed/RAID), 150 Mbps (Normal) |
| Playback Bandwidth | Max 64 Mbps (RAID), 32 Mbps (Non-RAID) |
| Local Display Outputs | HDMI1: 3840×2160 (30Hz), HDMI2: 1920×1080 (60Hz) |
| Multi-Screen Display | Dynamic layout, Clone mode (up to 16 divisions), Expand mode |
| Simultaneous Playback | Up to 64CH total (16CH local, 16CH per remote user) |
| AI Features | Object detection, Human/Face/Vehicle/License Plate attributes, LPR support |
| Search Modes | Calendar, Event, Smart Search, Text Search |
| Storage | 8× SATA bays, up to 10TB per HDD (80TB max) |
| RAID Support | RAID 5/6 (Single array) |
| Backup Options | BU/EXE/AVI (GUI), JPG/AVI (Network) |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTSP, HTTP/HTTPS, DHCP, SNMP, ONVIF, SUNAPI |
| Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Audio Support | 16CH network audio, G.711/G.726/AAC, 2-way audio |
| Interfaces | 3× RJ-45 (1GbE), 8 Alarm In / 4 Alarm Out, 4× USB, Audio Out |
| System Control | Mouse, Keyboard, Web, SPC-2000 Controller |
| Mobile Support | iOS/Android, live 16CH, playback 4CH |
| Failover/Redundancy | N+1 Failover, ARB |
| Operating System | Embedded Linux |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Power Input | 100–240VAC, 50/60Hz |
| Power Consumption | Max 205W (with 8× 10TB HDDs) |
| Dimensions | 438.0 × 86.0 × 434.9 mm |
| Weight | Approx. 9.1kg (HDD not included) |
| Material/Color | Black, Metal chassis |
