Description
The Edgecore AS7716-24SC is a powerful open networking 100GbE coherent switch designed for service providers and data centers that need to extend and modernize metro and long-haul DWDM networks. With a 3.2 Tbps switching capacity and hybrid packet transponder architecture, it combines high-performance switching and optical transport functions within a single compact 1.5RU chassis.
Powered by Broadcom’s StrataXGS™ Tomahawk™ Plus silicon and an Intel® Xeon® D-1518 4-core CPU, the AS7716-24SC delivers flexible and programmable connectivity for 100G applications. It features 16 x QSFP28 Ethernet ports and 8 modular line card slots, supporting coherent DSP-based optical modules for high-capacity metro transmission.
The system supports ONIE (Open Network Install Environment), enabling seamless deployment of commercial or open-source Network Operating Systems (NOS). With MACsec security, redundant power and fans, and support for coherent DCO line cards, the AS7716-24SC ensures scalability, flexibility, and secure performance for modern optical and data center infrastructures.
| Category | Specification |
|---|---|
| Model | AS7716-24SC |
| Part Number (SKU) | 7716-24SC-O-48V-F |
| Form Factor | 1.5RU rack-mountable |
| Switch Silicon | Broadcom BCM56965 Tomahawk+ |
| CPU | Intel® Xeon® D-1518 4-Core x86 Processor |
| Memory | 16 GB DDR4 (2 × 8 GB SO-DIMM) |
| Storage | 32 GB M.2 SSD, 16 MB SPI Flash |
| Switching Capacity | 3.2 Tbps full duplex |

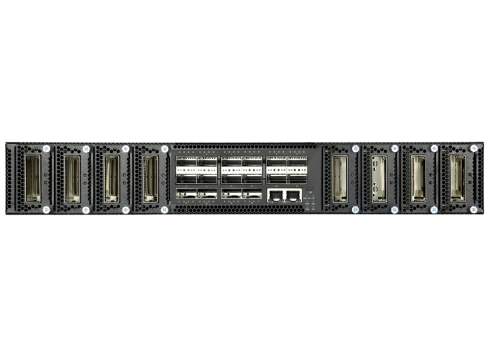

| Ports | 16 × QSFP28 40/100GbE ports; 8 × line card slots (QSFP28 or DCO modules) |
| Management Ports | 1 × RJ-45 serial console, 1 × RJ-45 100/1000BASE-T management, 1 × USB |
| Software Environment | Pre-loaded with ONIE for installation of compatible open or commercial NOS |
| Features | Supports MACsec, coherent transmission up to 200G 16QAM, automated monitoring via API |
| LED Indicators | QSFP28 port status/activity, management port link, system/fan/PSU diagnostics |
| Performance | Jumbo Frames up to 9216 bytes; IPv4/IPv6 entries up to 84K/36K; VLAN IDs: 4K |

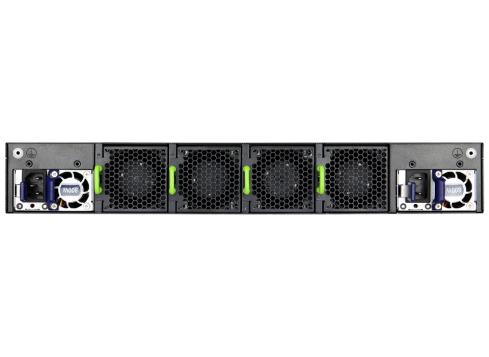

| Power Supply | Dual 48 VDC PSUs, 1+1 redundant, hot-swappable, load-sharing |
| Airflow | Front-to-Back |
| Power Consumption | Approx. 1100 W (full load) |
| Cooling | 3+1 hot-swappable dual-rotor fan modules |
| Dimensions (W × D × H) | 44.25 × 55.0 × 6.6 cm (17.42 × 21.65 × 2.6 in.) |
| Weight | 11.6 kg |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | –40°C to 70°C (–40°F to 158°F) |
| Operating Humidity | 5%–95% non-condensing |
| Compliance & Safety | CE, FCC Part 15 Class A, VCCI Class A, UL/CUL, CB, RoHS 2.0 |
| Warranty | 3-year hardware warranty (extendable up to 5 years total) |
