Description

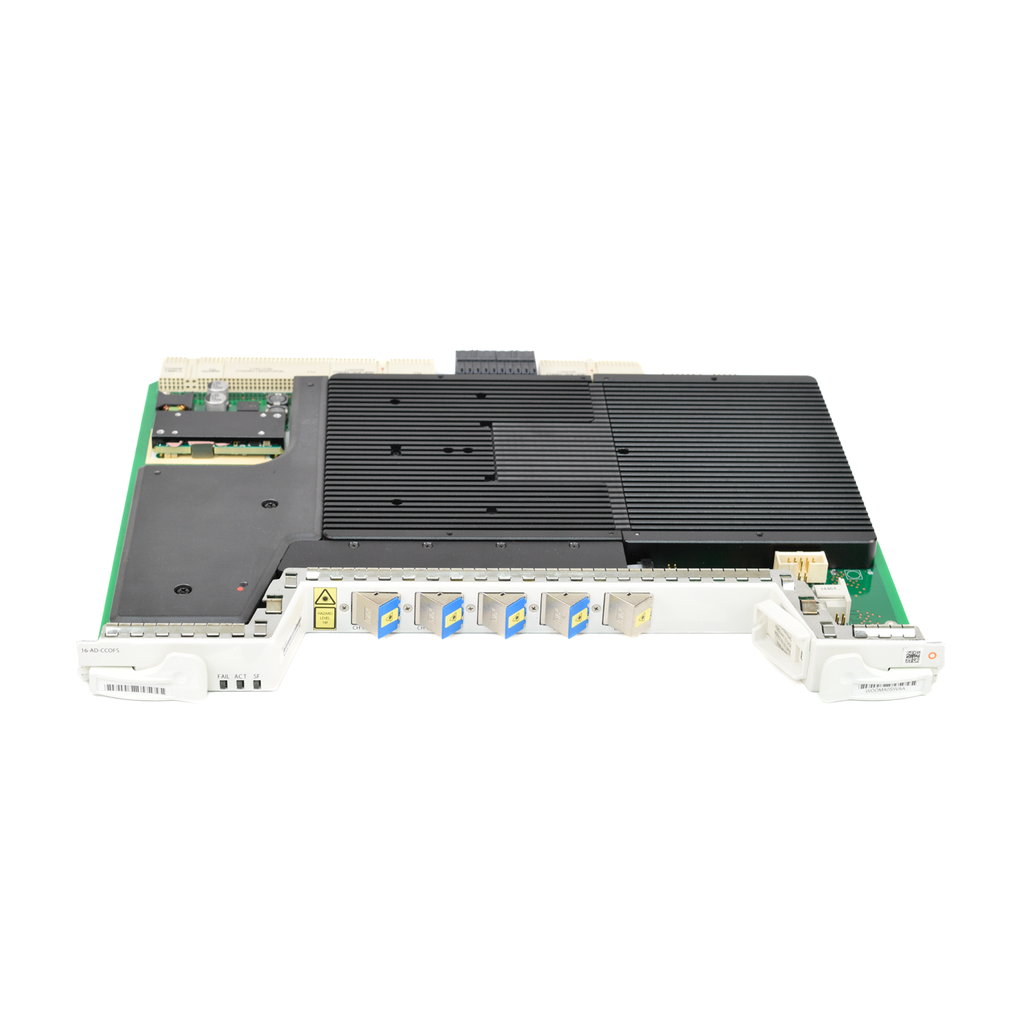

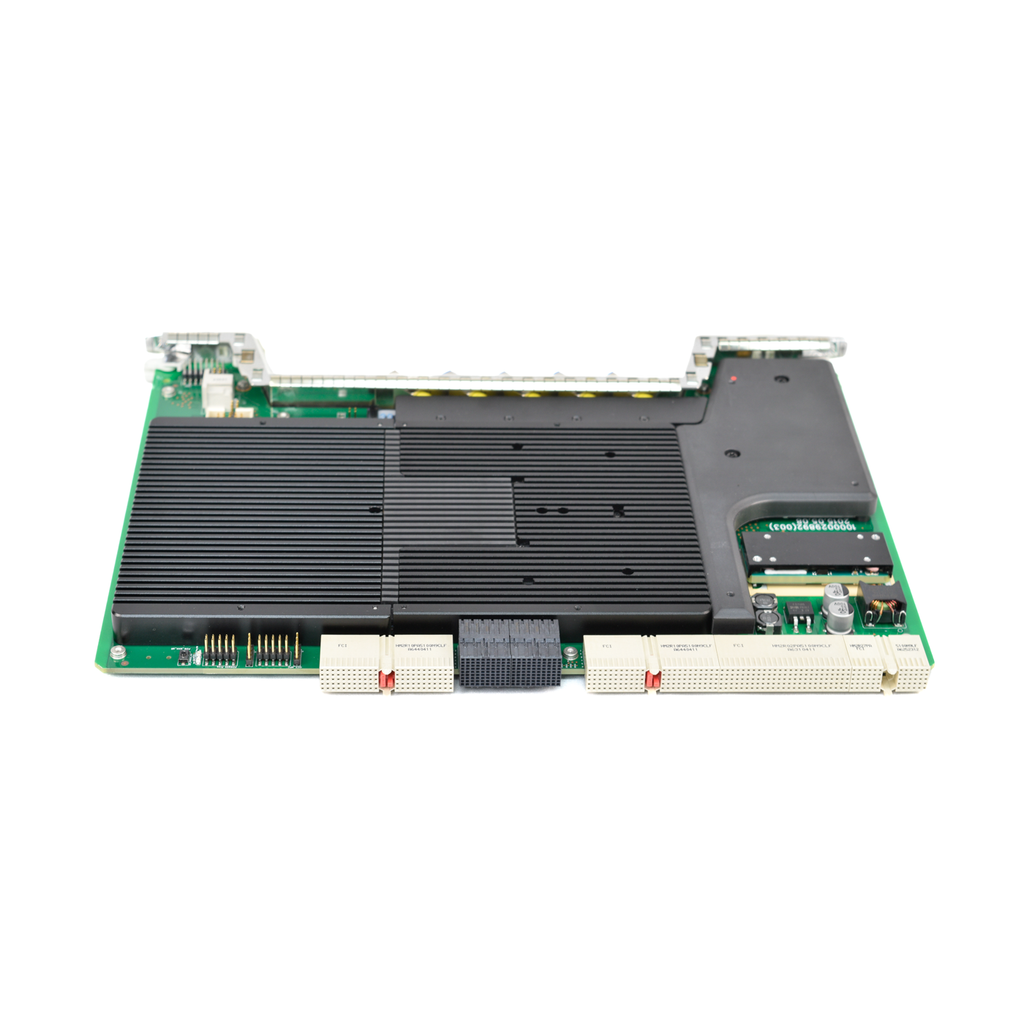

The Cisco NCS2K-16-AD-CCOFS= is a high-capacity contentionless add/drop line card designed for the Cisco NCS 2000 Series optical transport platform. It delivers full Colorless, Contentionless, Omnidirectional, and Flex Spectrum (CCOFS) functionality, enabling dynamic and fully programmable ROADM architectures.
This 16-port line card supports scalable DWDM networks by allowing wavelengths to be added or dropped without manual fiber changes, improving network agility and reducing operational complexity. Integrated multicast switching and amplification enable efficient spectrum utilization while supporting multi-degree ROADM configurations. Ideal for service providers and large enterprises, it enables rapid provisioning, automated restoration, and future-ready optical network expansion.
| Specification | Details |
|---|---|
| Manufacturer | Cisco |
| Product Series | NCS 2000 |
| SKU | NCS2K-16-AD-CCOFS= |
| Card Type | Contentionless Add/Drop Line Card |
| Number of Ports | 16 |
| ROADM Degrees Supported | 4 to 12 degrees |
| Optical Capabilities | Colorless, Contentionless, Omnidirectional, Flex Spectrum |
| Multicast Switching | Integrated 4 × 16 multicast switch |
| Amplification | Integrated EDFA arrays |
| Spectrum Support | Flexible spectrum for superchannels and high-capacity wavelengths |
| Form Factor | Single-slot line card |
| Typical Power Consumption | ~40 W |
| Maximum Power Consumption | ~50 W |
| Operating Temperature | -5°C to 55°C (23°F to 131°F) |
| Compatibility | Cisco NCS 2000 Series chassis |
| Deployment | Carrier-grade DWDM and ROADM networks |
