Description

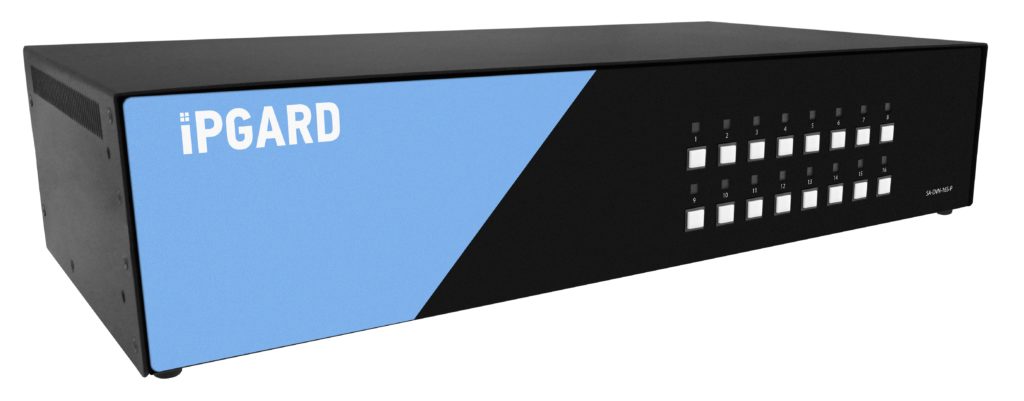

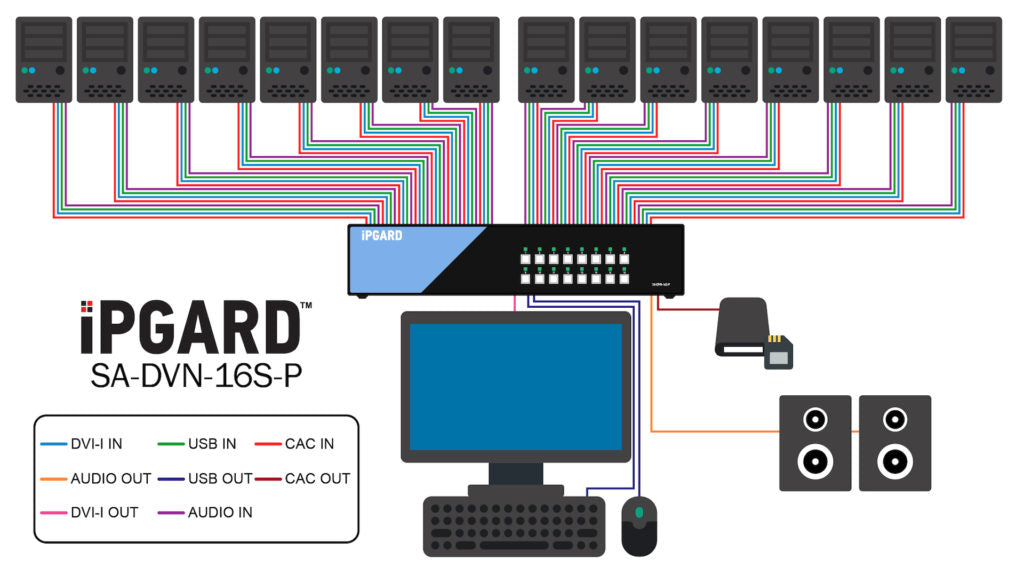

The iPGARD SA-DVN-16S-P is an advanced 16-port secure KVM switch designed for environments that demand strict data isolation, reliable performance, and high-resolution video control. Built to meet rigorous security standards, this single-head DVI-I KVM enables operators to manage up to 16 computers from a single console while maintaining complete signal separation between systems.
Engineered for government, military, healthcare, and enterprise deployments, the SA-DVN-16S-P supports high-resolution video output and ensures secure peripheral sharing through dedicated keyboard, mouse, audio, and CAC (Common Access Card) channels. Its tamper-resistant architecture and NIAP Common Criteria validation make it ideal for mission-critical operations where data protection is non-negotiable.
With seamless switching, automatic EDID learning, and robust USB and audio integration, this KVM switch delivers dependable performance without compromising security. The front-panel controls allow intuitive operation, while its durable design ensures long-term reliability in demanding environments.
| Specification | Details |
|---|---|
| Device Type | Secure 16-Port Single-Head DVI-I KVM Switch |

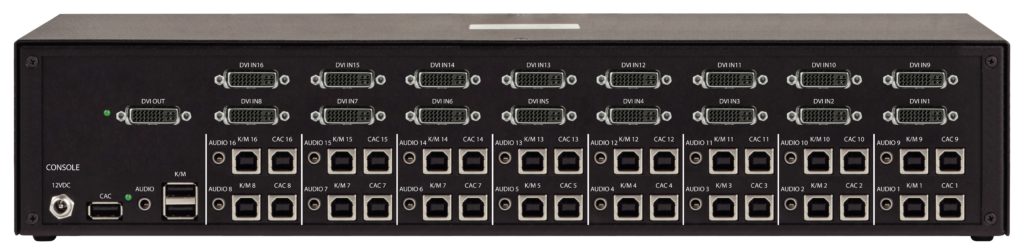

| Video Interface | 16 × DVI-I (29-pin) host ports; 1 × DVI-I console output |
| Maximum Resolution | Up to 2560 × 1600 @ 60Hz; supports 3840 × 2160 @ 30Hz |
| Video Signal Handling | Automatic input equalization with EDID learning |
| USB Support | USB 1.1/1.0 for keyboard and mouse; USB 2.0 for CAC |
| USB Ports | 32 × USB Type-B (hosts); 2 × USB Type-A (keyboard/mouse); 1 × USB Type-A (CAC) |
| Audio Support | 16 × 3.5mm stereo input; 1 × 3.5mm stereo output |
| CAC Support | Dedicated CAC port for secure smart card authentication |
| Cable Length Support | Up to 20 ft for both input and output connections |

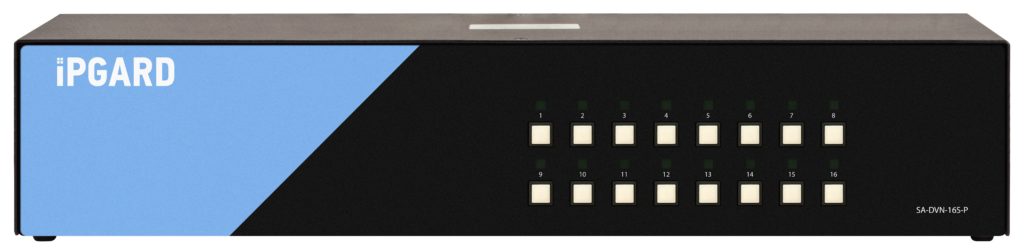

| User Controls | Front-panel push buttons for port selection |
| Emulation | Keyboard, mouse, and video emulation for seamless switching |
| Security Certification | Common Criteria validated to NIAP Protection Profile PSS Ver. 4.0 |
| Power Supply | 12V DC, 3A power adapter (center-positive) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Humidity | 0–80% non-condensing |
| Deployment | Designed for secure government and enterprise environments |
