Description

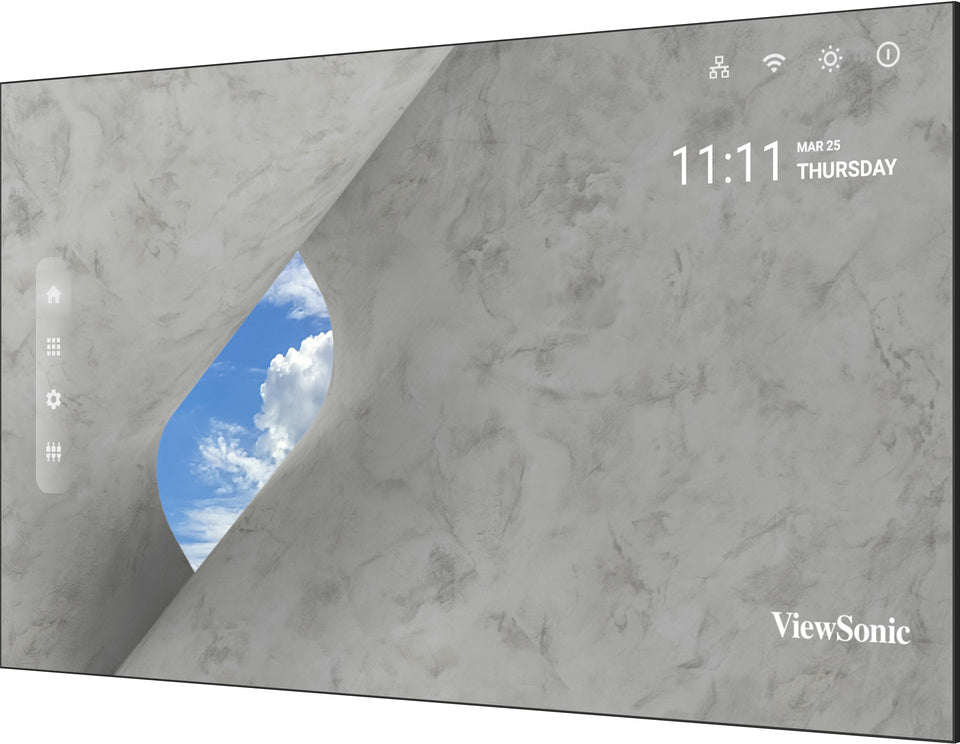

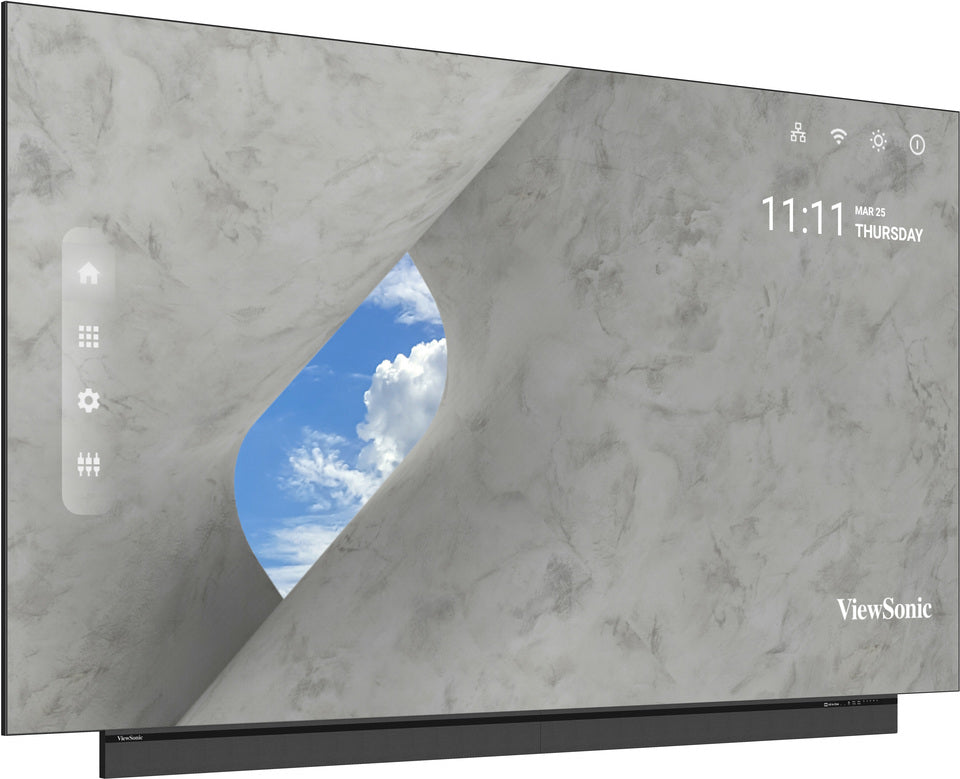

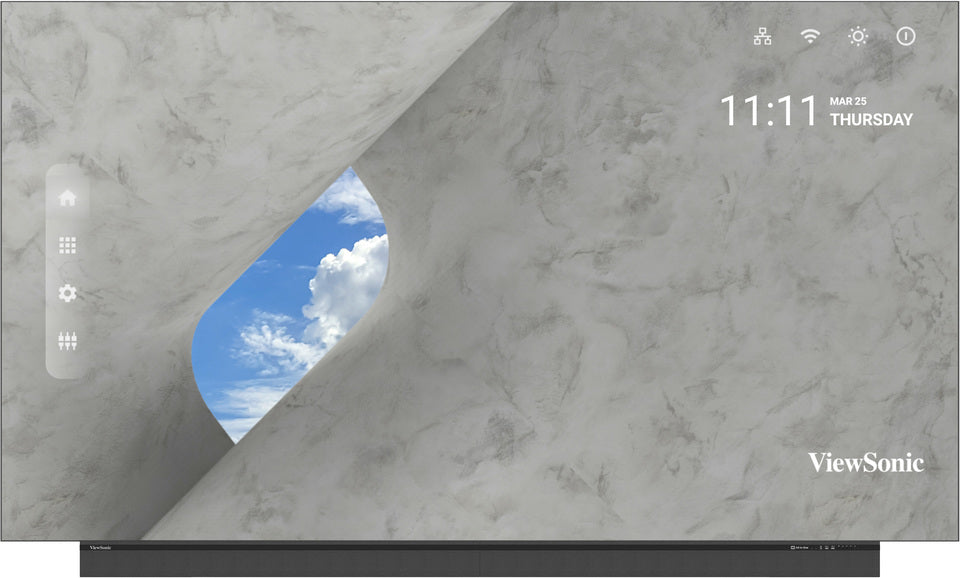

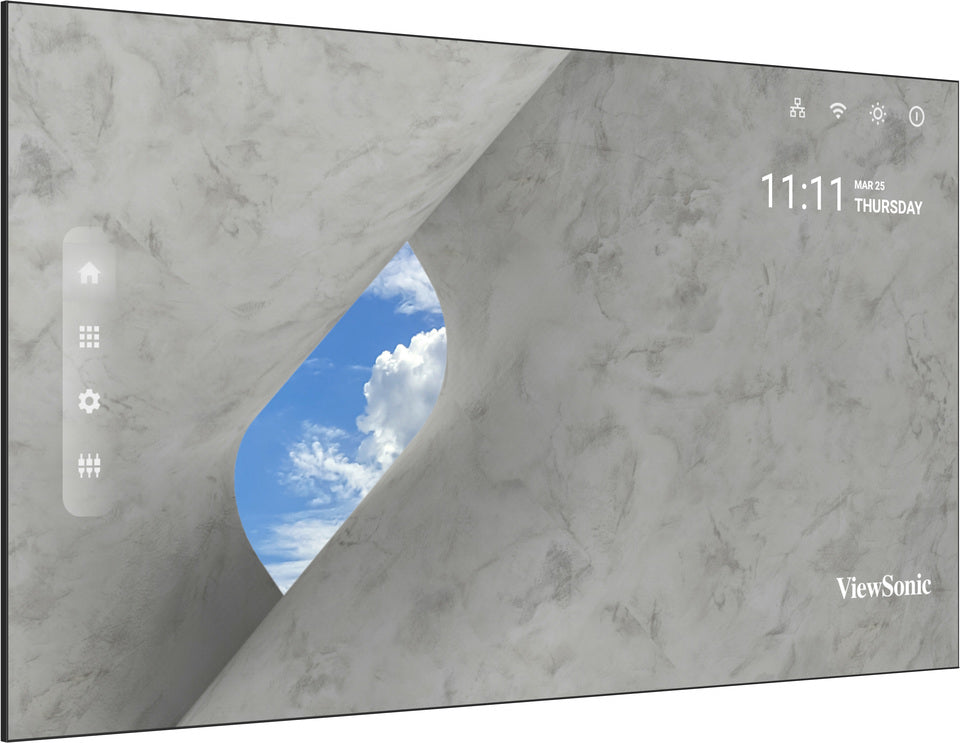

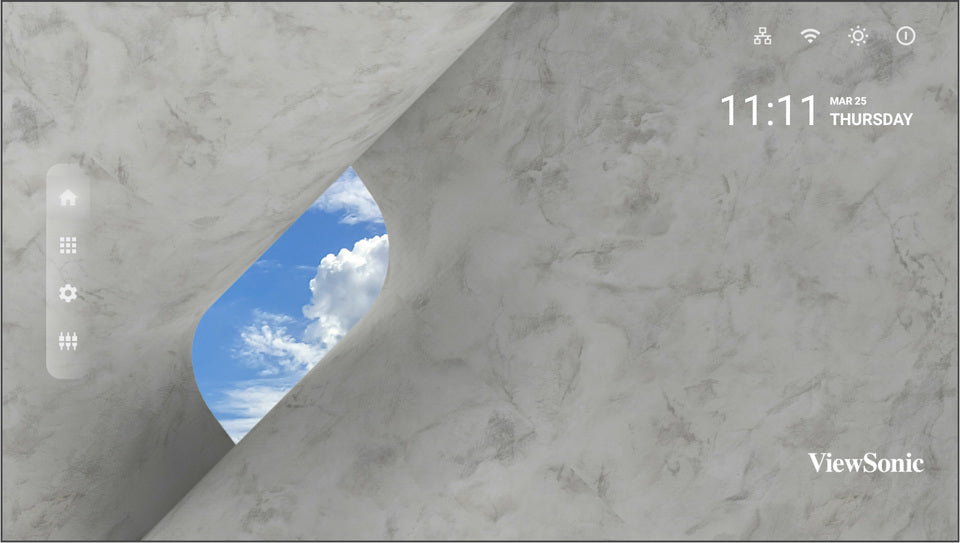

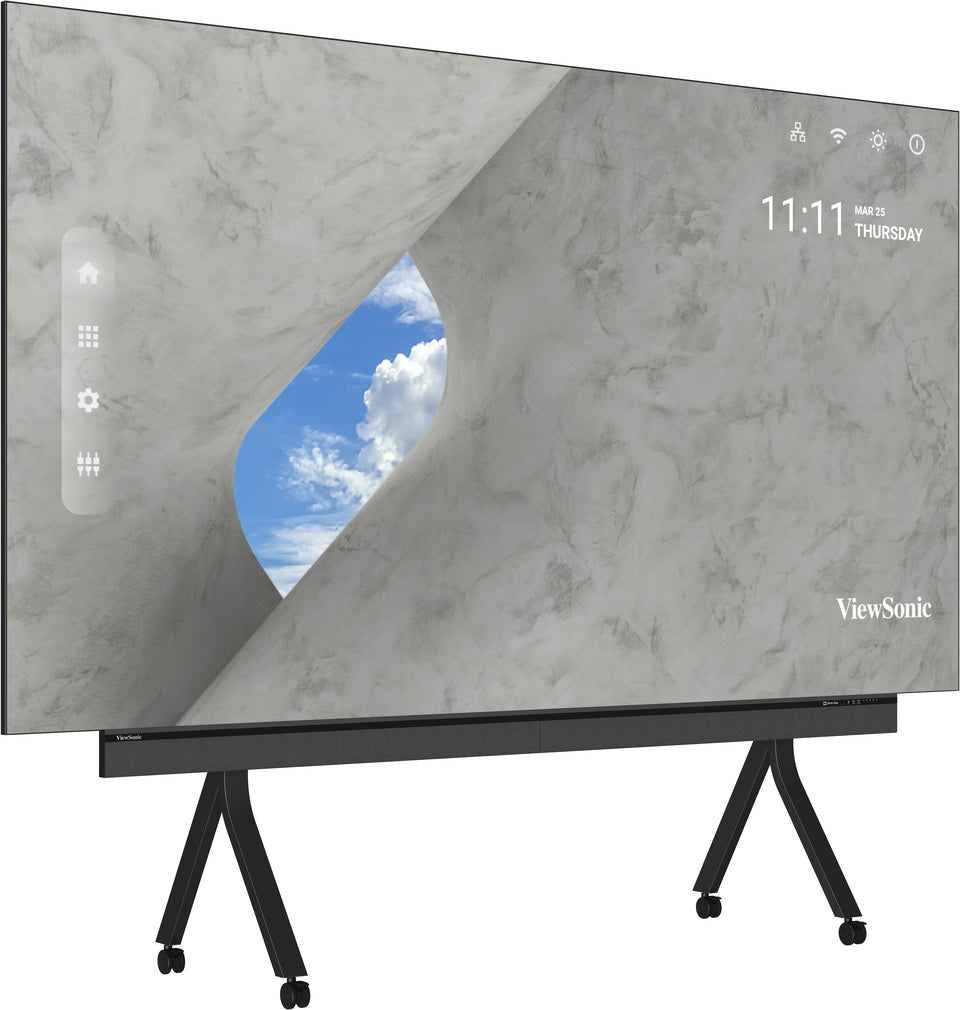

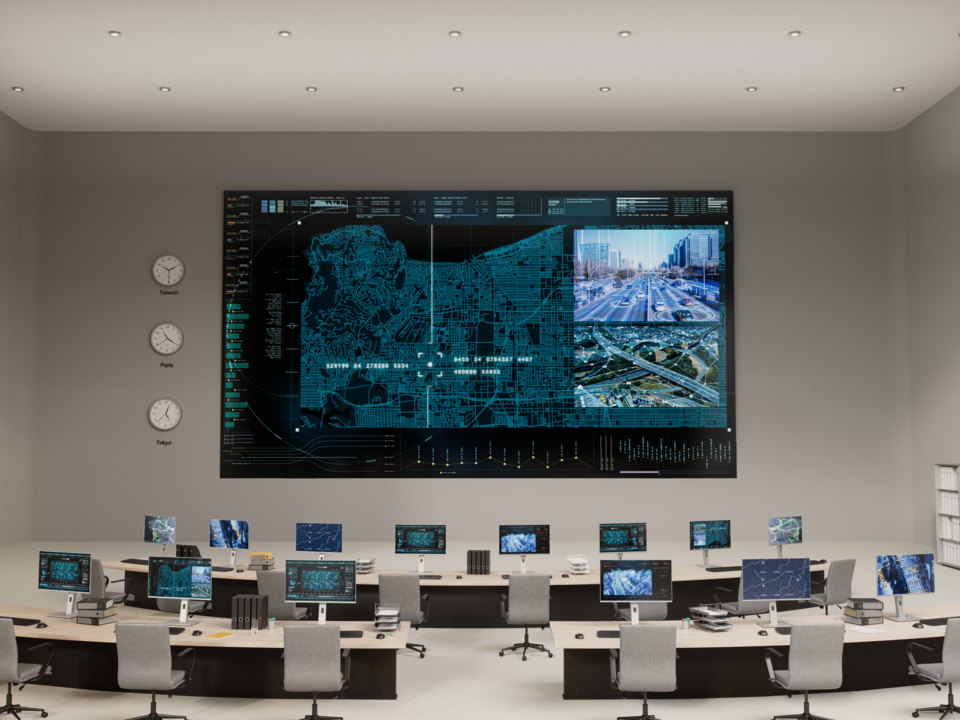

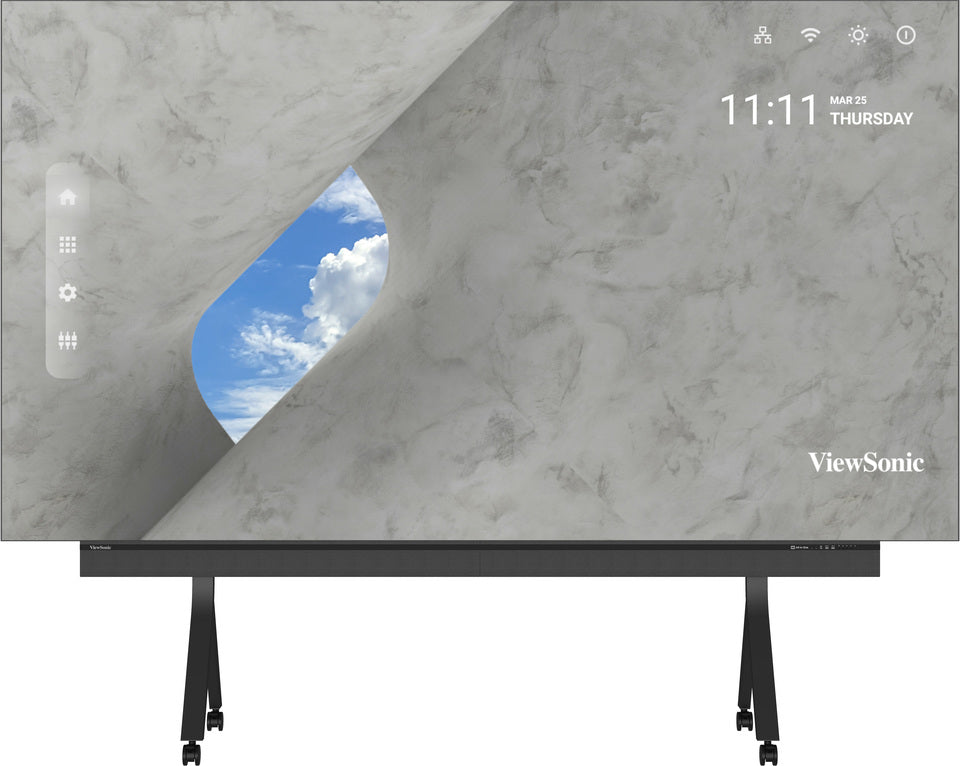

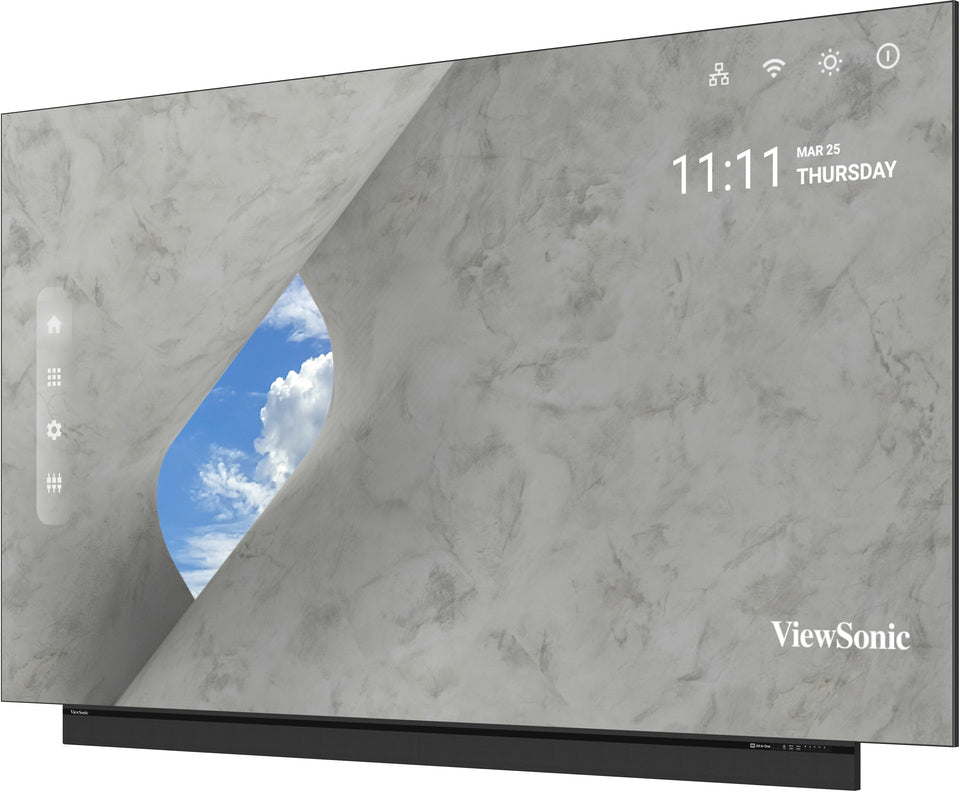

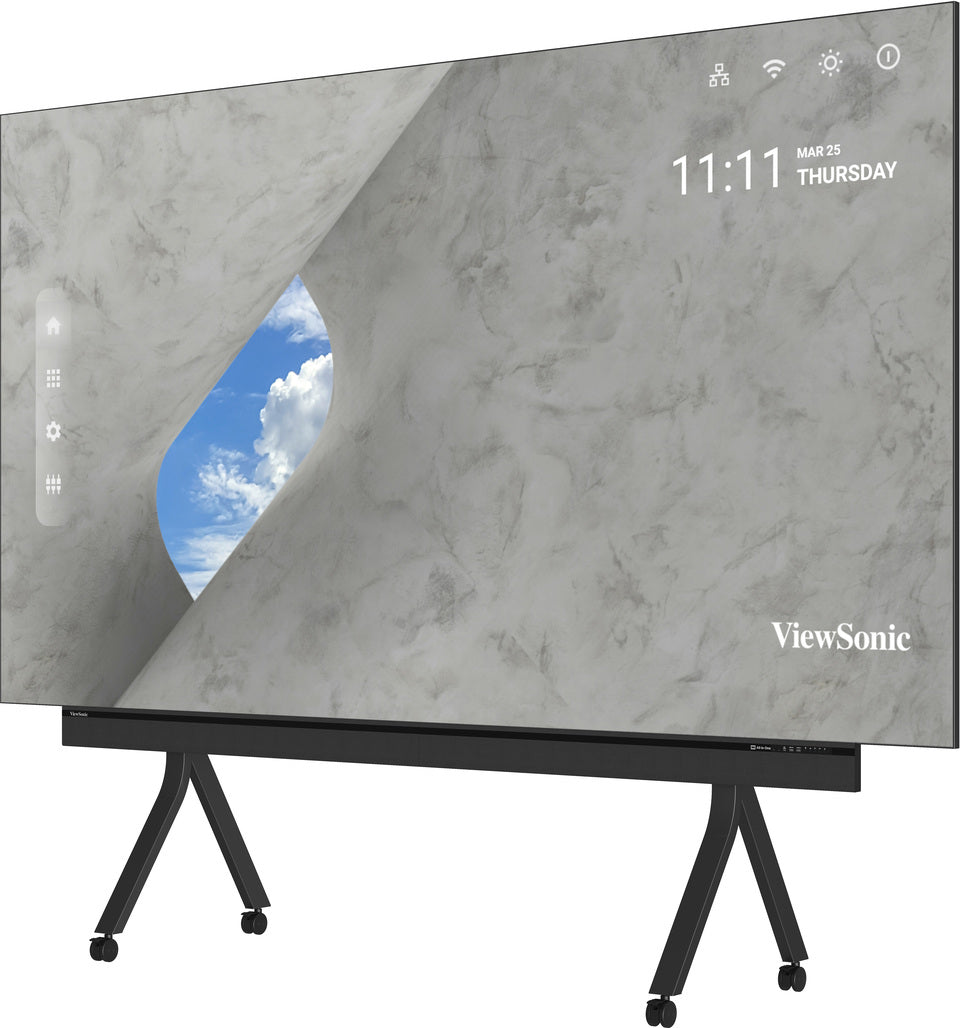

The ViewSonic LDP163-091C is a premium 163-inch All-in-One LED Display engineered for professional collaboration and visual impact. Featuring 4K UHD resolution with Mini LED technology, it delivers ultra-fine image detail, vibrant color accuracy, and deep contrast for dynamic presentations and immersive environments. Built with Chip-on-Board (COB) LED technology, the display achieves outstanding durability with IP54 and IK08 ratings—resistant to dust, moisture, and impact, making it ideal for high-traffic corporate, retail, and command spaces.
Installation is effortless thanks to its All-in-One integration, which consolidates power, control, image stitching, and display into a single streamlined unit. The 31mm ultra-slim profile and bezel-free design complement any modern workspace, while energy-efficient common cathode LEDs and smart ICs reduce power consumption.

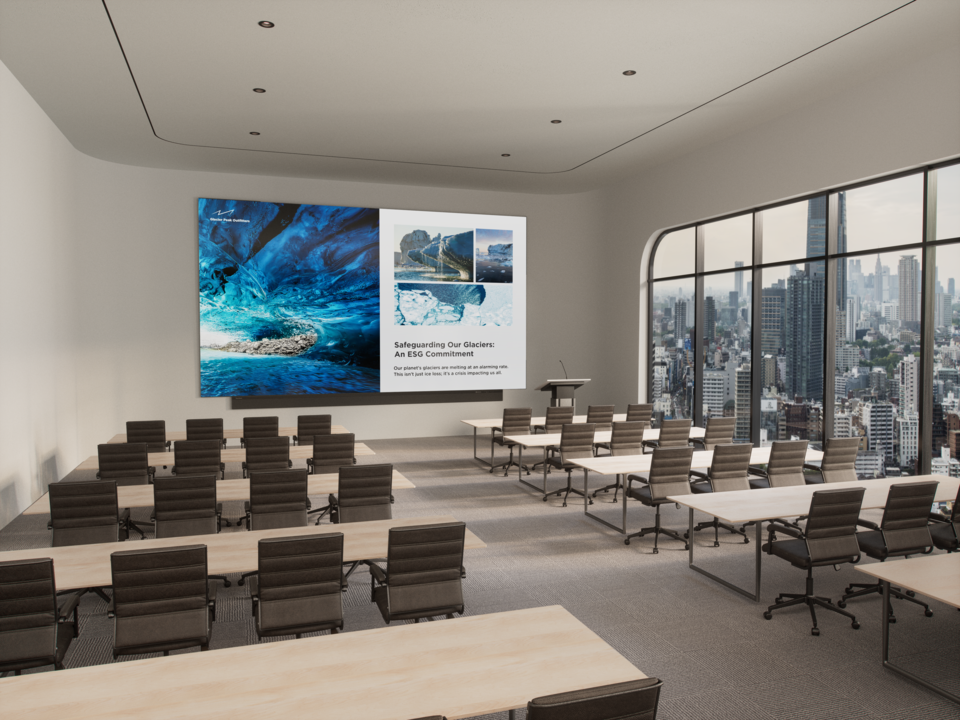

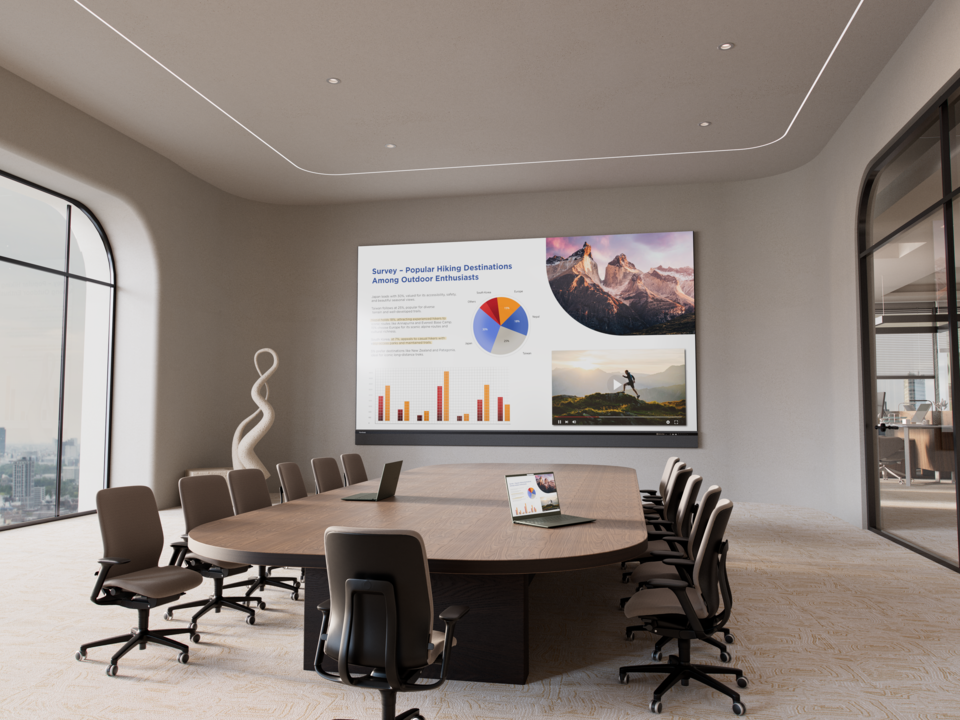

For seamless collaboration, it supports PIP/PBP screen-split modes, LAN control, and wireless content sharing via ViewShare and AirSync (optional). With its built-in Android system, versatile connectivity, and future-ready integration, the LDP163-091C redefines performance and simplicity for executive boardrooms, training centers, and digital signage applications.
| Category | Specification |
|---|---|
| Display | |
| Screen Size | 163" |
| Display Area (mm) | 3600 (H) x 2025 (V) |
| Native Resolution | 3840 x 2160 (4K UHD) |
| Panel Technology | Direct View LED |
| LED Package Type | Flip Chip COB |
| Pixel Pitch | 0.93 mm |
| Brightness (Max) | 600 nits (100 levels adjustable) |
| Contrast Ratio | 10,000:1 (typical) |
| Orientation | Landscape |
| Viewing Angle | 170° (H) / 170° (V) |
| LED Lifetime | 100,000 hours |
| Local Storage | 32GB total (26GB available) |
| Embedded OS | Android 9.0 |
| Resolution Support | VGA (640x480) to 4K (3840x2160 @ 60Hz) |
| HDTV Compatibility | 480p, 576p, 720p, 1080p, 2160p |
| Horizontal Frequency | 31kHz–94kHz |
| Vertical Scan Rate | 56–85Hz |
| Input Interfaces | |
| HDMI | 4 (HDMI 2.0/HDCP 2.2 – internal x3, external x1) |
| USB Type-A | 3 (USB 3.0 x1, USB 2.0 x2) |
| RJ45 Input | 3 (Internet x2, Control x1) |
| IR In (3.5mm) | 1 |
| Wi-Fi | 2.4G/5G Hz |
| USB Type-C | 1 (Data only) |
| Output Interfaces | |
| HDMI Out | 1 (HDMI 2.0/HDCP 2.2) |
| Speaker Output | 30W x2 |
| Audio Out (3.5mm) | 2 |
| S/PDIF | 1 |
| USB Type-A (Power) | 5V (0.5A–2A shared) |
| USB Type-C (Power) | 5V/1A |
| Control | |
| RJ45 (LAN Control) | 1 (Shared with Internet) |
| USB Type-A (Service) | 1 (Shared) |
| RS232 | 1 (DB 9-pin female) |
| IR Receiver | 1 |
| Power | |
| Voltage | 100–120V/30A ~ 50/60Hz or 220–240V/15A ~ 50Hz (varies by country) |
| Power Consumption | 805W (typical), 2414W (max), <0.5W (Hibernate) |
| Physical Characteristics | |
| Operating Temperature | 0°C – 40°C |
| Total LED Modules | 288 |
| IP Rating | IP54 (Front) |
| Impact Protection | IK08 (Front) |
| Net Weight | 232 kg (511.47 lbs) |
| Gross Weight | 361 kg (798.87 lbs) |
| Product Dimensions (W x H x D) | 3612 x 2172 x 41 mm (142.20 x 85.51 x 1.61 in) |
| Dimensions with Wall Mount | 3612 x 2172 x 59.8 mm (142.20 x 85.51 x 2.35 in) |
| Packing Dimensions | 2280 x 1080 x 1200 mm (89.76 x 42.52 x 47.24 in) |
| Standard Accessories | Power Cord, LAN Cable (Cat 5E), IR Extender, Remote Control, Installation Guide, Wall Mount, Spare LED Modules (x20), Maintenance Tools (LD-MK-004 x1, LD-MK-006 x1) |
| Optional Accessories | Maintenance Tools and Control Boxes (sold separately) |
