Description

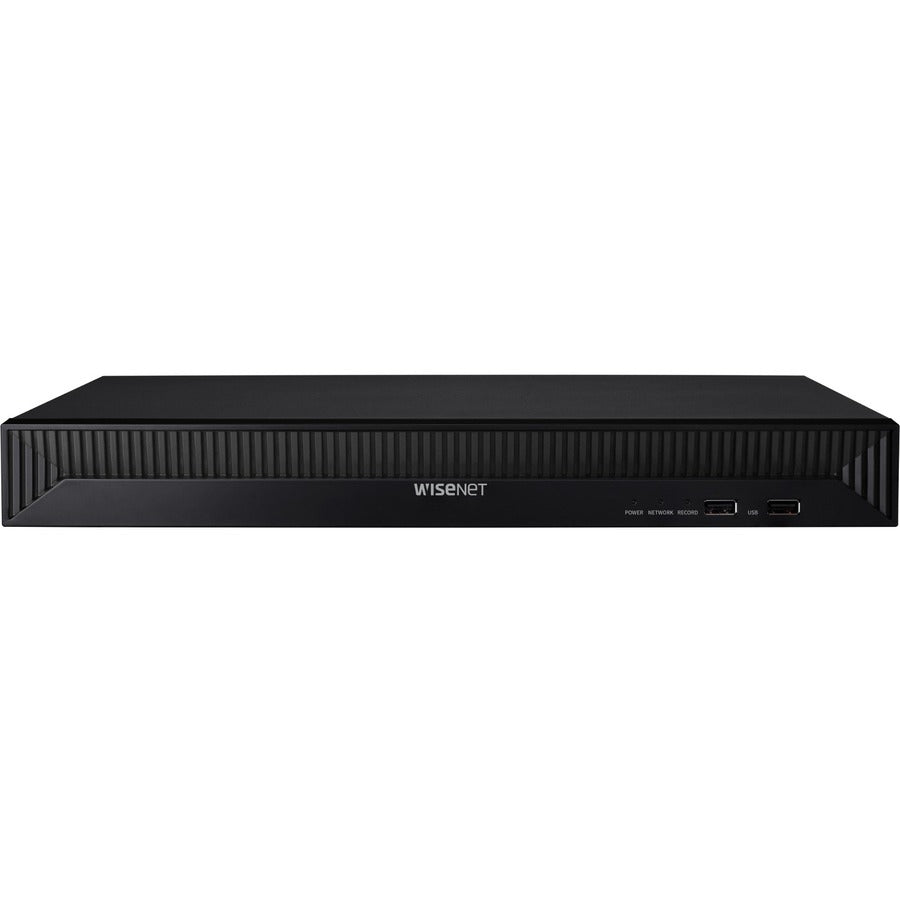

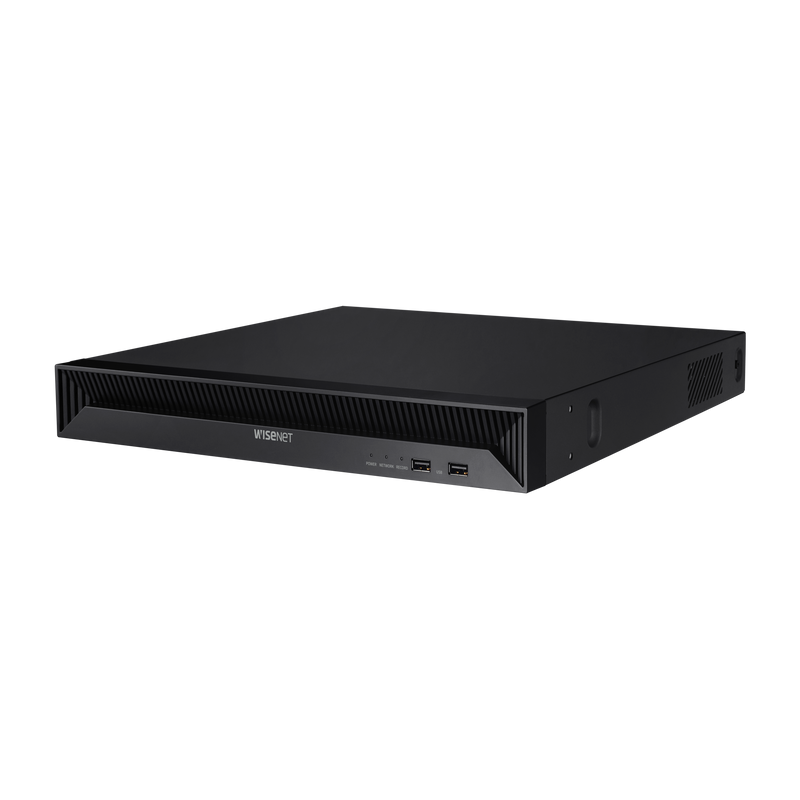

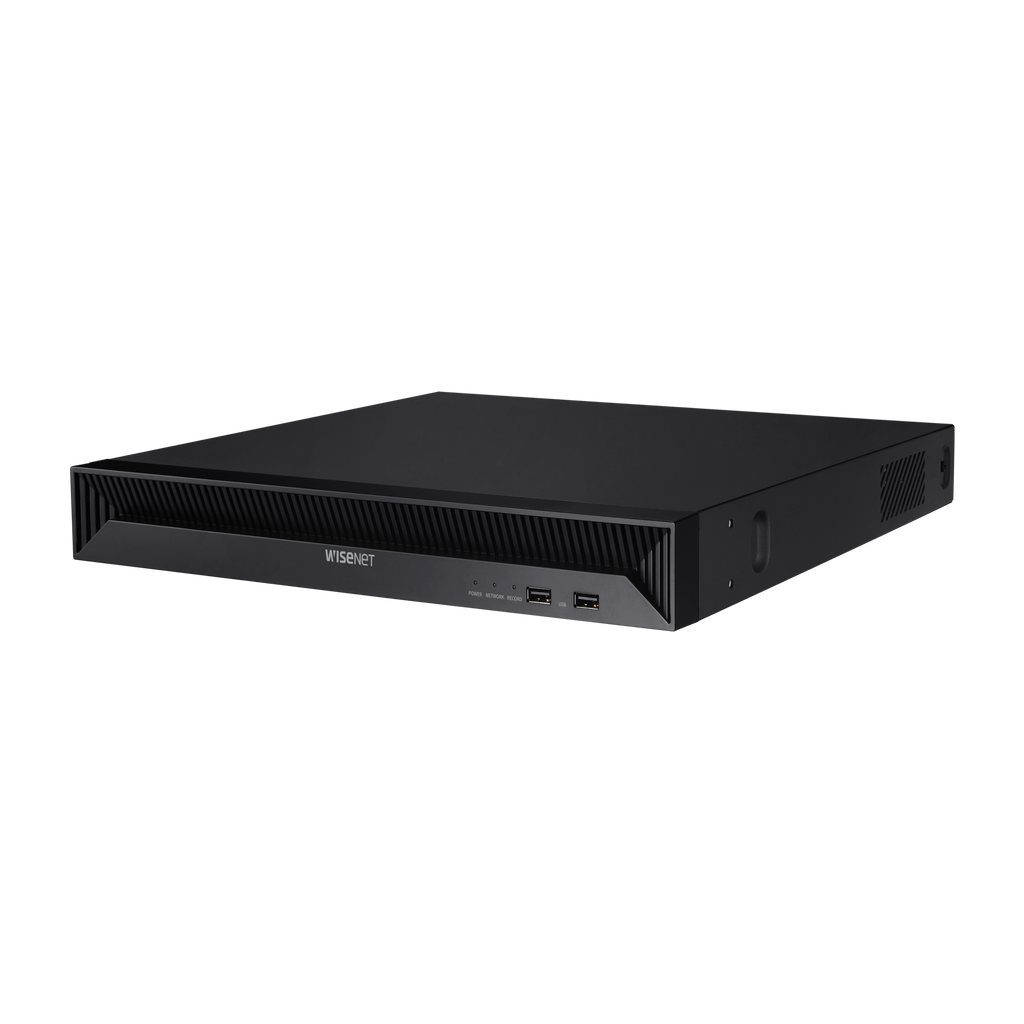

The Wisenet QRN-1630S-10TB is a high-performance 16-channel PoE network video recorder designed for reliable, streamlined, and scalable surveillance. Built to support up to 8MP recording, it delivers clear, efficient video using advanced H.265/H.264/MJPEG compression. With 16 built-in PoE ports and a 130W power budget, it enables true plug-and-play installation for IP cameras.
This model includes a pre-installed 10TB HDD and supports up to two drives (max 20TB), making it ideal for medium-to-large deployments requiring high-capacity storage. Dual HDMI outputs allow simultaneous 4K and Full HD display, while ARB (Automatic Recovery Backup) ensures footage protection during network interruptions.
The NVR features enhanced event triggers, smart search tools, mobile app connectivity, P2P (QR code) setup, and full compatibility with Wisenet Viewer, Wisenet Mobile, and major VMS platforms. NDAA and FCC compliance make it suitable for government and enterprise applications.
| Category | Specification |
|---|---|
| Model | QRN-1630S-10TB |
| Channels | 16CH Network Camera Inputs |
| Camera Resolution Support | 8MP ~ CIF |
| Video Codecs | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 128Mbps |
| Recording Modes | Normal, Dual Stream, Schedule, Event (Pre/Post), Bookmark |
| Playback Bandwidth | Max. 32Mbps |
| Simultaneous Playback | Up to 40CH (16 Local, 8CH per remote user) |
| Decoding / Display | HDMI1: 3840×2160 (30Hz), HDMI2: 1920×1080 (60Hz) |
| Multi-Screen | Up to 16 divisions |
| Local Monitor Resolution | 8MP (60fps), 1080p (240fps), 720p (480fps), D1 (960fps) |
| HDD Storage | 1×10TB included (supports up to 2×10TB, max 20TB) |
| SATA Slots | 2ea |
| PoE Ports | 16× PoE+ (LAN 10/100) |
| WAN/LAN Ports | 2× RJ-45 (1Gbps) |
| PoE Budget | 130W |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, NTP, DHCP, IGMP, DDNS, SNMP, ONVIF Profile S, SUNAPI |
| Audio I/O | 16CH network audio, 1× RCA audio out |
| Audio Codecs | G.711, G.726, AAC |
| Alarm I/O | 4 Alarm In / 2 Alarm Out |
| USB Ports | 2× USB 2.0 (front) |
| Mobile Support | iOS, Android; Wisenet Mobile App |
| Failover | N+1 Supported |
| ARB (Automatic Recovery Backup) | Supported |
| P2P QR Code Setup | Supported |
| Operating System | Embedded Linux |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 20%–85% RH |
| Power Input | 100–240VAC ±10%, 50/60Hz |
| Power Consumption | Max. 200W (with PoE ON, 2 HDD) |
| Dimensions | 370 × 50.7 × 320 mm (14.57 × 2.00 × 12.60 in) |
| Weight | 2.87 kg (6.33 lb) |
| Compliance | NDAA & FCC |
