Description

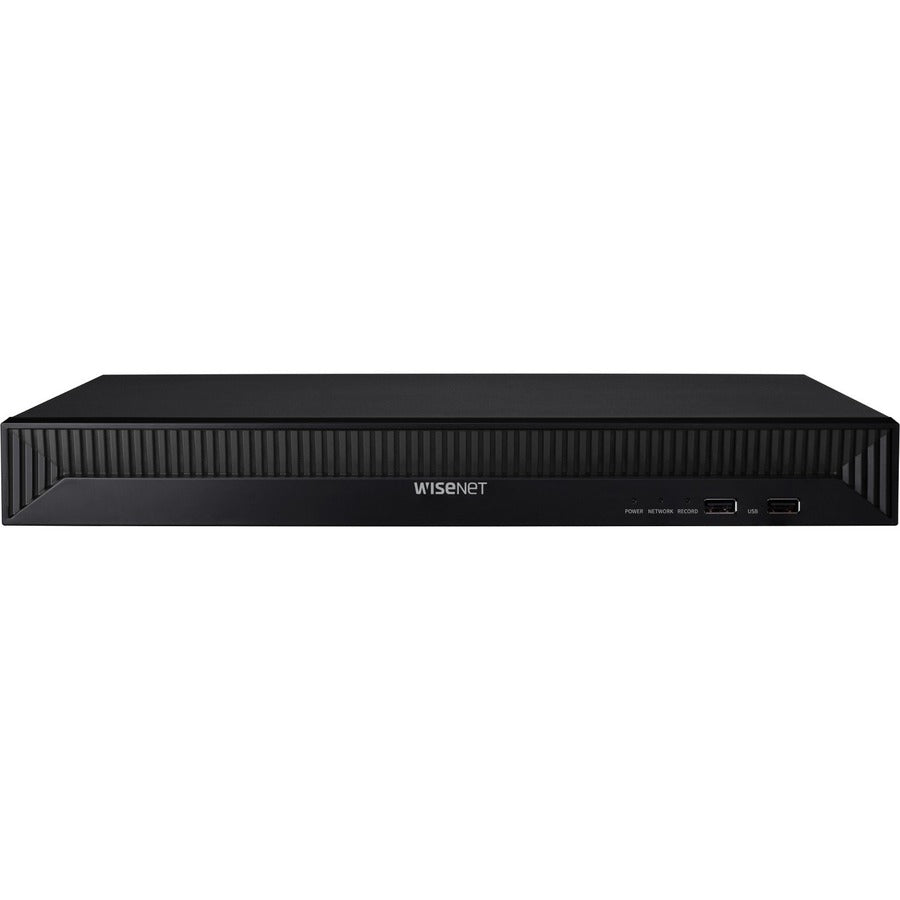

The Wisenet QRN-1630S 16-Channel PoE NVR with 12TB storage is built for powerful, reliable, and secure video surveillance. Supporting up to 16 channels at resolutions up to 8MP, this NVR delivers smooth recording performance with H.265/H.264/MJPEG codec options and a total recording bandwidth of 128 Mbps.
Designed for easy deployment, the unit features 16 built-in PoE ports (130W budget) for true plug-and-play setup, plus dual HDMI outputs for local 4K display monitoring. With Automatic Recovery Backup (ARB), the system ensures continuous recording by retrieving edge-stored video from compatible cameras during network interruptions.
The QRN-1630S supports up to two SATA HDDs (20TB max) and includes advanced features such as dual-stream recording, smart search, fisheye dewarping, P2P mobile access, and seamless integration with Wisenet Viewer, Wisenet Mobile, and third-party VMS platforms. NDAA and FCC compliance make it suitable for government and high-security environments.
| Category | Specification |
|---|---|
| SKU | QRN-1630S-12TB |
| Channels | Up to 16CH |
| Max Resolution | 8MP ~ CIF |
| Video Codecs | H.265, H.264, MJPEG |
| Recording Bandwidth | 128 Mbps max |
| Display Outputs | HDMI1: 3840×2160 (30Hz), HDMI2: 1920×1080 (60Hz) |
| Multi-Screen Display | Up to 16-division layouts |
| PoE Ports | 16 × PoE+ (10/100 Mbps) |
| PoE Budget | 130W |
| WAN/LAN Ports | 2 × RJ-45 (1Gbps) |
| HDD Support | 2 × SATA, up to 10TB each (20TB max) |
| Included Storage | 12TB HDD |
| Backup Options | BU/EXE/AVI via GUI, JPG/AVI via network |
| Event Inputs/Outputs | 4 × Alarm In, 2 × Alarm Out |
| Audio | 16CH network audio, RCA audio out |
| Smartphone Support | iOS / Android (P2P QR setup supported) |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, NTP, HTTP, DHCP, SNMP, HTTPS, ONVIF, SUNAPI and more |
| Security | 802.1X, IP filtering, signed firmware, device certificate |
| Operating System | Embedded Linux |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 20% ~ 85% RH |
| Power Input | 100-240VAC, 50/60Hz |
| Power Consumption | Max 200W (with 2 HDDs, PoE On) |
| Dimensions | 370 × 50.7 × 320 mm (14.57 × 2.00 × 12.60 in) |
| Weight | 2.87 kg (6.33 lb) |
| Compliance | NDAA & FCC |
