Description

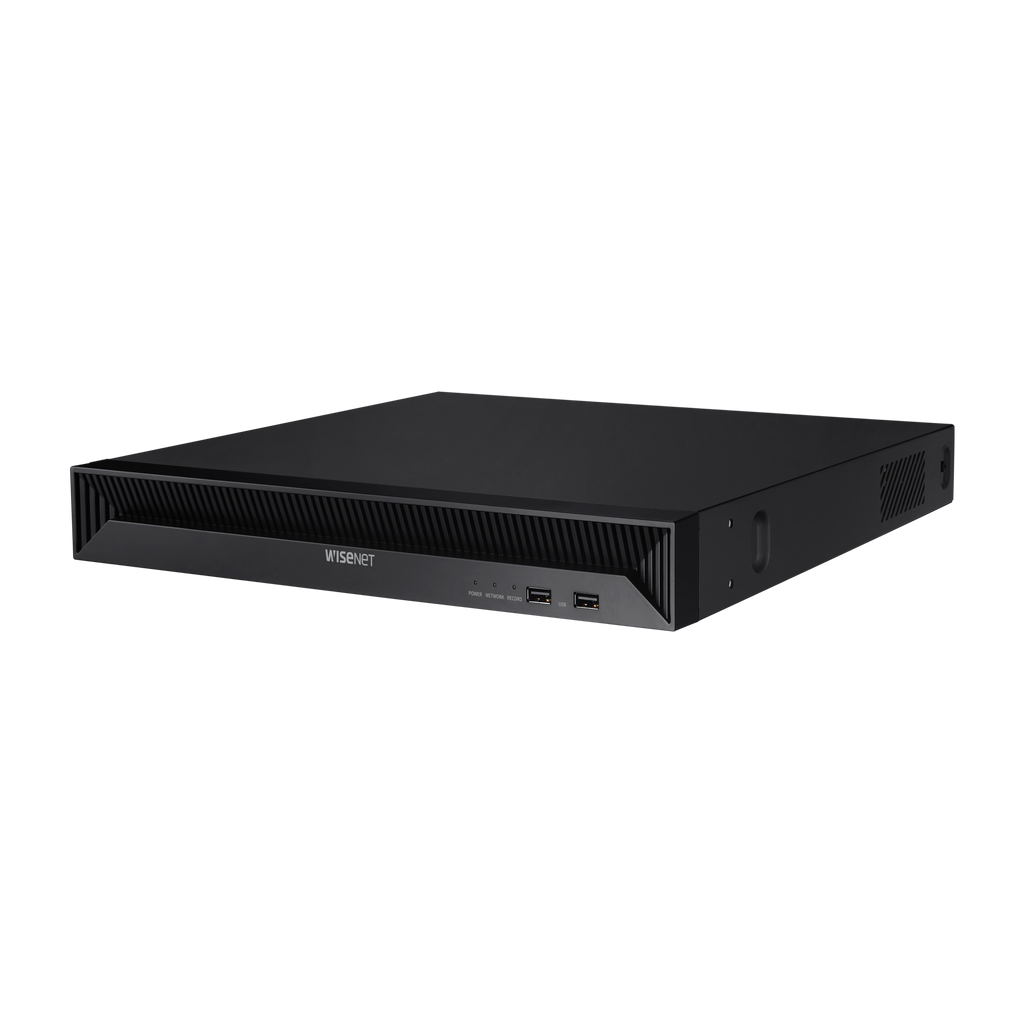

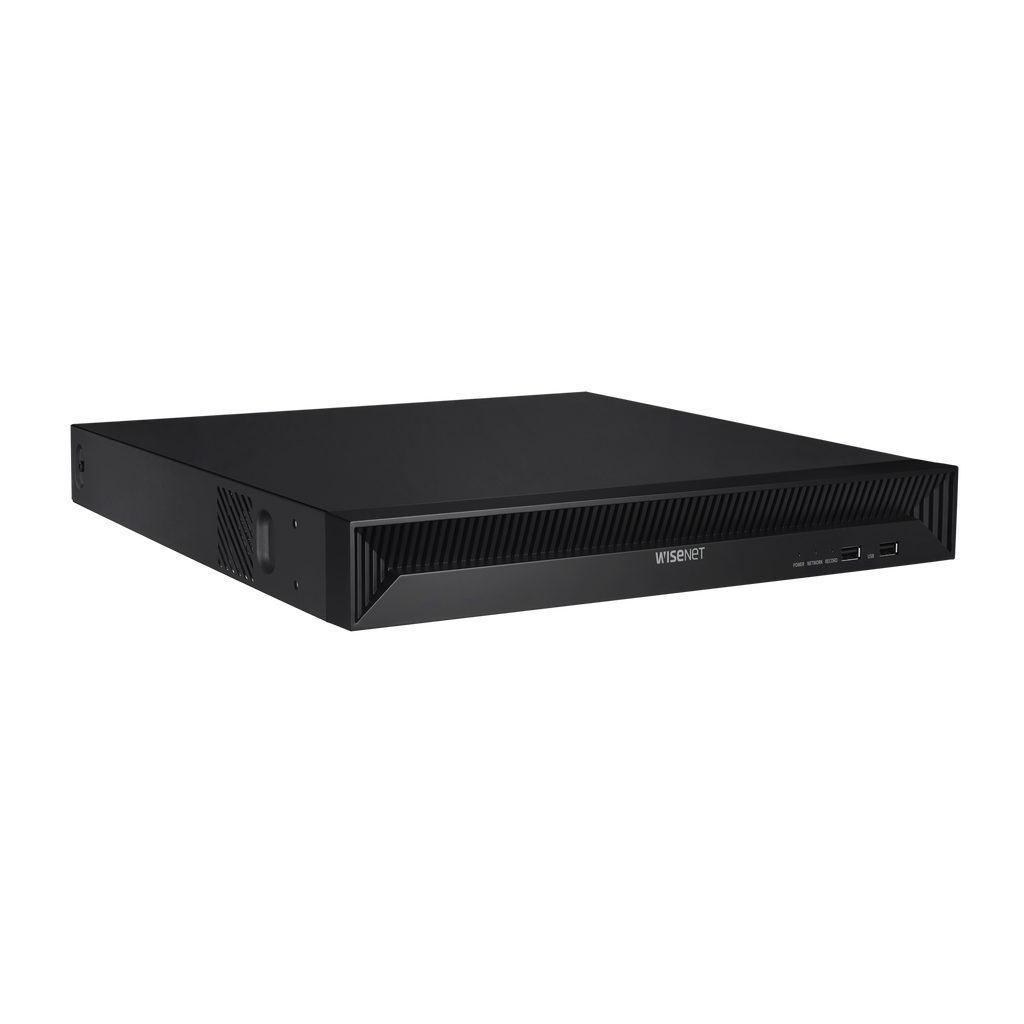

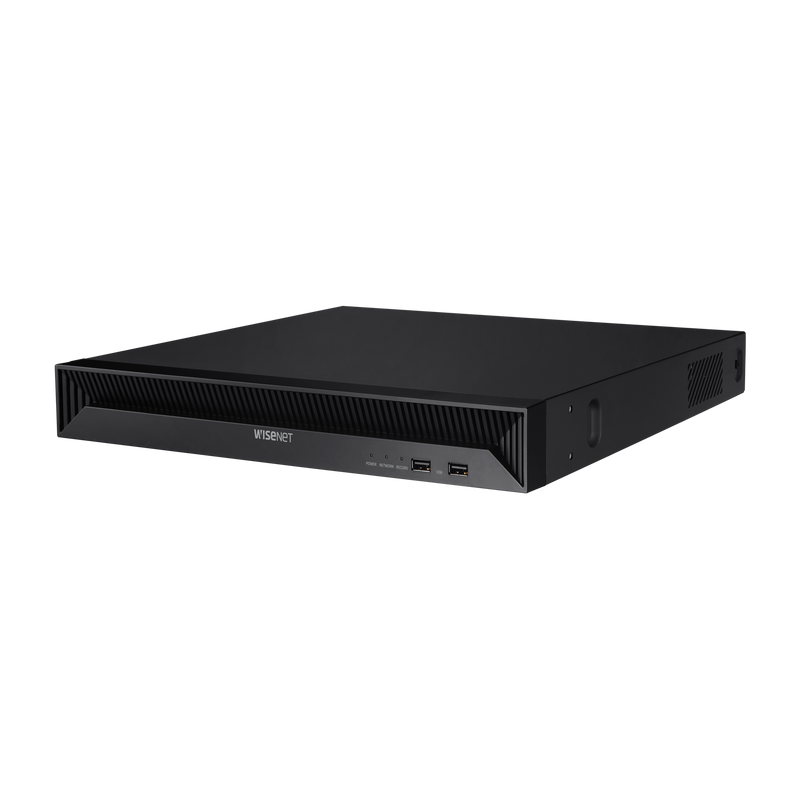

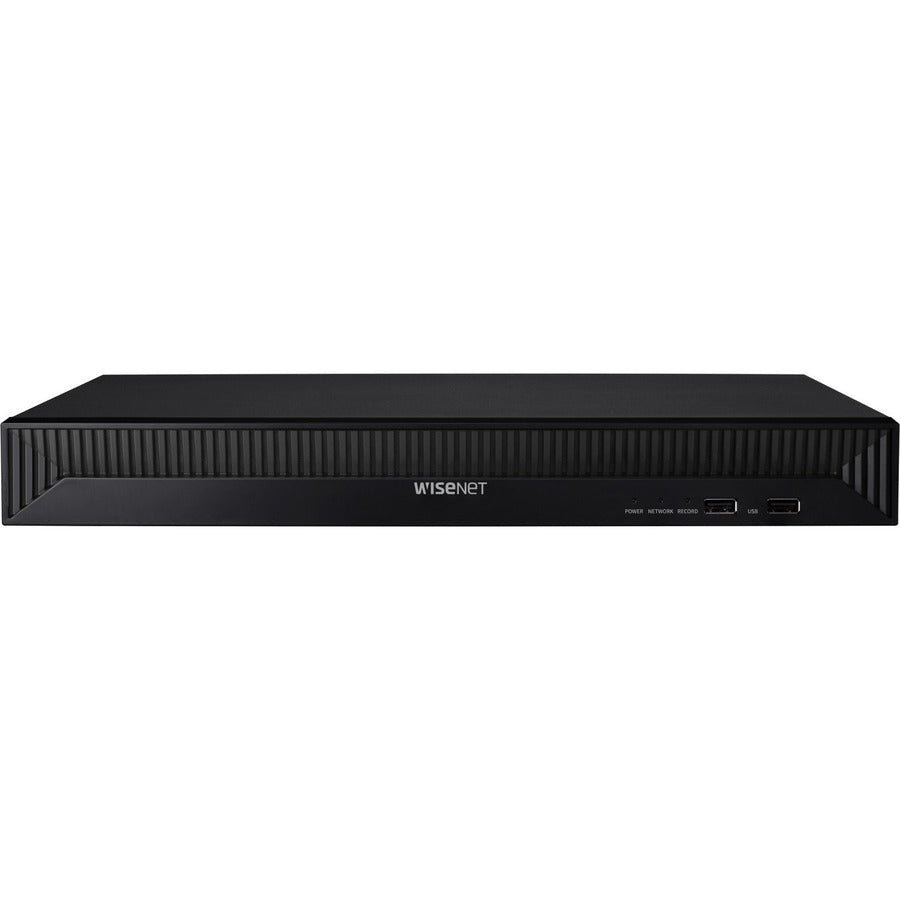

The Wisenet QRN-1630S-16TB is a high-performance 16-channel PoE network video recorder designed for reliable, scalable, and NDAA-compliant surveillance environments. Supporting up to 8MP resolution and advanced H.265/H.264/MJPEG codecs, this NVR delivers efficient video storage, smooth playback, and optimized bandwidth use.
Equipped with 16 built-in PoE ports (130W budget), dual HDMI outputs with up to 4K display, and dual-stream recording, the QRN-1630S provides simple installation and flexible monitoring. Automatic Recovery Backup (ARB) ensures uninterrupted recording during network interruptions, while P2P QR-code connection enables quick setup using the Wisenet Mobile App.
Ideal for commercial, industrial, and enterprise applications needing long-term retention, the 16TB configuration provides robust storage with support for up to two HDDs (up to 10TB each).
| Category | Details |
|---|---|
| SKU | QRN-1630S-16TB |
| Channels | Up to 16CH |
| Maximum Camera Resolution | 8MP |
| Supported Codecs | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 128Mbps |
| Display Outputs | HDMI1: 3840×2160 (30Hz); HDMI2: 1920×1080 (60Hz) |
| Local Monitor Resolution | Up to 8MP (60fps) |
| Multi-Screen Display | Dynamic layouts; up to 16-division |
| Recording Modes | Normal, Dual Stream, Schedule, Event, Pre/Post-Event, Bookmark |
| Playback | Up to 40CH simultaneous (Local 16CH; Remote 8CH/user) |
| Playback Bandwidth | Max. 32Mbps |
| Supported HDD | Up to 2 SATA drives (max 20TB total; 10TB per drive) |
| Included Storage | 16TB |
| Backup Options | BU/EXE/AVI (GUI), JPG/AVI (Network) |
| Audio Support | 16CH (network), 2-way audio |
| Alarm I/O | 4 Alarm In / 2 Alarm Out |
| Audio Output | RCA (1EA) |

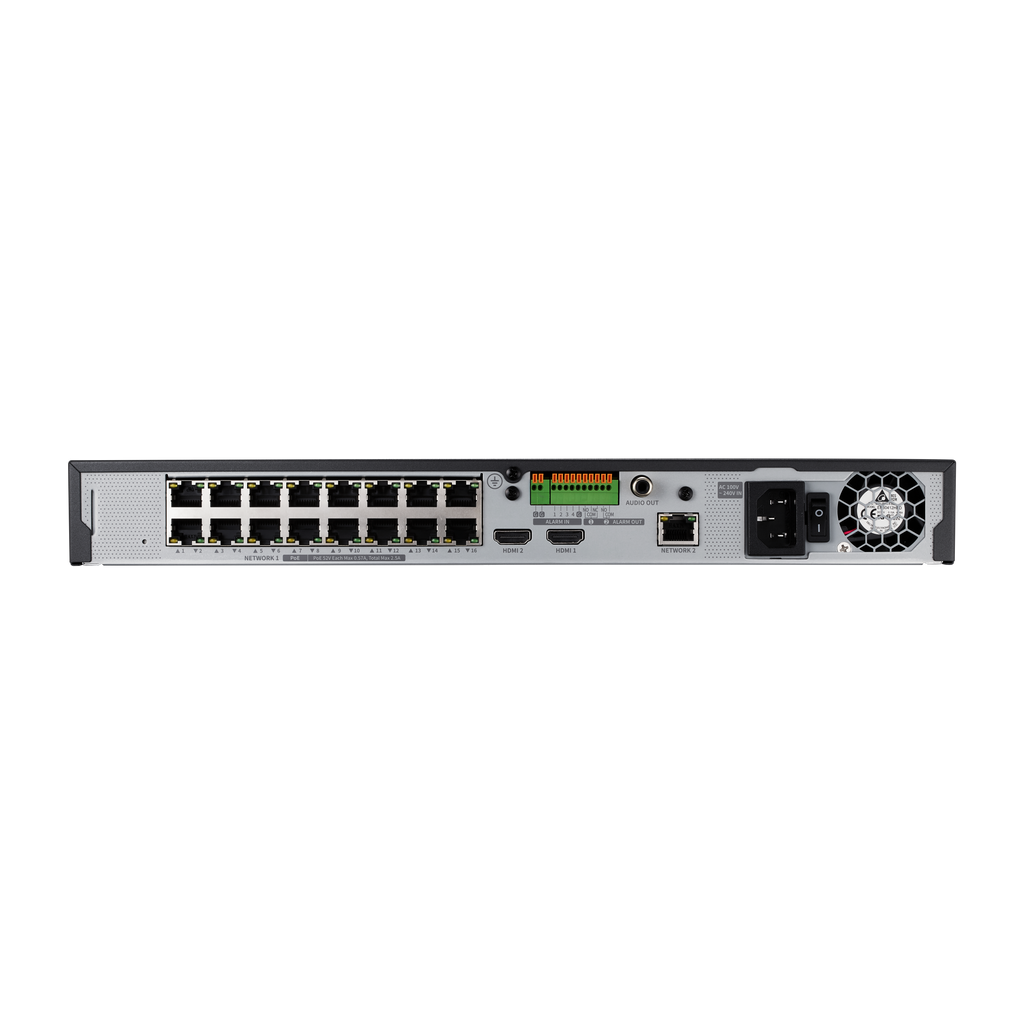

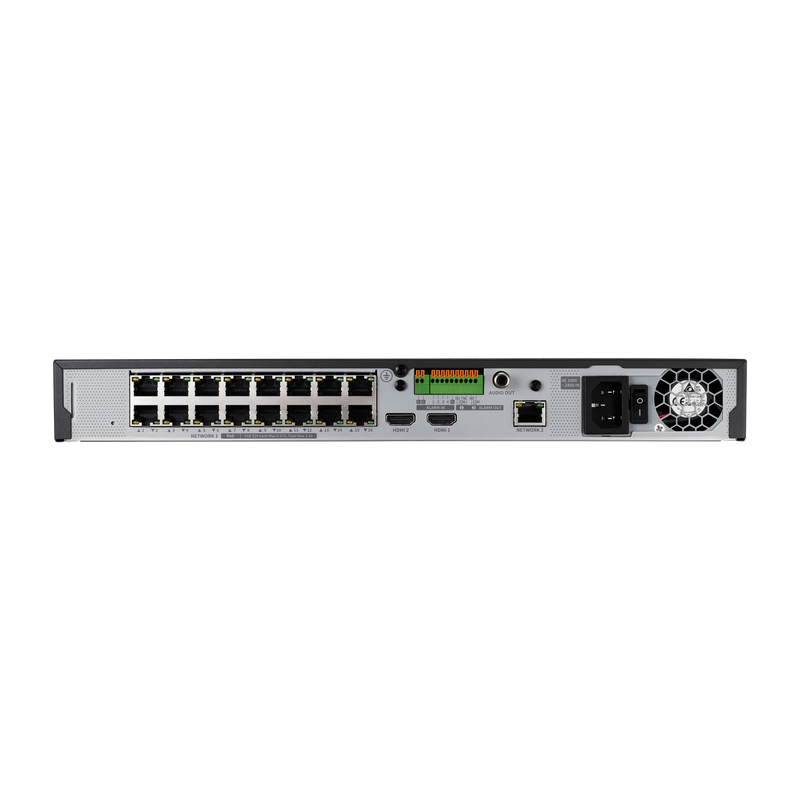

| Network Ports | 16 PoE+ LAN (10/100), 1 GbE WAN/LAN |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, DHCP, NTP, SMTP, SNMP, DDNS, SUNAPI, ONVIF Profile-S |
| PoE Budget | 130W |
| Mobile Support | Android & iOS (Wisenet Mobile App) |
| P2P Setup | QR-code easy connect |
| Failover | N+1 support |
| Operating System | Embedded Linux |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 20%–85% RH |
| Power Input | 100–240VAC ±10%, 50/60Hz |
| Power Consumption | Max. 200W (with PoE ON, 2 HDD) |
| Dimensions | 370 × 50.7 × 320 mm (14.57 × 2.00 × 12.60 in) |
| Weight | 2.87kg (6.33 lb) |
| Compliance | NDAA & FCC Compliant |
| Color / Material | Black / Metal |
