Description

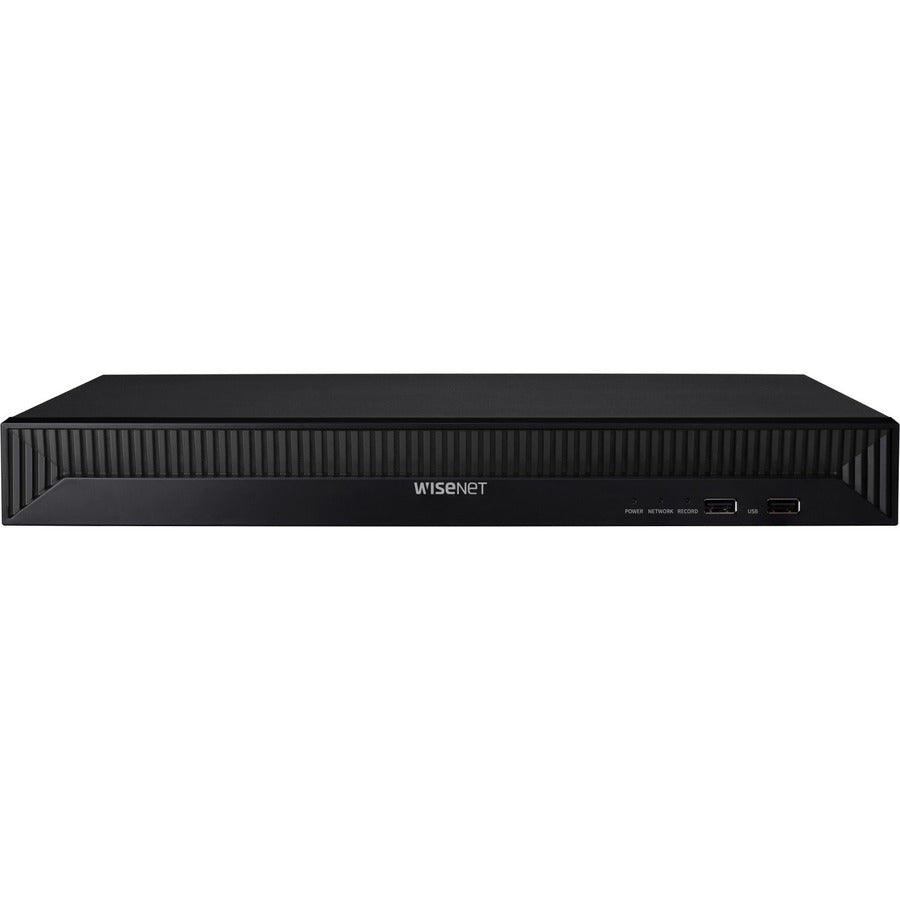

The Wisenet QRN-1630S-20TB is a high-performance 16-channel PoE Network Video Recorder designed for professional surveillance environments. Supporting up to 8MP resolution, advanced H.265/H.264/MJPEG codecs, and a 128Mbps recording bandwidth, it delivers efficient, high-quality video streaming and storage.
With 16 built-in PoE ports (130W budget), installation is plug-and-play, providing seamless connectivity for Wisenet IP cameras. Dual HDMI outputs support local 4K and 1080p display, while the Automatic Recovery Backup (ARB) feature ensures continuous video recovery if network interruptions occur.
Equipped with 20TB of storage (2x HDD slots, up to 10TB each), remote P2P connectivity, Wisenet Mobile app support, advanced event triggers, and full NDAA/FCC compliance, this NVR is ideal for commercial, enterprise, and mission-critical security applications.
| Category | Details |
|---|---|
| Model | Wisenet QRN-1630S-20TB |
| Channels | Up to 16 channels |
| Max Camera Resolution | Up to 8MP |
| Video Codecs | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 128Mbps |
| Display Outputs | HDMI1: 3840×2160 (30Hz), HDMI2: 1920×1080 (60Hz) |
| Multi-Screen Display | Up to 16-division view |
| Local Display Resolution Support | 8MP (60fps), 1080p (240fps), 720p (480fps), D1 (960fps) |
| Recording Modes | Normal, Dual Stream, Schedule, Event (Pre/Post), Bookmark |
| Event Triggers | Alarm input, video loss, camera analytics, audio, motion detection |
| Event Actions | Email, push alert, PTZ preset, alarm out, buzzer, monitor out, FTP |
| Playback Bandwidth | Max. 32Mbps |
| Simultaneous Playback | Up to 40CH (Local 16CH, Remote 8CH/user) |
| HDD Support | 2x SATA, up to 10TB each (20TB max) |
| Included Storage | 20TB pre-installed |
| Backup Formats | BU/Exe/AVI/JPG |
| PoE Ports | 16 ports (LAN 10/100), PoE+; 130W PoE budget |
| Network Ports | 2× RJ-45 (LAN/WAN 1Gbps) |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, NTP, DHCP, HTTPS, SNMP, ONVIF, SUNAPI |
| Mobile Support | iOS, Android (Wisenet Mobile App) |
| Remote Users | Search: 3 / Live Unicast: 10 / Multicast: 20 |
| Audio | 16CH (network), G.711/G.726/AAC; 2-way audio |
| Alarm I/O | 4 inputs / 2 outputs |
| USB Ports | 2× USB 2.0 (front) |
| Power Input | 100–240VAC, 50/60Hz |
| Power Consumption | Max. 200W with PoE ON |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 20%–85% RH |
| Dimensions | 370 × 50.7 × 320 mm (14.57 × 2.00 × 12.60 in) |
| Weight | 2.87 kg (6.33 lb) |
| Compliance | NDAA & FCC Compliant |
| Additional Features | ARB support, fisheye dewarping, failover N+1, P2P QR-code connection |
