Description

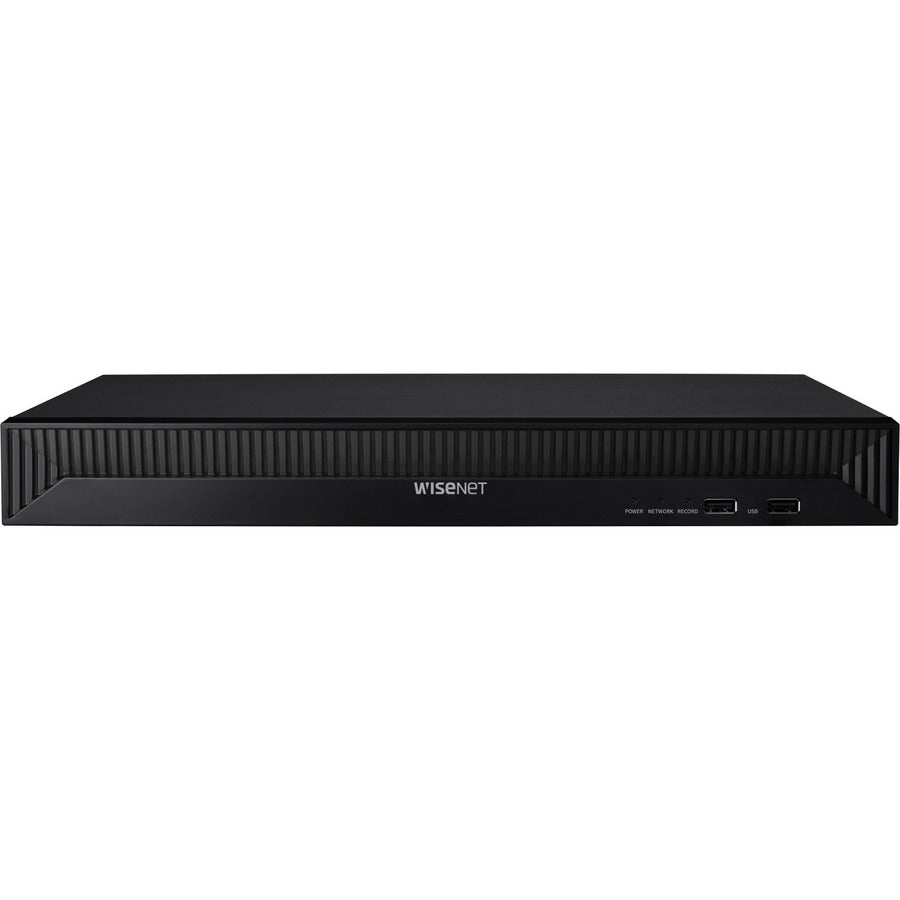

The Wisenet QRN-1630S-6TB is a high-performance 16-channel PoE Network Video Recorder built for reliable, scalable, and secure video surveillance. Designed for medium to large deployments, it supports up to 8MP resolution, 128Mbps recording bandwidth, and dual HDMI outputs including 4K local display.
With 16 integrated PoE ports (130W budget), the NVR simplifies installation by powering all connected cameras directly. Advanced features such as Dual Stream recording, Automatic Recovery Backup (ARB), fisheye dewarping, and multi-channel playback ensure powerful monitoring and retrieval capabilities.
The system offers seamless remote access using P2P QR-code setup, compatibility with Wisenet Mobile Apps, Wisenet Viewer, and major web browsers. Built with robust security features, redundancy options, and NDAA/FCC compliance, the QRN-1630S-6TB delivers enterprise-class performance in a compact, easy-to-deploy form factor.
| Category | Details |
|---|---|
| Model | QRN-1630S-6TB |
| Channels | 16CH Network Video Recorder |
| Camera Support | Up to 16 channels, 8MP resolution |
| Video Codecs | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 128Mbps |
| Recording Modes | Normal, Dual Stream, Schedule, Event, Pre/Post Event, Bookmark |
| Local Display Outputs | HDMI1: 3840×2160 (30Hz); HDMI2: 1920×1080 (60Hz) |
| Local Display FPS | Up to 8M @ 60fps |
| PoE Ports | 16× PoE+ (10/100 LAN), 130W PoE budget |
| WAN/LAN Ports | 2× RJ-45 (1Gbps) |
| Storage Capacity | Pre-installed 6TB HDD; Supports up to 2× SATA (max 10TB each / 20TB total) |
| Backup Formats | BU, EXE, AVI, JPG |
| Playback | Up to 40CH simultaneous (Local 16CH, Remote 8CH per user) |
| Audio Support | G.711, G.726, AAC; 2-way audio |
| Alarm I/O | 4× Alarm In, 2× Alarm Out |
| USB Ports | 2× USB 2.0 (front) |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTSP, RTP, HTTP, DHCP, SMTP, SNMP, ONVIF, SUNAPI |
| Security | IP filtering, access logs, device certificates, signed firmware, 802.1X |
| Mobile Support | iOS & Android (Wisenet Mobile App) |
| Operating System | Embedded Linux |
| Power Input | 100–240VAC, 50/60Hz |
| Power Consumption | Max. 200W (with PoE and 2 HDDs) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions | 370 × 50.7 × 320 mm (14.57 × 2.00 × 12.60 in) |
| Weight | 2.87kg (6.33 lb) |
| Compliance | NDAA & FCC compliant |
| Features | ARB edge recording retrieval, Fisheye dewarping, PTZ presets, P2P QR setup |
