Description

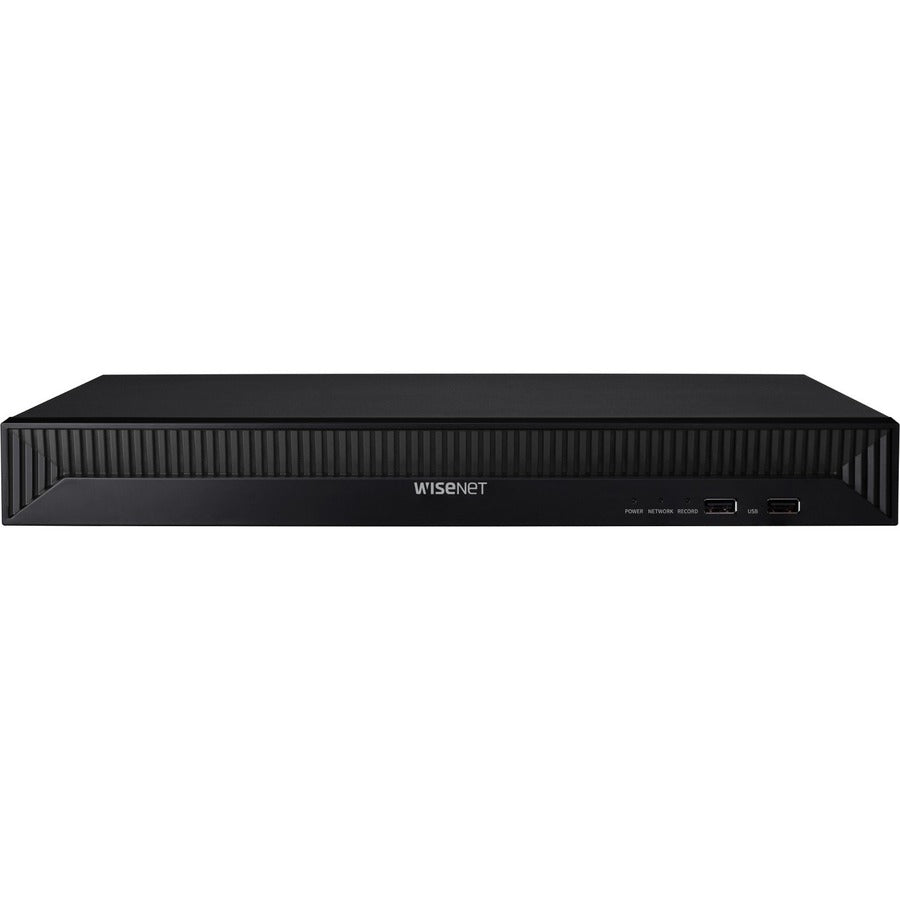

The Wisenet QRN-1630S-8TB is a high-performance 16-channel PoE NVR designed for reliable, scalable, and secure video surveillance. Supporting up to 8MP resolution and powered by H.265/H.264/MJPEG codecs, it delivers efficient recording with reduced bandwidth consumption. With 16 built-in PoE ports (130W budget), installation becomes plug-and-play, eliminating the need for external switches.
This model includes an 8TB pre-installed hard drive and supports up to two internal SATA drives (maximum 20TB). It offers dual HDMI outputs with up to 4K local display, ARB (Automatic Recovery Backup) for uninterrupted recording, and seamless remote access via P2P QR code pairing with Wisenet Mobile and Wisenet Viewer.
Equipped with advanced event handling, dual-stream recording, multiple display layouts, alarm I/O, and NDAA/FCC compliance, the QRN-1630S-8TB is built for professional security deployments requiring dependable performance and easy setup.
| Category | Specification |
|---|---|
| Channels & Video | Up to 16 channels, supports 8MP–CIF resolution |
| Video Codecs | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 128Mbps |
| Display Outputs | HDMI1: 3840×2160 (30Hz), HDMI2: 1920×1080 (60Hz) |
| Local Display | 8M (60fps), 1080p (240fps), 720p (480fps), D1 (960fps) |
| PoE Ports | 16× PoE+ LAN (10/100), 1× WAN (1Gbps), 130W PoE Budget |
| HDD Capacity | 2× SATA (up to 10TB each, max 20TB); 8TB installed |
| Backup Options | BU/EXE/AVI (GUI), JPG/AVI (Network) |
| Event Triggers | Alarm In, Video Loss, Motion, Analytics, Defocus, Audio |
| Event Actions | Email, Push, PTZ Preset, Alarm Out, Buzzer, FTP, Monitor Out |
| Audio | 16CH network audio, G.711/G.726/AAC |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP/RTSP, NTP, HTTP/HTTPS, SNMP, ONVIF Profile-S, SUNAPI |
| Remote Users | Search (3 users), Live Unicast (10 users), Multicast (20 users) |
| Mobile Support | iOS & Android (P2P QR setup) |
| Alarms & I/O | 4× Alarm In, 2× Alarm Out; 1× RCA Audio Out |
| USB Ports | 2× USB 2.0 (front) |
| Power Input | 100–240VAC, 50/60Hz |
| Power Consumption | Max. 200W (with PoE on, 2 HDD) |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Humidity | 20%–85% RH |
| Dimensions | 370 × 50.7 × 320 mm (14.57 × 2.00 × 12.60 in) |
| Weight | 2.87 kg (6.33 lb) |
| Compliance | NDAA & FCC compliant |
| Other Features | ARB support, Fisheye Dewarping (CMS), Failover N+1, Wisenet Viewer/WAVE/SSM compatibility |
